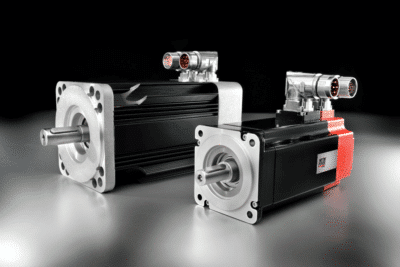

TC-E 40

Name: TC-E 40 - KOCO MOTION
SKU: TC-E 40

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. MwSt.

Flange dimensions: 40 mm
Rated Output Power: 50 – 100 W
Rated Torque: 0,16 – 0,32 Nm
Rated Speed: 3000 rpm

Artikelnummer: TC-E 40 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 40 mm
Rated Output Power: 50 – 100 W
Rated Torque: 0,16 – 0,32 Nm
Rated Speed: 3000 rpm

Produktvergleich

Specification	TC-E 40 1A B1 2	TC-E 40 1B C1 2	TC-E 40 1A B1 4	TC-E 40 1B C1 4
Continuous Stall Torque	0.16 Nm	0.32 Nm	0.16 Nm	0.32 Nm
Peak Torque	0.48 Nm	0.96 Nm	0.48 Nm	0.96 Nm
Nominal working Speed	3000 rpm	3000 rpm	3000 rpm	3000 rpm
Maximum working speed	6000 rpm	6000 rpm	6000 rpm	6000 rpm
Nominal Torque	0.16 Nm	0.32 Nm	0.16 Nm	0.32 Nm
Nominal Current	0.59 Arms	0.89 Arms	0.59 Arms	0.89 Arms
Nominal Power	0.05 kW	0.1 kW	0.05 kW	0.1 kW
Rated winding voltage	230 Vac	230 Vac	400 Vac	400 Vac
Maximum winding voltage	360 Vdc	360 Vdc	650 Vdc	650 Vdc
Maximum voltage to ground	255 Vac	255 Vac	265 Vac	265 Vac
Maximum current	1.8 Arms	2.7 Arms	1.8 Arms	2.7 Arms
Continuous Stall current	0.54 Arms	0.81 Arms	0.54 Arms	0.81 Arms
Voltage Constant	18 Vrms/Krpm	24 Vrms/Krpm	18 Vrms/Krpm	24 Vrms/Krpm
Torque Constant	0.3 Nm/Arms	0.4 Nm/Arms	0.3 Nm/Arms	0.4 Nm/Arms
Winding resistance	31 Ω	23.4 Ω	31 Ω	23.4 Ω
Winding inductance qu-v	26.4 mH	21.5 mH	26.4 mH	21.5 mH
Winding inductance du-v	24.7 mH	20.6 mH	24.7 mH	20.6 mH
Rotor inertia without holding brake	0.044 kg·cm²	0.065 kg·cm²	0.044 kg·cm²	0.065 kg·cm²
Rotor inertia with holding brake	0.045 kg·cm²	0.066 kg·cm²	0.045 kg·cm²	0.066 kg·cm²
Mass without holding brake	0.4 Kg	0.56 Kg	0.4 Kg	0.56 Kg
Mass with holding brake	0.6 Kg	0.77 Kg	0.6 Kg	0.77 Kg
Thermal time constant	10 min	15 min	10 min	15 min
Maximum radial shaft load	85 N	85 N	85 N	85 N
Maximum axial shaft load	40 N	40 N	40 N	40 N

Family Specification	TC-E 40
Time Rating	Continous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 54 Standard IP 65 with shaft sealing
Ambient Temperature	-20 to 40 °C
Ambient Humidity	5 to 85% (non-condensing)
Poles	8
Certification	UL 1004, CSA, CE, RoHS, Reach compliance
Recommendation	Rated output with 185x185x8mm aluminum heat sink flange coupling – Ambient Temperature 40°C – Derating must be considered if the oil seal is applied

Family Overview	TC-E 40
Flange dimensions	40 mm
Rated Output Power	50 – 100 Watt
Rated Torque	0,16 – 0,32 Nm
Rated Speed	3000 rpm

Optionen

Feedback

E1 – Encoder TTL 2500ppr, E1 and A6 not available for TC-E 40 models A1 – Absolute multiturn encoder (Hiperface) A2 – Proprietary 20 bit absolute encoder A6 – Absolute multiturn encode (with battery box) 24 bit – not available for TC-E 40 models

Mechanical Arrangement

0 – Smooth shaft 4 1 – Smooth shaft + oil seal 2 – Keyed shaft 3 – Keyed shaft + oil seal 4 – High inertia smooth shaft, not available for models TC-E 80 3B D4 2, TC-E 80 3B F3 4, TC-E 130 5C F1 2, TC-E 130 5C F1 4, TC-E 180 6A G2 2, TC-E 180 6A G3 4 only 5 – High inertia smooth shaft + oil seal, not available for models TC-E 80 3B D4 2, TC-E 80 3B F3 4, TC-E 130 5C F1 2, TC-E 130 5C F1 4, TC-E 180 6A G2 2, TC-E 180 6A G3 4 only 6 – High inertia keyed shaft, not available for models TC-E 80 3B D4 2, TC-E 80 3B F3 4, TC-E 130 5C F1 2, TC-E 130 5C F1 4, TC-E 180 6A G2 2, TC-E 180 6A G3 4 only 7 – High inertia keyed shaft + oil seal, not available for models TC-E 80 3B D4 2, TC-E 80 3B F3 4, TC-E 130 5C F1 2, TC-E 130 5C F1 4, TC-E 180 6A G2 2, TC-E 180 6A G3 4 only

Brake

0 = without brake 1 = with brake

Connection

D0 – 300mm output cable lenght with plastic connector (TC-E 40, 60, 80) C2 – 90° M23 turnable connectors (TC-E 60, 80, 100, 130, 180 models 6A, 6B, 6C, 6D) C3 – MS connectors (TC-E 100, 130, 180)

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-E 40

Datenblatt

Dimensions (pdf, 631.93K)

Torque-Speed-Chart (pdf, 599.91K)

TC-E-Servo-Drive (pdf, 1.93M)

TC-E-Feedback-Features (pdf, 260.05K)

TC-E-Brake-Features (pdf, 252.26K)

TC-E-Wiring-Cables-Connectors (pdf, 2.25M)

TC-E-Protection-Class (pdf, 277.79K)

TC-E-Transportation-Storage-Handling-Instruction (pdf, 547.4K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	TC-E 40 1A B1 2
Continuous Stall Torque	0.16 Nm
Peak Torque	0.48 Nm
Nominal working Speed	3000 rpm
Maximum working speed	6000 rpm
Nominal Torque	0.16 Nm
Nominal Current	0.59 Arms
Nominal Power	0.05 kW
Rated winding voltage	230 Vac
Maximum winding voltage	360 Vdc
Maximum voltage to ground	255 Vac
Maximum current	1.8 Arms
Continuous Stall current	0.54 Arms
Voltage Constant	18 Vrms/Krpm
Torque Constant	0.3 Nm/Arms
Winding resistance	31 Ω
Winding inductance qu-v	26.4 mH
Winding inductance du-v	24.7 mH
Rotor inertia without holding brake	0.044 kg·cm²
Rotor inertia with holding brake	0.045 kg·cm²
Mass without holding brake	0.4 Kg
Mass with holding brake	0.6 Kg
Thermal time constant	10 min
Maximum radial shaft load	85 N
Maximum axial shaft load	40 N

Family Specification	TC-E 40 1A B1 2
Time Rating	Continous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 54 Standard IP 65 with shaft sealing
Ambient Temperature	-20 to 40 °C
Ambient Humidity	5 to 85% (non-condensing)
Poles	8
Certification	UL 1004, CSA, CE, RoHS, Reach compliance
Recommendation	Rated output with 185x185x8mm aluminum heat sink flange coupling – Ambient Temperature 40°C – Derating must be considered if the oil seal is applied

Family Overview	TC-E 40 1A B1 2
Flange dimensions	40 mm
Rated Output Power	50 – 100 Watt
Rated Torque	0,16 – 0,32 Nm
Rated Speed	3000 rpm

Optionen

Feedback

Mechanical Arrangement

Brake

0 = without brake 1 = with brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-E 40

Datenblatt

Dimensions (pdf, 631.93K)

Torque-Speed-Chart (pdf, 599.91K)

TC-E-Servo-Drive (pdf, 1.93M)

TC-E-Feedback-Features (pdf, 260.05K)

TC-E-Brake-Features (pdf, 252.26K)

TC-E-Wiring-Cables-Connectors (pdf, 2.25M)

TC-E-Protection-Class (pdf, 277.79K)

TC-E-Transportation-Storage-Handling-Instruction (pdf, 547.4K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	TC-E 40 1B C1 2
Continuous Stall Torque	0.32 Nm
Peak Torque	0.96 Nm
Nominal working Speed	3000 rpm
Maximum working speed	6000 rpm
Nominal Torque	0.32 Nm
Nominal Current	0.89 Arms
Nominal Power	0.1 kW
Rated winding voltage	230 Vac
Maximum winding voltage	360 Vdc
Maximum voltage to ground	255 Vac
Maximum current	2.7 Arms
Continuous Stall current	0.81 Arms
Voltage Constant	24 Vrms/Krpm
Torque Constant	0.4 Nm/Arms
Winding resistance	23.4 Ω
Winding inductance qu-v	21.5 mH
Winding inductance du-v	20.6 mH
Rotor inertia without holding brake	0.065 kg·cm²
Rotor inertia with holding brake	0.066 kg·cm²
Mass without holding brake	0.56 Kg
Mass with holding brake	0.77 Kg
Thermal time constant	15 min
Maximum radial shaft load	85 N
Maximum axial shaft load	40 N

Family Specification	TC-E 40 1B C1 2
Time Rating	Continous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 54 Standard IP 65 with shaft sealing
Ambient Temperature	-20 to 40 °C
Ambient Humidity	5 to 85% (non-condensing)
Poles	8
Certification	UL 1004, CSA, CE, RoHS, Reach compliance
Recommendation	Rated output with 185x185x8mm aluminum heat sink flange coupling – Ambient Temperature 40°C – Derating must be considered if the oil seal is applied

Family Overview	TC-E 40 1B C1 2
Flange dimensions	40 mm
Rated Output Power	50 – 100 Watt
Rated Torque	0,16 – 0,32 Nm
Rated Speed	3000 rpm

Optionen

Feedback

Mechanical Arrangement

Brake

0 = without brake 1 = with brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-E 40

Datenblatt

Dimensions (pdf, 631.93K)

Torque-Speed-Chart (pdf, 599.91K)

TC-E-Servo-Drive (pdf, 1.93M)

TC-E-Feedback-Features (pdf, 260.05K)

TC-E-Brake-Features (pdf, 252.26K)

TC-E-Wiring-Cables-Connectors (pdf, 2.25M)

TC-E-Protection-Class (pdf, 277.79K)

TC-E-Transportation-Storage-Handling-Instruction (pdf, 547.4K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	TC-E 40 1A B1 4
Continuous Stall Torque	0.16 Nm
Peak Torque	0.48 Nm
Nominal working Speed	3000 rpm
Maximum working speed	6000 rpm
Nominal Torque	0.16 Nm
Nominal Current	0.59 Arms
Nominal Power	0.05 kW
Rated winding voltage	400 Vac
Maximum winding voltage	650 Vdc
Maximum voltage to ground	265 Vac
Maximum current	1.8 Arms
Continuous Stall current	0.54 Arms
Voltage Constant	18 Vrms/Krpm
Torque Constant	0.3 Nm/Arms
Winding resistance	31 Ω
Winding inductance qu-v	26.4 mH
Winding inductance du-v	24.7 mH
Rotor inertia without holding brake	0.044 kg·cm²
Rotor inertia with holding brake	0.045 kg·cm²
Mass without holding brake	0.4 Kg
Mass with holding brake	0.6 Kg
Thermal time constant	10 min
Maximum radial shaft load	85 N
Maximum axial shaft load	40 N

Family Specification	TC-E 40 1A B1 4
Time Rating	Continous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 54 Standard IP 65 with shaft sealing
Ambient Temperature	-20 to 40 °C
Ambient Humidity	5 to 85% (non-condensing)
Poles	8
Certification	UL 1004, CSA, CE, RoHS, Reach compliance
Recommendation	Rated output with 185x185x8mm aluminum heat sink flange coupling – Ambient Temperature 40°C – Derating must be considered if the oil seal is applied

Family Overview	TC-E 40 1A B1 4
Flange dimensions	40 mm
Rated Output Power	50 – 100 Watt
Rated Torque	0,16 – 0,32 Nm
Rated Speed	3000 rpm

Optionen

Feedback

Mechanical Arrangement

Brake

0 = without brake 1 = with brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-E 40

Datenblatt

Dimensions (pdf, 631.93K)

Torque-Speed-Chart (pdf, 599.91K)

TC-E-Servo-Drive (pdf, 1.93M)

TC-E-Feedback-Features (pdf, 260.05K)

TC-E-Brake-Features (pdf, 252.26K)

TC-E-Wiring-Cables-Connectors (pdf, 2.25M)

TC-E-Protection-Class (pdf, 277.79K)

TC-E-Transportation-Storage-Handling-Instruction (pdf, 547.4K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	TC-E 40 1B C1 4
Continuous Stall Torque	0.32 Nm
Peak Torque	0.96 Nm
Nominal working Speed	3000 rpm
Maximum working speed	6000 rpm
Nominal Torque	0.32 Nm
Nominal Current	0.89 Arms
Nominal Power	0.1 kW
Rated winding voltage	400 Vac
Maximum winding voltage	650 Vdc
Maximum voltage to ground	265 Vac
Maximum current	2.7 Arms
Continuous Stall current	0.81 Arms
Voltage Constant	24 Vrms/Krpm
Torque Constant	0.4 Nm/Arms
Winding resistance	23.4 Ω
Winding inductance qu-v	21.5 mH
Winding inductance du-v	20.6 mH
Rotor inertia without holding brake	0.065 kg·cm²
Rotor inertia with holding brake	0.066 kg·cm²
Mass without holding brake	0.56 Kg
Mass with holding brake	0.77 Kg
Thermal time constant	15 min
Maximum radial shaft load	85 N
Maximum axial shaft load	40 N

Family Specification	TC-E 40 1B C1 4
Time Rating	Continous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 54 Standard IP 65 with shaft sealing
Ambient Temperature	-20 to 40 °C
Ambient Humidity	5 to 85% (non-condensing)
Poles	8
Certification	UL 1004, CSA, CE, RoHS, Reach compliance
Recommendation	Rated output with 185x185x8mm aluminum heat sink flange coupling – Ambient Temperature 40°C – Derating must be considered if the oil seal is applied

Family Overview	TC-E 40 1B C1 4
Flange dimensions	40 mm
Rated Output Power	50 – 100 Watt
Rated Torque	0,16 – 0,32 Nm
Rated Speed	3000 rpm

Optionen

Feedback

Mechanical Arrangement

Brake

0 = without brake 1 = with brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-E 40

Datenblatt

Dimensions (pdf, 631.93K)

Torque-Speed-Chart (pdf, 599.91K)

TC-E-Servo-Drive (pdf, 1.93M)

TC-E-Feedback-Features (pdf, 260.05K)

TC-E-Brake-Features (pdf, 252.26K)

TC-E-Wiring-Cables-Connectors (pdf, 2.25M)

TC-E-Protection-Class (pdf, 277.79K)

TC-E-Transportation-Storage-Handling-Instruction (pdf, 547.4K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Weiterlesen	TC-E 40 1A B1 2	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	TC-E 40 1B C1 2	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	TC-E 40 1A B1 4	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	TC-E 40 1B C1 4	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.

Brushless DC Motors

Brushed DC Motors

Stepper Motors

Linear Actuators

Controller

Industrieautomation / Maschinenbau

Sicherheitstechnik / Schließtechnik

Smart Home und Gebäudetechnik

Medizintechnik

Akkutools

Automotive

TC-E 40

Beschreibung

Ähnliche Produkte

iSV2-RS6020V48H

iSV2-RS6020V24G

iSV2-RS6020V24H

iSV Series

Optionen

Feedback

Mechanical Arrangement

Brake

Connection

TC-E 40

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Feedback

Mechanical Arrangement

Brake

Connection

TC-E 40

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Feedback

Mechanical Arrangement

Brake

Connection

TC-E 40

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Feedback

Mechanical Arrangement

Brake

Connection

TC-E 40

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Feedback

Mechanical Arrangement

Brake

Connection

TC-E 40

Datenblatt

Nehmen Sie Kontakt auf
