Stepper Controller
The Stepper Motor Controllers with different communication interfaces to suit all stepper motor sizes.
Product Features:
- Supply voltage from 12VDC-240VAC
- Compact microstep drivers
- Open or closed loop
- Clock-direction input/CANopen/RS485/ EtherCAT/Modbus
- Up to 8.2 A peak
Advantages:
- Easy commissioning
- Autotuning
- Excellent running characteristics
Unterkategorien:
102
Produkte entsprechen den Kriterien
Filter

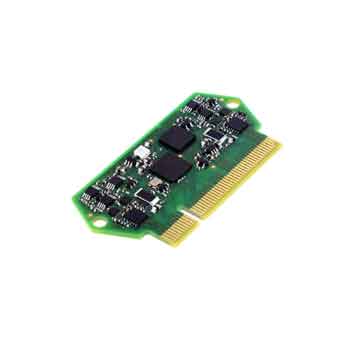

LMM 1.5A LMM 1.5 A Programmable Motion Module
Programmable Motion
UART
MCode OS
max. 85°C
95% non-condensing
LMM 1.5A LMM 1.5 A CANopen Module
CANopen
CAN
DS301, DSP 402, PDO, SDO, Heaartbeat, Node Guarding
max. 85°C
95% non-condensing
MFM5 MicroDrive Step/direction Input
Step/Direction
Step, direction and enable inputs
Microstepping
2°C
+12 to +48+VDC

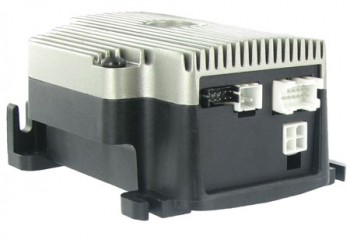

MFI3 PowerDrive Programmable Motion Control
Programmable Motion
Step, direction and enable inputs
Microstepping
2°C
+12 to +75+VDC

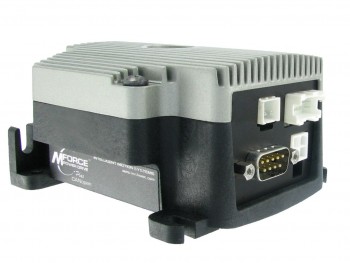

MFI3 PowerDrive CANopen
CANopen
Step, direction and enable inputs
Microstepping
2°C
+12 to +75+VDC
MFM1 PowerDrive Step/direction Input
Step/Direction
Step, direction and enable inputs
Microstepping
2°C
+12 to +75+VDC
MFM5 PowerDrive Step/direction Input
Step/Direction
Step, direction and enable inputs
Microstepping
2°C
+12 to +75+VDC
Microstepping Driver Module Microstepping driver module IM481H 1.5A
Step/Direction
Step, direction and enable inputs
Microstepping
-40 … +85°C
+12 to +48+VDC
Microstepping Driver Module Microstepping driver module IM483H 3.0A
Step/Direction
Step, direction and enable inputs
Microstepping
-40 … +85°C
+12 to +48+VDC
Microstepping Driver Module Microstepping driver module IM805H 5.0A
Step/Direction
Step, direction and enable inputs
Microstepping
-40 … +85°C
+12 to +75+VDC
