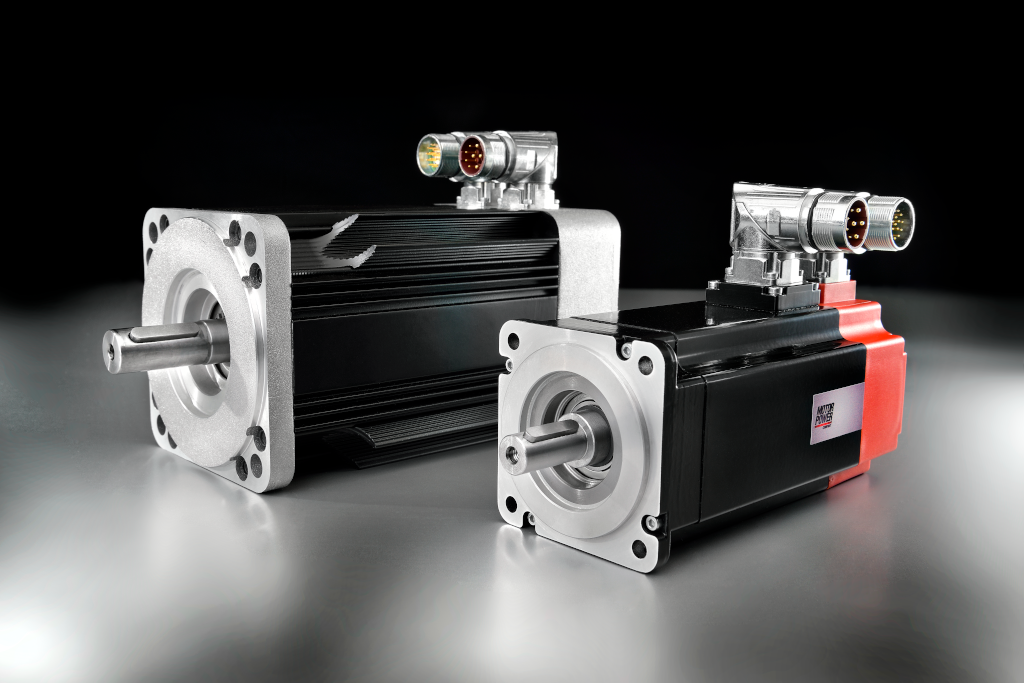

TC-E 40 1A B1 4

Name: TC-E 40 1A B1 4 - KOCO MOTION
SKU: TC-E 40 1A B1 4

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

Flange dimensions: 40 mm
Rated Output Power: 50 – 100 W
Rated Torque: 0,16 – 0,32 Nm
Rated Speed: 3000 rpm

Artikelnummer: TC-E 40 1A B1 4 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 40 mm
Rated Output Power: 50 – 100 W
Rated Torque: 0,16 – 0,32 Nm
Rated Speed: 3000 rpm

Specification

Parameter	Unit	TC-E 40 1A B1 4
Continuous Stall Torque	Nm	0.16
Peak Torque	Nm	0.48
Nominal working Speed	rpm	3000
Maximum working speed	rpm	6000
Nominal Torque	Nm	0.16
Nominal Current	Arms	0.59
Nominal Power	kW	0.05
Rated winding voltage	Vac	400
Maximum winding voltage	Vdc	650
Maximum voltage to ground	Vac	265
Maximum current	Arms	1.8
Continuous Stall current	Arms	0.54
Voltage Constant	Vrms/Krpm	18
Torque Constant	Nm/Arms	0.3
Winding resistance	Ohm	31
Winding inductance qu-v	mH	26.4
Winding inductance du-v	mH	24.7
Rotor inertia without holding brake	kg·cm²	0.044
Rotor inertia with holding brake	kg·cm²	0.045
Mass without holding brake	Kg	0.4
Mass with holding brake	Kg	0.6
Thermal time constant	min	10
Maximum radial shaft load	N	85
Maximum axial shaft load	N	40

Family Specification

Family Specification	Unit	TC-E 40 1A B1 4
Time Rating		Continous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 54 Standard IP 65 with shaft sealing
Ambient Temperature	°C	-20 to 40
Ambient Humidity		5 to 85% (non-condensing)
Poles		8
Certification		UL 1004, CSA, CE, RoHS, Reach compliance
Recommendation		Rated output with 185x185x8mm aluminum heat sink flange coupling – Ambient Temperature 40°C – Derating must be considered if the oil seal is applied

Family Overview

Family Overview	Unit	TC-E 40 1A B1 4
Flange dimensions	mm	40
Rated Output Power	Watt	50 – 100
Rated Torque	Nm	0,16 – 0,32
Rated Speed	rpm	3000

Optionen

Feedback

E1 – Encoder TTL 2500ppr, E1 and A6 not available for TC-E 40 models A1 – Absolute multiturn encoder (Hiperface) A2 – Proprietary 20 bit absolute encoder A6 – Absolute multiturn encode (with battery box) 24 bit – not available for TC-E 40 models

Mechanical Arrangement

0 – Smooth shaft 4 1 – Smooth shaft + oil seal 2 – Keyed shaft 3 – Keyed shaft + oil seal 4 – High inertia smooth shaft, not available for models TC-E 80 3B D4 2, TC-E 80 3B F3 4, TC-E 130 5C F1 2, TC-E 130 5C F1 4, TC-E 180 6A G2 2, TC-E 180 6A G3 4 only 5 – High inertia smooth shaft + oil seal, not available for models TC-E 80 3B D4 2, TC-E 80 3B F3 4, TC-E 130 5C F1 2, TC-E 130 5C F1 4, TC-E 180 6A G2 2, TC-E 180 6A G3 4 only 6 – High inertia keyed shaft, not available for models TC-E 80 3B D4 2, TC-E 80 3B F3 4, TC-E 130 5C F1 2, TC-E 130 5C F1 4, TC-E 180 6A G2 2, TC-E 180 6A G3 4 only 7 – High inertia keyed shaft + oil seal, not available for models TC-E 80 3B D4 2, TC-E 80 3B F3 4, TC-E 130 5C F1 2, TC-E 130 5C F1 4, TC-E 180 6A G2 2, TC-E 180 6A G3 4 only

Brake

0 = without brake 1 = with brake

Connection

D0 – 300mm output cable lenght with plastic connector (TC-E 40, 60, 80) C2 – 90° M23 turnable connectors (TC-E 60, 80, 100, 130, 180 models 6A, 6B, 6C, 6D) C3 – MS connectors (TC-E 100, 130, 180)

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-E 40

TC-E-Protection-Class.pdf (pdf, 277.79K)

TC-E-Transportation-Storage-Handling-Instruction.pdf (pdf, 547.4K)

TC-E-Brake-Features.pdf (pdf, 252.26K)

TC-E-40-Dimensions.pdf (pdf, 631.93K)

TC-E-Wiring-Cables-Connectors.pdf (pdf, 2.25M)

TC-E-Servo-Drive.pdf (pdf, 1.93M)

TC-E-Feedback-Features.pdf (pdf, 260.05K)

Datenblatt

TC-E-40-Torque-Speed-Chart.pdf (pdf, 599.91K)
