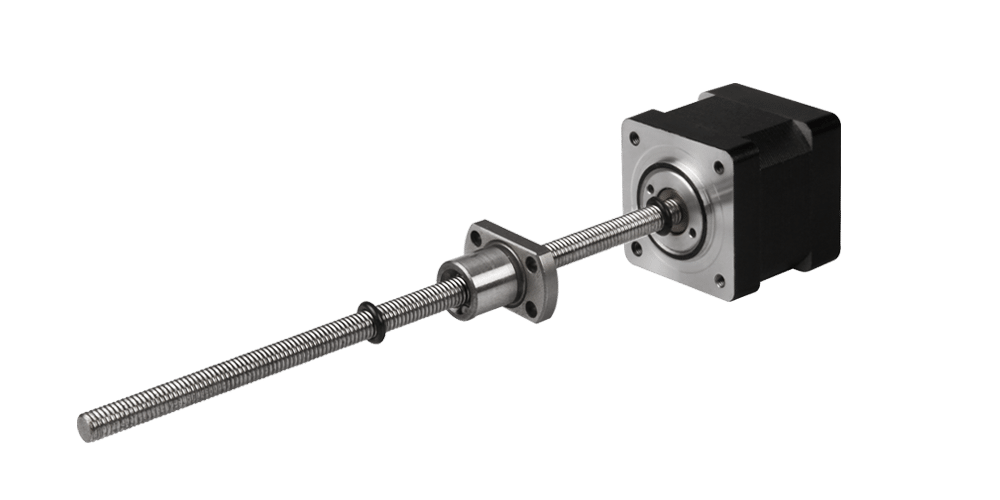

Name: SBSLA - Size 14 [35mm] - KOCO MOTION
SKU: SBSLA - Size 14 [35mm]

Motor Characteristics	14E2110	14E2115	14E2210	14E2215
Voltage	3.5 V	2.7 V	6.0 V	4.0 V
Current	1.0 A	1.5 A	1.0 A	1.5 A
Resistance	3.5 Ω	1.8 Ω	6.0 Ω	2.7 Ω
Inductance	3.6 mH	1.9 mH	7.2 mH	3.2 mH
Motor Length	33.6 mm	33.6 mm	45.6 mm	45.6 mm
Lead Wire No.	4	4	4	4
Size	14 Nema	14 Nema	14 Nema	14 Nema
Flange size	35 mm	35 mm	35 mm	35 mm

Ball screw type	0601	0602	0606	0610	0801	0802	0802.5	0805	0808	0810	0812
Ball size	Ø0.8	Ø0.8	Ø0.8	Ø1.2	Ø0.8	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875
Number of threads	1	1	2	2	1	1	1	1	2	2	2
Thread direction	Right	Right	Right	Right	Right	Right	Right	Right	Right	Right	Right
Shaft root dia.	Ø5.3	Ø5.1	Ø5.2	Ø5.0	Ø7.3	Ø6.6	Ø6.3	Ø6.6	Ø6.7	Ø6.7	Ø6.7
Number of circuits	3.7×1	2.7×1	1.6×2	1.2×2	3.7×1	3.7×1	2.7×1	2.7×1	1.6×2	1.6×2	1.6×2
Shaft nut material	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H
Surface hardness	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62
Anti-rust treatment	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil
Grade	C7	C7	C7	C7	C7	C7	C7	C7	C7	C7	C7

Nut size	A	B	C	D	H	W	X	E	Position accuracy	Total run out	Axial play	Dynamic load[N]	Static load[N]
BS0601	26	4	17	13	16	20	3.4		±0.05	0.12	≤0.03	680	1200
BS0602	28	4	17	15	19	22	3.4		±0.05	0.12	≤0.03	750	1450
BS0606	27	4	17	14	16	21	3.4	5	±0.05	0.12	≤0.03	870	1600
BS0610	27	4	23	14	16	21	3.4	7.5	±0.05	0.12	≤0.03	950	1650
BS0801	29	4	17	16	18	23	3.4		±0.05	0.12	≤0.03	780	1650
BS0802	37	5	24	20	22	29	4.5		±0.05	0.12	≤0.03	2400	4100
BS0802.5	29	4	16	16	18	23	3.4		±0.05	0.12	≤0.03	1850	3000
BS0805	31	4	28	18	20	25	3.4		±0.05	0.12	≤0.03	1850	3000
BS0808	31	4	20	18	20	25	3.4	6	±0.05	0.12	≤0.03	2200	3800
BS0810	31	4	20	18	20	25	3.4	7	±0.05	0.12	≤0.03	2200	3800
BS0812	31	4	24	18	20	25	3.4	6	±0.05	0.12	≤0.03	2200	3800

Optionen

Encoder

EK1 EK2 EK5

Screw End Machining

Threaded End Smooth End None Customize

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	14E2110
Voltage	3.5 V
Current	1.0 A
Resistance	3.5 Ω
Inductance	3.6 mH
Motor Length	33.6 mm
Lead Wire No.	4
Size	14 Nema
Flange size	35 mm

Ball screw type	0601	0602	0606	0610	0801	0802	0802.5	0805	0808	0810	0812
Ball size	Ø0.8	Ø0.8	Ø0.8	Ø1.2	Ø0.8	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875
Number of threads	1	1	2	2	1	1	1	1	2	2	2
Thread direction	Right	Right	Right	Right	Right	Right	Right	Right	Right	Right	Right
Shaft root dia.	Ø5.3	Ø5.1	Ø5.2	Ø5.0	Ø7.3	Ø6.6	Ø6.3	Ø6.6	Ø6.7	Ø6.7	Ø6.7
Number of circuits	3.7×1	2.7×1	1.6×2	1.2×2	3.7×1	3.7×1	2.7×1	2.7×1	1.6×2	1.6×2	1.6×2
Shaft nut material	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H
Surface hardness	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62
Anti-rust treatment	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil
Grade	C7	C7	C7	C7	C7	C7	C7	C7	C7	C7	C7

Nut size	A	B	C	D	H	W	X	E	Position accuracy	Total run out	Axial play	Dynamic load[N]	Static load[N]
BS0601	26	4	17	13	16	20	3.4		±0.05	0.12	≤0.03	680	1200
BS0602	28	4	17	15	19	22	3.4		±0.05	0.12	≤0.03	750	1450
BS0606	27	4	17	14	16	21	3.4	5	±0.05	0.12	≤0.03	870	1600
BS0610	27	4	23	14	16	21	3.4	7.5	±0.05	0.12	≤0.03	950	1650
BS0801	29	4	17	16	18	23	3.4		±0.05	0.12	≤0.03	780	1650
BS0802	37	5	24	20	22	29	4.5		±0.05	0.12	≤0.03	2400	4100
BS0802.5	29	4	16	16	18	23	3.4		±0.05	0.12	≤0.03	1850	3000
BS0805	31	4	28	18	20	25	3.4		±0.05	0.12	≤0.03	1850	3000
BS0808	31	4	20	18	20	25	3.4	6	±0.05	0.12	≤0.03	2200	3800
BS0810	31	4	20	18	20	25	3.4	7	±0.05	0.12	≤0.03	2200	3800
BS0812	31	4	24	18	20	25	3.4	6	±0.05	0.12	≤0.03	2200	3800

Optionen

Encoder

EK1 EK2 EK5

Screw End Machining

Threaded End Smooth End None Customize

SBSLA – Size 14 [35mm]

External (jpeg, 222.62K)

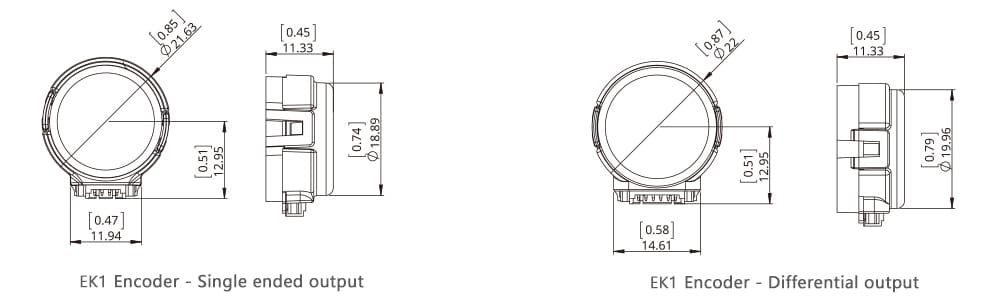

EK1-Encoder (jpeg, 114.32K)

EK2-Encoder (jpeg, 96.56K)

EK5-Encoder (jpeg, 689.69K)

SBSLA – Size 14 [35mm]

14E2110BS14-100.stp (step, 2.91M)

14E2110BS24-100.stp (step, 2.92M)

14E2110BS64-100.stp (step, 2.92M)

14E2110BS104-100.stp (step, 2.92M)

14E2215BS14-100_Size14.stp (step, 4.07M)

14E2215BS24-100.stp (step, 4.07M)

14E2215BS64-100.stp (step, 4.07M)

14E2215BS104-100.stp (step, 4.07M)

SBSLA – Size 14 [35mm]

Speed-Thrust-Curves (png, 788.66K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	14E2115
Voltage	2.7 V
Current	1.5 A
Resistance	1.8 Ω
Inductance	1.9 mH
Motor Length	33.6 mm
Lead Wire No.	4
Size	14 Nema
Flange size	35 mm

Ball screw type	0601	0602	0606	0610	0801	0802	0802.5	0805	0808	0810	0812
Ball size	Ø0.8	Ø0.8	Ø0.8	Ø1.2	Ø0.8	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875
Number of threads	1	1	2	2	1	1	1	1	2	2	2
Thread direction	Right	Right	Right	Right	Right	Right	Right	Right	Right	Right	Right
Shaft root dia.	Ø5.3	Ø5.1	Ø5.2	Ø5.0	Ø7.3	Ø6.6	Ø6.3	Ø6.6	Ø6.7	Ø6.7	Ø6.7
Number of circuits	3.7×1	2.7×1	1.6×2	1.2×2	3.7×1	3.7×1	2.7×1	2.7×1	1.6×2	1.6×2	1.6×2
Shaft nut material	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H
Surface hardness	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62
Anti-rust treatment	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil
Grade	C7	C7	C7	C7	C7	C7	C7	C7	C7	C7	C7

Nut size	A	B	C	D	H	W	X	E	Position accuracy	Total run out	Axial play	Dynamic load[N]	Static load[N]
BS0601	26	4	17	13	16	20	3.4		±0.05	0.12	≤0.03	680	1200
BS0602	28	4	17	15	19	22	3.4		±0.05	0.12	≤0.03	750	1450
BS0606	27	4	17	14	16	21	3.4	5	±0.05	0.12	≤0.03	870	1600
BS0610	27	4	23	14	16	21	3.4	7.5	±0.05	0.12	≤0.03	950	1650
BS0801	29	4	17	16	18	23	3.4		±0.05	0.12	≤0.03	780	1650
BS0802	37	5	24	20	22	29	4.5		±0.05	0.12	≤0.03	2400	4100
BS0802.5	29	4	16	16	18	23	3.4		±0.05	0.12	≤0.03	1850	3000
BS0805	31	4	28	18	20	25	3.4		±0.05	0.12	≤0.03	1850	3000
BS0808	31	4	20	18	20	25	3.4	6	±0.05	0.12	≤0.03	2200	3800
BS0810	31	4	20	18	20	25	3.4	7	±0.05	0.12	≤0.03	2200	3800
BS0812	31	4	24	18	20	25	3.4	6	±0.05	0.12	≤0.03	2200	3800

Optionen

Encoder

EK1 EK2 EK5

Screw End Machining

Threaded End Smooth End None Customize

SBSLA – Size 14 [35mm]

External (jpeg, 222.62K)

EK1-Encoder (jpeg, 114.32K)

EK2-Encoder (jpeg, 96.56K)

EK5-Encoder (jpeg, 689.69K)

SBSLA – Size 14 [35mm]

14E2110BS14-100.stp (step, 2.91M)

14E2110BS24-100.stp (step, 2.92M)

14E2110BS64-100.stp (step, 2.92M)

14E2110BS104-100.stp (step, 2.92M)

14E2215BS14-100_Size14.stp (step, 4.07M)

14E2215BS24-100.stp (step, 4.07M)

14E2215BS64-100.stp (step, 4.07M)

14E2215BS104-100.stp (step, 4.07M)

SBSLA – Size 14 [35mm]

Speed-Thrust-Curves (png, 788.66K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	14E2210
Voltage	6.0 V
Current	1.0 A
Resistance	6.0 Ω
Inductance	7.2 mH
Motor Length	45.6 mm
Lead Wire No.	4
Size	14 Nema
Flange size	35 mm

Ball screw type	0601	0602	0606	0610	0801	0802	0802.5	0805	0808	0810	0812
Ball size	Ø0.8	Ø0.8	Ø0.8	Ø1.2	Ø0.8	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875
Number of threads	1	1	2	2	1	1	1	1	2	2	2
Thread direction	Right	Right	Right	Right	Right	Right	Right	Right	Right	Right	Right
Shaft root dia.	Ø5.3	Ø5.1	Ø5.2	Ø5.0	Ø7.3	Ø6.6	Ø6.3	Ø6.6	Ø6.7	Ø6.7	Ø6.7
Number of circuits	3.7×1	2.7×1	1.6×2	1.2×2	3.7×1	3.7×1	2.7×1	2.7×1	1.6×2	1.6×2	1.6×2
Shaft nut material	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H
Surface hardness	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62
Anti-rust treatment	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil
Grade	C7	C7	C7	C7	C7	C7	C7	C7	C7	C7	C7

Nut size	A	B	C	D	H	W	X	E	Position accuracy	Total run out	Axial play	Dynamic load[N]	Static load[N]
BS0601	26	4	17	13	16	20	3.4		±0.05	0.12	≤0.03	680	1200
BS0602	28	4	17	15	19	22	3.4		±0.05	0.12	≤0.03	750	1450
BS0606	27	4	17	14	16	21	3.4	5	±0.05	0.12	≤0.03	870	1600
BS0610	27	4	23	14	16	21	3.4	7.5	±0.05	0.12	≤0.03	950	1650
BS0801	29	4	17	16	18	23	3.4		±0.05	0.12	≤0.03	780	1650
BS0802	37	5	24	20	22	29	4.5		±0.05	0.12	≤0.03	2400	4100
BS0802.5	29	4	16	16	18	23	3.4		±0.05	0.12	≤0.03	1850	3000
BS0805	31	4	28	18	20	25	3.4		±0.05	0.12	≤0.03	1850	3000
BS0808	31	4	20	18	20	25	3.4	6	±0.05	0.12	≤0.03	2200	3800
BS0810	31	4	20	18	20	25	3.4	7	±0.05	0.12	≤0.03	2200	3800
BS0812	31	4	24	18	20	25	3.4	6	±0.05	0.12	≤0.03	2200	3800

Optionen

Encoder

EK1 EK2 EK5

Screw End Machining

Threaded End Smooth End None Customize

SBSLA – Size 14 [35mm]

External (jpeg, 222.62K)

EK1-Encoder (jpeg, 114.32K)

EK2-Encoder (jpeg, 96.56K)

EK5-Encoder (jpeg, 689.69K)

SBSLA – Size 14 [35mm]

14E2110BS14-100.stp (step, 2.91M)

14E2110BS24-100.stp (step, 2.92M)

14E2110BS64-100.stp (step, 2.92M)

14E2110BS104-100.stp (step, 2.92M)

14E2215BS14-100_Size14.stp (step, 4.07M)

14E2215BS24-100.stp (step, 4.07M)

14E2215BS64-100.stp (step, 4.07M)

14E2215BS104-100.stp (step, 4.07M)

SBSLA – Size 14 [35mm]

Speed-Thrust-Curves (png, 788.66K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	14E2215
Voltage	4.0 V
Current	1.5 A
Resistance	2.7 Ω
Inductance	3.2 mH
Motor Length	45.6 mm
Lead Wire No.	4
Size	14 Nema
Flange size	35 mm

Ball screw type	0601	0602	0606	0610	0801	0802	0802.5	0805	0808	0810	0812
Ball size	Ø0.8	Ø0.8	Ø0.8	Ø1.2	Ø0.8	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875
Number of threads	1	1	2	2	1	1	1	1	2	2	2
Thread direction	Right	Right	Right	Right	Right	Right	Right	Right	Right	Right	Right
Shaft root dia.	Ø5.3	Ø5.1	Ø5.2	Ø5.0	Ø7.3	Ø6.6	Ø6.3	Ø6.6	Ø6.7	Ø6.7	Ø6.7
Number of circuits	3.7×1	2.7×1	1.6×2	1.2×2	3.7×1	3.7×1	2.7×1	2.7×1	1.6×2	1.6×2	1.6×2
Shaft nut material	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H
Surface hardness	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62
Anti-rust treatment	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil
Grade	C7	C7	C7	C7	C7	C7	C7	C7	C7	C7	C7

Nut size	A	B	C	D	H	W	X	E	Position accuracy	Total run out	Axial play	Dynamic load[N]	Static load[N]
BS0601	26	4	17	13	16	20	3.4		±0.05	0.12	≤0.03	680	1200
BS0602	28	4	17	15	19	22	3.4		±0.05	0.12	≤0.03	750	1450
BS0606	27	4	17	14	16	21	3.4	5	±0.05	0.12	≤0.03	870	1600
BS0610	27	4	23	14	16	21	3.4	7.5	±0.05	0.12	≤0.03	950	1650
BS0801	29	4	17	16	18	23	3.4		±0.05	0.12	≤0.03	780	1650
BS0802	37	5	24	20	22	29	4.5		±0.05	0.12	≤0.03	2400	4100
BS0802.5	29	4	16	16	18	23	3.4		±0.05	0.12	≤0.03	1850	3000
BS0805	31	4	28	18	20	25	3.4		±0.05	0.12	≤0.03	1850	3000
BS0808	31	4	20	18	20	25	3.4	6	±0.05	0.12	≤0.03	2200	3800
BS0810	31	4	20	18	20	25	3.4	7	±0.05	0.12	≤0.03	2200	3800
BS0812	31	4	24	18	20	25	3.4	6	±0.05	0.12	≤0.03	2200	3800

Optionen

Encoder

EK1 EK2 EK5

Screw End Machining

Threaded End Smooth End None Customize

SBSLA – Size 14 [35mm]

External (jpeg, 222.62K)

EK1-Encoder (jpeg, 114.32K)

EK2-Encoder (jpeg, 96.56K)

EK5-Encoder (jpeg, 689.69K)

SBSLA – Size 14 [35mm]

14E2110BS14-100.stp (step, 2.91M)

14E2110BS24-100.stp (step, 2.92M)

14E2110BS64-100.stp (step, 2.92M)

14E2110BS104-100.stp (step, 2.92M)

14E2215BS14-100_Size14.stp (step, 4.07M)

14E2215BS24-100.stp (step, 4.07M)

14E2215BS64-100.stp (step, 4.07M)

14E2215BS104-100.stp (step, 4.07M)

SBSLA – Size 14 [35mm]

Speed-Thrust-Curves (png, 788.66K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Weiterlesen	14E2110	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	14E2115	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	14E2210	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	14E2215	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.

Brushless DC Motors

Brushed DC Motors

Stepper Motors

Linear Actuators

Controller

Industrieautomation / Maschinenbau

Sicherheitstechnik / Schließtechnik

Smart Home und Gebäudetechnik

Medizintechnik

Akkutools

Automotive

SBSLA – Size 14 [35mm]

Beschreibung

Ähnliche Produkte

SLSLA – Size 8 [20mm]

SLSLA – Size 14 [35mm]

14E2110

8E2105

Optionen

Encoder

Screw End Machining

SBSLA – Size 14 [35mm]

SBSLA – Size 14 [35mm]

SBSLA – Size 14 [35mm]

Nehmen Sie Kontakt auf

Optionen

Encoder

Screw End Machining

SBSLA – Size 14 [35mm]

SBSLA – Size 14 [35mm]

SBSLA – Size 14 [35mm]

Nehmen Sie Kontakt auf

Optionen

Encoder

Screw End Machining

SBSLA – Size 14 [35mm]

SBSLA – Size 14 [35mm]

SBSLA – Size 14 [35mm]

Nehmen Sie Kontakt auf

Optionen

Encoder

Screw End Machining

SBSLA – Size 14 [35mm]

SBSLA – Size 14 [35mm]

SBSLA – Size 14 [35mm]

Nehmen Sie Kontakt auf

Optionen

Encoder

Screw End Machining

SBSLA – Size 14 [35mm]

SBSLA – Size 14 [35mm]

SBSLA – Size 14 [35mm]

Nehmen Sie Kontakt auf
