Beschreibung

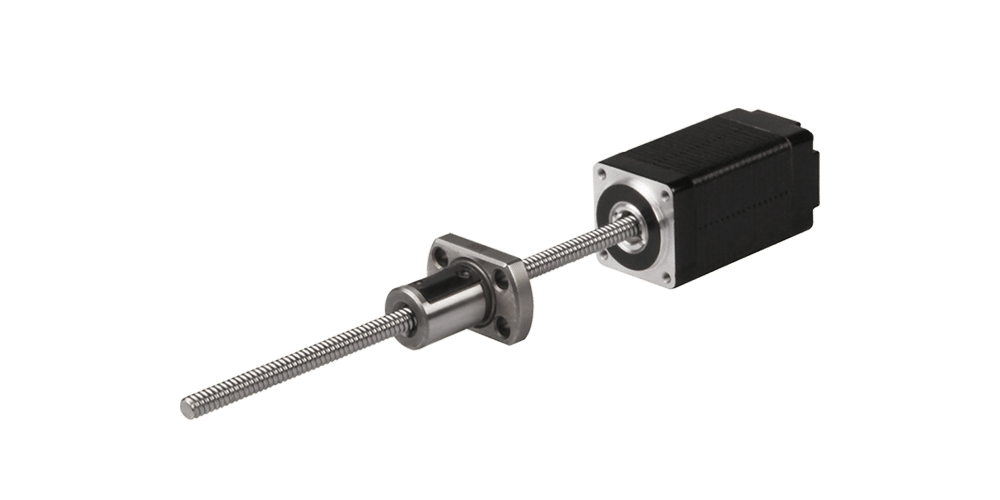

The Size 8 [20mm] External Stepper Ball Screw Linear Actuator.

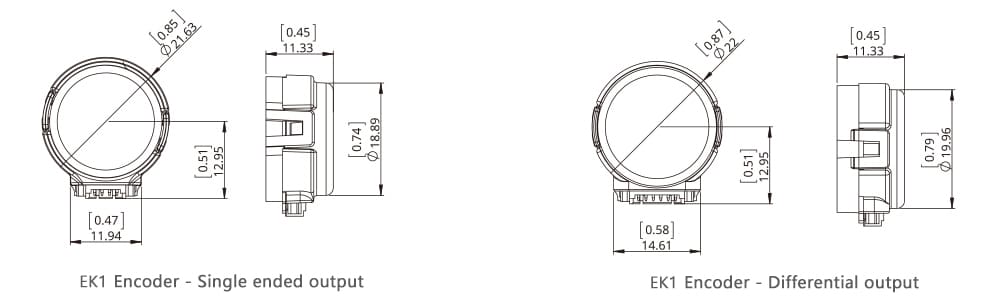

Various screw end machining and encoder options are available.
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. 19 % MwSt.
The Size 8 [20mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining and encoder options are available.
The Size 8 [20mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining and encoder options are available.
Specification | 8E2105 |
---|---|
Voltage | 2.5 V |
Current | 0.5 A |
Resistance | 5.1 Ω |
Inductance | 1.5 mH |
Motor Length | 27.2 mm |
Lead Wire No. | 4 |
Size | 8 Nema |
Flange size | 20 mm |
Ball screw type | 0401 | 0402 |
Ball size | Ø0.8 | Ø0.8 |
Number of threads | 1 | 1 |
Right | Right | Right |
Ø3.3 | Ø3.3 | Ø3.3 |
Number of circuits | 3.7×1 | 2.7×1 |
Shaft nut material | SCM415H | SCM415H |
Surface hardness | HRC58~62 | HRC58~62 |
Anti-rust treatment | Anti-rust oil | Anti-rust oil |
Grade | C7 | C7 |
Nut size | A | B | C | D | H | W | X | Position accuracy | Total run out | Axial play | Dynamic load[N] | Static load[N] |
BS0401 | 23 | 4 | 17 | 11 | 15 | 17 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 560 | 790 |
BS0402 | 23 | 4 | 19 | 11 | 15 | 17 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 420 | 570 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
