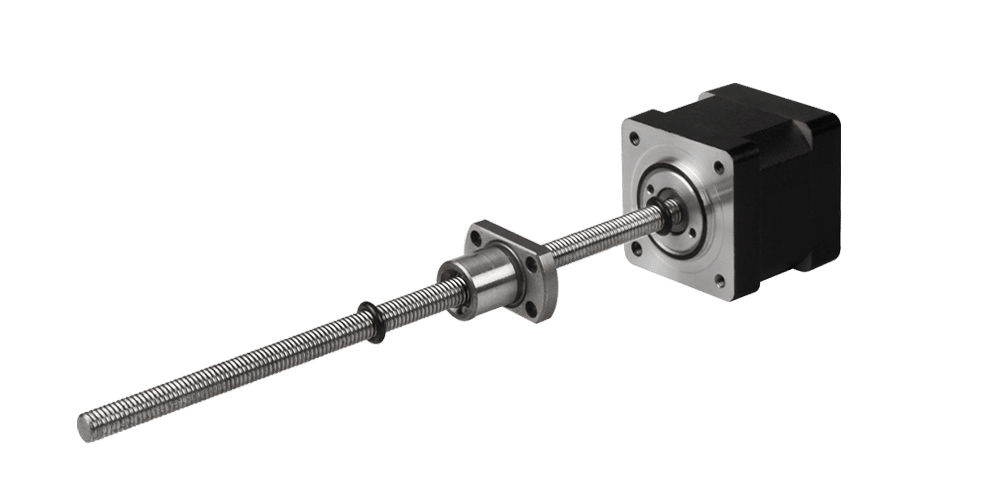

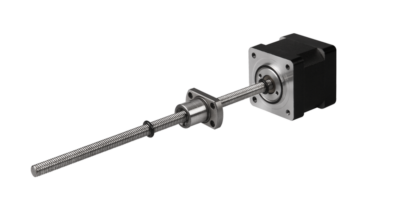

The size 14 [35mm] External Stepper Ball Screw Linear Actuator.

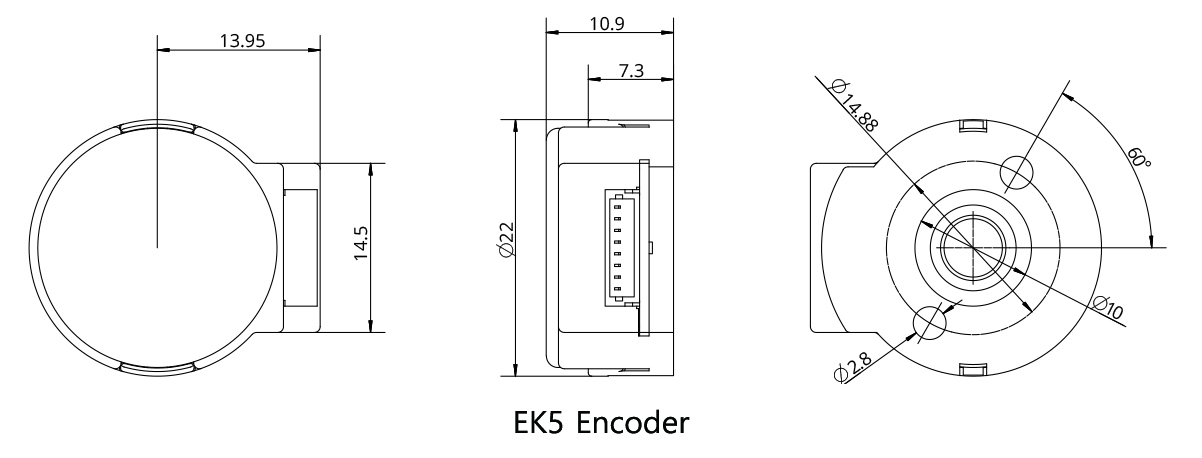

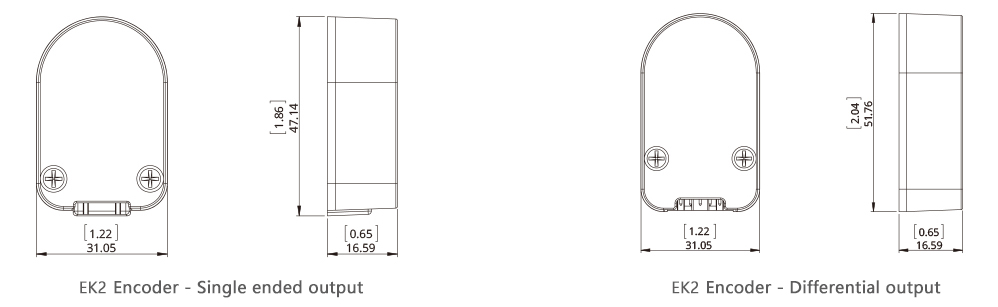

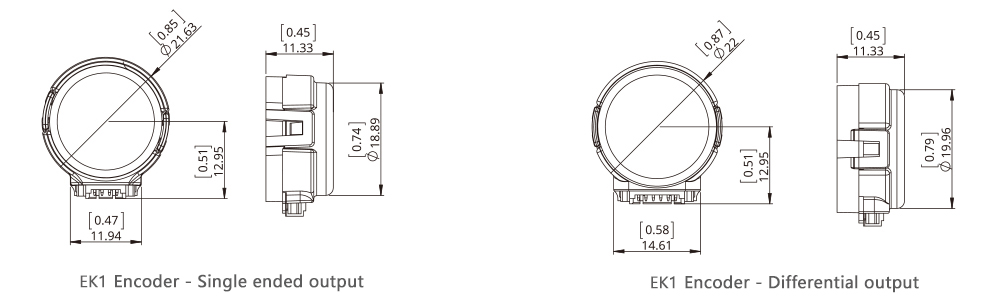

Various screw end machining, encoders and power-off brake options are available.
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. 19 % MwSt.
The size 14 [35mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.
The size 14 [35mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.

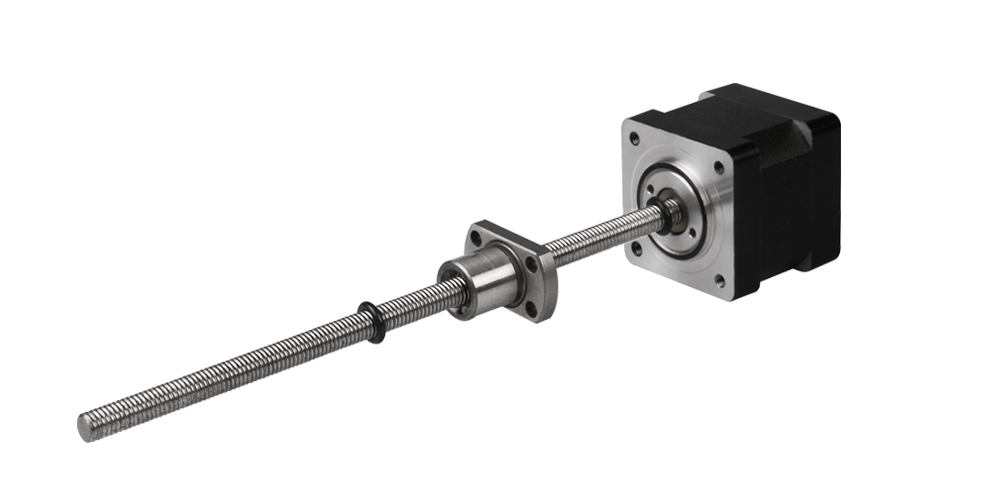

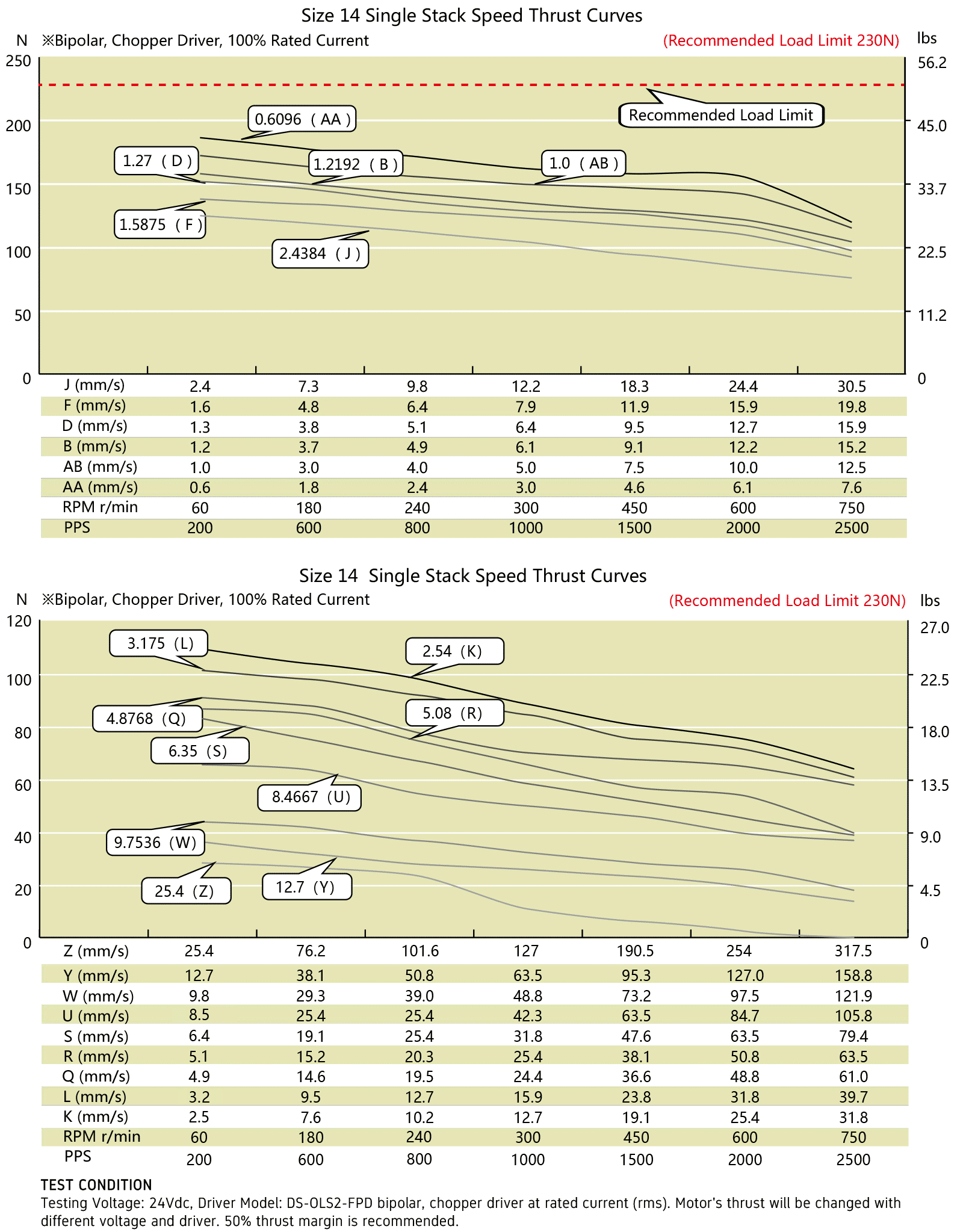

Specification | 14E2110 |
---|---|
Voltage | 3.5 V |
Current | 1.0 A |
Resistance | 3.5 Ω |
Inductance | 3.6 mH |
Motor Length | 33.6 mm |
Lead Wire No. | 4 |
Size | 14 Nema |
Flange size | 35 mm |
Ball screw type | 0601 | 0602 | 0606 | 0610 | 0801 | 0802 | 0802.5 | 0805 | 0808 | 0810 | 0812 |
Ball size | Ø0.8 | Ø0.8 | Ø0.8 | Ø1.2 | Ø0.8 | Ø1.5875 | Ø1.5875 | Ø1.5875 | Ø1.5875 | Ø1.5875 | Ø1.5875 |
Number of threads | 1 | 1 | 2 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
Thread direction | Right | Right | Right | Right | Right | Right | Right | Right | Right | Right | Right |
Shaft root dia. | Ø5.3 | Ø5.1 | Ø5.2 | Ø5.0 | Ø7.3 | Ø6.6 | Ø6.3 | Ø6.6 | Ø6.7 | Ø6.7 | Ø6.7 |
Number of circuits | 3.7×1 | 2.7×1 | 1.6×2 | 1.2×2 | 3.7×1 | 3.7×1 | 2.7×1 | 2.7×1 | 1.6×2 | 1.6×2 | 1.6×2 |
Shaft nut material | SCM415H | SCM415H | SCM415H | SCM415H | SCM415H | SCM415H | SCM415H | SCM415H | SCM415H | SCM415H | SCM415H |
Surface hardness | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 |
Anti-rust treatment | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil |
Grade | C7 | C7 | C7 | C7 | C7 | C7 | C7 | C7 | C7 | C7 | C7 |

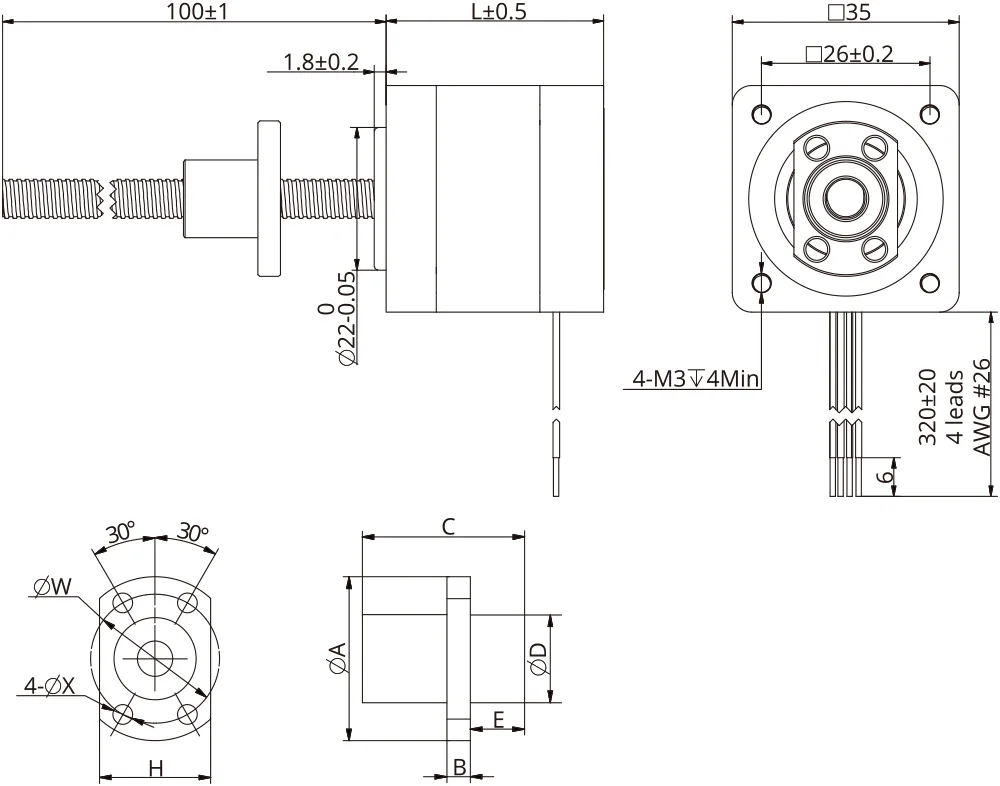

Nut size | A | B | C | D | H | W | X | E | Position accuracy | Total run out | Axial play | Dynamic load[N] | Static load[N] |
BS0601 | 26 | 4 | 17 | 13 | 16 | 20 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 680 | 1200 | |
BS0602 | 28 | 4 | 17 | 15 | 19 | 22 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 750 | 1450 | |
BS0606 | 27 | 4 | 17 | 14 | 16 | 21 | 3.4 | 5 | ±0.05 | 0.12 | ≤0.03 | 870 | 1600 |
BS0610 | 27 | 4 | 23 | 14 | 16 | 21 | 3.4 | 7.5 | ±0.05 | 0.12 | ≤0.03 | 950 | 1650 |
BS0801 | 29 | 4 | 17 | 16 | 18 | 23 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 780 | 1650 | |
BS0802 | 37 | 5 | 24 | 20 | 22 | 29 | 4.5 | ±0.05 | 0.12 | ≤0.03 | 2400 | 4100 | |
BS0802.5 | 29 | 4 | 16 | 16 | 18 | 23 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 1850 | 3000 | |
BS0805 | 31 | 4 | 28 | 18 | 20 | 25 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 1850 | 3000 | |
BS0808 | 31 | 4 | 20 | 18 | 20 | 25 | 3.4 | 6 | ±0.05 | 0.12 | ≤0.03 | 2200 | 3800 |
BS0810 | 31 | 4 | 20 | 18 | 20 | 25 | 3.4 | 7 | ±0.05 | 0.12 | ≤0.03 | 2200 | 3800 |
BS0812 | 31 | 4 | 24 | 18 | 20 | 25 | 3.4 | 6 | ±0.05 | 0.12 | ≤0.03 | 2200 | 3800 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
