14E2110

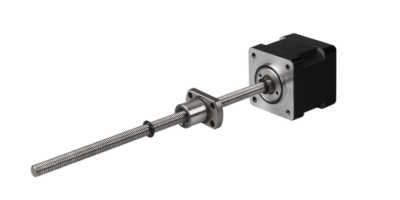

The size 14 [35mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.

SKU: SBSLA – Size 14 [35mm]-14E2110 Category: Hybrid Steppers

Description

Description

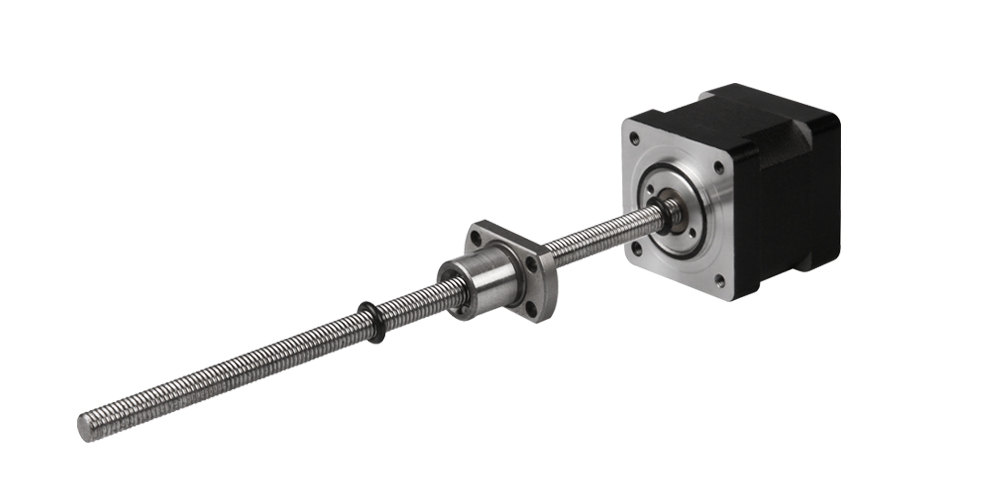

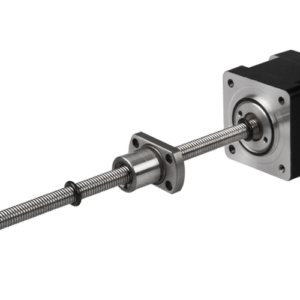

The size 14 [35mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.

Motor Characteristics

Parameter	Unit	14E2110
Voltage	V	3.5
Current	A	1.0
Resistance	Ohm	3.5
Inductance	mH	3.6
Motor Length	mm	33.6
Lead Wire No.		4
Size	Nema	14
Flange size	mm	35

Options

Encoder

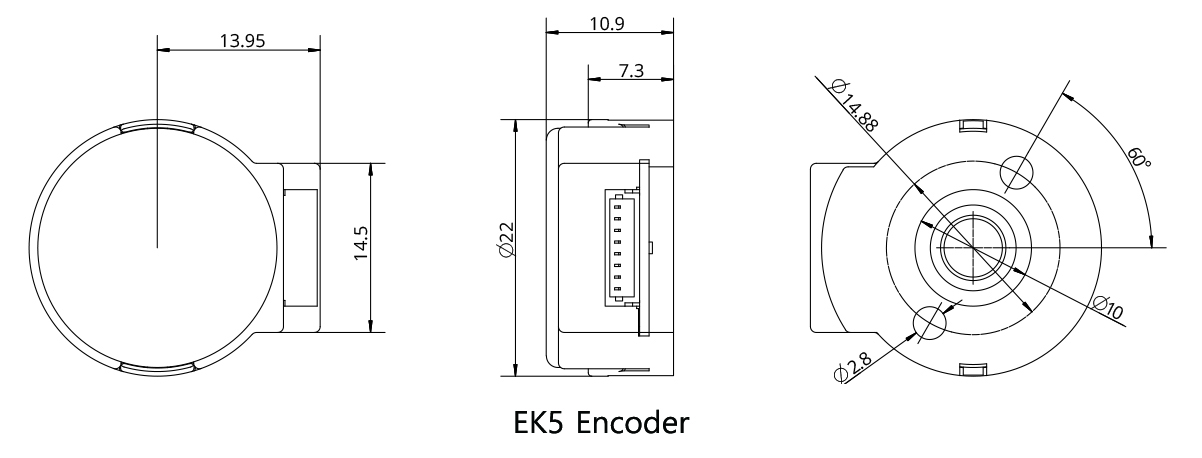

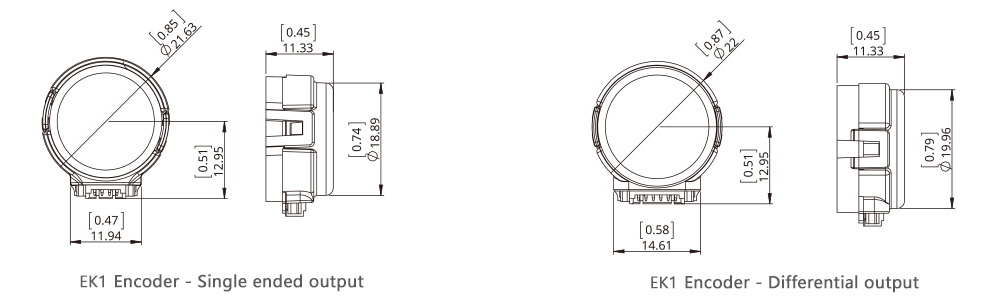

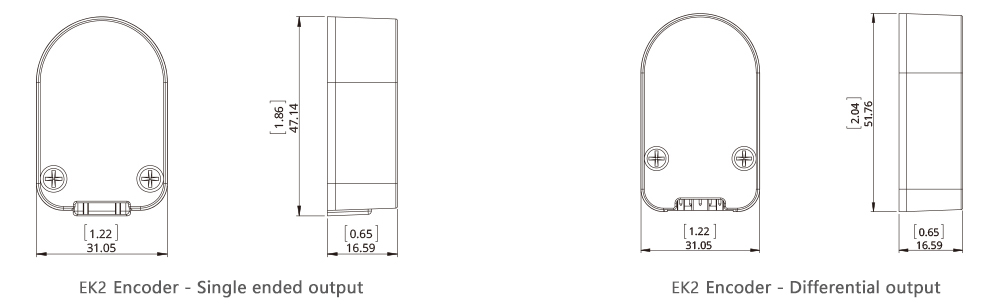

EK1 EK2 EK5

Screw End Machining

Threaded End Smooth End None Customize

Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

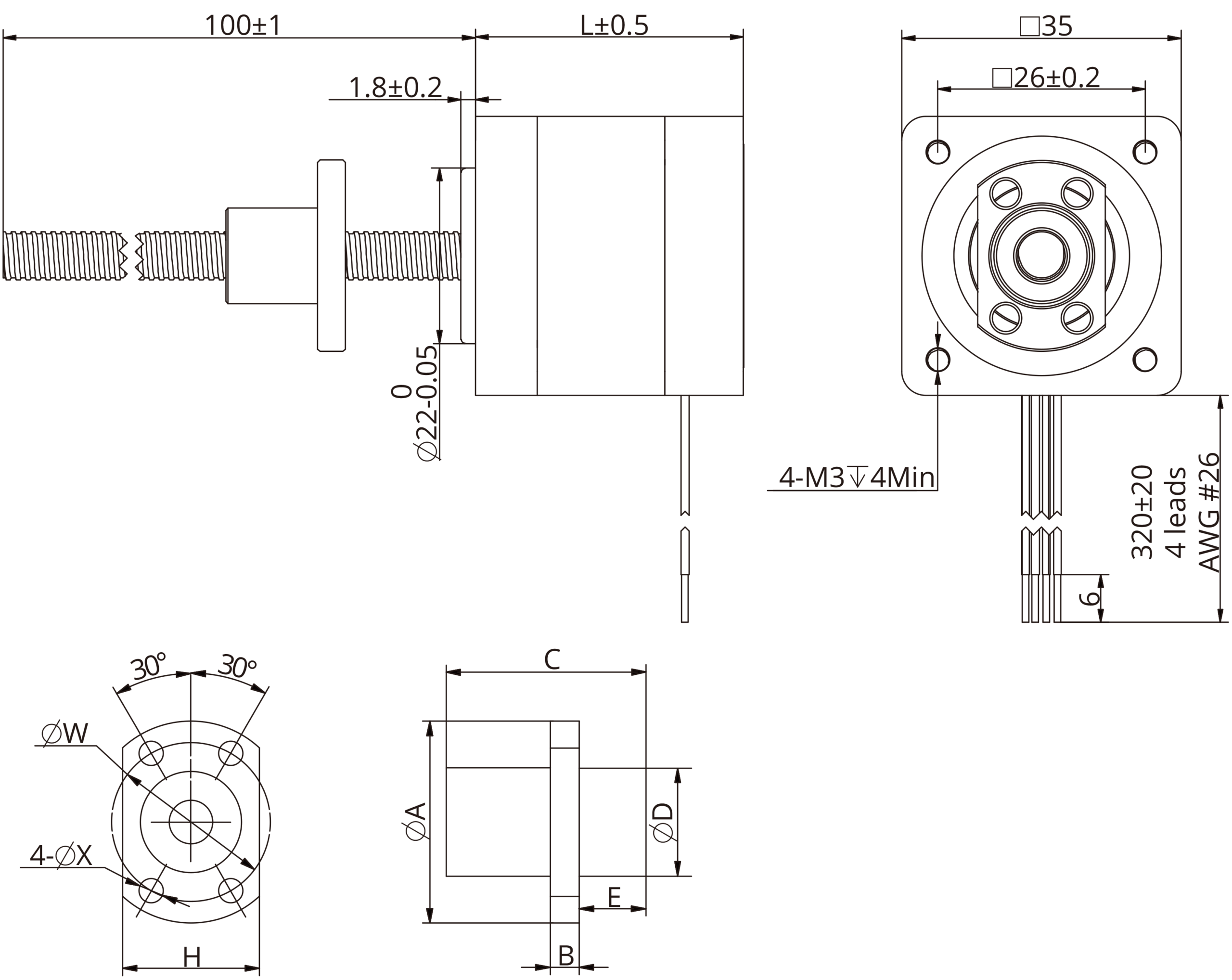

SBSLA – Size 14 [35mm]





SBSLA – Size 14 [35mm]

14E2215BS24-100.stp (step, 4.07M)

14E2215BS64-100.stp (step, 4.07M)

14E2110BS64-100.stp (step, 2.92M)

14E2110BS24-100.stp (step, 2.92M)

14E2110BS14-100.stp (step, 2.91M)

14E2110BS104-100.stp (step, 2.92M)

14E2215BS14-100_Size14.stp (step, 4.07M)

14E2215BS104-100.stp (step, 4.07M)
