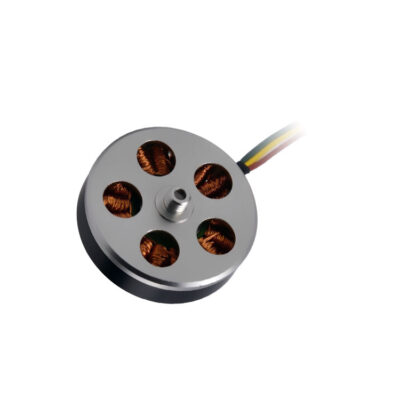

Outer Rotor

The Outer Rotors are high-pole brushless motors that have high torque and high power density.

131 products matching criteria

Sort:

|

View:

BO4831NH2B03-101-36.0

Terminal resistance 0.18Ω

No-load speed 10160rpm

No-load current 0.6A

Stall torque 6727mNm

BO4831NH2B02-101-24.0

Terminal resistance 0.08Ω

No-load speed 10160rpm

No-load current 0.9A

Stall torque 6726mNm

BO4831NH2B01-101-18.0

Terminal resistance 0.05Ω

No-load speed 10160rpm

No-load current 1.1A

Stall torque 6053mNm

BO4831NH2B

BO4416N2B04-24-24.0

Terminal resistance 3.00Ω

No-load speed 2360rpm

No-load current 0.09A

Stall torque 759mNm

BO4416N2B03-34-18.0

Terminal resistance 0.75Ω

No-load speed 3450rpm

No-load current 0.17A

Stall torque 1178mNm

BO61**—62MP—BO6133N2B03-50-24.0

Terminal resistance 0.19Ω

No-load speed 5000rpm

No-load current 0.7mA

Stall torque 5725mNm

BO4416N2B02-34-12.0

Terminal resistance 0.37Ω

No-load speed 3450rpm

No-load current 0.30A

Stall torque 1057mNm

BO61**—62MP—BO6133N2B02-50-36.0

Terminal resistance 0.43Ω

No-load speed 5000rpm

No-load current 0.5mA

Stall torque 5687mNm

BO4416N2B
