Beschreibung

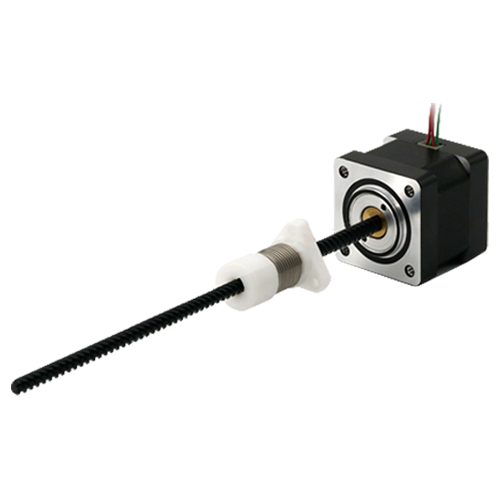

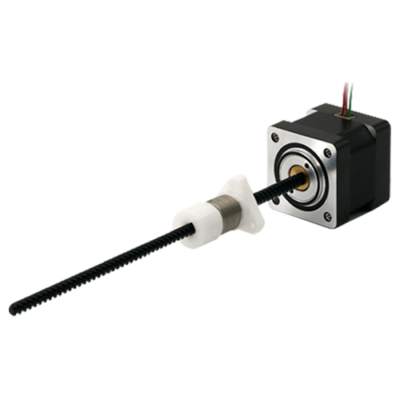

The size 6 [14mm] Stepper Lead Screw Linear Actuator occupies a mounting footprint of 14mm square but provides 19N of Maximum thrust force.
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. MwSt.
The size 6 [14mm] Stepper Lead Screw Linear Actuator occupies a mounting footprint of 14mm square but provides 19N of Maximum thrust force.
The size 6 [14mm] Stepper Lead Screw Linear Actuator occupies a mounting footprint of 14mm square but provides 19N of Maximum thrust force.
Motor Characteristics | 6-2103 |
---|---|
Voltage | 6.6 V |
Current | 0.3 A |
Resistance | 22 Ω |
Inductance | 3.6 mH |
Weight | 50 g |
Lead Wire No. | 4 |
Motor Length | 32 mm |
Size | 6 Nema |
Flange size | 14 mm |
Lead Screw Code | SLSLA – Size 6 [14mm] |
---|---|
AF, Screw Lead | 3.5 mm |
AA, Screw Lead | 3.5 mm |
AB, Screw Lead | 2.5 mm |
B, Screw Lead | 3.5 mm |
G, Screw Lead | 3.5 mm |
M, Screw Lead | 3.5 mm |
T, Screw Lead | 3.5 mm |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | 6-2103 |
---|---|
Voltage | 6.6 V |
Current | 0.3 A |
Resistance | 22 Ω |
Inductance | 3.6 mH |
Weight | 50 g |
Lead Wire No. | 4 |
Motor Length | 32 mm |
Size | 6 Nema |
Flange size | 14 mm |
Lead Screw Code | 6-2103 |
---|---|
AF, Screw Lead | 3.5 mm |
AA, Screw Lead | 3.5 mm |
AB, Screw Lead | 2.5 mm |
B, Screw Lead | 3.5 mm |
G, Screw Lead | 3.5 mm |
M, Screw Lead | 3.5 mm |
T, Screw Lead | 3.5 mm |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
