![SBSLA - Size 8 [20mm]](https://www.kocomotion.de/wp-content/uploads/2024/06/Ball_size820mm.png)
incl. 19% VAT

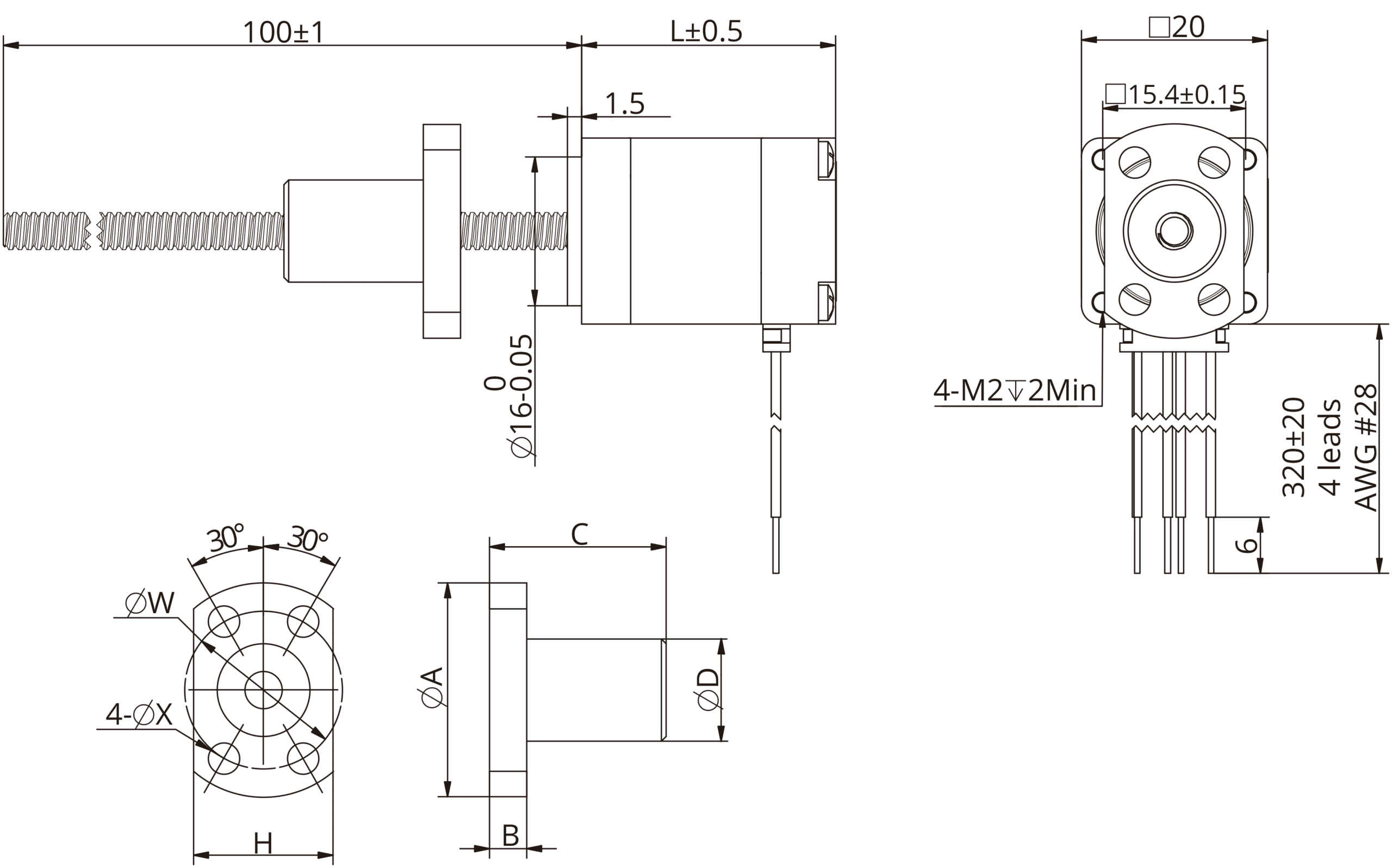

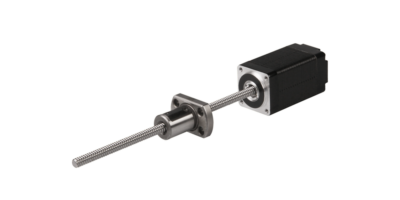

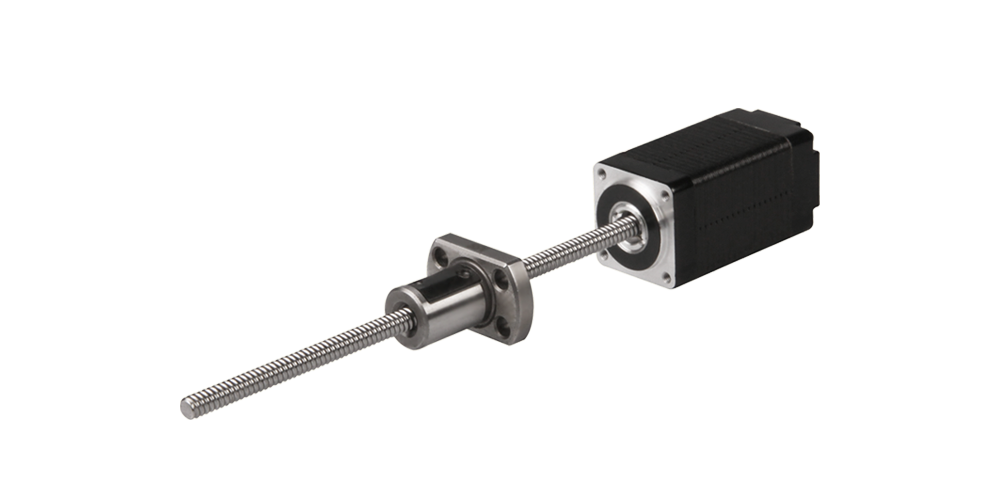

The Size 8 [20mm] External Stepper Ball Screw Linear Actuator.

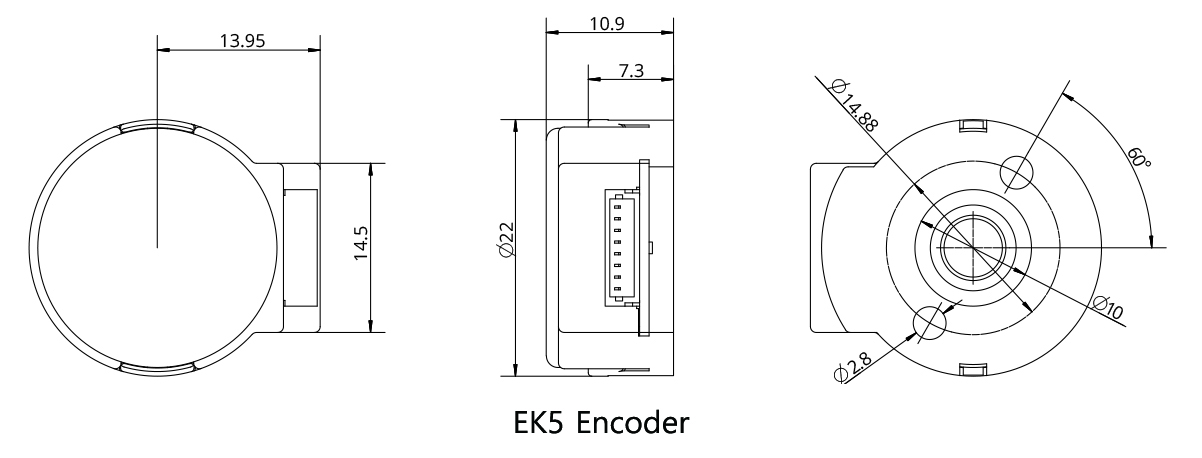

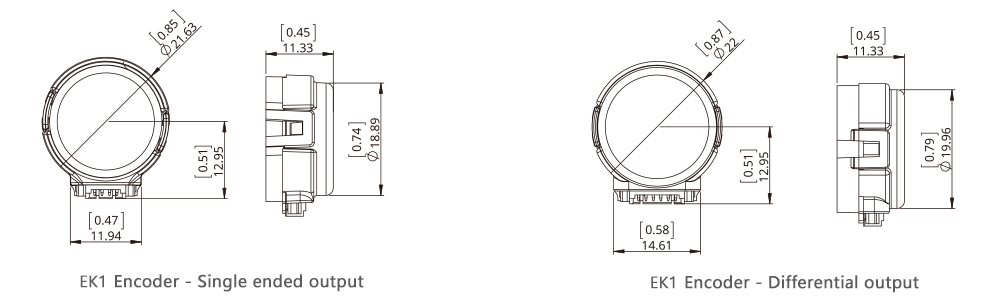

Various screw end machining and encoder options are available.
The Size 8 [20mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining and encoder options are available.
| Specification | 8E2105 |
|---|---|
| Voltage | 2.5 V |
| Current | 0.5 A |
| Resistance | 5.1 Ω |
| Inductance | 1.5 mH |
| Motor Length | 27.2 mm |
| Lead Wire No. | 4 |
| Size | 8 Nema |
| Flange size | 20 mm |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
