SBSLA - Size 11 [28mm]

SBSLA – Size 11 [28mm]

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. MwSt.

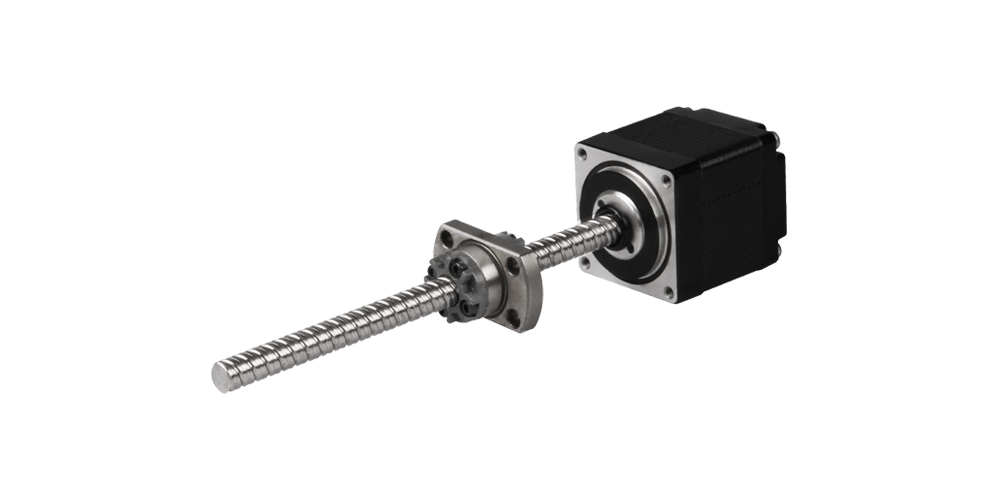

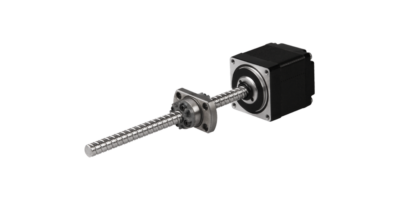

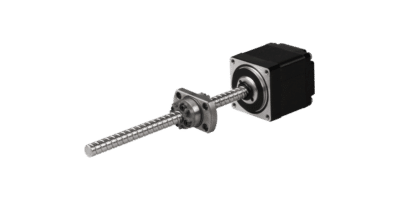

The size 11 [28mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.

Artikelnummer: SBSLA – Size 11 [28mm] Kategorie: Hybrid Steppers

Beschreibung

Beschreibung

The size 11 [28mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.

Produktvergleich

Motor Characteristics	11E2110	11E2209
Voltage	2.1 V	3.9 V
Current	1 A	0.95 A
Resistance	2.1 Ω	4.1 Ω
Inductance	1.5 mH	4 mH
Motor Length	33.35 mm	45 mm
Lead Wire No.	4	4
Size	11 Nema	11 Nema
Flange size	28 mm	28 mm

Ball screw type	0601	0602	0606	0610	0504
Ball size	Ø0.8	Ø0.8	Ø0.8	Ø1.2	Ø0.8
Number of threads	1	1	2	2	1
Thread direction	Right	Right	Right	Right	Right
Shaft root dia.	Ø5.3	Ø5.1	Ø5.2	Ø5.0	Ø4.3
Number of circuits	3.7×1	2.7×1	1.6×2	1.2×2	2.7×1
Shaft nut material	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H
Surface hardness	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62
Anti-rust treatment	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil
Grade	C7	C7	C7	C7	C7

Nut size	A	B	C	D	H	W	X	E	Position accuracy	Total run out	Axial play	Dynamic load[N]	Static load[N]
BS0601	26	4	17	13	16	20	3.4		±0.05	0.12	≤0.03	680	1200
BS0602	26	4	17	15	19	22	3.4		±0.05	0.12	≤0.03	750	1450
BS0606	27	4	17	14	16	21	3.4	5	±0.05	0.12	≤0.03	870	1600
BS0610	27	4	23	14	16	21	3.4	7.5	±0.05	0.12	≤0.03	950	1650
BS0504	24	4	22	12	16	18	3.4		±0.05	0.12	≤0.03	470	720

Optionen

Encoder

EK1 EK5

Screw End Machining

Threaded End Smooth End None Customize

SBSLA – Size 11 [28mm]

External (jpeg, 209.65K)

External

External

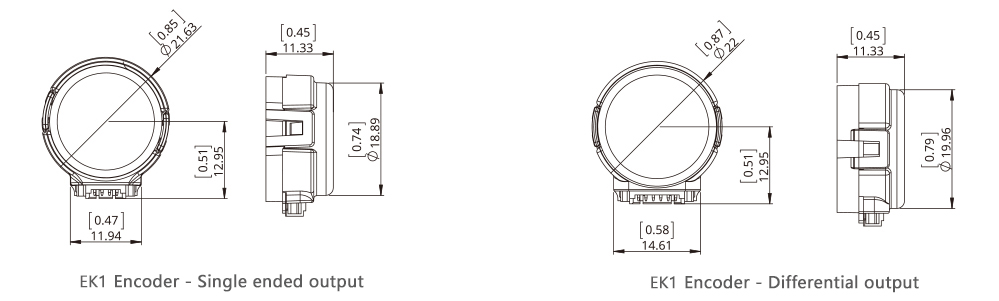

EK1-Encoder (jpeg, 114.32K)

EK1-Encoder

EK1-Encoder

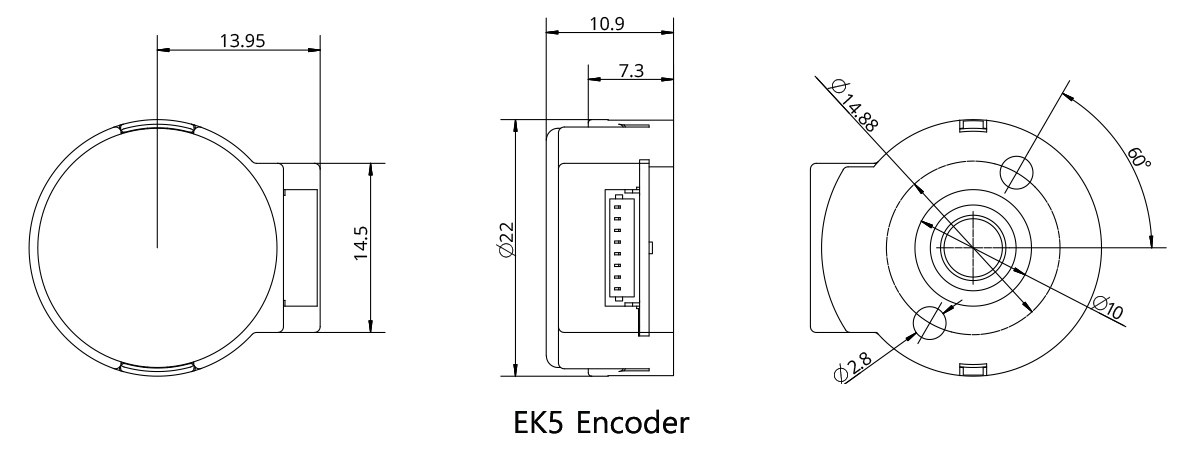

EK5-Encoder (jpeg, 689.69K)

EK5-Encoder

EK5-Encoder

SBSLA – Size 11 [28mm]

11E2110BS14-100.stp (step, 4.38M)

11E2110BS24-100_Size11.stp (step, 4.38M)

11E2110BS44-100.stp (step, 4.66M)

11E2110BS64-100.stp (step, 4.38M)

11E2110BS104-100.stp (step, 4.38M)

11E2210BS14-100.stp (step, 4.77M)

11E2210BS24-100.stp (step, 4.77M)

11E2210BS44-100.stp (step, 5.05M)

11E2210BS64-100.stp (step, 4.77M)

11E2210BS104-100.stp (step, 4.77M)

SBSLA – Size 11 [28mm]

Speed-Thrust-Curves (jpeg, 1001.36K)

Speed-Thrust-Curves

Speed-Thrust-Curves
