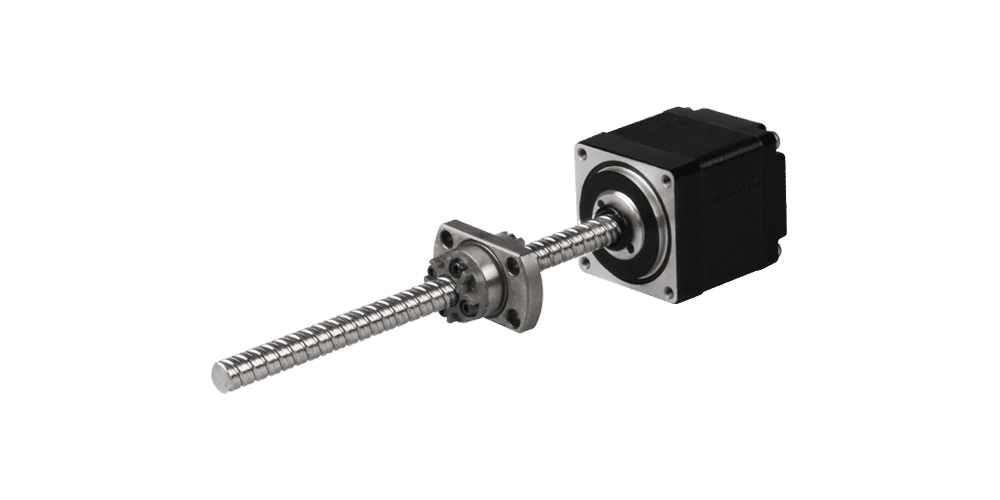

The size 11 [28mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.

Artikelnummer: 11E2209 Kategorie: Hybrid Steppers

Beschreibung

Beschreibung

The size 11 [28mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.

Motor Characteristics

Parameter	Unit	11E2209
Voltage	V	3.9
Current	A	0.95
Resistance	Ω	4.1
Inductance	mH	4
Lead Wire No.		4
Motor Length	mm	45
Size	Nema	11
Flange size	mm	28

Ball Screw Specification

Ball screw type	0601	0602	0606	0610	0504
Ball size	Ø0.8	Ø0.8	Ø0.8	Ø1.2	Ø0.8
Number of threads	1	1	2	2	1
Thread direction	Right	Right	Right	Right	Right
Shaft root dia.	Ø5.3	Ø5.1	Ø5.2	Ø5.0	Ø4.3
Number of circuits	3.7×1	2.7×1	1.6×2	1.2×2	2.7×1
Shaft nut material	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H
Surface hardness	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62
Anti-rust treatment	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil
Grade	C7	C7	C7	C7	C7

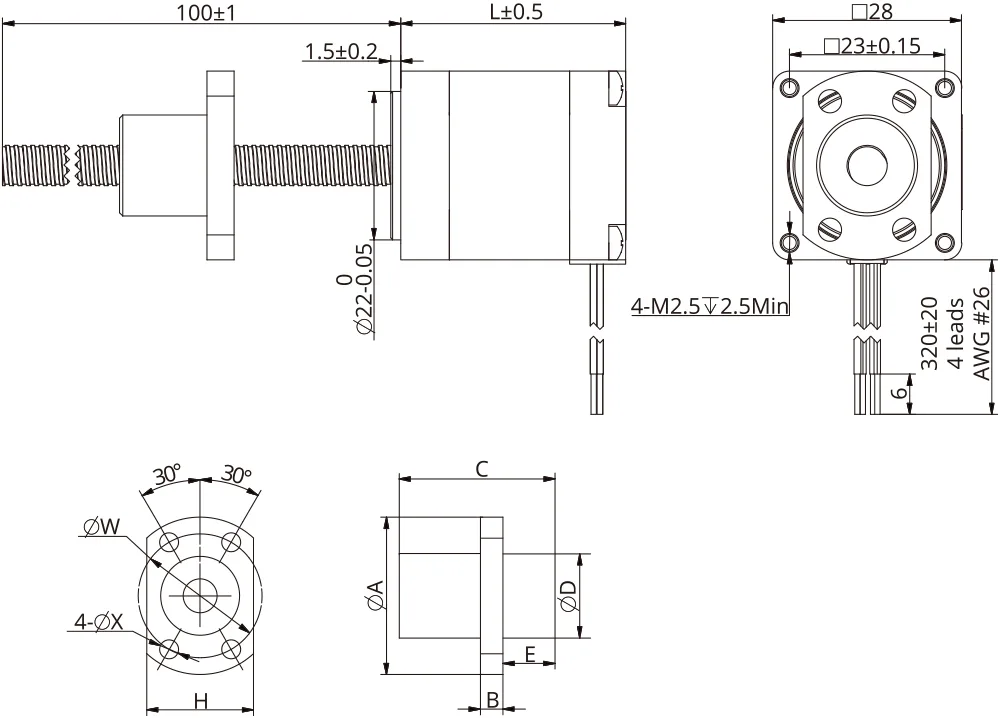

Nut size

Nut size	A	B	C	D	H	W	X	E	Position accuracy	Total run out	Axial play	Dynamic load[N]	Static load[N]
BS0601	26	4	17	13	16	20	3.4		±0.05	0.12	≤0.03	680	1200
BS0602	26	4	17	15	19	22	3.4		±0.05	0.12	≤0.03	750	1450
BS0606	27	4	17	14	16	21	3.4	5	±0.05	0.12	≤0.03	870	1600
BS0610	27	4	23	14	16	21	3.4	7.5	±0.05	0.12	≤0.03	950	1650
BS0504	24	4	22	12	16	18	3.4		±0.05	0.12	≤0.03	470	720

Optionen

Encoder

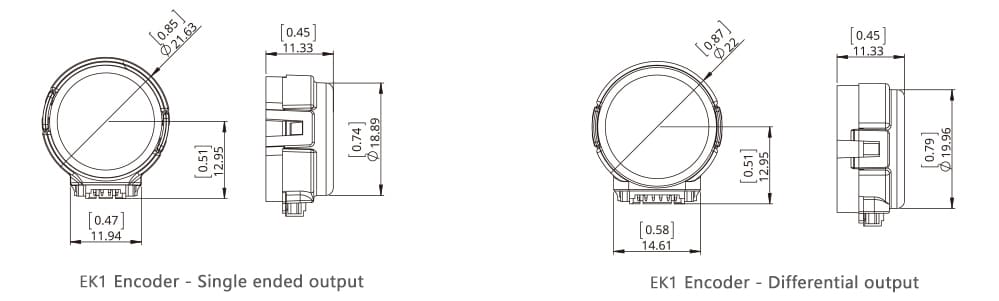

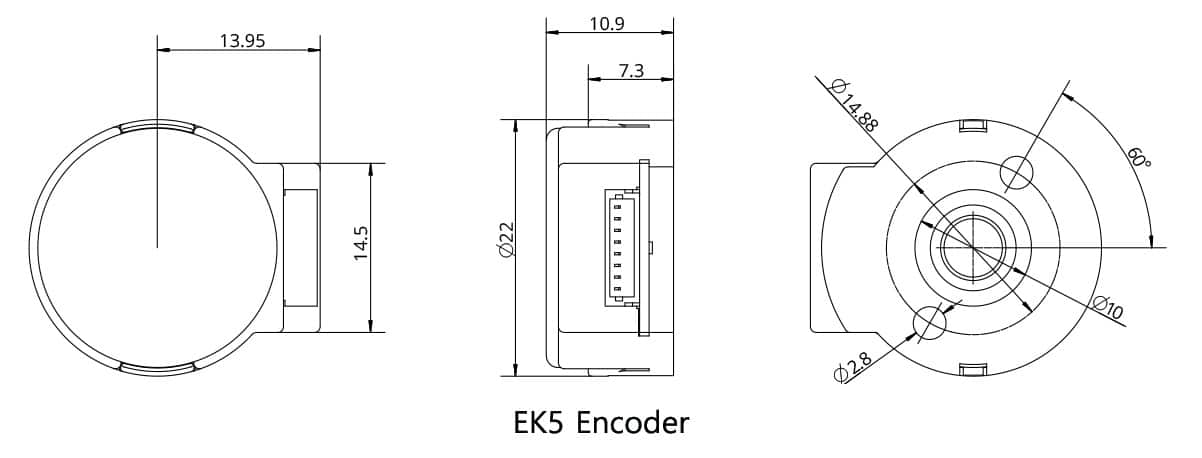

EK1 EK5

Screw End Machining

Threaded End Smooth End None Customize
