Microstepping driver module IM483H 3.0A

Name: Microstepping driver module IM483H 3.0A - KOCO MOTION
SKU: Microstepping driver module IM483H 3.0A

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. 19 % MwSt.

1 to 256 with

Pulse/Direction
Motion Control (RS485)
CANopen
Ethernet (MCode, Modbus TCP, Ethernet IP, Profinet I/O)

Artikelnummer: Microstepping driver module IM483H 3.0A Kategorie: Stepper Controller

Beschreibung

Beschreibung

The IM483H Plus are high performance, low-cost microstepping drivers utilizing advanced technology to greatly reduce size without sacrificing features. The stepper motor drivers are exceptionally small, easy to interface and use, and yet powerful enough to handle the most demanding applications.

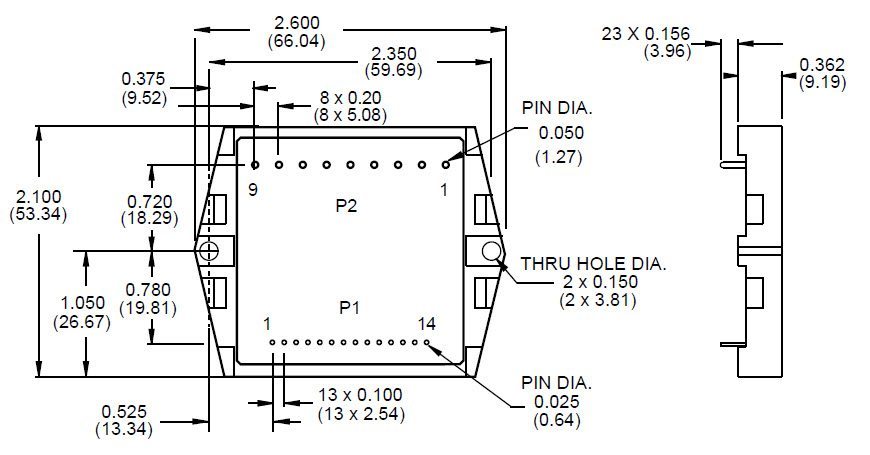

Specification	Microstepping driver module IM483H 3.0A
Control type	Step/Direction
Control interface	Step, direction and enable inputs
Driver type	Microstepping
Operating temperature	-40 … +85 °C
Input voltage	+12 to +48 +VDC
Output voltage	3.0 A
Low-Level Input Voltage, all inputs	1.2 +VDC
High-Level Input Voltage, all inputs except Reset	2.0 +VDC
High-Level Input Voltage, reset input, IOL = 2 mA	2.3 +VDC
Input Pull-up Resistance, MSEL 0-3, Enable	20 kΩ
Input Pull-up Resistance, step clock, direction	2.0 kΩ
Input Pull-up Resistance, reset	1.0 kΩ
Input Pull-up Resistance, fault input	4.7 kΩ
Low-Level Output Current, fault, full step	2 mA (min)
High-Level Output Current, fault, full step	-2 mA (min)
Low-Level Output Voltage, IOL = 2 mA	0.5 +VDC
High-Level Output Voltage, IOH = 1.7 mA	2.3 +VDC
Motion step frequency	2.5 MHz max
Motion step resolutions	1 … 256 steps/full step

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
