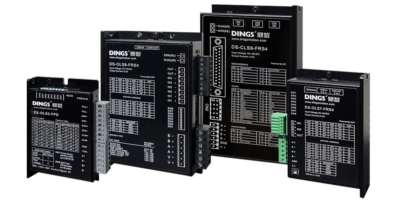

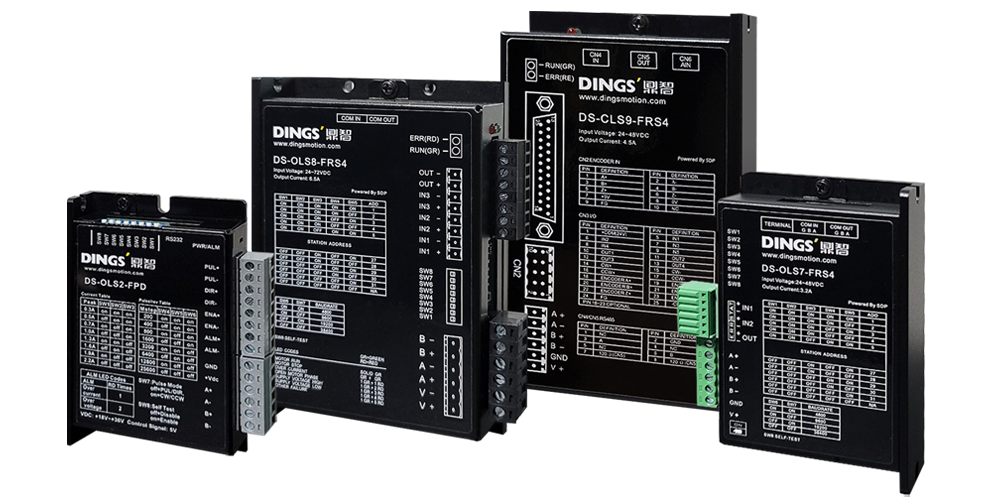

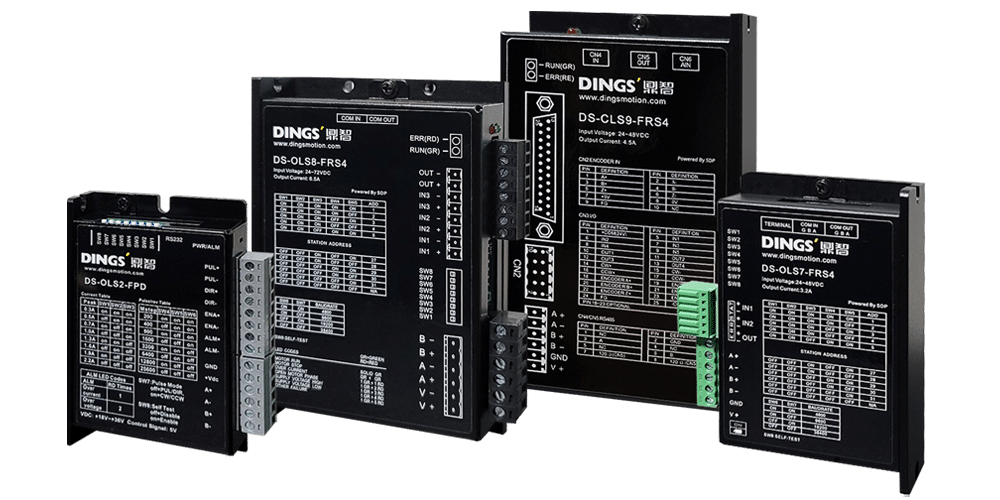

KOCO offers 3 different microstepping drivers which is pulse and direction mode based. And also dynamic closed loop stand alone electronic is available.
From Min. 2.2A [up to NEMA17 Stepper size] to Max. 7.6A [up to NEMA34 Stepper size], convenient drivers can be chosen. Pulse/RS485 supported closed loop driver and Pulse/RS485/CC-Link supported open loop electronics are available.
KOCO offers 3 different microstepping drivers which is pulse and direction mode based. And also dynamic closed loop stand alone electronic is available.
From Min. 2.2A [up to NEMA17 Stepper size] to Max. 7.6A [up to NEMA34 Stepper size], convenient drivers can be chosen. Pulse/RS485 supported closed loop driver and Pulse/RS485/CC-Link supported open loop electronics are available.
inkl. 19 % MwSt.
Weiterlesen
inkl. 19 % MwSt.
Weiterlesen
inkl. 19 % MwSt.
Weiterlesen
inkl. MwSt.
Produkte anzeigen| Motor Characteristics | DS-OLS8-FPD | DS-OLS7-FRS4 | DS-OLS8-FRS4 | DS-OLS10-FSC | DS-CLS3-FETC-4I |
|---|---|---|---|---|---|
| Applied Motor | DS-OLS8-FPD can operate Max. 7.8A of motor | Adapted to two-phase hybrid stepping motor,DS-OLS7-FRS4 Maximum fit 3.2A | Adapted to two-phase hybrid stepping motor,DS-OLS8-FRS4 Maximum fit 6.5A | Adapted to two-phase hybrid stepping motor,DS-OLS10-FSC Maximum fit 4.5A | Adapted to two-phase hybrid stepping motor,DS-OLS10-FSC Maximum fit 4.5A |
| Power Supply | 24 – 72V DC | 24 – 48V DC | 24 – 72V DC | 24 – 48V DC | 24 – 48V DC |
| Output Current | 2.8A-7.8A/Phase（Peak Value） | 0.1A-3.2A/ phase | 0.1A-6.5A/Phase | 1.0A-4.5A/Phase (Peak Value) | 1.0A-4.5A/Phase (Peak Value) |
| Drive Method | Bi-Polar PWM drive | Full-bridge bipolar PWM driver | Full-bridge bipolar PWM driver | Full-Bridge Bi-polar PWM driver | Full-Bridge Bi-polar PWM driver |
| Input Signal (Pulse Signal,Offline Signal,Direction Signal) | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V,Conduction current 6-15mA | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V, On current 6-15mA | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V,On current 6-15mA | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V,On current 6-15mA | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V,On current 6-15mA |
| Output Signal Alarm output | Photoelectric isolation output, maximum withstand voltage 30VDC, maximum saturation current 50mA | Optically isolated output, highest withstand voltage30VD, Maximum saturation current 50mA | Optically isolated output, highest withstand voltage30VDC，Maximum saturation current 50mA | Optically isolated output, highest withstand voltage30VDC，Maximum saturation current 50mA | Optically isolated output, highest withstand voltage30VDC，Maximum saturation current 50mA |
| Size | 118 × 78 × 34 | 94 × 77 × 27mm（Including terminal block） | 118 × 78 × 34mm | 118 × 78 × 34mm | 118 × 78 × 34mm |
| Weight | About 300 | About 175 g | About 300g | About 300g | About 300g |
| Operation Environment Precaution | Avoid dust, oil mist and corrosive gas | Avoid dust, oil mist and corrosive gases | Avoid dust, oil mist and corrosive gases | Avoid dust, oil mist and corrosive gases | Avoid dust, oil mist and corrosive gases |
| Humidity | < 85 % RH, No condensation | < 85 % RH, No condensation | < 85 % RH, No condensation | < 85 % RH, No condensation | < 85 % RH, No condensation |
| Temperature | 0°C – +40 | 0°C – +40 | 0- +40 | 0°C – +40°C | 0°C – +40°C |
| Cooling | Installed in a ventilated environment | Installed in a ventilated environment | Installed in a ventilated environment | Installed in a ventilated environment | Installed in a ventilated environment |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
| Specification | DS-OLS8-FPD |
|---|---|
| Applied Motor | DS-OLS8-FPD can operate Max. 7.8A of motor |
| Power Supply | 24 – 72V DC V |
| Output Current | 2.8A-7.8A/Phase（Peak Value） A |
| Drive Method | Bi-Polar PWM drive |
| Input Signal (Pulse Signal,Offline Signal,Direction Signal) | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V,Conduction current 6-15mA |
| Output Signal Alarm output | Photoelectric isolation output, maximum withstand voltage 30VDC, maximum saturation current 50mA |
| Size | 118 × 78 × 34 mm |
| Weight | About 300 g |
| Operation Environment Precaution | Avoid dust, oil mist and corrosive gas |
| Humidity | < 85 % RH, No condensation |
| Temperature | 0°C – +40 °C |
| Cooling | Installed in a ventilated environment |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

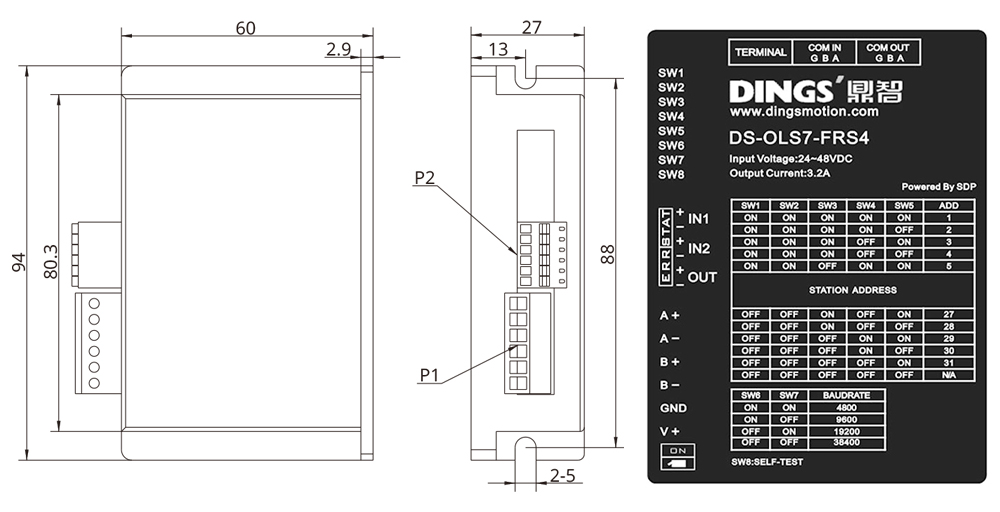

| Specification | DS-OLS7-FRS4 |
|---|---|
| Applied Motor | Adapted to two-phase hybrid stepping motor,DS-OLS7-FRS4 Maximum fit 3.2A |
| Power Supply | 24 – 48V DC V |
| Output Current | 0.1A-3.2A/ phase A |
| Drive Method | Full-bridge bipolar PWM driver |
| Input Signal (Pulse Signal,Offline Signal,Direction Signal) | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V, On current 6-15mA |
| Output Signal Alarm output | Optically isolated output, highest withstand voltage30VD, Maximum saturation current 50mA |
| Size | 94 × 77 × 27mm（Including terminal block） mm |
| Weight | About 175 g g |
| Operation Environment Precaution | Avoid dust, oil mist and corrosive gases |
| Humidity | < 85 % RH, No condensation |
| Temperature | 0°C – +40 °C |
| Cooling | Installed in a ventilated environment |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
| Specification | DS-OLS8-FRS4 |
|---|---|
| Applied Motor | Adapted to two-phase hybrid stepping motor,DS-OLS8-FRS4 Maximum fit 6.5A |
| Power Supply | 24 – 72V DC V |
| Output Current | 0.1A-6.5A/Phase A |
| Drive Method | Full-bridge bipolar PWM driver |
| Input Signal (Pulse Signal,Offline Signal,Direction Signal) | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V,On current 6-15mA |
| Output Signal Alarm output | Optically isolated output, highest withstand voltage30VDC，Maximum saturation current 50mA |
| Size | 118 × 78 × 34mm mm |
| Weight | About 300g g |
| Operation Environment Precaution | Avoid dust, oil mist and corrosive gases |
| Humidity | < 85 % RH, No condensation |
| Temperature | 0- +40 °C |
| Cooling | Installed in a ventilated environment |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
| Specification | DS-OLS10-FSC |
|---|---|
| Applied Motor | Adapted to two-phase hybrid stepping motor,DS-OLS10-FSC Maximum fit 4.5A |
| Power Supply | 24 – 48V DC V |
| Output Current | 1.0A-4.5A/Phase (Peak Value) A |
| Drive Method | Full-Bridge Bi-polar PWM driver |
| Input signal IN1 (Start) Signal Input signal IN2 (Direction) Signal Input signal IN3 (Speed switch) Signal | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V,On current 6-15mA |
| Analog Adjustment | Connected to 10K potentiometer or 0~10V analog adjustment |
| Size | 118 × 78 × 34mm mm |
| Weight | About 300g g |
| Operation Environment Precaution | Avoid dust, oil mist and corrosive gases |
| Humidity | < 85 % RH, No condensation |
| Temperature | 0°C – +40°C °C |
| Cooling | Installed in a ventilated environment |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
