Motor Characteristics
| Parameter | Unit | DS-OLS8-FPD | DS-OLS7-FRS4 | DS-OLS8-FRS4 | DS-OLS10-FSC | DS-CLS3-FETC-4I |
|---|---|---|---|---|---|---|
| Applied Motor | DS-OLS8-FPD can operate Max. 7.8A of motor | Adapted to two-phase hybrid stepping motor,DS-OLS7-FRS4 Maximum fit 3.2A | Adapted to two-phase hybrid stepping motor,DS-OLS8-FRS4 Maximum fit 6.5A | Adapted to two-phase hybrid stepping motor,DS-OLS10-FSC Maximum fit 4.5A | – | |
| Humidity | < 85 % RH, No condensation | < 85 % RH, No condensation | < 85 % RH, No condensation | < 85 % RH, No condensation | – | |
| Temperature | °C | 0 – +40 | 0 – +40 | 0- +40 | 0 – +40 | – |
| Cooling | Installed in a ventilated environment | Installed in a ventilated environment | Installed in a ventilated environment | Installed in a ventilated environment | – | |
| Power Supply | V | 24 – 72V DC | 24 – 48V DC | 24 – 72V DC | 24 – 48V DC | – |
| Output current | A | 2.8A-7.8A/Phase（Peak Value） | 0.1A-3.2A/ phase | 0.1A-6.5A/Phase | 1.0A-4.5A/Phase (Peak Value) | – |
| Drive Method | Bi-Polar PWM drive | Full-bridge bipolar PWM driver | Full-bridge bipolar PWM driver | Full-Bridge Bi-polar PWM driver | – | |
| Input Signal (Pulse Signal,Offline Signal,Direction Signal) | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V,Conduction current 6-15mA | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V, On current 6-15mA | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V,On current 6-15mA | – | – | |
| Output Signal Alarm output | Photoelectric isolation output, maximum withstand voltage 30VDC, maximum saturation current 50mA | Optically isolated output, highest withstand voltage30VD, Maximum saturation current 50mA | Optically isolated output, highest withstand voltage30VDC，Maximum saturation current 50mA | – | – | |
| Size | mm | 118 × 78 × 34 | 94 × 77 × 27mm（Including terminal block） | 118 × 78 × 34mm | 118 × 78 × 34mm | – |
| Weight | g | About 300 | About 175 g | About 300g | About 300g | – |
| Operation environment precaution | Avoid dust, oil mist and corrosive gas | Avoid dust, oil mist and corrosive gases | Avoid dust, oil mist and corrosive gases | Avoid dust, oil mist and corrosive gases | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads

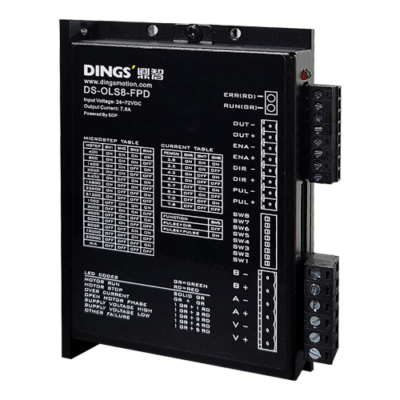

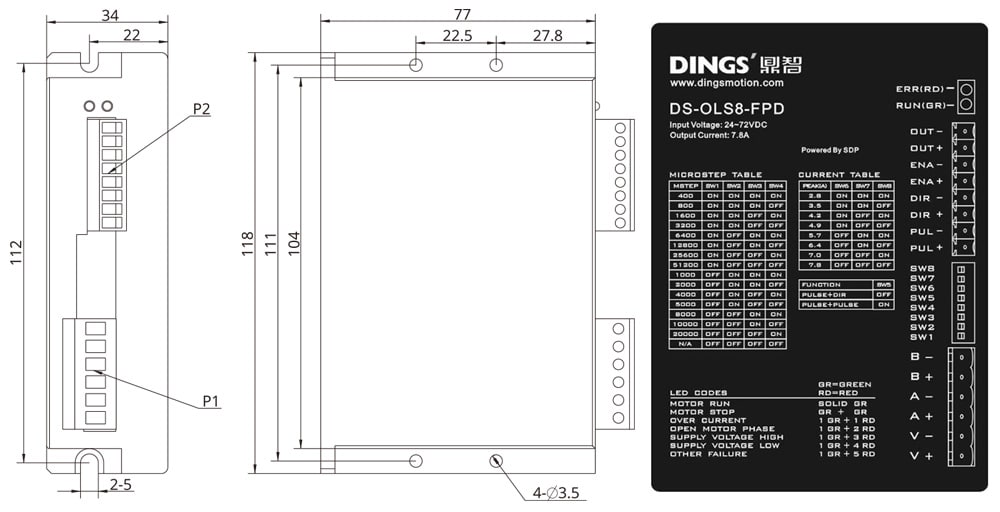

| Parameter | Unit | DS-OLS8-FPD |
|---|---|---|
| Applied Motor | DS-OLS8-FPD can operate Max. 7.8A of motor | |
| Humidity | < 85 % RH, No condensation | |
| Temperature | °C | 0 – +40 |
| Cooling | Installed in a ventilated environment | |
| Power Supply | V | 24 – 72V DC |
| Output current | A | 2.8A-7.8A/Phase（Peak Value） |
| Drive Method | Bi-Polar PWM drive | |
| Input Signal (Pulse Signal,Offline Signal,Direction Signal) | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V,Conduction current 6-15mA | |
| Output Signal Alarm output | Photoelectric isolation output, maximum withstand voltage 30VDC, maximum saturation current 50mA | |
| Size | mm | 118 × 78 × 34 |
| Weight | g | About 300 |
| Operation environment precaution | Avoid dust, oil mist and corrosive gas |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | DS-OLS7-FRS4 |
|---|---|---|
| Applied Motor | Adapted to two-phase hybrid stepping motor,DS-OLS7-FRS4 Maximum fit 3.2A | |
| Humidity | < 85 % RH, No condensation | |
| Temperature | °C | 0 – +40 |
| Cooling | Installed in a ventilated environment | |
| Power Supply | V | 24 – 48V DC |
| Output current | A | 0.1A-3.2A/ phase |
| Drive Method | Full-bridge bipolar PWM driver | |
| Input Signal (Pulse Signal,Offline Signal,Direction Signal) | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V, On current 6-15mA | |
| Output Signal Alarm output | Optically isolated output, highest withstand voltage30VD, Maximum saturation current 50mA | |
| Size | mm | 94 × 77 × 27mm（Including terminal block） |
| Weight | g | About 175 g |
| Operation environment precaution | Avoid dust, oil mist and corrosive gases |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | DS-OLS8-FRS4 |
|---|---|---|
| Applied Motor | Adapted to two-phase hybrid stepping motor,DS-OLS8-FRS4 Maximum fit 6.5A | |
| Humidity | < 85 % RH, No condensation | |
| Temperature | °C | 0- +40 |
| Cooling | Installed in a ventilated environment | |
| Power Supply | V | 24 – 72V DC |
| Output current | A | 0.1A-6.5A/Phase |
| Drive Method | Full-bridge bipolar PWM driver | |
| Input Signal (Pulse Signal,Offline Signal,Direction Signal) | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V,On current 6-15mA | |
| Output Signal Alarm output | Optically isolated output, highest withstand voltage30VDC，Maximum saturation current 50mA | |
| Size | mm | 118 × 78 × 34mm |
| Weight | g | About 300g |
| Operation environment precaution | Avoid dust, oil mist and corrosive gases |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads

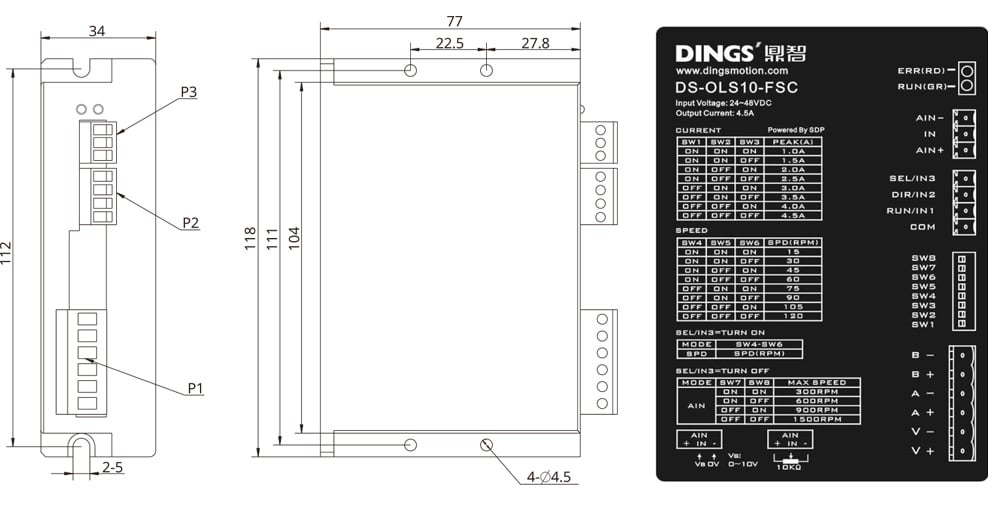

| Parameter | Unit | DS-OLS10-FSC |
|---|---|---|
| Applied Motor | Adapted to two-phase hybrid stepping motor,DS-OLS10-FSC Maximum fit 4.5A | |
| Humidity | < 85 % RH, No condensation | |
| Temperature | °C | 0 – +40 |
| Cooling | Installed in a ventilated environment | |
| Power Supply | V | 24 – 48V DC |
| Output current | A | 1.0A-4.5A/Phase (Peak Value) |
| Drive Method | Full-Bridge Bi-polar PWM driver | |
| Size | mm | 118 × 78 × 34mm |
| Weight | g | About 300g |
| Operation environment precaution | Avoid dust, oil mist and corrosive gases |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
