Beschreibung
1 to 256 with
- Pulse/Direction
- Motion Control (RS485)
- CANopen
- Ethernet (MCode, Modbus TCP, Ethernet IP, Profinet I/O)
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. MwSt.
1 to 256 with
1 to 256 with

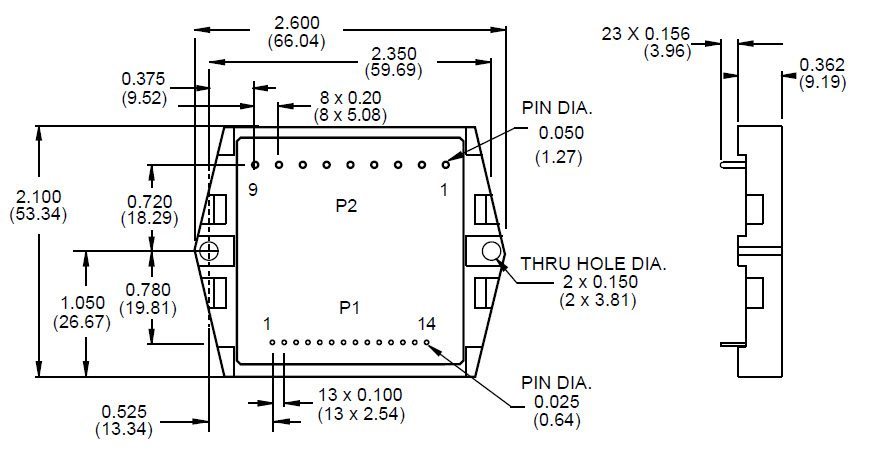

General Specifications | Microstepping driver module IM481H 1.5A | Microstepping driver module IM483H 3.0A | Microstepping driver module IM805H 5.0A |
---|---|---|---|
Control type | Step/Direction | Step/Direction | Step/Direction |
Control interface | Step, direction and enable inputs | Step, direction and enable inputs | Step, direction and enable inputs |
Driver type | Microstepping | Microstepping | Microstepping |
Operating temperature | -40 … +85 | -40 … +85 | -40 … +85 |
Input voltage | +12 to +48 | +12 to +48 | +12 to +75 |
Output voltage | 1.5 A | 3.0 A | 5.0 A |
Low-Level Input Voltage, all inputs | 1.2 +VDC | 1.2 +VDC | 1.2 +VDC |
High-Level Input Voltage, all inputs except Reset | 2.0 +VDC | 2.0 +VDC | 2.0 +VDC |
High-Level Input Voltage, reset input, IOL = 2 mA | 2.3 +VDC | 2.3 +VDC | 2.3 +VDC |
Input Pull-up Resistance, MSEL 0-3, Enable | 20 kΩ | 20 kΩ | 20 kΩ |
Input Pull-up Resistance, step clock, direction | 2.0 kΩ | 2.0 kΩ | 2.0 kΩ |
Input Pull-up Resistance, reset | 1.0 kΩ | 1.0 kΩ | 1.0 kΩ |
Input Pull-up Resistance, fault input | 4.7 kΩ | 4.7 kΩ | 4.7 kΩ |
Low-Level Output Current, fault, full step | 2 mA (min) | 2 mA (min) | 2 mA (min) |
High-Level Output Current, fault, full step | -2 | -2 | -2 |
Low-Level Output Voltage, IOL = 2 mA | 0.5 +VDC | 0.5 +VDC | 0.5 +VDC |
High-Level Output Voltage, IOH = 1.7 mA | 2.3 +VDC | 2.3 +VDC | 2.3 +VDC |
Motion step frequency | 2.5 MHz max | 2.5 MHz max | 2.5 MHz max |
Motion step resolutions | 1 … 256 | 1 … 256 | 1 … 256 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | Microstepping driver module IM481H 1.5A |
---|---|
Control type | Step/Direction |
Control interface | Step, direction and enable inputs |
Driver type | Microstepping |
Operating temperature | -40 … +85 °C |
Input voltage | +12 to +48 +VDC |
Output voltage | 1.5 A |
Low-Level Input Voltage, all inputs | 1.2 +VDC |
High-Level Input Voltage, all inputs except Reset | 2.0 +VDC |
High-Level Input Voltage, reset input, IOL = 2 mA | 2.3 +VDC |
Input Pull-up Resistance, MSEL 0-3, Enable | 20 kΩ |
Input Pull-up Resistance, step clock, direction | 2.0 kΩ |
Input Pull-up Resistance, reset | 1.0 kΩ |
Input Pull-up Resistance, fault input | 4.7 kΩ |
Low-Level Output Current, fault, full step | 2 mA (min) |
High-Level Output Current, fault, full step | -2 mA (min) |
Low-Level Output Voltage, IOL = 2 mA | 0.5 +VDC |
High-Level Output Voltage, IOH = 1.7 mA | 2.3 +VDC |
Motion step frequency | 2.5 MHz max |
Motion step resolutions | 1 … 256 steps/full step |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | Microstepping driver module IM483H 3.0A |
---|---|
Control type | Step/Direction |
Control interface | Step, direction and enable inputs |
Driver type | Microstepping |
Operating temperature | -40 … +85 °C |
Input voltage | +12 to +48 +VDC |
Output voltage | 3.0 A |
Low-Level Input Voltage, all inputs | 1.2 +VDC |
High-Level Input Voltage, all inputs except Reset | 2.0 +VDC |
High-Level Input Voltage, reset input, IOL = 2 mA | 2.3 +VDC |
Input Pull-up Resistance, MSEL 0-3, Enable | 20 kΩ |
Input Pull-up Resistance, step clock, direction | 2.0 kΩ |
Input Pull-up Resistance, reset | 1.0 kΩ |
Input Pull-up Resistance, fault input | 4.7 kΩ |
Low-Level Output Current, fault, full step | 2 mA (min) |
High-Level Output Current, fault, full step | -2 mA (min) |
Low-Level Output Voltage, IOL = 2 mA | 0.5 +VDC |
High-Level Output Voltage, IOH = 1.7 mA | 2.3 +VDC |
Motion step frequency | 2.5 MHz max |
Motion step resolutions | 1 … 256 steps/full step |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | Microstepping driver module IM805H 5.0A |
---|---|
Control type | Step/Direction |
Control interface | Step, direction and enable inputs |
Driver type | Microstepping |
Operating temperature | -40 … +85 °C |
Input voltage | +12 to +75 +VDC |
Output voltage | 5.0 A |
Low-Level Input Voltage, all inputs | 1.2 +VDC |
High-Level Input Voltage, all inputs except Reset | 2.0 +VDC |
High-Level Input Voltage, reset input, IOL = 2 mA | 2.3 +VDC |
Input Pull-up Resistance, MSEL 0-3, Enable | 20 kΩ |
Input Pull-up Resistance, step clock, direction | 2.0 kΩ |
Input Pull-up Resistance, reset | 1.0 kΩ |
Input Pull-up Resistance, fault input | 4.7 kΩ |
Low-Level Output Current, fault, full step | 2 mA (min) |
High-Level Output Current, fault, full step | -2 mA (min) |
Low-Level Output Voltage, IOL = 2 mA | 0.5 +VDC |
High-Level Output Voltage, IOH = 1.7 mA | 2.3 +VDC |
Motion step frequency | 2.5 MHz max |
Motion step resolutions | 1 … 256 steps/full step |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
