Frameless Motors
They only consist of rotor and stator and lack a traditional motor frame. Due to their compact design, they are lightweight and space efficient.
Additionally, they can be directly integrated and are thus highly suitable for robotic joints.
34
Produkte entsprechen den Kriterien
Filter

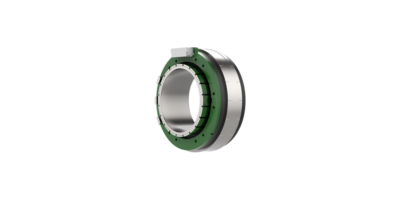

DS50mm Series FL 50ZWC15X-1
50mm
Hall sensor
120°
500VAC/1mA/1s
100MΩ/500VDC

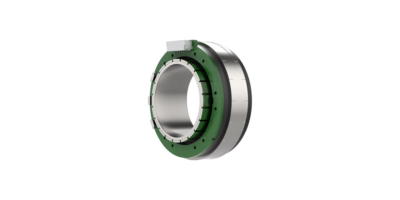

DS70mm Series FL 70ZWC20X-1
69mm
Hall sensor
120°
500VAC/1mA/1s
100MΩ/500VDC

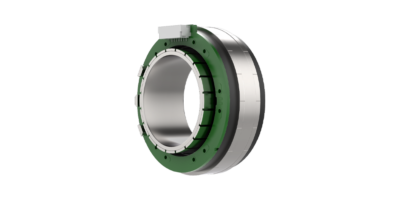

DS85mm Series FL 85ZWC25X
85mm
Hall sensor
120°
500VAC/1mA/1s
100MΩ/500VDC
BS5016NFL-14-48.0
48.0V
1.8A
56W
85%
32.8mV/rpm
BS5016NFL-29-48.0
48.0V
3.1A
227W
85%
1.65mV/rpm
BS5016NFL-58-48.0
48.0V
5.1A
914W
85%
8.3mV/rpm
BS6008NFL-16-48.0
48.0V
2.1A
56W
86%
28.8mV/rpm
BS6008NFL-33-48.0
48.0V
3.9A
229W
86%
14.5mV/rpm
BS6008NFL-29-48.0
48.0V
6.1A
922W
86%
7.3mV/rpm
BS8413NFL-9-48.0
48.0V
3.1A
128W
86%
54.9mV/rpm
