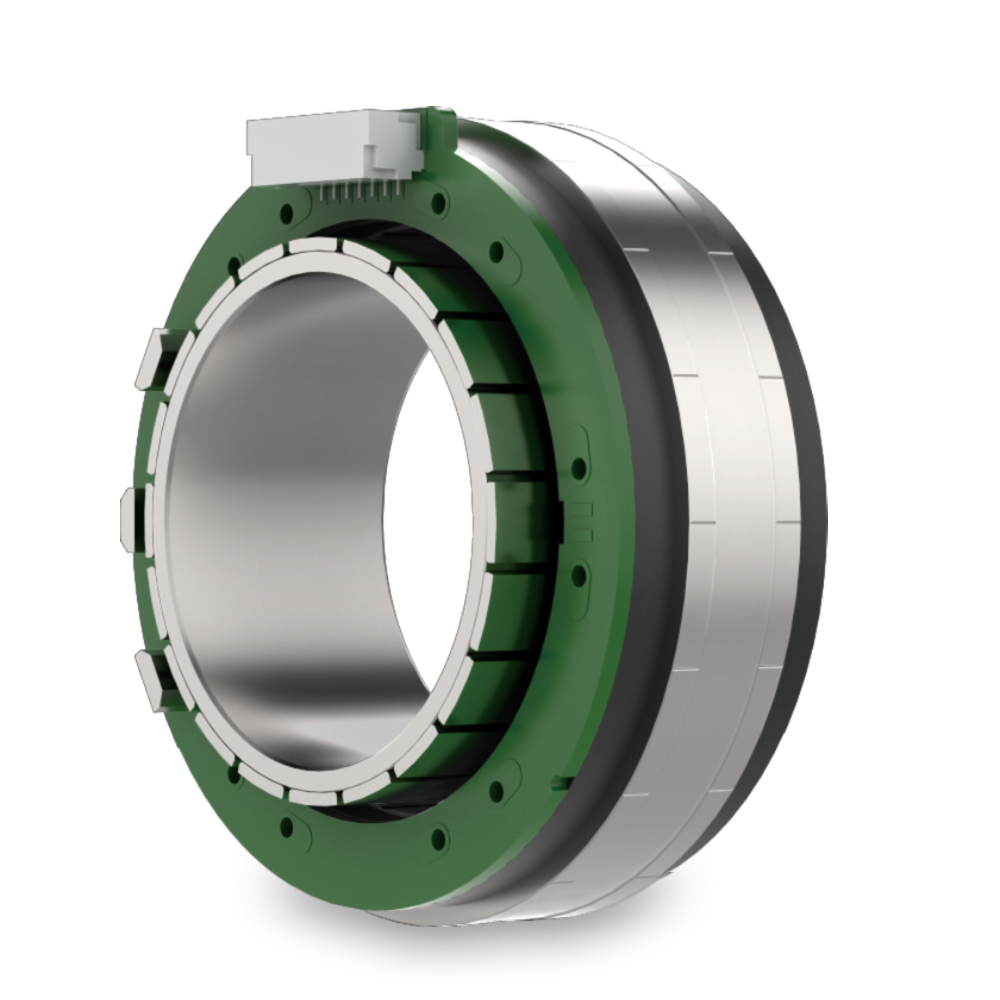

| Parameter | 85ZWC25X-1 |
|---|---|

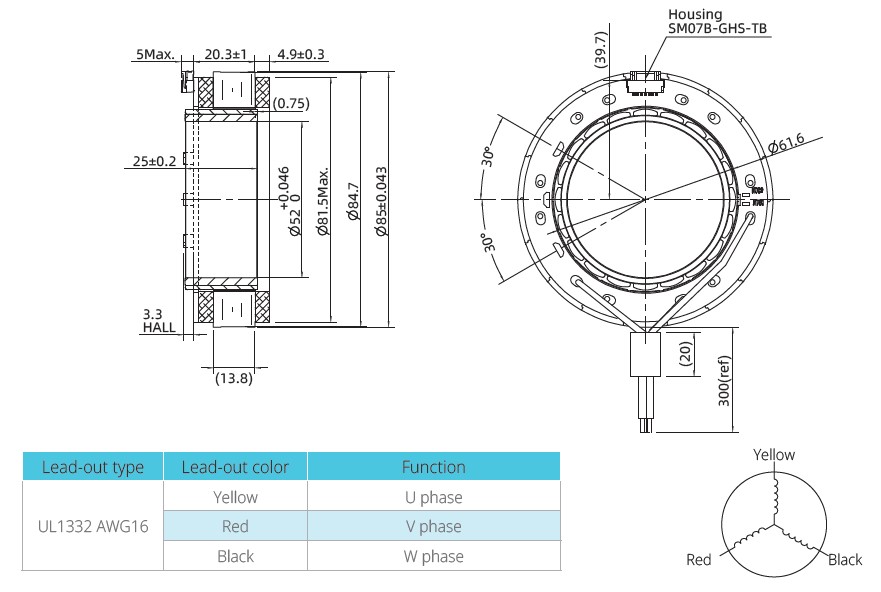

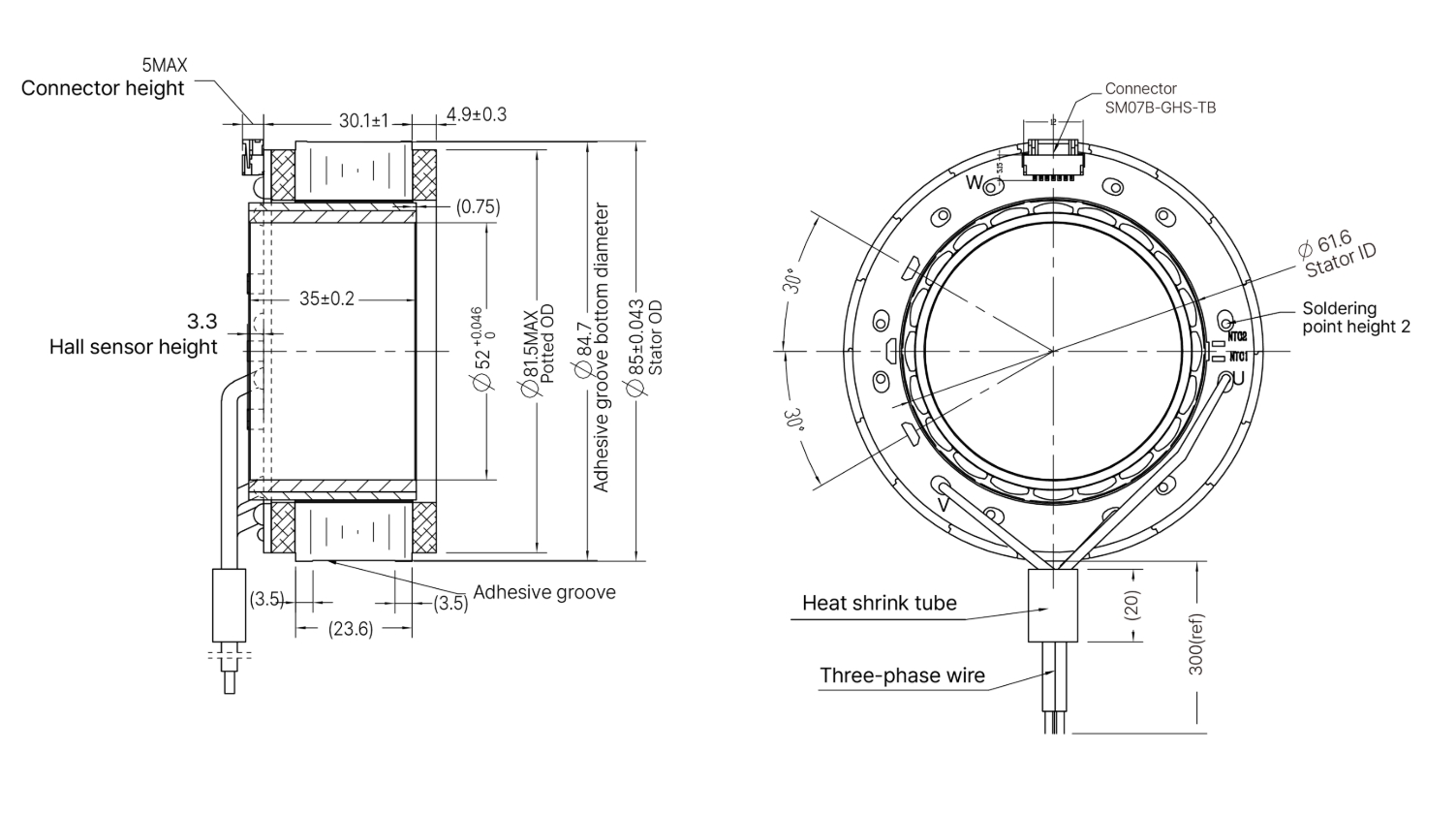

| Stator Outer Diameter | 85±0.043 |
| Rotor Inner Bore | 52+0.046 |
| Number of Slots | 18 |
| Number of Pole Pairs | 10 |
| Phase Resistance | 0.165 Ω |
| Phase Inductance | 0.33 mH |

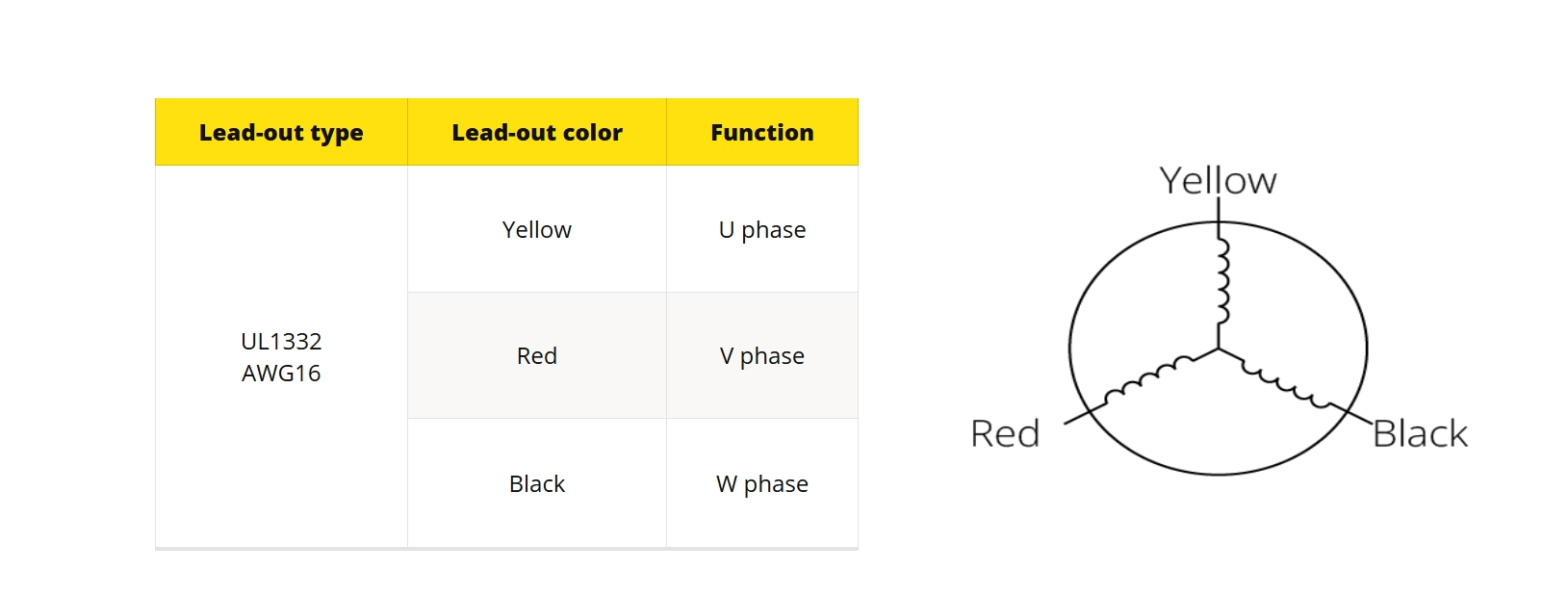

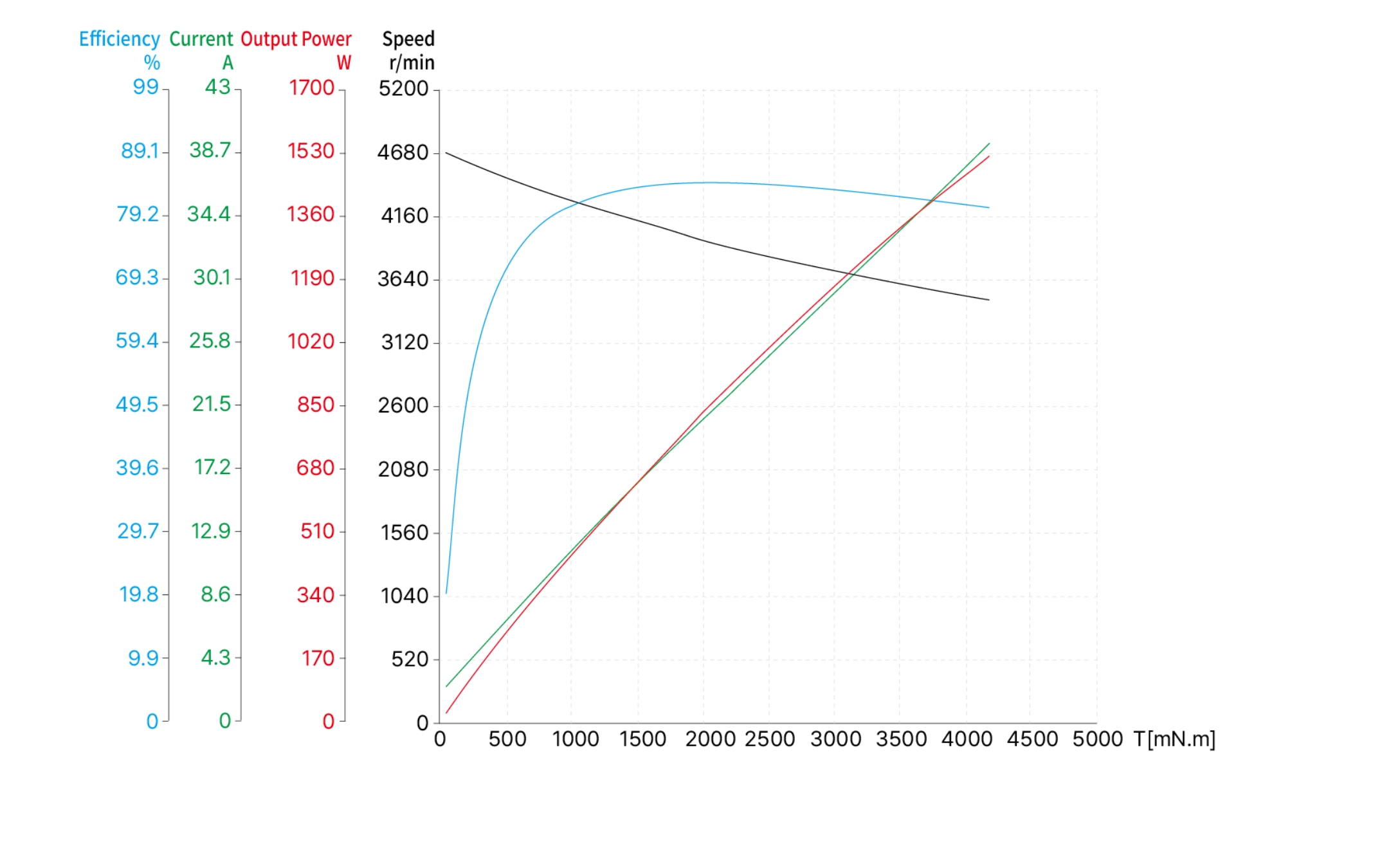

| Winding Connection Type | Star shape |
| Insulation Class | B |
| Duty Cycle | S2 |
| Feedback Method | Hall sensor |
| Commutation Angle | 120° |
| Insulation Strength (Dielectric Strength) | 500VAC/1mA/1s |
| Insulation Resistance | 100 MΩ/500VDC |
| Stator Weight | 324 g |
| Rotor Weight | 136 g |
| No-Load Speed | 3650 RPM |
| No-Load Current | 0.6(REF) |
| Rated Voltage | 48 VDC |
| Rated Power | 408 W |

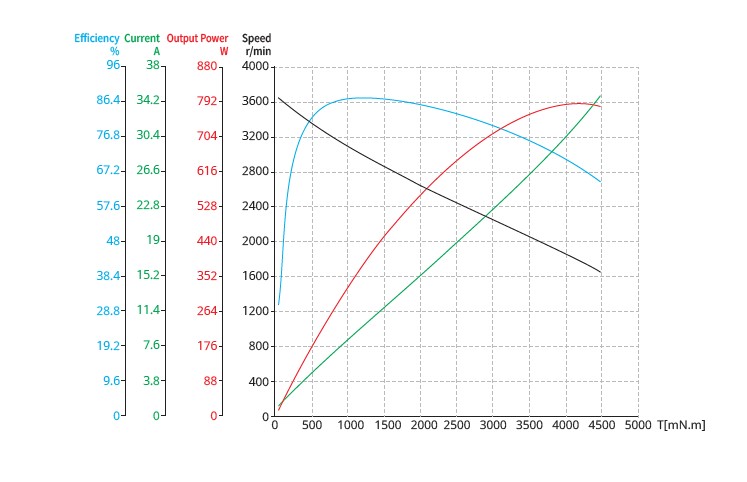

| Rated Torque | 1.3 N·m |
| Rated Speed | 3000 RPM |
| Rated Current | 8.6 A |
| Torque Constant | 0.16 Nm/A |
| Back EMF Constant (RMS) | 9.7 Vrms/Krpm |
| Peak Torque | 3.9 N·m |
| Peak Current | 25.7 A |
| Moment of Inertia | 1086 g·cm² |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
| Parameter | 85ZWC25X-1 |
|---|---|
| Stator Outer Diameter | 85±0.043 mm |
| Rotor Inner Bore | 52+0.046 mm |
| Number of Slots | 18 |
| Number of Pole Pairs | 10 |
| Phase Resistance | 0.165 Ω |
| Phase Inductance | 0.33 mH |
| Winding Connection Type | Star shape |
| Insulation Class | B |
| Duty Cycle | S2 |
| Feedback Method | Hall sensor |
| Commutation Angle | 120° |
| Insulation Strength (Dielectric Strength) | 500VAC/1mA/1s |
| Insulation Resistance | 100 MΩ/500VDC |
| Stator Weight | 324 g |
| Rotor Weight | 136 g |
| No-Load Speed | 3650 RPM |
| No-Load Current | 0.6(REF) A |
| Rated Voltage | 48 VDC |
| Rated Power | 408 W |
| Rated Torque | 1.3 N·m |
| Rated Speed | 3000 RPM |
| Rated Current | 8.6 A |
| Torque Constant | 0.16 Nm/A |
| Back EMF Constant (RMS) | 9.7 Vrms/Krpm |
| Peak Torque | 3.9 N·m |
| Peak Current | 25.7 A |
| Moment of Inertia | 1086 g·cm² |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
