Stepper Controller
The Stepper Motor Controllers with different communication interfaces to suit all stepper motor sizes.
Product Features:
- Supply voltage from 12VDC-240VAC
- Compact microstep drivers
- Open or closed loop
- Clock-direction input/CANopen/RS485/ EtherCAT/Modbus
- Up to 8.2 A peak
Advantages:
- Easy commissioning
- Autotuning
- Excellent running characteristics
31
Produkte entsprechen den Kriterien
Filter
Half/Full Step Driver Module IB462He 2.0 A
Step/Direction
Step, direction and enable inputs
Half/Full Step
0 … +70°C
+12 to +48+VDC
Integrated Stepper Electronics 1 DS-CL28-SA
Integrated Stepper Electronics 1 DS-CL42-SA

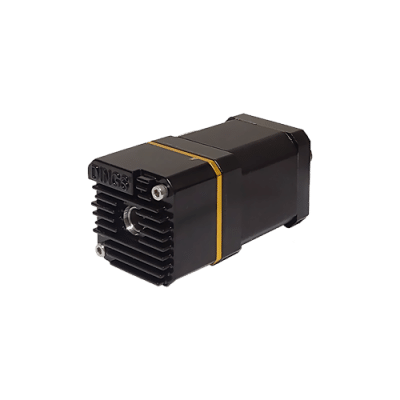

Integrated Stepper Electronics 1 DS-OL42-ICAO
Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A
DC 24~36V
0.5 – 3.0A
Full-bridge bipolar PWM
2s
Integrated Stepper Electronics 1 DS-OL42-IPD/IRS4
Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A
DC 24~36V
0.5 – 3.0A
Full-bridge bipolar PWM
2s

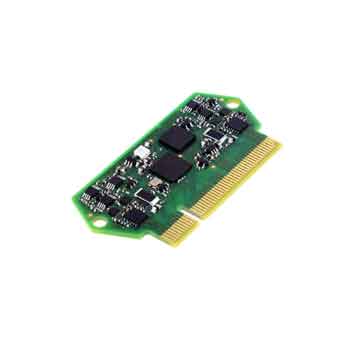

LMM 1.5A LMM 1.5 A CANopen Module
CANopen
CAN
DS301, DSP 402, PDO, SDO, Heaartbeat, Node Guarding
max. 85°C
95% non-condensing
LMM 1.5A LMM 1.5 A Programmable Motion Module
Programmable Motion
UART
MCode OS
max. 85°C
95% non-condensing

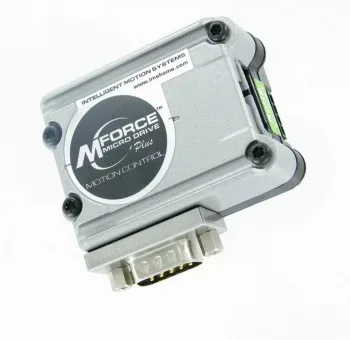

MFI1 MicroDrive CANopen
CANopen
Step, direction and enable inputs
Microstepping
2°C
+12 to +48+VDC
MFI1 MicroDrive Programmable Motion Control
Programmable Motion
Step, direction and enable inputs
Microstepping
2°C
+12 to +48+VDC
MFI3 MicroDrive CANopen
CANopen
Step, direction and enable inputs
Microstepping
2°C
+12 to +48+VDC
