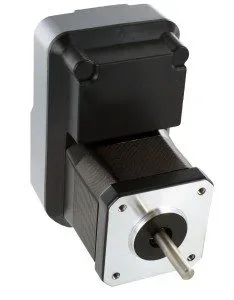

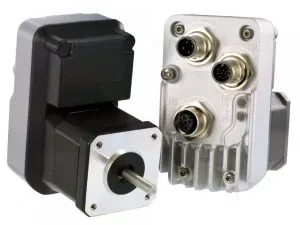

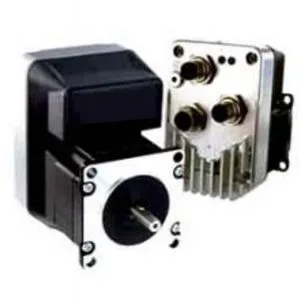

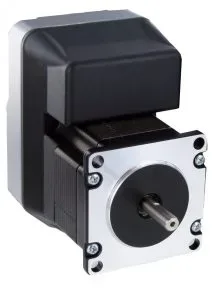

Liberty/MDrives

The Liberty MDrive/MDrive drives combine stepper motor, high-resolution microstepping control into one compact unit. An important option is the patented closed-loop control. (HMT) They are available in flange dimensions from NEMA 14 (35x35mm) to NEMA 34 (86x86mm).

Product Features:

• Multiple digital inputs/outputs and analog input
• Up to 256 microsteps per full step
• Different motor lengths
• Torque up to 6.5Nm
• Optional integrated encoder
• Further additional options e.g. linear actuators, gears, IP protection

Interfaces:

• Clock-direction/analog
• RS485
• CANopen
• Modbus TCP
• Ethernet/IP
• Profinet IO

Advantages:

• Easy connection, Plug & Play
• High positioning resolutions
• Overheating protection
• Safe cabling
• Integrated control
• Compact
