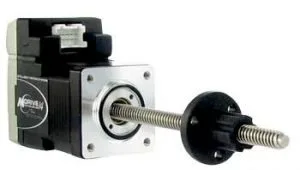

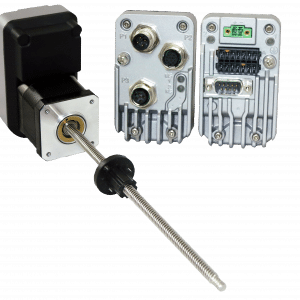

LMD17 NEMA 17 CANopen External Linear Actuator with M12 Connectors

Name: LMD17 NEMA 17 CANopen External Linear Actuator with M12 Connectors - KOCO MOTION
SKU: LMD17 NEMA 17 CANopen External Linear Actuator with M12 Connectors

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. 19 % MwSt.

LMD17 NEMA 17 with

Pulse/Direction
Motion Control (RS422/485)
CANopen
Ethernet (MCode OS, Modbus TCP, Ethernet IP, Profinet I/O)

Artikelnummer: LMD17 NEMA 17 CANopen External Linear Actuator with M12 Connectors Kategorie: Liberty/MDrives

Beschreibung

Beschreibung

Compact integrated motor with CANopen CiA301 and CiA402. Feedback options include open loop, or closed loop with an incremental or multi-turn absolute encoder with hMTechnology.
Motor size: NEMA 17 (42 mm)
Holding Torque range: ???
Input voltage: +12 to +48 VDC

Specification	LMD17 NEMA 17 CANopen External Linear Actuator with M12 Connectors
Control type	CANopen
Communications interface	CAN Bus 2.0B
Communications features	CANopen DS301, DSP402
NEMA size	17 (42×42 mm)
Torque range	–
Temperature heatsink (short-time)	max. 85 °C
IP rating	IP65
Input voltage	+12 to +48 +VDC
Power supply current requirement	2.0 A
Aux-logic supply voltage	12 … 24 +VDC
Aux-logic Supply Current	194 mA max

Spec	Notes	Value
Maximum screw misalignment	°	±1
General purpose nut max. thrust	kg	11
General purpose nut max.repeatability	mm	0.127
Anti-backlash nut max.thrust	kg	2
Anti-backlash nut max.repeatability	mm	0.0127
Rotor inertia	kg-cm2	0.034
Weight (motor+driver)	g	386

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
