Beschreibung

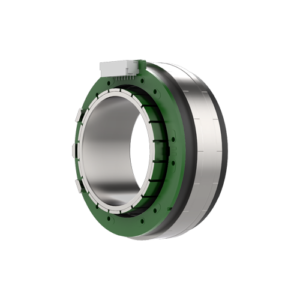

The DS60mm Series FL is a frameless 60 mm BLDC motor family for compact direct-drive integration in embedded and space-constrained assemblies. This 48 VDC design combines low mass and flexible mechanical installation with Hall sensor feedback for controlled operation in custom machine builds and other integrated motion systems.
In the provided configuration, the motor delivers 205 W rated power, 0.6 N·m rated torque at 3250 rpm, and 1.8 N·m peak torque at 14.5 A peak current. The electromagnetic design uses 18 slots and 10 pole pairs with star connection and 120° commutation. Additional key data includes 0.24 Ω phase-to-phase resistance, 0.42 mH phase-to-phase inductance, 0.12 Nm/A torque constant, 8.85 Vrms/Krpm back-EMF constant, insulation class F, S2 duty, and a no-load speed of 4000 rpm.
Main dimensions include a 60 mm stator outer diameter and 36 mm rotor inner diameter. Stator weight is 167 g, rotor weight is 48 g, and rotor inertia is 122 g·cm². These characteristics make the series suitable for embedded equipment, compact motion systems, and custom direct-drive assemblies where installation flexibility, feedback capability, and solid torque density are important.
- Frameless construction supports flexible integration into custom mechanical assemblies.
- Compact 60 mm format provides 205 W rated output for space-limited designs.
- 0.6 N·m rated torque and 1.8 N·m peak torque support direct-drive operation.
- Hall sensor feedback enables controlled operation with external drive electronics.
- Low stator and rotor mass supports embedded applications where weight matters.
