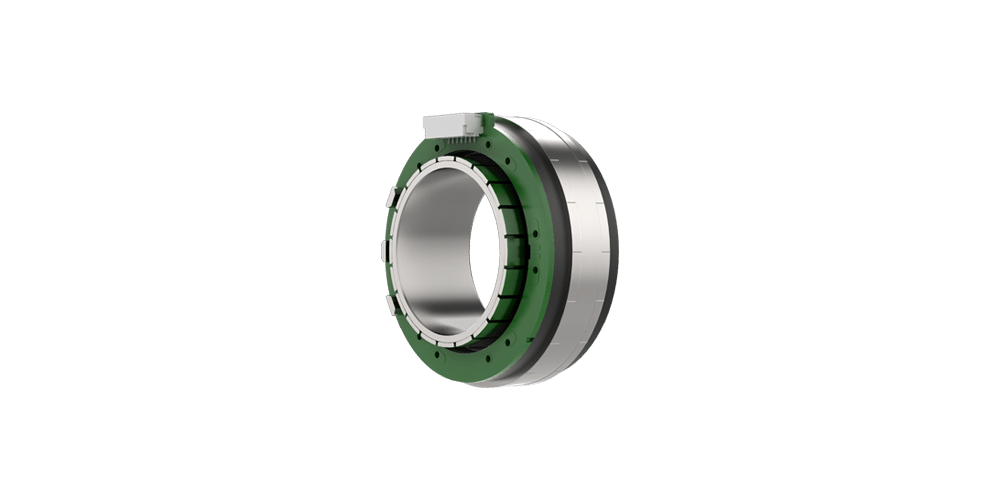

Frameless 60 mm BLDC motor series for compact direct-drive integration in embedded and space-constrained assemblies. The 48 VDC design combines flexible mechanical installation with Hall sensor feedback, delivering 205 W rated power, 0.6 N·m rated torque at 3250 rpm, and up to 1.8 N·m peak torque.
| Parameter | Unit | 60ZWC25X-1 |
|---|---|---|
| Stator outer diameter | mm | 60 (0 / -0.08) |
| Feedback method | Hall sensor | |
| Commutation angle | 120° | |
| Insulation strength (Withstand voltage) | VAC/3mA/1s | 1200 |
| Insulation resistance | MΩ/500VDC | 100 |
| Stator weight | g | 167 |
| Rotor weight | g | 48 |
| No-load speed | RPM | 4000 |
| No-load current | A | 1.1(REF) |
| Rated voltage | VDC | 48 |
| Rated power | W | 205 |
| Rotor inner diameter | mm | 36 (+0.039) |
| Rated torque | N·m | 0.6 |
| Rated speed | RPM | 3250 |
| Rated current | A | 5.1 |
| Torque constant | Nm/A | 0.12 |
| Back-EMF constant (effective value) | Vrms/Krpm | 8.85 |
| Peak torque | N·m | 1.8 |
| Peak current | A | 14.5 |
| Rotor inertia | g·cm² | 122 |
| Number of slots | 18 | |
| Pole pairs | 10 | |
| Phase-to-phase resistance | Ω | 0.24 |
| Phase-to-phase inductance | mH | 0.42 |
| Winding connection method | Star connection | |
| Insulation class | F | |
| Duty type | S2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
