| Specification | 50ZWC15X-1 |
|---|---|

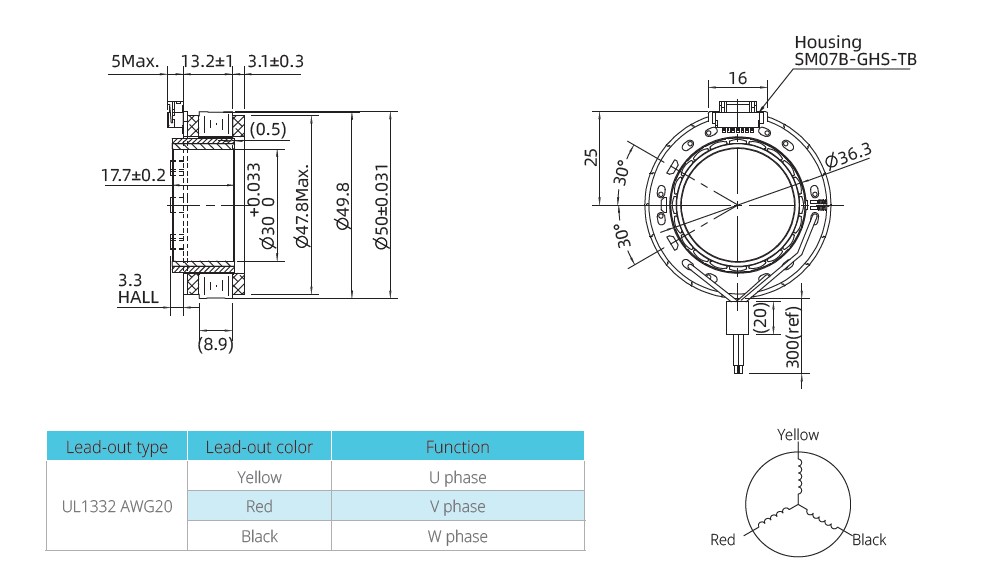

| Stator Outer Diameter | 50±0.031 mm |
| Rotor Inner Bore | 30+0.033 mm |
| Number of Slots | 18 |
| Number of Pole Pairs | 10 |
| Phase Resistance | 0.62 Ω |
| Phase Inductance | 0.43 mH |
| Winding Connection Type | Star shape |
| Insulation Class | B |
| Duty Cycle | S2 |
| Feedback Method | Hall sensor |
| Commutation Angle | 120° |
| Insulation Strength (Dielectric Strength) | 500VAC/1mA/1s |
| Insulation Resistance | 100 MΩ/500VDC |
| Stator Weight | 77.5 g |
| Rotor Weight | 38 g |

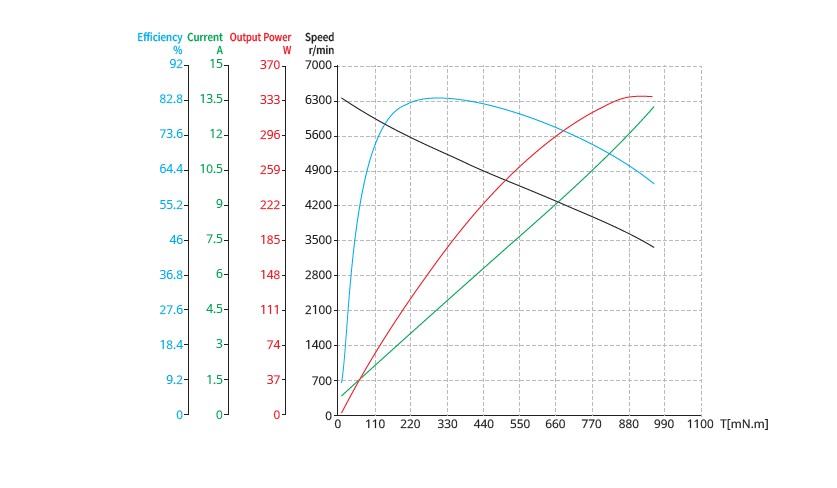

| No-Load Speed | 6400 RPM |
| No-Load Current | 0.4(REF) A |
| Rated Voltage | 48 VDC |
| Rated Power | 163 W |
| Rated Torque | 0.3 N·m |
| Rated Speed | 5200 RPM |
| Rated Current | 3.6 A |
| Torque Constant | 0.09 Nm/A |
| Back EMF Constant (RMS) | 5.5 Vrms/Krpm |
| Peak Torque | 0.96 N·m |
| Peak Current | 10.7 A |
| Moment of Inertia | 100 g·cm² |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
