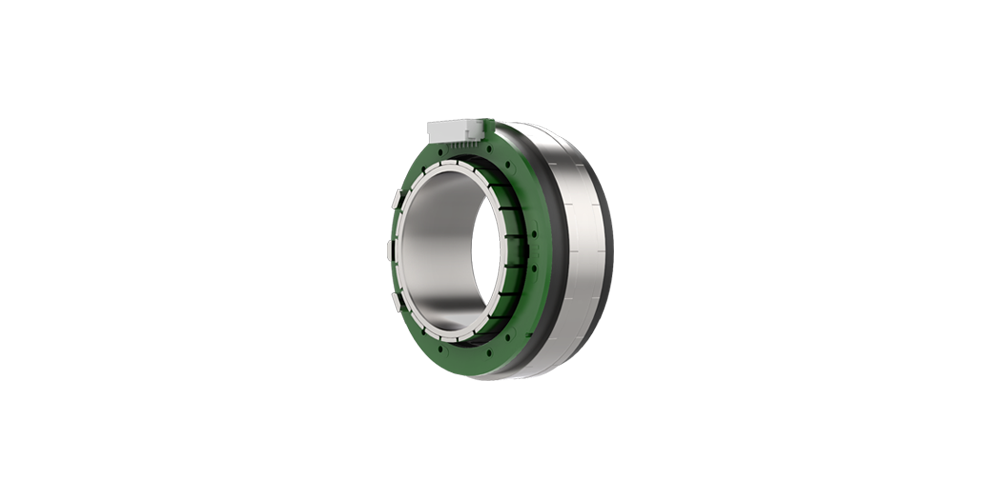

| Parameter | Unit | 50ZWC15X-1 |
|---|---|---|
| Stator Outer Diameter | mm | 50±0.031 |
| Rotor Inner Bore | mm | 30+0.033 |
| Number of Slots | 18 | |
| Number of Pole Pairs | 10 | |
| Phase Resistance | Ohm | 0.62 |
| Phase Inductance | mH | 0.43 |
| Winding Connection Type | Star shape | |
| Insulation Class | B | |
| Duty Cycle | S2 | |
| Feedback Method | Hall sensor | |
| Commutation Angle | 120° | |
| Insulation Strength (Dielectric Strength) | 500VAC/1mA/1s | |
| Insulation Resistance | 100 MΩ/500VDC | |
| Stator Weight | g | 77.5 |
| Rotor Weight | g | 38 |
| No-Load Speed | RPM | 6400 |
| No-Load Current | A | 0.4(REF) |
| Rated Voltage | VDC | 48 |
| Rated Power | W | 163 |
| Rated Torque | N·m | 0.3 |
| Rated Speed | RPM | 5200 |
| Rated Current | A | 3.6 |
| Torque Constant | Nm/A | 0.09 |
| Back EMF Constant (RMS) | Vrms/Krpm | 5.5 |
| Peak Torque | N·m | 0.96 |
| Peak Current | A | 10.7 |
| Moment of Inertia | g·cm² | 100 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
