BS10413NFL – High-Performance 104mm Sensorless BLDC Motors

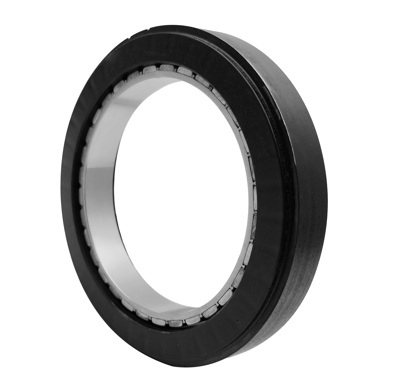

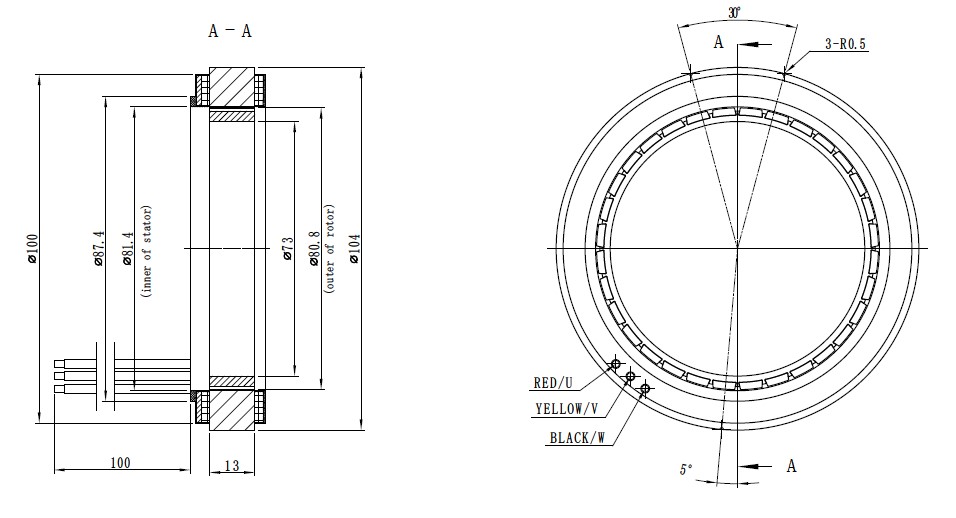

- Construction: 104 mm diameter, slotted inner rotor design, sensorless commutation

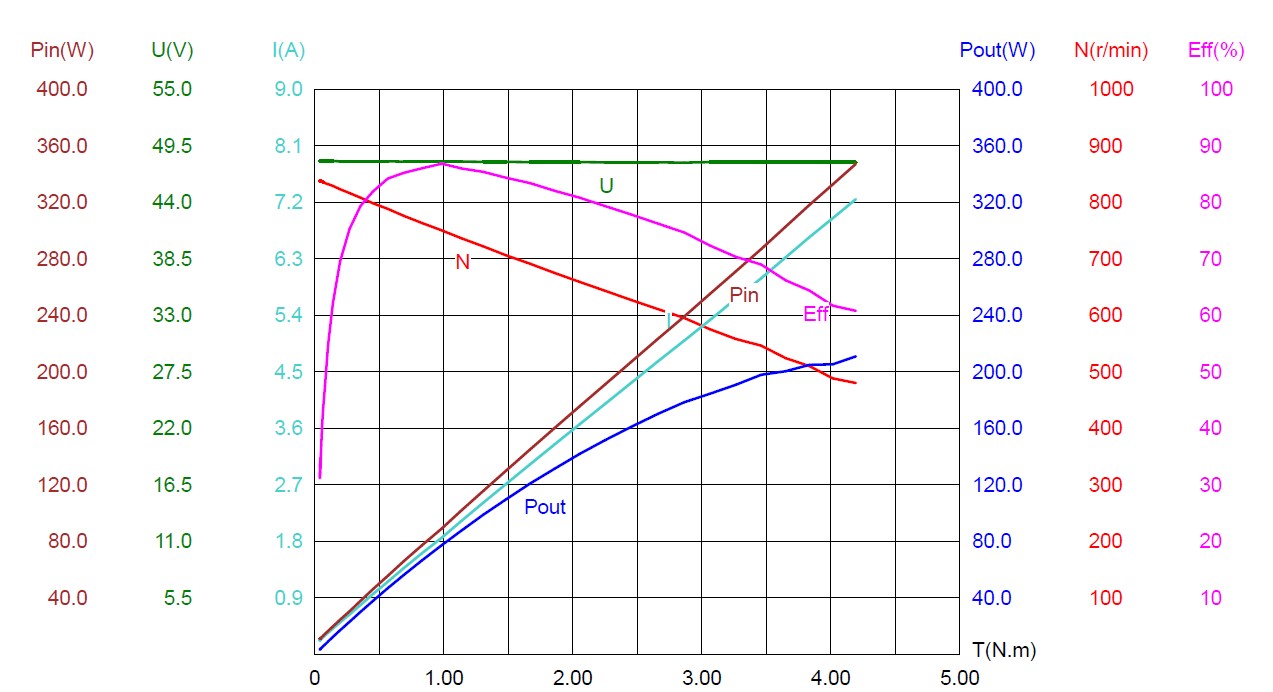

- Specifications (across models):Voltage: 48 VDCNominal torque: up to 2.2 NmNominal speed: 646–2985 rpmMaximum output power: 315–5100 WPeak stall torque: up to 57.3 NmHigh efficiency: up to 86%Protection class: IP20Operating temperature: -40 to +100 °C
- Voltage: 48 VDC
- Nominal torque: up to 2.2 Nm
- Nominal speed: 646–2985 rpm
- Maximum output power: 315–5100 W
- Peak stall torque: up to 57.3 Nm
- High efficiency: up to 86%
- Protection class: IP20
- Operating temperature: -40 to +100 °C
- Features & Benefits:Sensorless operation for minimal wiring and greater reliabilityLow rotor inertia (1256 gcm²) ensures rapid dynamic responseHigh-torque output in a compact package reduces system footprintThermal class up to 180°C and insulation class B for demanding environments
- Sensorless operation for minimal wiring and greater reliability
- Low rotor inertia (1256 gcm²) ensures rapid dynamic response
- High-torque output in a compact package reduces system footprint
- Thermal class up to 180°C and insulation class B for demanding environments
- Application Focus:Cooperative robotics and robotic joint actuationPrecision industrial automation requiring high dynamic controlCustomizable for OEM requirements in advanced motion systems
- Cooperative robotics and robotic joint actuation
- Precision industrial automation requiring high dynamic control
- Customizable for OEM requirements in advanced motion systems
- Available Options:Shaft length and bearing type customizationSpecial coil windings for torque/speed tuningGear heads, encoders, hall sensors, or integrated drivers
- Shaft length and bearing type customization
- Special coil windings for torque/speed tuning
- Gear heads, encoders, hall sensors, or integrated drivers
BS10413NFL motors deliver robust, flexible solutions for modern automation and robotics.
