14-2105

Beschreibung

SLSLA Size 14 (35mm) Stepper Lead Screw Linear Actuator is engineered for high-performance precision linear motion in demanding environments. With up to 230N continuous thrust force and a 6.35 mm screw diameter, it caters to a wide range of motion control needs.

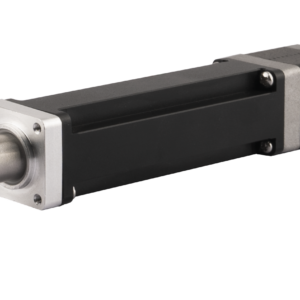

• Form Factors: Available as External, Non-Captive, Electrical Cylinder (Captive), and Kaptive to provide maximum flexibility for various integration methods.
• Lead Screw Versatility: Supports lead pitches from 0.6096 mm up to 25.4 mm, offering travel per step from 3 µm to 127 µm for both fine positioning and rapid displacement requirements.
• Customization & Options:
  • Encoder feedback options: EK1, EK2
  • Single or double motor stack for torque optimization
  • Wide range of screw end machining (threaded, smooth, customized)
  • Teflon-coated screw available to minimize friction and wear
  • Anti-backlash nut technology for precise repeatability
  • Left-hand thread choices for select pitches
  • Power-off brake option for enhanced safety

Applications: Commonly utilized in automation, laboratory instrumentation, medical equipment, and industrial machinery—specifically where compact footprint and reliable, repeatable linear motion are essential.

Benefits: The SLSLA Size 14’s modular architecture and broad configuration range enable fast OEM integration and assure operational stability across diverse motion control systems.
