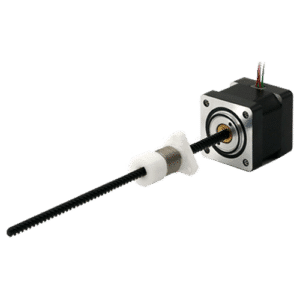

Size 14 [35mm] Stepper Lead Screw Linear Actuator is widely used for linear movement applications, providing up to 230N of continuous thrust.
Size 14 Stepper Lead Screw Linear Actuator has four form factors available – External, Non-Captive, Electrical Cylinder (Captive) and Kaptive.
Size 14 [35mm] Stepper Lead Screw Linear Actuator is widely used for linear movement applications, providing up to 230N of continuous thrust.
Size 14 Stepper Lead Screw Linear Actuator has four form factors available – External, Non-Captive, Electrical Cylinder (Captive) and Kaptive.
| Specification | 14-2105 |
|---|---|
| Voltage | 6.6 V |
| Current | 0.5 A |
| Resistance | 13.2 Ω |
| Inductance | 14 mH |
| Weight | 189 g |
| Lead Wire No. | 4 |
| Motor Length | 33.6 mm |
