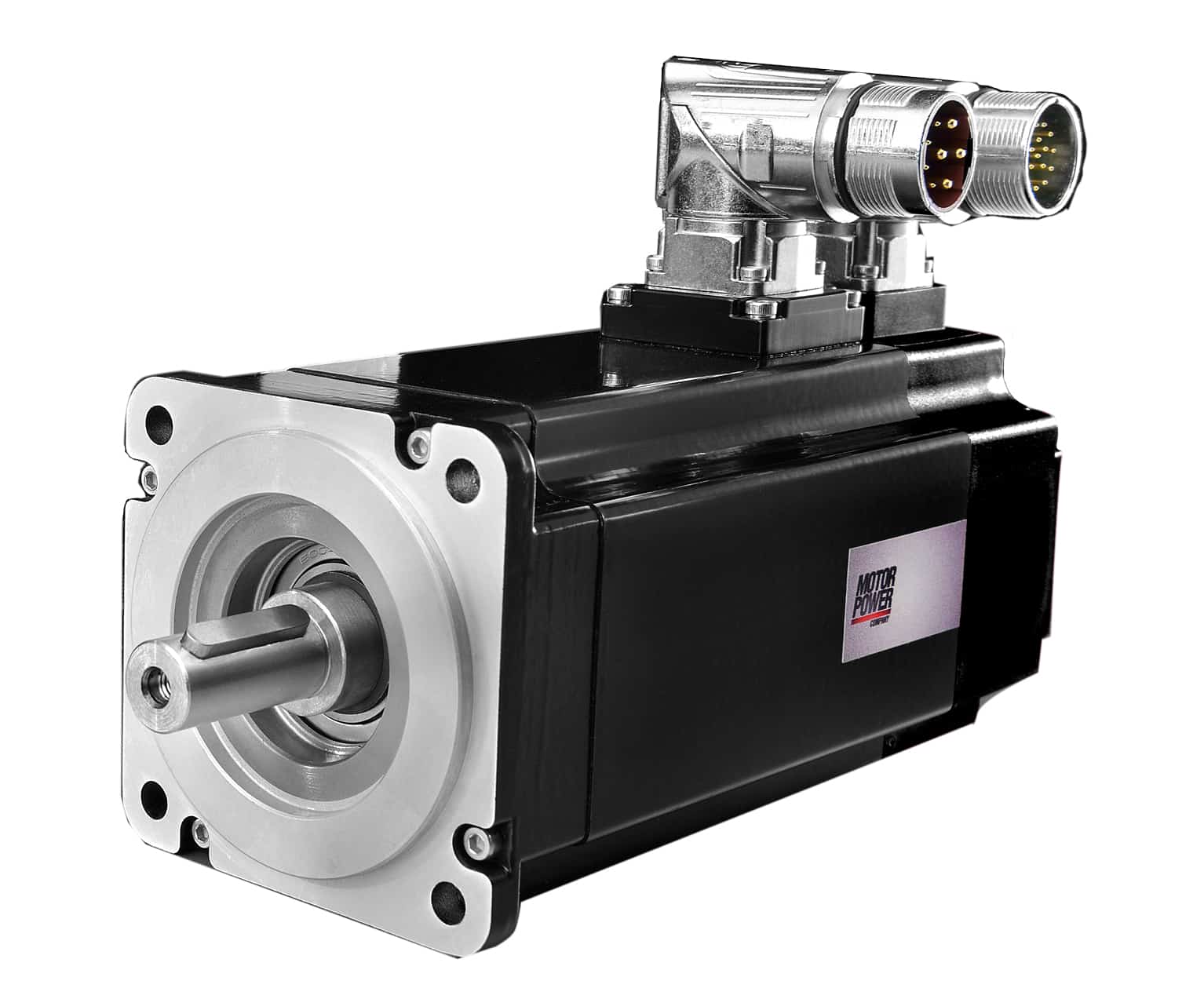

TC-X 40

Name: TC-X 40 - KOCO MOTION
SKU: TC-X 40

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

Flange dimensions: 40 mm
Rated Output Power: 60 – 100 W
Rated Torque: 0,19 – 0,32 Nm
Rated Speed: 3000 rpm

Artikelnummer: TC-X 40 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 40 mm
Rated Output Power: 60 – 100 W
Rated Torque: 0,19 – 0,32 Nm
Rated Speed: 3000 rpm

Produktvergleich

Specification

Parameter	Unit	TC-X 40 0,16 32	TC-X 40 0,16 01	TC-X 40 0,32 01	TC-X 40 0,32 21
Continous Stall Torque (ambient temperature 0 to +40°C)	Nm	0.21	0.21	0.34	0.34
Maximum working speed 24VDC (ambient temperature 0 to +40°C)	rpm	5000	–	–	–
Maximum working speed 48VDC (ambient temperature 0 to +40°C)	rpm	–	5000	5000	–
Maximum working speed 230VAC (ambient temperature 0 to +40°C)	rpm	–	–	–	5000
Torque Constant (ambient temperature 0 to +40°C)	Nm/Arms	0.05	0.094	0.094	0.526
Voltage Constant (ambient temperature 0 to +40°C)	Vrms/Krpm	3	5.7	5.7	31.8
Winding resistance (ambient temperature 0 to +40°C)	Ω	1	3.2	1.1	36.2
Winding inductance (ambient temperature 0 to +40°C)	mH	0.7	2.5	1.42	44
Electrical time constant (ambient temperature 0 to +40°C)	ms	0.7	0.78	1.29	1.21
Thermal Resistance (ambient temperature 0 to +40°C)	°C/W	2.38	2.38	2.3	2.3
Mechanical time constant (ambient temperature 0 to +40°C)	ms	1.62	1.47	0.88	0.92
Peak Torque (ambient temperature 0 to +40°C)	Nm	0.48	0.48	0.96	0.96
Rotor Inertia without feedback (ambient temperature 0 to +40°C)	kg·cm²	0.027	0.027	0.047	0.047
Mass (ambient temperature 0 to +40°C)	Kg	0.4	0.4	0.54	0.54
Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	30	30	30	30
Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	180	180	180	180
Nominal Torque (ambient temperature 0 to +40°C)	Nm	0.19	0.19	0.32	0.32
Rated Voltage (ambient temperature 0 to +40°C)	Vdc	24	48	48	230
Nominal power (ambient temperature 0 to +40°C)	W	60	60	100	120
Continuous stall Current (ambient temperature 0 to +40°C)	Arms	4.23	2.23	3.61	0.65
Maximun Current (ambient temperature 0 to +40°C)	Arms	9.67	5.09	10.18	1.82
Nominal Current (ambient temperature 0 to +40°C)	Arms	3.96	2.09	3.48	0.62
Nominal working Speed (ambient temperature 0 to +40°C)	rpm	3000	3000	3000	3000

Family Specification

Family Specification	Unit	TC-X 40
Time Rating		Continous
Certification		CE
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	-40 to 80
Ambient Humidity		5 to 85% (non-condensing)
Poles		8
Thermal Protection		Not available

Family Overview

Family Overview	Unit	TC-X 40
Flange dimensions	mm	40
Rated Output Power	Watt	60 – 100
Rated Torque	Nm	0,19 – 0,32
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Feedback

R1 – Resolver 2 poles

Brake

0 = without brake

Connection

D0 – 300mm cable lenght with AMP connectors, without thermal protection (For TC40 only) G2 – 90° M23 turnable connectors – PT 1000 on power connector H2 – 90° M23 turnable connectors – PT 1000 on signal connector

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-X 40

TX-X-40-Specs-40°C-to-80°C.pdf (pdf, 322.62K)

TC-X-Wiring-Cables-Connectors.pdf (pdf, 1.17M)

TC-X-Feedback-and-Thermal-Protection-Features.pdf (pdf, 258.2K)

TC-X-Servo-Drives.pdf (pdf, 1.95M)

TC-X-40-Dimensions.pdf (pdf, 355.26K)

Datenblatt

TC-X-40-Torque-Speed-Chart.pdf (pdf, 575.04K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

URL

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Specification

Parameter	Unit	TC-X 40 0,16 32
Continous Stall Torque (ambient temperature 0 to +40°C)	Nm	0.21
Maximum working speed 24VDC (ambient temperature 0 to +40°C)	rpm	5000
Maximum working speed 48VDC (ambient temperature 0 to +40°C)	rpm	–
Maximum working speed 230VAC (ambient temperature 0 to +40°C)	rpm	–
Torque Constant (ambient temperature 0 to +40°C)	Nm/Arms	0.05
Voltage Constant (ambient temperature 0 to +40°C)	Vrms/Krpm	3
Winding resistance (ambient temperature 0 to +40°C)	Ω	1
Winding inductance (ambient temperature 0 to +40°C)	mH	0.7
Electrical time constant (ambient temperature 0 to +40°C)	ms	0.7
Thermal Resistance (ambient temperature 0 to +40°C)	°C/W	2.38
Mechanical time constant (ambient temperature 0 to +40°C)	ms	1.62
Peak Torque (ambient temperature 0 to +40°C)	Nm	0.48
Rotor Inertia without feedback (ambient temperature 0 to +40°C)	kg·cm²	0.027
Mass (ambient temperature 0 to +40°C)	Kg	0.4
Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	30
Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	180
Nominal Torque (ambient temperature 0 to +40°C)	Nm	0.19
Rated Voltage (ambient temperature 0 to +40°C)	Vdc	24
Nominal power (ambient temperature 0 to +40°C)	W	60
Continuous stall Current (ambient temperature 0 to +40°C)	Arms	4.23
Maximun Current (ambient temperature 0 to +40°C)	Arms	9.67
Nominal Current (ambient temperature 0 to +40°C)	Arms	3.96
Nominal working Speed (ambient temperature 0 to +40°C)	rpm	3000

Family Specification

Family Specification	Unit	TC-X 40 0,16 32
Time Rating		Continous
Certification		CE
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	-40 to 80
Ambient Humidity		5 to 85% (non-condensing)
Poles		8
Thermal Protection		Not available

Family Overview

Family Overview	Unit	TC-X 40 0,16 32
Flange dimensions	mm	40
Rated Output Power	Watt	60 – 100
Rated Torque	Nm	0,19 – 0,32
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

Feedback

R1 – Resolver 2 poles

Brake

0 = without brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-X 40

TX-X-40-Specs-40°C-to-80°C.pdf (pdf, 322.62K)

TC-X-Wiring-Cables-Connectors.pdf (pdf, 1.17M)

TC-X-Feedback-and-Thermal-Protection-Features.pdf (pdf, 258.2K)

TC-X-Servo-Drives.pdf (pdf, 1.95M)

TC-X-40-Dimensions.pdf (pdf, 355.26K)

Datenblatt

TC-X-40-Torque-Speed-Chart.pdf (pdf, 575.04K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Company

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Specification

Parameter	Unit	TC-X 40 0,16 01
Continous Stall Torque (ambient temperature 0 to +40°C)	Nm	0.21
Maximum working speed 24VDC (ambient temperature 0 to +40°C)	rpm	–
Maximum working speed 48VDC (ambient temperature 0 to +40°C)	rpm	5000
Maximum working speed 230VAC (ambient temperature 0 to +40°C)	rpm	–
Torque Constant (ambient temperature 0 to +40°C)	Nm/Arms	0.094
Voltage Constant (ambient temperature 0 to +40°C)	Vrms/Krpm	5.7
Winding resistance (ambient temperature 0 to +40°C)	Ω	3.2
Winding inductance (ambient temperature 0 to +40°C)	mH	2.5
Electrical time constant (ambient temperature 0 to +40°C)	ms	0.78
Thermal Resistance (ambient temperature 0 to +40°C)	°C/W	2.38
Mechanical time constant (ambient temperature 0 to +40°C)	ms	1.47
Peak Torque (ambient temperature 0 to +40°C)	Nm	0.48
Rotor Inertia without feedback (ambient temperature 0 to +40°C)	kg·cm²	0.027
Mass (ambient temperature 0 to +40°C)	Kg	0.4
Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	30
Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	180
Nominal Torque (ambient temperature 0 to +40°C)	Nm	0.19
Rated Voltage (ambient temperature 0 to +40°C)	Vdc	48
Nominal power (ambient temperature 0 to +40°C)	W	60
Continuous stall Current (ambient temperature 0 to +40°C)	Arms	2.23
Maximun Current (ambient temperature 0 to +40°C)	Arms	5.09
Nominal Current (ambient temperature 0 to +40°C)	Arms	2.09
Nominal working Speed (ambient temperature 0 to +40°C)	rpm	3000

Family Specification

Family Specification	Unit	TC-X 40 0,16 01
Time Rating		Continous
Certification		CE
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	-40 to 80
Ambient Humidity		5 to 85% (non-condensing)
Poles		8
Thermal Protection		Not available

Family Overview

Family Overview	Unit	TC-X 40 0,16 01
Flange dimensions	mm	40
Rated Output Power	Watt	60 – 100
Rated Torque	Nm	0,19 – 0,32
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

Feedback

R1 – Resolver 2 poles

Brake

0 = without brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-X 40

TX-X-40-Specs-40°C-to-80°C.pdf (pdf, 322.62K)

TC-X-Wiring-Cables-Connectors.pdf (pdf, 1.17M)

TC-X-Feedback-and-Thermal-Protection-Features.pdf (pdf, 258.2K)

TC-X-Servo-Drives.pdf (pdf, 1.95M)

TC-X-40-Dimensions.pdf (pdf, 355.26K)

Datenblatt

TC-X-40-Torque-Speed-Chart.pdf (pdf, 575.04K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Company

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Specification

Parameter	Unit	TC-X 40 0,32 01
Continous Stall Torque (ambient temperature 0 to +40°C)	Nm	0.34
Maximum working speed 24VDC (ambient temperature 0 to +40°C)	rpm	–
Maximum working speed 48VDC (ambient temperature 0 to +40°C)	rpm	5000
Maximum working speed 230VAC (ambient temperature 0 to +40°C)	rpm	–
Torque Constant (ambient temperature 0 to +40°C)	Nm/Arms	0.094
Voltage Constant (ambient temperature 0 to +40°C)	Vrms/Krpm	5.7
Winding resistance (ambient temperature 0 to +40°C)	Ω	1.1
Winding inductance (ambient temperature 0 to +40°C)	mH	1.42
Electrical time constant (ambient temperature 0 to +40°C)	ms	1.29
Thermal Resistance (ambient temperature 0 to +40°C)	°C/W	2.3
Mechanical time constant (ambient temperature 0 to +40°C)	ms	0.88
Peak Torque (ambient temperature 0 to +40°C)	Nm	0.96
Rotor Inertia without feedback (ambient temperature 0 to +40°C)	kg·cm²	0.047
Mass (ambient temperature 0 to +40°C)	Kg	0.54
Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	30
Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	180
Nominal Torque (ambient temperature 0 to +40°C)	Nm	0.32
Rated Voltage (ambient temperature 0 to +40°C)	Vdc	48
Nominal power (ambient temperature 0 to +40°C)	W	100
Continuous stall Current (ambient temperature 0 to +40°C)	Arms	3.61
Maximun Current (ambient temperature 0 to +40°C)	Arms	10.18
Nominal Current (ambient temperature 0 to +40°C)	Arms	3.48
Nominal working Speed (ambient temperature 0 to +40°C)	rpm	3000

Family Specification

Family Specification	Unit	TC-X 40 0,32 01
Time Rating		Continous
Certification		CE
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	-40 to 80
Ambient Humidity		5 to 85% (non-condensing)
Poles		8
Thermal Protection		Not available

Family Overview

Family Overview	Unit	TC-X 40 0,32 01
Flange dimensions	mm	40
Rated Output Power	Watt	60 – 100
Rated Torque	Nm	0,19 – 0,32
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

Feedback

R1 – Resolver 2 poles

Brake

0 = without brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-X 40

TX-X-40-Specs-40°C-to-80°C.pdf (pdf, 322.62K)

TC-X-Wiring-Cables-Connectors.pdf (pdf, 1.17M)

TC-X-Feedback-and-Thermal-Protection-Features.pdf (pdf, 258.2K)

TC-X-Servo-Drives.pdf (pdf, 1.95M)

TC-X-40-Dimensions.pdf (pdf, 355.26K)

Datenblatt

TC-X-40-Torque-Speed-Chart.pdf (pdf, 575.04K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Specification

Parameter	Unit	TC-X 40 0,32 21
Continous Stall Torque (ambient temperature 0 to +40°C)	Nm	0.34
Maximum working speed 24VDC (ambient temperature 0 to +40°C)	rpm	–
Maximum working speed 48VDC (ambient temperature 0 to +40°C)	rpm	–
Maximum working speed 230VAC (ambient temperature 0 to +40°C)	rpm	5000
Torque Constant (ambient temperature 0 to +40°C)	Nm/Arms	0.526
Voltage Constant (ambient temperature 0 to +40°C)	Vrms/Krpm	31.8
Winding resistance (ambient temperature 0 to +40°C)	Ω	36.2
Winding inductance (ambient temperature 0 to +40°C)	mH	44
Electrical time constant (ambient temperature 0 to +40°C)	ms	1.21
Thermal Resistance (ambient temperature 0 to +40°C)	°C/W	2.3
Mechanical time constant (ambient temperature 0 to +40°C)	ms	0.92
Peak Torque (ambient temperature 0 to +40°C)	Nm	0.96
Rotor Inertia without feedback (ambient temperature 0 to +40°C)	kg·cm²	0.047
Mass (ambient temperature 0 to +40°C)	Kg	0.54
Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	30
Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	180
Nominal Torque (ambient temperature 0 to +40°C)	Nm	0.32
Rated Voltage (ambient temperature 0 to +40°C)	Vdc	230
Nominal power (ambient temperature 0 to +40°C)	W	120
Continuous stall Current (ambient temperature 0 to +40°C)	Arms	0.65
Maximun Current (ambient temperature 0 to +40°C)	Arms	1.82
Nominal Current (ambient temperature 0 to +40°C)	Arms	0.62
Nominal working Speed (ambient temperature 0 to +40°C)	rpm	3000

Family Specification

Family Specification	Unit	TC-X 40 0,32 21
Time Rating		Continous
Certification		CE
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	-40 to 80
Ambient Humidity		5 to 85% (non-condensing)
Poles		8
Thermal Protection		Not available

Family Overview

Family Overview	Unit	TC-X 40 0,32 21
Flange dimensions	mm	40
Rated Output Power	Watt	60 – 100
Rated Torque	Nm	0,19 – 0,32
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

Feedback

R1 – Resolver 2 poles

Brake

0 = without brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
