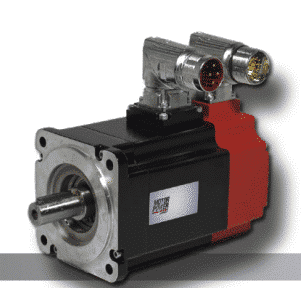

TC-L 80

Name: TC-L 80 - KOCO MOTION
SKU: TC-L 80

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

Flange dimensions: 80 mm
Rated Output Power: 480 W
Rated Torque: 1,53 – 1,54 Nm
Rated Speed: 3000 rpm

Artikelnummer: TC-L 80 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 80 mm
Rated Output Power: 480 W
Rated Torque: 1,53 – 1,54 Nm
Rated Speed: 3000 rpm

Produktvergleich

Specification

Parameter	Unit	TC-L 80 1,5 01	TC-L 80 1,5 03	TC-L 80 2,8 02
Stall Torque	Nm	1.74	1.74	–
Stall Torque for S1	Nm	–	–	2
Stall Torque for S2 for intermittent duty S2 T= 10’/20′	Nm	–	–	2.8
Peak Torque	Nm	4.5	4.5	8.4
Rated Torque	Nm	1.53	1.53	–
Rated Torque S1	Nm	–	–	1.54
Rated Torque for S2 for intermittent duty S2 T= 10’/20′	Nm	–	–	2.34
Rated Voltage	Vdc	48	48	48
Rated Output Power	W	480	480	–
Rated Output Power for S1	W	–	–	480
Rated Output Power for S2 for intermittent duty S2 T= 10’/20′	W	–	–	735
Stall Current	Arms	18.5	12.3	–
Stall Current for S1	Arms	–	–	17.7
Stall Current for S2 for intermittent duty S2 T= 10’/20′	Arms	–	–	24.8
Peak Current	Arms	52.7	35.1	82
Rated Current	Arms	16.3	11	–
Rated Current for S1		–	–	14.3
Rated Current for S2 for intermittent duty S2 T= 10’/20′		–	–	21.7
Rated Speed	rpm	3000	3000	3000
Maximum Speed @48Vdc	rpm	5000	3700	4700
Torque Constant (± 5%)	Nm/Arms	0.094	0.141	0.113
Voltage Constant (± 5%)	Vrms/Krpm	5.7	8.5	6.8
Phase/phase resistance (± 10%@25°C)	Ω	0.075	0.136	0.064
Phase/phase inductance (± 10%)	mH	0.314	0.53	0.24
Electrical time constant	ms	4.2	3.9	3.75
Thermal Resistance	°C/W	1.67	1.67	2.13
Mechanical time constant	ms	0.8	0.8	0.65
Rotor Inertia without brake and without feedback	kg·cm²	0.64	0.64	1.16
Motor weight	Kg	2.25	2.25	3.05
Motor weight + Brake	Kg	2.97	2.97	3.77
Axial Load applied on the shaft’s center	N	110	110	110
Radial Load applied on the shaft’s center	N	350	350	350

Family Specification

Family Specification	Unit	TC-L 80
Time Rating		Continuous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Motor Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	0 to 40
Ambient Humidity	%	20 to 80% (non-condensing)
Poles		8
Thermal Protection		PT 1000
Certification		CE
Recommendation		Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview

Family Overview	Unit	TC-L 80
Flange dimensions	mm	80
Rated Output Power	Watt	480
Rated Torque	Nm	1,53 – 1,54
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Feedback

E1 – Encoder TTL 2000ppr R1 – Resolver 2 poles A1 – Absolute Multiturn Encoder

Brake

0 = without brake 1 = with brake

Connection

D0 – 300mm cable lenght with AMP connectors, without thermal protection (For TC40 only) specify D0/F88 if the connection is with Lite Pro drive G2 – 90° M23 turnable connectors – PT 1000 on power connector specify G2/F88 if the connection is with Lite Pro drive H2 – 90° M23 turnable connectors – PT 1000 on signal connector specify H2/F88 if the connection is with Lite Pro drive

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-L 80

TC-L-80-Dimensions.pdf (pdf, 562.49K)

TC-L-Wiring-Cables-Connectors.pdf (pdf, 1.21M)

TC-L-Feedback-Features.pdf (pdf, 177.13K)

TC-L-Servo-Drives.pdf (pdf, 1.33M)

TC-L-80-Torque-Speed-Chart.pdf (pdf, 371.51K)

Datenblatt

TC-L-Brake-and-Thermal-Protection-Features.pdf (pdf, 257.92K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Phone

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specification

Parameter	Unit	TC-L 80 1,5 01
Stall Torque	Nm	1.74
Stall Torque for S1	Nm	–
Stall Torque for S2 for intermittent duty S2 T= 10’/20′	Nm	–
Peak Torque	Nm	4.5
Rated Torque	Nm	1.53
Rated Torque S1	Nm	–
Rated Torque for S2 for intermittent duty S2 T= 10’/20′	Nm	–
Rated Voltage	Vdc	48
Rated Output Power	W	480
Rated Output Power for S1	W	–
Rated Output Power for S2 for intermittent duty S2 T= 10’/20′	W	–
Stall Current	Arms	18.5
Stall Current for S1	Arms	–
Stall Current for S2 for intermittent duty S2 T= 10’/20′	Arms	–
Peak Current	Arms	52.7
Rated Current	Arms	16.3
Rated Current for S1		–
Rated Current for S2 for intermittent duty S2 T= 10’/20′		–
Rated Speed	rpm	3000
Maximum Speed @48Vdc	rpm	5000
Torque Constant (± 5%)	Nm/Arms	0.094
Voltage Constant (± 5%)	Vrms/Krpm	5.7
Phase/phase resistance (± 10%@25°C)	Ω	0.075
Phase/phase inductance (± 10%)	mH	0.314
Electrical time constant	ms	4.2
Thermal Resistance	°C/W	1.67
Mechanical time constant	ms	0.8
Rotor Inertia without brake and without feedback	kg·cm²	0.64
Motor weight	Kg	2.25
Motor weight + Brake	Kg	2.97
Axial Load applied on the shaft’s center	N	110
Radial Load applied on the shaft’s center	N	350

Family Specification

Family Specification	Unit	TC-L 80 1,5 01
Time Rating		Continuous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Motor Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	0 to 40
Ambient Humidity	%	20 to 80% (non-condensing)
Poles		8
Thermal Protection		PT 1000
Certification		CE
Recommendation		Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview

Family Overview	Unit	TC-L 80 1,5 01
Flange dimensions	mm	80
Rated Output Power	Watt	480
Rated Torque	Nm	1,53 – 1,54
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

Feedback

E1 – Encoder TTL 2000ppr R1 – Resolver 2 poles A1 – Absolute Multiturn Encoder

Brake

0 = without brake 1 = with brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-L 80

TC-L-80-Dimensions.pdf (pdf, 562.49K)

TC-L-Wiring-Cables-Connectors.pdf (pdf, 1.21M)

TC-L-Feedback-Features.pdf (pdf, 177.13K)

TC-L-Servo-Drives.pdf (pdf, 1.33M)

TC-L-80-Torque-Speed-Chart.pdf (pdf, 371.51K)

Datenblatt

TC-L-Brake-and-Thermal-Protection-Features.pdf (pdf, 257.92K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Name

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specification

Parameter	Unit	TC-L 80 1,5 03
Stall Torque	Nm	1.74
Stall Torque for S1	Nm	–
Stall Torque for S2 for intermittent duty S2 T= 10’/20′	Nm	–
Peak Torque	Nm	4.5
Rated Torque	Nm	1.53
Rated Torque S1	Nm	–
Rated Torque for S2 for intermittent duty S2 T= 10’/20′	Nm	–
Rated Voltage	Vdc	48
Rated Output Power	W	480
Rated Output Power for S1	W	–
Rated Output Power for S2 for intermittent duty S2 T= 10’/20′	W	–
Stall Current	Arms	12.3
Stall Current for S1	Arms	–
Stall Current for S2 for intermittent duty S2 T= 10’/20′	Arms	–
Peak Current	Arms	35.1
Rated Current	Arms	11
Rated Current for S1		–
Rated Current for S2 for intermittent duty S2 T= 10’/20′		–
Rated Speed	rpm	3000
Maximum Speed @48Vdc	rpm	3700
Torque Constant (± 5%)	Nm/Arms	0.141
Voltage Constant (± 5%)	Vrms/Krpm	8.5
Phase/phase resistance (± 10%@25°C)	Ω	0.136
Phase/phase inductance (± 10%)	mH	0.53
Electrical time constant	ms	3.9
Thermal Resistance	°C/W	1.67
Mechanical time constant	ms	0.8
Rotor Inertia without brake and without feedback	kg·cm²	0.64
Motor weight	Kg	2.25
Motor weight + Brake	Kg	2.97
Axial Load applied on the shaft’s center	N	110
Radial Load applied on the shaft’s center	N	350

Family Specification

Family Specification	Unit	TC-L 80 1,5 03
Time Rating		Continuous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Motor Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	0 to 40
Ambient Humidity	%	20 to 80% (non-condensing)
Poles		8
Thermal Protection		PT 1000
Certification		CE
Recommendation		Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview

Family Overview	Unit	TC-L 80 1,5 03
Flange dimensions	mm	80
Rated Output Power	Watt	480
Rated Torque	Nm	1,53 – 1,54
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

Feedback

E1 – Encoder TTL 2000ppr R1 – Resolver 2 poles A1 – Absolute Multiturn Encoder

Brake

0 = without brake 1 = with brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-L 80

TC-L-80-Dimensions.pdf (pdf, 562.49K)

TC-L-Wiring-Cables-Connectors.pdf (pdf, 1.21M)

TC-L-Feedback-Features.pdf (pdf, 177.13K)

TC-L-Servo-Drives.pdf (pdf, 1.33M)

TC-L-80-Torque-Speed-Chart.pdf (pdf, 371.51K)

Datenblatt

TC-L-Brake-and-Thermal-Protection-Features.pdf (pdf, 257.92K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Name

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specification

Parameter	Unit	TC-L 80 2,8 02
Stall Torque	Nm	–
Stall Torque for S1	Nm	2
Stall Torque for S2 for intermittent duty S2 T= 10’/20′	Nm	2.8
Peak Torque	Nm	8.4
Rated Torque	Nm	–
Rated Torque S1	Nm	1.54
Rated Torque for S2 for intermittent duty S2 T= 10’/20′	Nm	2.34
Rated Voltage	Vdc	48
Rated Output Power	W	–
Rated Output Power for S1	W	480
Rated Output Power for S2 for intermittent duty S2 T= 10’/20′	W	735
Stall Current	Arms	–
Stall Current for S1	Arms	17.7
Stall Current for S2 for intermittent duty S2 T= 10’/20′	Arms	24.8
Peak Current	Arms	82
Rated Current	Arms	–
Rated Current for S1		14.3
Rated Current for S2 for intermittent duty S2 T= 10’/20′		21.7
Rated Speed	rpm	3000
Maximum Speed @48Vdc	rpm	4700
Torque Constant (± 5%)	Nm/Arms	0.113
Voltage Constant (± 5%)	Vrms/Krpm	6.8
Phase/phase resistance (± 10%@25°C)	Ω	0.064
Phase/phase inductance (± 10%)	mH	0.24
Electrical time constant	ms	3.75
Thermal Resistance	°C/W	2.13
Mechanical time constant	ms	0.65
Rotor Inertia without brake and without feedback	kg·cm²	1.16
Motor weight	Kg	3.05
Motor weight + Brake	Kg	3.77
Axial Load applied on the shaft’s center	N	110
Radial Load applied on the shaft’s center	N	350

Family Specification

Family Specification	Unit	TC-L 80 2,8 02
Time Rating		Continuous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Motor Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	0 to 40
Ambient Humidity	%	20 to 80% (non-condensing)
Poles		8
Thermal Protection		PT 1000
Certification		CE
Recommendation		Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview

Family Overview	Unit	TC-L 80 2,8 02
Flange dimensions	mm	80
Rated Output Power	Watt	480
Rated Torque	Nm	1,53 – 1,54
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

Feedback

E1 – Encoder TTL 2000ppr R1 – Resolver 2 poles A1 – Absolute Multiturn Encoder

Brake

0 = without brake 1 = with brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
