TC-L 80 1,5 01

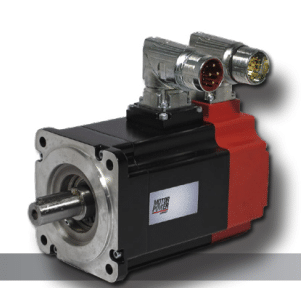

Name: TC-L 80 1,5 01 - KOCO MOTION
SKU: TC-L 80 1,5 01

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. 19 % MwSt.

Flange dimensions: 80 mm
Rated Output Power: 480 W
Rated Torque: 1,53 – 1,54 Nm
Rated Speed: 3000 rpm

Artikelnummer: TC-L 80 1,5 01 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 80 mm
Rated Output Power: 480 W
Rated Torque: 1,53 – 1,54 Nm
Rated Speed: 3000 rpm

Specification	TC-L 80 1,5 01
Stall Torque	1.74 Nm
Stall Torque for S1	–
Stall Torque for S2 for intermittent duty S2 T= 10’/20′	–
Peak Torque	4.5 Nm
Rated Torque	1.53 Nm
Rated Torque S1	–
Rated Torque for S2 for intermittent duty S2 T= 10’/20′	–
Rated Voltage	48 Vdc
Rated Output Power	480 W
Rated Output Power for S1	–
Rated Output Power for S2 for intermittent duty S2 T= 10’/20′	–
Stall Current	18.5 Arms
Stall Current for S1	–
Stall Current for S2 for intermittent duty S2 T= 10’/20′	–
Peak Current	52.7 Arms
Rated Current	16.3 Arms
Rated Current for S1	–
Rated Current for S2 for intermittent duty S2 T= 10’/20′	–
Rated Speed	3000 rpm
Maximum Speed @48Vdc	5000 rpm
Torque Constant (± 5%)	0.094 Nm/Arms
Voltage Constant (± 5%)	5.7 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	0.075 Ω
Phase/phase inductance (± 10%)	0.314 mH
Electrical time constant	4.2 ms
Thermal Resistance	1.67 °C/W
Mechanical time constant	0.8 ms
Rotor Inertia without brake and without feedback	0.64 kg·cm²
Motor weight	2.25 Kg
Motor weight + Brake	2.97 Kg
Axial Load applied on the shaft’s center	110 N
Radial Load applied on the shaft’s center	350 N

Family Specification	TC-L 80 1,5 01
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL/CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	20 to 80% (non-condensing) %
Poles	8
Thermal Protection	PT 1000
Certification	CE
Recommendation	Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview	TC-L 80 1,5 01
Flange dimensions	80 mm
Rated Output Power	480 Watt
Rated Torque	1,53 – 1,54 Nm
Rated Speed	3000 rpm

Optionen

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Feedback

E1 – Encoder TTL 2000ppr R1 – Resolver 2 poles A1 – Absolute Multiturn Encoder

Brake

0 = without brake 1 = with brake

Connection

D0 – 300mm cable lenght with AMP connectors, without thermal protection (For TC40 only) specify D0/F88 if the connection is with Lite Pro drive G2 – 90° M23 turnable connectors – PT 1000 on power connector specify G2/F88 if the connection is with Lite Pro drive H2 – 90° M23 turnable connectors – PT 1000 on signal connector specify H2/F88 if the connection is with Lite Pro drive
