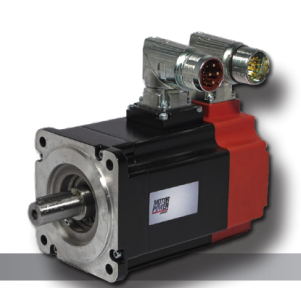

TC-L 80 1,5 03

Name: TC-L 80 1,5 03 - KOCO MOTION
SKU: TC-L 80 1,5 03

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

Flange dimensions: 80 mm
Rated Output Power: 480 W
Rated Torque: 1,53 – 1,54 Nm
Rated Speed: 3000 rpm

Artikelnummer: TC-L 80 1,5 03 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 80 mm
Rated Output Power: 480 W
Rated Torque: 1,53 – 1,54 Nm
Rated Speed: 3000 rpm

Specification

Parameter	Unit	TC-L 80 1,5 03
Stall Torque	Nm	1.74
Stall Torque for S1	Nm	–
Stall Torque for S2 for intermittent duty S2 T= 10’/20′	Nm	–
Peak Torque	Nm	4.5
Rated Torque	Nm	1.53
Rated Torque S1	Nm	–
Rated Torque for S2 for intermittent duty S2 T= 10’/20′	Nm	–
Rated Voltage	Vdc	48
Rated Output Power	W	480
Rated Output Power for S1	W	–
Rated Output Power for S2 for intermittent duty S2 T= 10’/20′	W	–
Stall Current	Arms	12.3
Stall Current for S1	Arms	–
Stall Current for S2 for intermittent duty S2 T= 10’/20′	Arms	–
Peak Current	Arms	35.1
Rated Current	Arms	11
Rated Current for S1		–
Rated Current for S2 for intermittent duty S2 T= 10’/20′		–
Rated Speed	rpm	3000
Maximum Speed @48Vdc	rpm	3700
Torque Constant (± 5%)	Nm/Arms	0.141
Voltage Constant (± 5%)	Vrms/Krpm	8.5
Phase/phase resistance (± 10%@25°C)	Ohm	0.136
Phase/phase inductance (± 10%)	mH	0.53
Electrical time constant	ms	3.9
Thermal Resistance	°C/W	1.67
Mechanical time constant	ms	0.8
Rotor Inertia without brake and without feedback	kg·cm²	0.64
Motor weight	Kg	2.25
Motor weight + Brake	Kg	2.97
Axial Load applied on the shaft’s center	N	110
Radial Load applied on the shaft’s center	N	350

Family Specification

Family Specification	Unit	TC-L 80 1,5 03
Time Rating		Continuous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Motor Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	0 to 40
Ambient Humidity	%	20 to 80% (non-condensing)
Poles		8
Thermal Protection		PT 1000
Certification		CE
Recommendation		Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview

Family Overview	Unit	TC-L 80 1,5 03
Flange dimensions	mm	80
Rated Output Power	Watt	480
Rated Torque	Nm	1,53 – 1,54
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Feedback

E1 – Encoder TTL 2000ppr R1 – Resolver 2 poles A1 – Absolute Multiturn Encoder

Brake

0 = without brake 1 = with brake

Connection

D0 – 300mm cable lenght with AMP connectors, without thermal protection (For TC40 only) specify D0/F88 if the connection is with Lite Pro drive G2 – 90° M23 turnable connectors – PT 1000 on power connector specify G2/F88 if the connection is with Lite Pro drive H2 – 90° M23 turnable connectors – PT 1000 on signal connector specify H2/F88 if the connection is with Lite Pro drive

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-L 80

TC-L-80-Dimensions.pdf (pdf, 562.49K)

TC-L-Wiring-Cables-Connectors.pdf (pdf, 1.21M)

TC-L-Feedback-Features.pdf (pdf, 177.13K)

TC-L-Servo-Drives.pdf (pdf, 1.33M)

TC-L-80-Torque-Speed-Chart.pdf (pdf, 371.51K)

Datenblatt

TC-L-Brake-and-Thermal-Protection-Features.pdf (pdf, 257.92K)
