TC-L 40 0,16 32

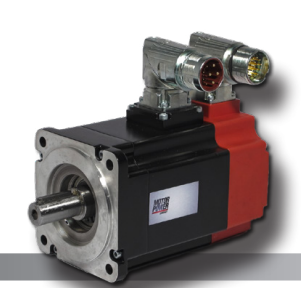

Name: TC-L 40 0,16 32 - KOCO MOTION
SKU: TC-L 40 0,16 32

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. 19 % MwSt.

Flange dimensions: 40 mm
Rated Output Power: 60 – 100 W
Rated Torque: 0,19 – 0,32 Nm
Rated Speed: 3000 rpm

Artikelnummer: TC-L 40 0,16 32 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 40 mm
Rated Output Power: 60 – 100 W
Rated Torque: 0,19 – 0,32 Nm
Rated Speed: 3000 rpm

Specification	TC-L 40 0,16 32
Stall Torque	0.21 Nm
Peak Torque	0.48 Nm
Rated Torque	0.19 Nm
Rated Voltage	24 Vdc
Rated Output Power	60 W
Stall Current	4.23 Arms
Peak Current	9.67 Arms
Rated Current	3.96 Arms
Rated Speed	3000 rpm
Maximum Speed @24Vdc	5000 rpm
Maximum Speed @48Vdc	–
Torque Constant (± 5%)	0.05 Nm/Arms
Voltage Constant (± 5%)	3 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	1 Ω
Phase/phase inductance (± 10%)	0.7 mH
Electrical time constant	0.7 ms
Thermal Resistance	2.38 °C/W
Mechanical time constant	1.62 ms
Rotor Inertia without brake and without feedback	0.027 kg·cm²
Motor weight	0.4 Kg
Motor weight + Brake	0.54 Kg
Motor weight with absolute encoder	0.41 Kg
Motor weight with absolute encoder + Brake	0.61 Kg
Axial Load applied on the shaft’s center	30 N
Radial Load applied on the shaft’s center	180 N

Family Specification	TC-L 40 0,16 32
Time Rating	Continous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL/CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	20 to 80% (non-condensing) %
Poles	8
Thermal Protection	Not available
Certification	CE
Recommendation	Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview	TC-L 40 0,16 32
Flange dimensions	40 mm
Rated Output Power	60 – 100 Watt
Rated Torque	0,19 – 0,32 Nm
Rated Speed	3000 rpm

Optionen

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Feedback

E1 – Encoder TTL 2000ppr R1 – Resolver 2 poles A1 – Absolute Multiturn Encoder

Brake

0 = without brake 1 = with brake

Connection

D0 – 300mm cable lenght with AMP connectors, without thermal protection (For TC40 only) specify D0/F88 if the connection is with Lite Pro drive G2 – 90° M23 turnable connectors – PT 1000 on power connector specify G2/F88 if the connection is with Lite Pro drive H2 – 90° M23 turnable connectors – PT 1000 on signal connector specify H2/F88 if the connection is with Lite Pro drive

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-L 40

Datenblatt

Dimensions (pdf, 363.89K)

Torque-Speed-Chart (pdf, 443.25K)

TC-L-Servo-Drives (pdf, 1.33M)

TC-L-Feedback-Features (pdf, 177.13K)

TC-L-Brake-and-Thermal-Protection-Features (pdf, 257.92K)

TC-L-Wiring-Cables-Connectors (pdf, 1.21M)
