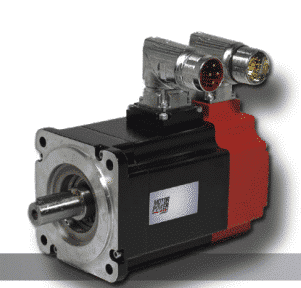

TC-L 40

Name: TC-L 40 - KOCO MOTION
SKU: TC-L 40

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

Flange dimensions: 40 mm
Rated Output Power: 60 – 100 W
Rated Torque: 0,19 – 0,32 Nm
Rated Speed: 3000 rpm

Artikelnummer: TC-L 40 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 40 mm
Rated Output Power: 60 – 100 W
Rated Torque: 0,19 – 0,32 Nm
Rated Speed: 3000 rpm

Produktvergleich

Specification

Parameter	Unit	TC-L 40 0,16 00	TC-L 40 0,16 32	TC-L 40 0,32 00	TC-L 40 0,32 32
Stall Torque	Nm	0.21	0.21	0.34	0.34
Peak Torque	Nm	0.48	0.48	0.96	0.96
Rated Torque	Nm	0.19	0.19	0.32	0.32
Rated Voltage	Vdc	48	24	48	24
Rated Output Power	W	60	60	100	100
Stall Current	Arms	2.84	4.23	4.6	6.8
Peak Current	Arms	7.13	9.67	14.2	21.3
Rated Current	Arms	2.6	3.96	4.3	6.4
Rated Speed	rpm	3000	3000	3000	3000
Maximum Speed @24Vdc	rpm	–	5000	–	5000
Maximum Speed @48Vdc	rpm	5000	–	5000	–
Torque Constant (± 5%)	Nm/Arms	0.074	0.05	0.074	0.05
Voltage Constant (± 5%)	Vrms/Krpm	4.5	3	4.5	3
Phase/phase resistance (± 10%@25°C)	Ohm	1.77	1	0.85	0.37
Phase/phase inductance (± 10%)	mH	1.6	0.7	0.9	0.42
Electrical time constant	ms	0.9	0.7	1.06	1.13
Thermal Resistance	°C/W	2.38	2.38	2.3	2.3
Mechanical time constant	ms	1	1.62	1.04	1.04
Rotor Inertia without brake and without feedback	kg·cm²	0.027	0.027	0.047	0.047
Motor weight	Kg	0.4	0.4	0.54	0.54
Motor weight + Brake	Kg	0.54	0.54	0.68	0.68
Motor weight with absolute encoder	Kg	0.41	0.41	0.55	0.55
Motor weight with absolute encoder + Brake	Kg	0.61	0.61	0.75	0.75
Axial Load applied on the shaft’s center	N	30	30	30	30
Radial Load applied on the shaft’s center	N	180	180	180	180

Family Specification

Family Specification	Unit	TC-L 40
Time Rating		Continous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Motor Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	0 to 40
Ambient Humidity	%	20 to 80% (non-condensing)
Poles		8
Thermal Protection		Not available
Certification		CE
Recommendation		Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview

Family Overview	Unit	TC-L 40
Flange dimensions	mm	40
Rated Output Power	Watt	60 – 100
Rated Torque	Nm	0,19 – 0,32
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Feedback

E1 – Encoder TTL 2000ppr R1 – Resolver 2 poles A1 – Absolute Multiturn Encoder

Brake

0 = without brake 1 = with brake

Connection

D0 – 300mm cable lenght with AMP connectors, without thermal protection (For TC40 only) specify D0/F88 if the connection is with Lite Pro drive G2 – 90° M23 turnable connectors – PT 1000 on power connector specify G2/F88 if the connection is with Lite Pro drive H2 – 90° M23 turnable connectors – PT 1000 on signal connector specify H2/F88 if the connection is with Lite Pro drive

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-L 40

TC-L-Wiring-Cables-Connectors.pdf (pdf, 1.21M)

TC-L-Feedback-Features.pdf (pdf, 177.13K)

TC-L-Servo-Drives.pdf (pdf, 1.33M)

TC-L-40-Torque-Speed-Chart.pdf (pdf, 443.25K)

TC-L-40-Dimensions.pdf (pdf, 363.89K)

Datenblatt

TC-L-Brake-and-Thermal-Protection-Features.pdf (pdf, 257.92K)
