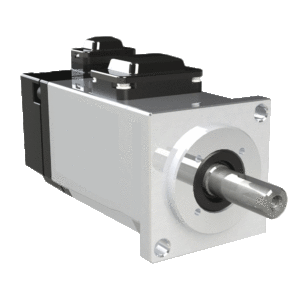

TC 100 8 15

Name: TC 100 8 15 - KOCO MOTION
SKU: TC 100 8 15

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. 19 % MwSt.

Flange dimensions: 100 mm
Rated Output Power: 820 – 1570 W
Rated Torque: 2,61 – 5,0 Nm
Rated Speed: 3000 rpm

Artikelnummer: TC 100 8 15 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 100 mm
Rated Output Power: 820 – 1570 W
Rated Torque: 2,61 – 5,0 Nm
Rated Speed: 3000 rpm

Specification	TC 100 8 15
Continous Stall Torque	8 Nm
Peak Torque	33 Nm
Nominal Torque	5 Nm
Rated Voltage	400 V
Nominal power	1570 W
Continuous stall Current	8.79 Arms
Maximun Current	36.27 Arms
Nominal Current	5.66 Arms
Nominal working Speed	3000 rpm
Maximum working speed 230VAC	3900 rpm
Maximum working speed 400VAC	5000
Torque Constant	0.91 Nm/Arms
Voltage Constant	55 Vrms/Krpm
Winding resistance	0.69 Ω
Winding inductance	4.22 mH
Electrical time constant	6.12 ms
Thermal Resistance	0.78 °C/W
Mechanical time constant	0.51 ms
Rotor Inertia without brake and without feedback	4.1 kg·cm²
Mass without holding brake	7.3 Kg
Mass with holding brake	8.6 Kg
Maximum axial shaft load applied on the shaft’s center	225 N
Maximun radial shaft load applied on the shaft’s center	626 N

Family Specification	TC 100 8 15
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Insulation System UL/CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	5 to 85% (non-condensing) %
Poles	8
Thermal Protection	PT 1000
Certification	CE
Recommendation	Rated Output with 300 x 300 x 6 mm aluminum heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview	TC 100 8 15
Flange dimensions	100 mm
Rated Output Power	820 – 1570 Watt
Rated Torque	2,61 – 5,0 Nm
Rated Speed	3000 rpm

Optionen

Mechanical Arrangement

0 = Shaft with key / without oil seal (front flange side IP 54) 1 = Shaft with key / with oil seal (front flange side IP 65) 2 = Shaft without key / without oil seal (front flange side IP 54) 3 = Shaft without key / with oil seal (front flange side IP 65)

Feedback

E1 = Encoder TTL 2000ppr R1 = Resolver 2p A1 = Absolute multiturn encoder

Brake

0 = without brake 1 = with brake

Connection

D0 = 300mm cable lenght with AMP connectors, without thermal protection (For TC40 only) specify D0/F88 if the connection is with Lite Pro drive G2 = 90° M23 turnable connectors – PT 1000 on power connector specify G2/F88 if the connection is with Lite Pro drive H2 = 90° M23 turnable connectors – PT 1000 on signal connector specify H2/F88 if the connection is with Lite Pro drive

Anwendungen

Medical Biomedical Agriculture Processing & Packaging Logistic & Intralogistic

TC 100

Datenblatt

Dimensions (pdf, 654.19K)

Torque-Speed-Chart (pdf, 447.9K)

TC-Servo-Drive (pdf, 3.02M)

TC-Feedback-Features (pdf, 162.32K)

TC-Thermal-Protection-Features (pdf, 256.31K)

TC-Brake-Features (pdf, 256.12K)

TC-Wiring-Cables-Connectors (pdf, 1.86M)
