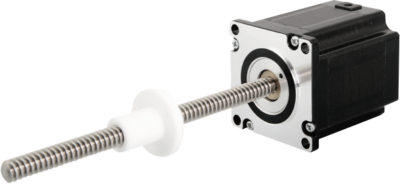

Size 23 [57mm] Stepper Lead Screw Linear Actuator provides high performance, a longer working cycle, and is capable of 910N.

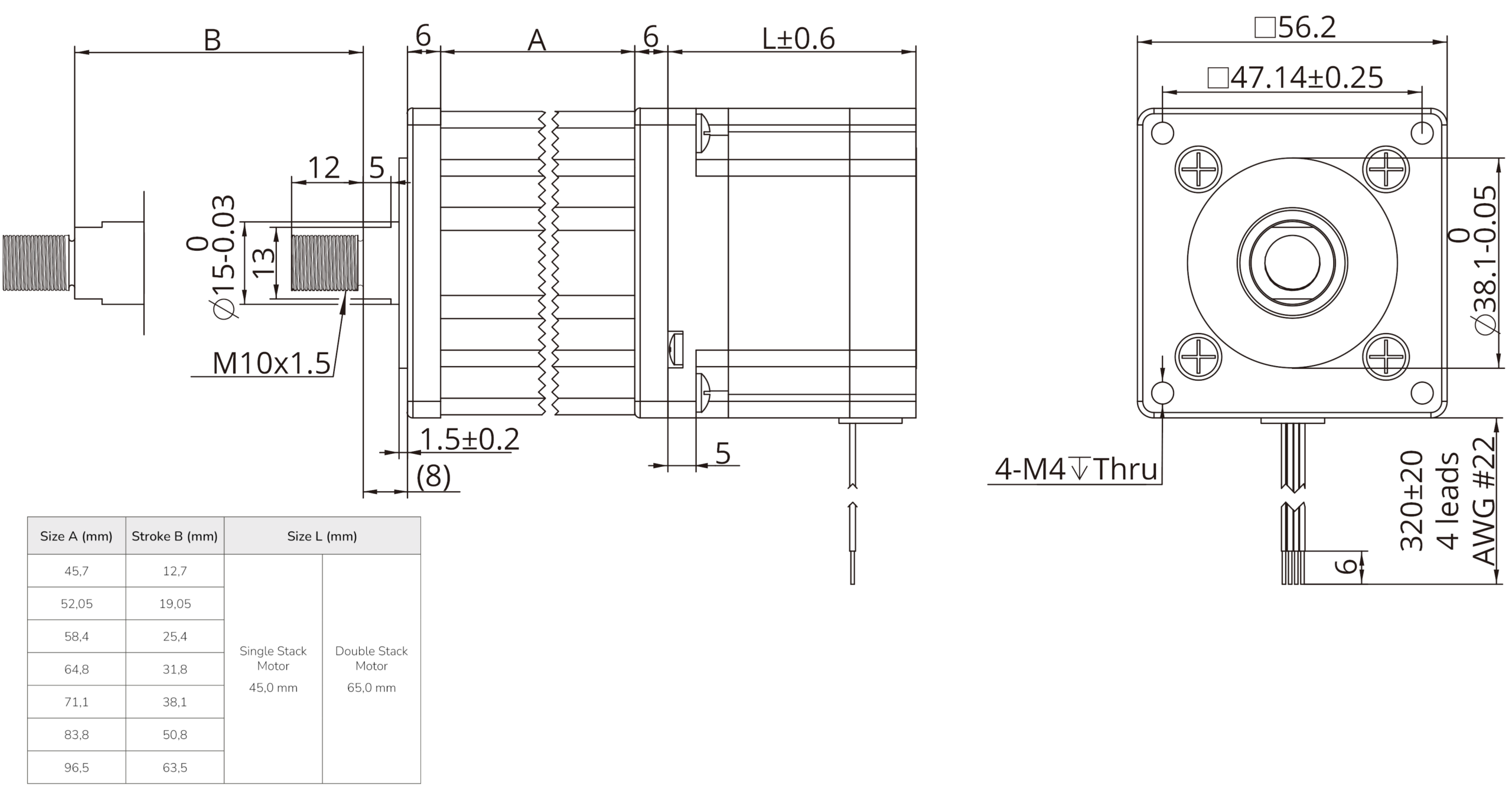

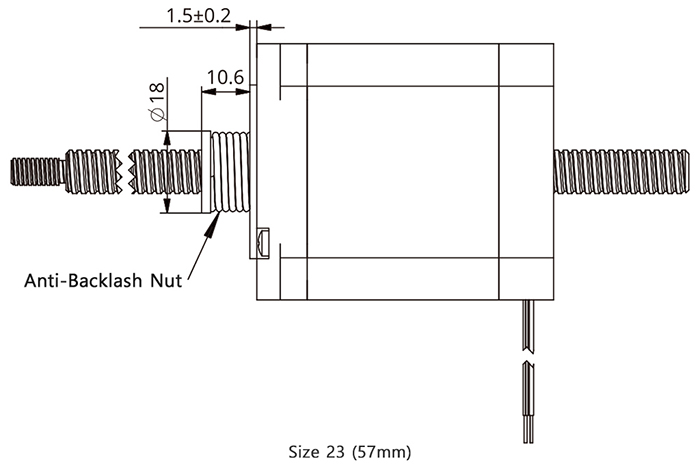

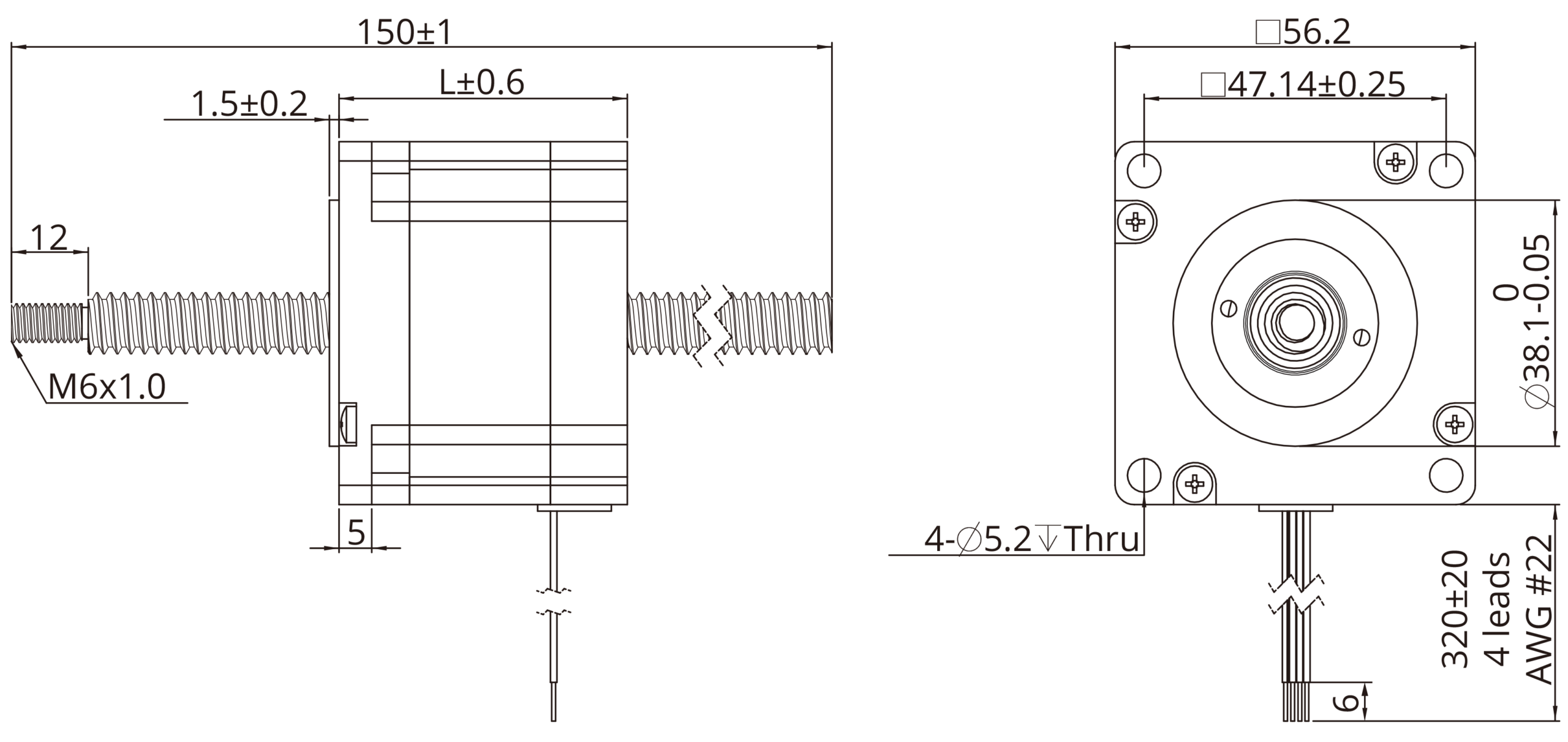

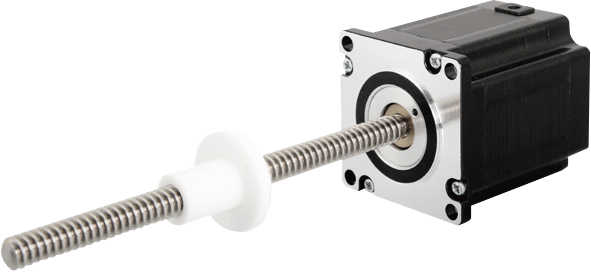

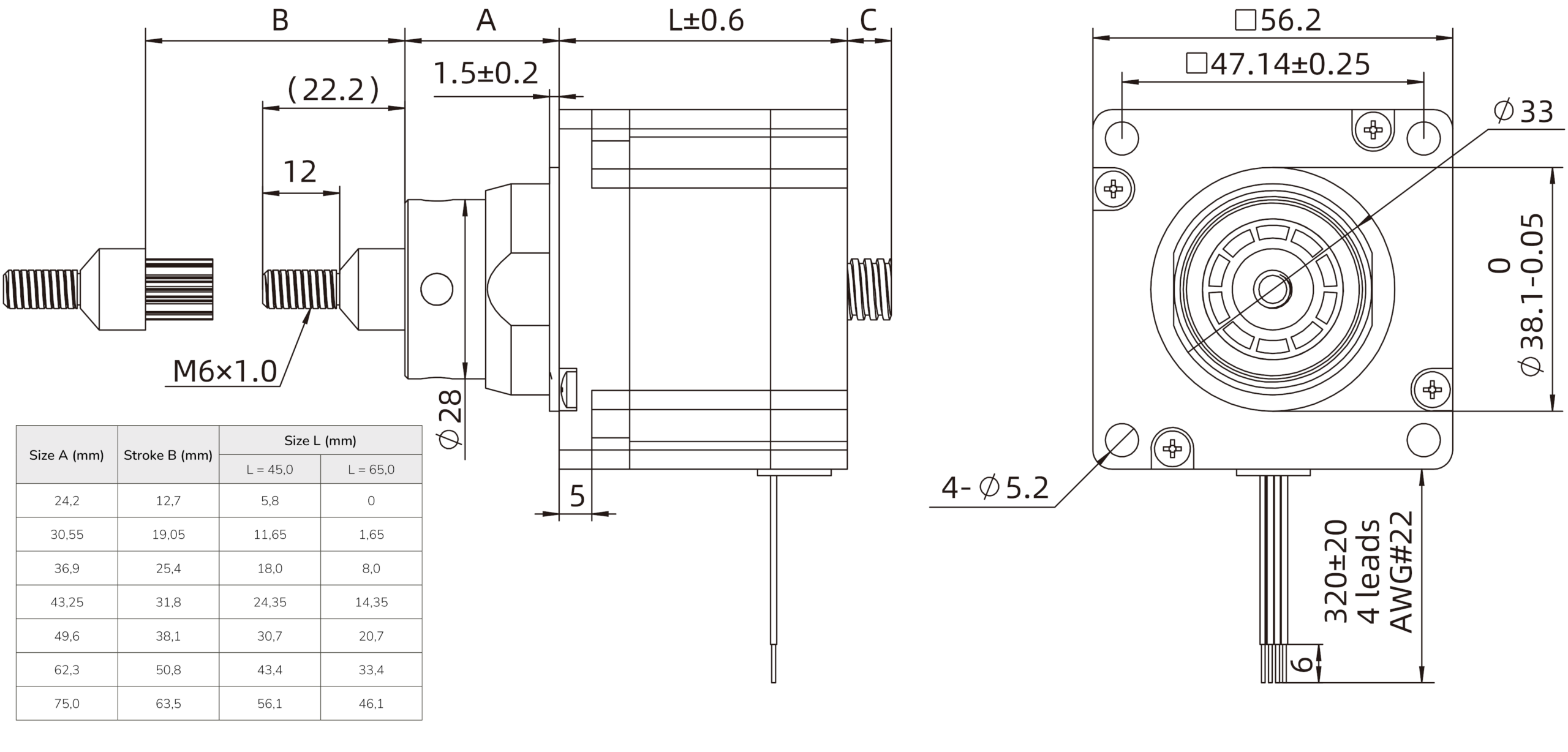

Size 23 Stepper Lead Screw Linear Actuator has four form factors available – External, Non-Captive, Electrical Cylinder (Captive) and Kaptive.
Size 23 [57mm] Stepper Lead Screw Linear Actuator provides high performance, a longer working cycle, and is capable of 910N.
Size 23 Stepper Lead Screw Linear Actuator has four form factors available – External, Non-Captive, Electrical Cylinder (Captive) and Kaptive.
![SLSLA - Size 11 [28mm]](https://www.kocomotion.de/wp-content/uploads/2024/06/stepper_size1128mm-300x300.png)
inkl. 19 % MwSt.
Weiterlesen![SLSLA - Size 14 [35mm]](https://www.kocomotion.de/wp-content/uploads/2024/06/stepper_size1435mm-300x300.png)
inkl. 19 % MwSt.
Weiterlesen![SBSLA - Size 8 [20mm]](https://www.kocomotion.de/wp-content/uploads/2024/06/Ball_size820mm-300x300.png)
inkl. 19 % MwSt.
Weiterlesen
inkl. MwSt.
Produkte anzeigen| Motor Characteristics | 23-2110 | 23-2120 | 23-2130 | 23-2210 | 23-2225 | 23-2240 |
|---|---|---|---|---|---|---|
| Voltage | 6.4 V | 3.5 V | 2.4 V | 11.5 V | 5 V | 2.8 V |
| Current | 1 A | 2 A | 3 A | 1 A | 2.5 A | 4 A |
| Resistance | 6.4 Ω | 1.75 Ω | 0.8 Ω | 11.5 Ω | 2 Ω | 0.7 Ω |
| Inductance | 16.4 mH | 4.1 mH | 1.7 mH | 32 mH | 5.2 mH | 2 mH |
| Weight | 585 g | 585 g | 585 g | 880 g | 880 g | 880 g |
| Lead Wire No. | 4 | 4 | 4 | 4 | 4 | 4 |
| Motor Length | 45 mm | 45 mm | 45 mm | 65 mm | 65 mm | 65 mm |
| Size | 23 Nema | 23 Nema | 23 Nema | 23 Nema | 23 Nema | 23 Nema |
| Flange size | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm |
| Lead Screw Code | SLSLA – Size 23 [57mm] |
|---|---|
| G, Screw Lead | 10 mm |
| A, Screw Lead | 9.525 mm |
| D, Screw Lead | 9.525 mm |
| F, Screw Lead | 9.525 mm |
| H, Screw Lead | 9.525 mm |
| K, Screw Lead | 9.525 mm |
| L, Screw Lead | 9.525 mm |
| P, Screw Lead | 9.525 mm |
| R, Screw Lead | 9.525 mm |
| S, Screw Lead | 9.525 mm |
| V, Screw Lead | 9.525 mm |
| W, Screw Lead | 9.525 mm |
| X, Screw Lead | 9.525 mm |
| Y, Screw Lead | 9.525 mm |
| Z, Screw Lead | 9.525 mm |
| Specification | 23-2110 |
|---|---|
| Voltage | 6.4 V |
| Current | 1 A |
| Resistance | 6.4 Ω |
| Inductance | 16.4 mH |
| Weight | 585 g |
| Lead Wire No. | 4 |
| Motor Length | 45 mm |
| Size | 23 Nema |
| Flange size | 57 mm |
| Lead Screw Code | 23-2110 |
|---|---|
| G, Screw Lead | 10 mm |
| A, Screw Lead | 9.525 mm |
| D, Screw Lead | 9.525 mm |
| F, Screw Lead | 9.525 mm |
| H, Screw Lead | 9.525 mm |
| K, Screw Lead | 9.525 mm |
| L, Screw Lead | 9.525 mm |
| P, Screw Lead | 9.525 mm |
| R, Screw Lead | 9.525 mm |
| S, Screw Lead | 9.525 mm |
| V, Screw Lead | 9.525 mm |
| W, Screw Lead | 9.525 mm |
| X, Screw Lead | 9.525 mm |
| Y, Screw Lead | 9.525 mm |
| Z, Screw Lead | 9.525 mm |
| Specification | 23-2120 |
|---|---|
| Voltage | 3.5 V |
| Current | 2 A |
| Resistance | 1.75 Ω |
| Inductance | 4.1 mH |
| Weight | 585 g |
| Lead Wire No. | 4 |
| Motor Length | 45 mm |
| Size | 23 Nema |
| Flange size | 57 mm |
| Lead Screw Code | 23-2120 |
|---|---|
| G, Screw Lead | 10 mm |
| A, Screw Lead | 9.525 mm |
| D, Screw Lead | 9.525 mm |
| F, Screw Lead | 9.525 mm |
| H, Screw Lead | 9.525 mm |
| K, Screw Lead | 9.525 mm |
| L, Screw Lead | 9.525 mm |
| P, Screw Lead | 9.525 mm |
| R, Screw Lead | 9.525 mm |
| S, Screw Lead | 9.525 mm |
| V, Screw Lead | 9.525 mm |
| W, Screw Lead | 9.525 mm |
| X, Screw Lead | 9.525 mm |
| Y, Screw Lead | 9.525 mm |
| Z, Screw Lead | 9.525 mm |
| Specification | 23-2130 |
|---|---|
| Voltage | 2.4 V |
| Current | 3 A |
| Resistance | 0.8 Ω |
| Inductance | 1.7 mH |
| Weight | 585 g |
| Lead Wire No. | 4 |
| Motor Length | 45 mm |
| Size | 23 Nema |
| Flange size | 57 mm |
| Lead Screw Code | 23-2130 |
|---|---|
| G, Screw Lead | 10 mm |
| A, Screw Lead | 9.525 mm |
| D, Screw Lead | 9.525 mm |
| F, Screw Lead | 9.525 mm |
| H, Screw Lead | 9.525 mm |
| K, Screw Lead | 9.525 mm |
| L, Screw Lead | 9.525 mm |
| P, Screw Lead | 9.525 mm |
| R, Screw Lead | 9.525 mm |
| S, Screw Lead | 9.525 mm |
| V, Screw Lead | 9.525 mm |
| W, Screw Lead | 9.525 mm |
| X, Screw Lead | 9.525 mm |
| Y, Screw Lead | 9.525 mm |
| Z, Screw Lead | 9.525 mm |
| Specification | 23-2210 |
|---|---|
| Voltage | 11.5 V |
| Current | 1 A |
| Resistance | 11.5 Ω |
| Inductance | 32 mH |
| Weight | 880 g |
| Lead Wire No. | 4 |
| Motor Length | 65 mm |
| Size | 23 Nema |
| Flange size | 57 mm |
| Lead Screw Code | 23-2210 |
|---|---|
| G, Screw Lead | 10 mm |
| A, Screw Lead | 9.525 mm |
| D, Screw Lead | 9.525 mm |
| F, Screw Lead | 9.525 mm |
| H, Screw Lead | 9.525 mm |
| K, Screw Lead | 9.525 mm |
| L, Screw Lead | 9.525 mm |
| P, Screw Lead | 9.525 mm |
| R, Screw Lead | 9.525 mm |
| S, Screw Lead | 9.525 mm |
| V, Screw Lead | 9.525 mm |
| W, Screw Lead | 9.525 mm |
| X, Screw Lead | 9.525 mm |
| Y, Screw Lead | 9.525 mm |
| Z, Screw Lead | 9.525 mm |
| Specification | 23-2225 |
|---|---|
| Voltage | 5 V |
| Current | 2.5 A |
| Resistance | 2 Ω |
| Inductance | 5.2 mH |
| Weight | 880 g |
| Lead Wire No. | 4 |
| Motor Length | 65 mm |
| Size | 23 Nema |
| Flange size | 57 mm |
| Lead Screw Code | 23-2225 |
|---|---|
| G, Screw Lead | 10 mm |
| A, Screw Lead | 9.525 mm |
| D, Screw Lead | 9.525 mm |
| F, Screw Lead | 9.525 mm |
| H, Screw Lead | 9.525 mm |
| K, Screw Lead | 9.525 mm |
| L, Screw Lead | 9.525 mm |
| P, Screw Lead | 9.525 mm |
| R, Screw Lead | 9.525 mm |
| S, Screw Lead | 9.525 mm |
| V, Screw Lead | 9.525 mm |
| W, Screw Lead | 9.525 mm |
| X, Screw Lead | 9.525 mm |
| Y, Screw Lead | 9.525 mm |
| Z, Screw Lead | 9.525 mm |
| Specification | 23-2240 |
|---|---|
| Voltage | 2.8 V |
| Current | 4 A |
| Resistance | 0.7 Ω |
| Inductance | 2 mH |
| Weight | 880 g |
| Lead Wire No. | 4 |
| Motor Length | 65 mm |
| Size | 23 Nema |
| Flange size | 57 mm |
| Lead Screw Code | 23-2240 |
|---|---|
| G, Screw Lead | 10 mm |
| A, Screw Lead | 9.525 mm |
| D, Screw Lead | 9.525 mm |
| F, Screw Lead | 9.525 mm |
| H, Screw Lead | 9.525 mm |
| K, Screw Lead | 9.525 mm |
| L, Screw Lead | 9.525 mm |
| P, Screw Lead | 9.525 mm |
| R, Screw Lead | 9.525 mm |
| S, Screw Lead | 9.525 mm |
| V, Screw Lead | 9.525 mm |
| W, Screw Lead | 9.525 mm |
| X, Screw Lead | 9.525 mm |
| Y, Screw Lead | 9.525 mm |
| Z, Screw Lead | 9.525 mm |
