Beschreibung

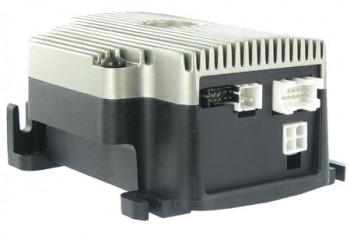

MFI3 PowerDrive with
- Pulse/Direction
- Motion Control (RS485)
- CANopen
- Ethernet (MCode, Modbus TCP, Ethernet IP, Profinet I/O)
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
MFI3 PowerDrive with
MFI3 PowerDrive with
| Parameter | Unit | MFI3 PowerDrive Programmable Motion Control | MFI3 PowerDrive CANopen |
|---|---|---|---|
| Control type | Programmable Motion | CANopen | |
| Control interface | Step, direction and enable inputs | Step, direction and enable inputs | |
| Driver type | Microstepping | Microstepping | |
| Operating temperature | °C | 2 | 2 |
| Input voltage | +VDC | +12 to +75 | +12 to +75 |
| Output voltage | A | 5.0 | 5.0 |
| Motion step frequency | MHz max | 2.5 | 2.5 |
| Motion step resolutions | steps/full step | 1 … 256 | 1 … 256 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
| Parameter | Unit | MFI3 PowerDrive Programmable Motion Control |
|---|---|---|
| Control type | Programmable Motion | |
| Control interface | Step, direction and enable inputs | |
| Driver type | Microstepping | |
| Operating temperature | °C | 2 |
| Input voltage | +VDC | +12 to +75 |
| Output voltage | A | 5.0 |
| Motion step frequency | MHz max | 2.5 |
| Motion step resolutions | steps/full step | 1 … 256 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
| Parameter | Unit | MFI3 PowerDrive CANopen |
|---|---|---|
| Control type | CANopen | |
| Control interface | Step, direction and enable inputs | |
| Driver type | Microstepping | |
| Operating temperature | °C | 2 |
| Input voltage | +VDC | +12 to +75 |
| Output voltage | A | 5.0 |
| Motion step frequency | MHz max | 2.5 |
| Motion step resolutions | steps/full step | 1 … 256 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
