Modbus RTU

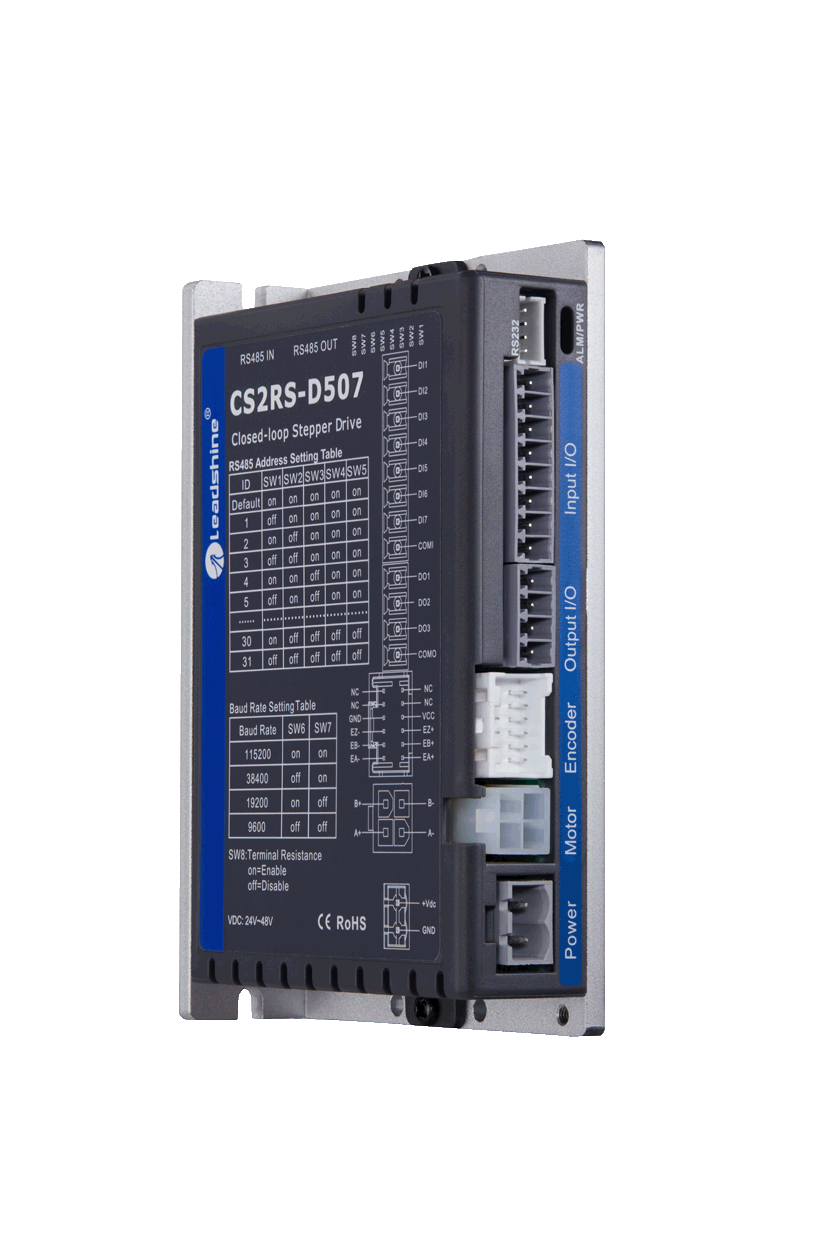

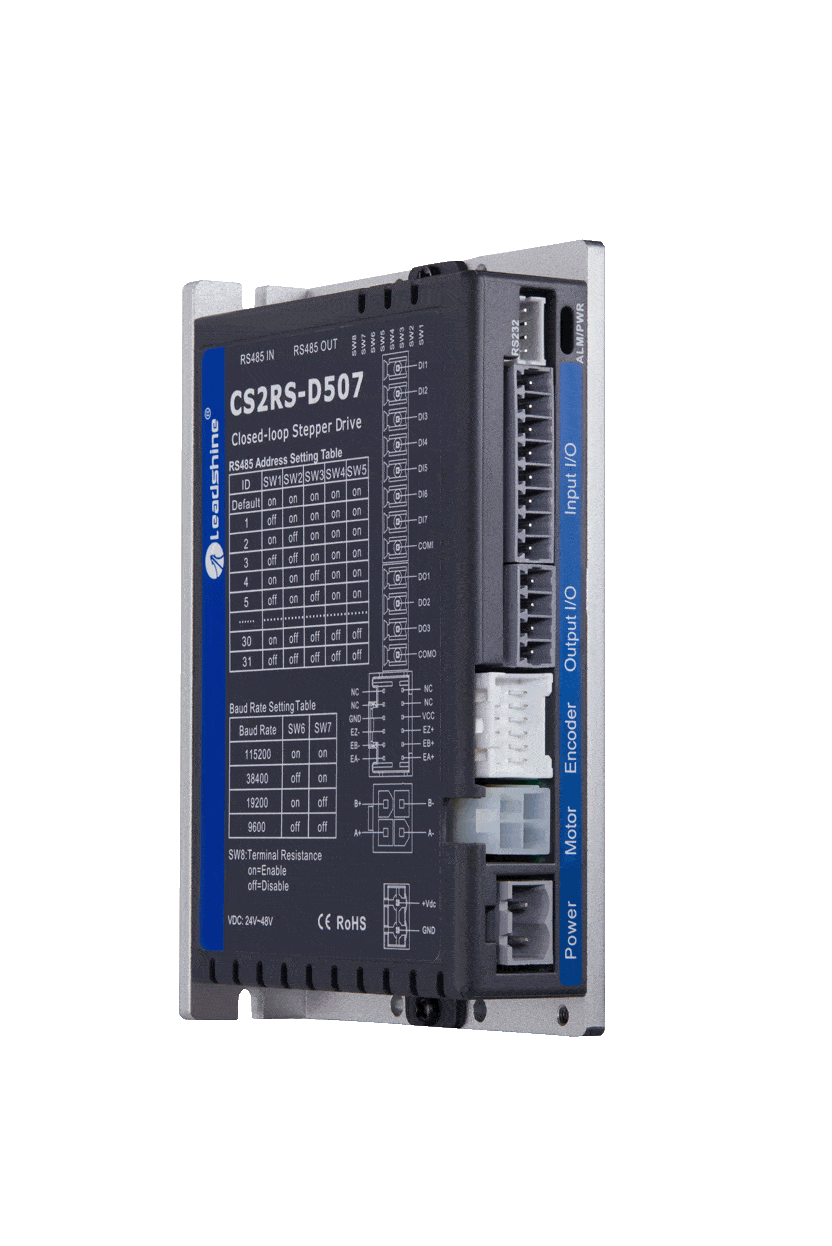

Artikelnummer: CS2RS-D507 Kategorie:


CS2RS Series are closed loop stepper drive based on standard Modbus RTU protocol, using RS485 communication can network up to 31 axes, built-in PR feature with 16-segment position table (PR Mode). They can not only solve the problem of step loss in the open loop stepper system, but also can save additional controllers in most of point-to-point applications, to greatly enhance system reliability and reduce the cost. CS2RS Series also support the feature of teaching, the operation modes of Profile Position, Profile Velocity and Homing. CS2RS-D503 can power 2-phase NEMA 17, 23, 24 stepper motors with 1000 ppr to 5000 ppr incremental encoders.
