Name: MDI3 NEMA 14 - KOCO MOTION
SKU: MDI3 NEMA 14

General Specifications	MDI3 NEMA 14 CANopen IP20	MDI3 NEMA 14 Programmable Motion Control IP20
Control type	CANopen	Programmable Motion
Feature set	Standard(Plus)	Standard(Plus)
P1 connector options	Wire Crimp	Wire Crimp
P2 connector options	DB9	Wire Crimp
Communications interface	RS-422/485	RS-422/485
Communications features	CANopen DS301, DSP402	MCode OS, 4.8 … 115.2 kbps baud rate
NEMA size	14 (36×36 mm)	14 (36×36 mm)
Holding torque range	0.13 … 0.25	0.13 … 0.25
Temperature heatsink (short-time)	max. 85	max. 85
IP rating	IP20	IP20
Input voltage	+12 to +48	+12 to +48
Power supply current requirement	1.0 A	1.0 A
Aux-logic supply voltage	12 … 24	12 … 24
Aux-Logic Supply Current	194 mA max	194 mA max

I/O Specifications	MDI3 NEMA 14 CANopen IP20	MDI3 NEMA 14 Programmable Motion Control IP20
I/O functions	Programmable I/Os	Programmable I/Os
# of I/O	4 I/O points, programmable as sinking outputs or sinking and sourcing inputs	4 I/O points, programmable as sinking outputs or sinking and sourcing inputs
Logic Range	Inputs and outputs tolerant to +24 VDC, inputs TTL compatible	Inputs and outputs tolerant to +24 VDC, inputs TTL compatible
Output Sink Current	Up to 600 mA per channel	Up to 600 mA per channel
Isoation	None	None
Protection	Over temp, short circuit, transient over voltage, over voltage, inductive clamp	Over temp, short circuit, transient over voltage, over voltage, inductive clamp
Dedicated I/O function	Caputure input, trip output	Caputure input, trip output
Logic range	0 to +5 VDC, TTL compatible	0 to +5 VDC, TTL compatible
Analog input resolution	10 Bits	10 Bits
Range (selectable)	0 to +5 VDC, 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA	0 to +5 VDC, 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA

Parameter settings	MDI3 NEMA 14 CANopen IP20	MDI3 NEMA 14 Programmable Motion Control IP20
Counter type	Position and Encoder	Position and Encoder
Counter Resolution	32 Bits	32 Bits
Counter edge rate	5 MHz	5 MHz
Velocity range	± 5,000.000	± 5,000.000
Velocity resolution	0.5961 steps/sec	0.5961 steps/sec
Accel/Decel range	1.5 X 10^9	1.5 X 10^9
Accel/Decel resolution	90.9 steps/sec2	90.9 steps/sec2

Open Loop / Absolute Encoder	MDI3 NEMA 14 CANopen IP20	MDI3 NEMA 14 Programmable Motion Control IP20
Microstep resolution	20 # of settings	20 # of settings
Microstep resolution	20 # of settings	20 # of settings
Encoder type	Internal, differential, magnetic	Internal, differential, magnetic
Encoder resolution	512 lines (2048 edges)	512 lines (2048 edges)
Steps/Rev	51200	51200

Name	Unit	Single Length	Triple Length
Holding torque	Ncm	13	25
Rotor inertia	kgcm2	0.014	0.0566
Detent Torque	Ncm	1.4	3.1
Weight	g	150	380

MDI3 NEMA 14 CANopen IP20

Datenblatt

MDI-NEMA-14-36-mm-CANopen-Product-Overview-PDF (pdf, 276.25K)

Firmware

MDriveMForce-CANopen-OS-5.54-ZIP-Archive (zip, 85.16K)

MDI3 NEMA 14 Programmable Motion Control IP20

Datenblatt

MDI-NEMA-14-36-mm-Motion-Control-Product-Overview-PDF (pdf, 279.28K)

Software

Motion-Terminal-ZIP-Archive (zip, 1.4M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	MDI3 NEMA 14 CANopen IP20
Control type	CANopen
Feature set	Standard(Plus)
P1 connector options	Wire Crimp Power & I/O
P2 connector options	DB9 Comm
Communications interface	RS-422/485
Communications features	CANopen DS301, DSP402
NEMA size	14 (36×36 mm)
Holding torque range	0.13 … 0.25 Nm
Temperature heatsink (short-time)	max. 85 °C
IP rating	IP20
Input voltage	+12 to +48 +VDC
Power supply current requirement	1.0 A
Aux-logic supply voltage	12 … 24 +VDC
Aux-Logic Supply Current	194 mA max

I/O Specifications	MDI3 NEMA 14 CANopen IP20
I/O functions	Programmable I/Os
# of I/O	4 I/O points, programmable as sinking outputs or sinking and sourcing inputs
Logic Range	Inputs and outputs tolerant to +24 VDC, inputs TTL compatible
Output Sink Current	Up to 600 mA per channel
Isoation	None
Protection	Over temp, short circuit, transient over voltage, over voltage, inductive clamp
Dedicated I/O function	Caputure input, trip output
Logic range	0 to +5 VDC, TTL compatible
Analog input resolution	10 Bits
Range (selectable)	0 to +5 VDC, 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA

Parameter settings	MDI3 NEMA 14 CANopen IP20
Counter type	Position and Encoder
Counter Resolution	32 Bits
Counter edge rate	5 MHz
Velocity range	± 5,000.000 steps/sec
Velocity resolution	0.5961 steps/sec
Accel/Decel range	1.5 X 10^9 steps/sec2
Accel/Decel resolution	90.9 steps/sec2

Open Loop / Absolute Encoder	MDI3 NEMA 14 CANopen IP20
Microstep resolution	20 # of settings
Microstep resolution	200 … 51200 Range steps/rev
Encoder type	Internal, differential, magnetic
Encoder resolution	512 lines (2048 edges)
Steps/Rev	51200

Name	Unit	Single Length	Triple Length
Holding torque	Ncm	13	25
Rotor inertia	kgcm2	0.014	0.0566
Detent Torque	Ncm	1.4	3.1
Weight	g	150	380

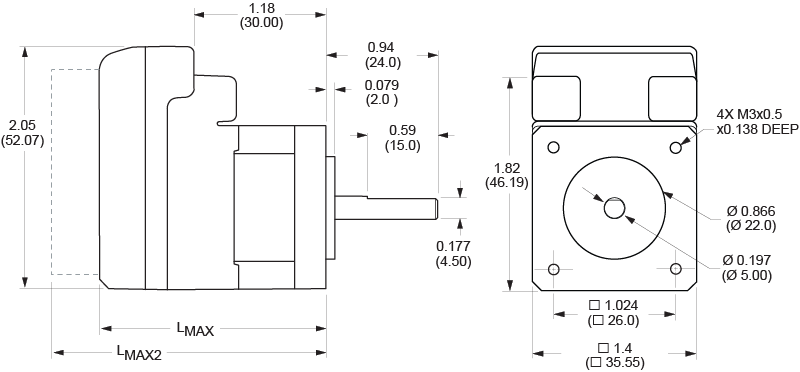

MDI3 NEMA 14 CANopen IP20


MDI3 NEMA 14 CANopen IP20

Datenblatt

MDI-NEMA-14-36-mm-CANopen-Product-Overview-PDF (pdf, 276.25K)

Firmware

MDriveMForce-CANopen-OS-5.54-ZIP-Archive (zip, 85.16K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	MDI3 NEMA 14 Programmable Motion Control IP20
Control type	Programmable Motion
Feature set	Standard(Plus)
P1 connector options	Wire Crimp Power & I/O
P2 connector options	Wire Crimp Comm
Communications interface	RS-422/485
Communications features	MCode OS, 4.8 … 115.2 kbps baud rate
NEMA size	14 (36×36 mm)
Holding torque range	0.13 … 0.25 Nm
Temperature heatsink (short-time)	max. 85 °C
IP rating	IP20
Input voltage	+12 to +48 +VDC
Power supply current requirement	1.0 A
Aux-logic supply voltage	12 … 24 +VDC
Aux-Logic Supply Current	194 mA max

I/O Specifications	MDI3 NEMA 14 Programmable Motion Control IP20
I/O functions	Programmable I/Os
# of I/O	4 I/O points, programmable as sinking outputs or sinking and sourcing inputs
Logic Range	Inputs and outputs tolerant to +24 VDC, inputs TTL compatible
Output Sink Current	Up to 600 mA per channel
Isoation	None
Protection	Over temp, short circuit, transient over voltage, over voltage, inductive clamp
Dedicated I/O function	Caputure input, trip output
Logic range	0 to +5 VDC, TTL compatible
Analog input resolution	10 Bits
Range (selectable)	0 to +5 VDC, 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA

Parameter settings	MDI3 NEMA 14 Programmable Motion Control IP20
Counter type	Position and Encoder
Counter Resolution	32 Bits
Counter edge rate	5 MHz
Velocity range	± 5,000.000 steps/sec
Velocity resolution	0.5961 steps/sec
Accel/Decel range	1.5 X 10^9 steps/sec2
Accel/Decel resolution	90.9 steps/sec2

Open Loop / Absolute Encoder	MDI3 NEMA 14 Programmable Motion Control IP20
Microstep resolution	20 # of settings
Microstep resolution	200 … 51200 Range steps/rev
Encoder type	Internal, differential, magnetic
Encoder resolution	512 lines (2048 edges)
Steps/Rev	51200

Name	Unit	Single Length	Triple Length
Holding torque	Ncm	13	25
Rotor inertia	kgcm2	0.014	0.0566
Detent Torque	Ncm	1.4	3.1
Weight	g	150	380

MDI3 NEMA 14 Programmable Motion Control IP20


MDI3 NEMA 14 Programmable Motion Control IP20

MD-NEMA-14-with-Standard-Connectors-ZIP-Archive (zip, 1.9M)

MDI3 NEMA 14 Programmable Motion Control IP20

Datenblatt

MDI-NEMA-14-36-mm-Motion-Control-Product-Overview-PDF (pdf, 279.28K)

Software

Motion-Terminal-ZIP-Archive (zip, 1.4M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de
