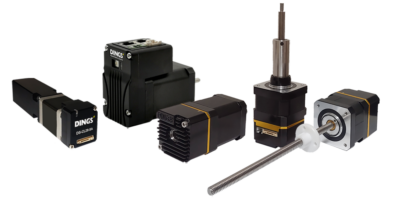

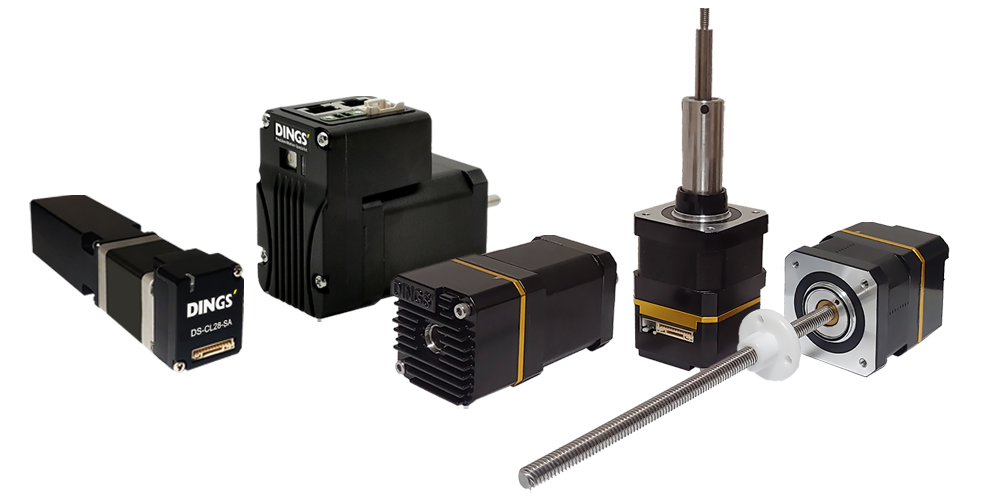

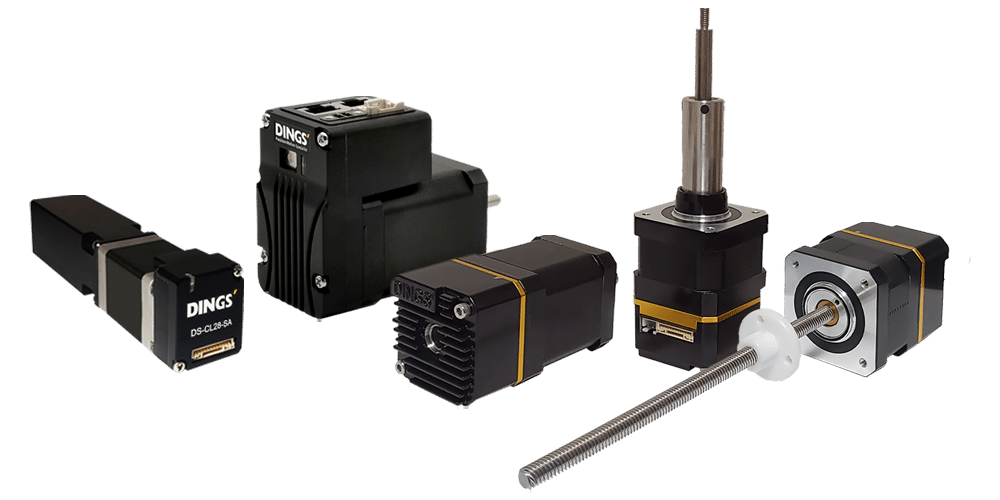

KOCO offers 3 different motor size of Integrated Closed Loop Stepping Control system via RS485.
From NEMA11, 17 and up to 23 size, our DS-CL28/42-SA and Vector family can be attractive for customers since these packages are full closed loop with high resolution encoder (Min. 10,000PPR) and all-in-one electronics can be assembled with all of KOCO stepper line ups as linear actuator and regular rotary steppers. All solutions can be operated under RS485 commnication.
KOCO offers 3 different motor size of Integrated Closed Loop Stepping Control system via RS485.
From NEMA11, 17 and up to 23 size, our DS-CL28/42-SA and Vector family can be attractive for customers since these packages are full closed loop with high resolution encoder (Min. 10,000PPR) and all-in-one electronics can be assembled with all of KOCO stepper line ups as linear actuator and regular rotary steppers. All solutions can be operated under RS485 commnication.
inkl. MwSt.
Produkte anzeigen
inkl. MwSt.
Produkte anzeigen
inkl. 19 % MwSt.
Weiterlesen
inkl. 19 % MwSt.
Weiterlesen| Specifications | DS-CL28-SA | DS-CL42-SA |
|---|---|---|
| Input Voltage | 24 VDC ± 10% | 24 VDC ± 10% |
| Control Method | Closed loop control with 32bit ARM | Closed loop control with 32bit ARM |
| Multi Axes Driver | Max 16 axes through Star Topology | Max 16 axes through Star Topology |
| Position table | 64 movement command steps(continuous cycle jump etc) | 64 movement command steps(continuous cycle jump etc) |
| Board Current Consumption | Max 500mA(Except motor current) | Max 500mA(Except motor current) |
| Ambient Temperature | Use : 0~40, Storage : -20~70 | Use : 0~40, Storage : -20~70 |
| Ambient Humidity | Use : 35~85%RH (Non-condensing), Storage : 10~90%RH (Non-condensing) | Use : 35~85%RH (Non-condensing), Storage : 10~90%RH (Non-condensing) |
| Vibration Resistant | 0.5 G | 0.5 G |
| Rotation Speed | 0~3000 | 0~3000 |
| Encoder Resolution(P/R) | Max 16000 | Max 10000 |
| Protection Functions | Multiple alarm function. For details, please refer to product manual | Multiple alarm function. For details, please refer to product manual |
| Rotational Direction | CW/CCW (Selectable by parameter) | CW/CCW (Selectable by parameter) |
| Digital Inputs | 4 programmable inputs (Photocoupler) | 7 programmable inputs (Photocoupler) |
| Digital Output | – | 3 programmable outputs (Photocoupler) |
| Communication interface | RS-485 Serial communication with PC transmission speed : 115200 (bps) | RS-485 Serial communication with PC transmission speed : 115200 (bps) |
| Position Control | Incremental mode Data range : -134217727 ~ +134217727 (pulse) Pulse speed : Max 800 kpps | Incremental mode Data range : -134217727 ~ +134217727 (pulse) Pulse speed : Max 800 kpps |
| Return to Origin | Origin sensor, ±Limit sensor, Z phase, Torque | Origin sensor, ±Limit sensor, Z phase, Torque |
| GUI | User interface program with in windows | User interface program with in windows |
| Software | Ezi-Motion GUI / Motion library (DLL) for Windows 2000/XP/7/8/10 | Ezi-Motion GUI / Motion library (DLL) for Windows 2000/XP/7/8/10 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
| Specification | DS-CL28-SA |
|---|---|
| Input Voltage | 24 VDC ± 10% |
| Control Method | Closed loop control with 32bit ARM |
| Multi Axes Driver | Max 16 axes through Star Topology |
| Position table | 64 movement command steps(continuous cycle jump etc) |
| Board Current Consumption | Max 500mA(Except motor current) |
| Ambient Temperature | Use : 0~40, Storage : -20~70 °C |
| Ambient Humidity | Use : 35~85%RH (Non-condensing), Storage : 10~90%RH (Non-condensing) |
| Vibration Resistant | 0.5 G |
| Rotation Speed | 0~3000 rpm |
| Encoder Resolution(P/R) | Max 16000 PPR |
| Protection Functions | Multiple alarm function. For details, please refer to product manual |
| Rotational Direction | CW/CCW (Selectable by parameter) |
| Digital Inputs | 4 programmable inputs (Photocoupler) |
| Digital Output | – |
| Communication interface | RS-485 Serial communication with PC transmission speed : 115200 (bps) |
| Position Control | Incremental mode Data range : -134217727 ~ +134217727 (pulse) Pulse speed : Max 800 kpps |
| Return to Origin | Origin sensor, ±Limit sensor, Z phase, Torque |
| GUI | User interface program with in windows |
| Software | Ezi-Motion GUI / Motion library (DLL) for Windows 2000/XP/7/8/10 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

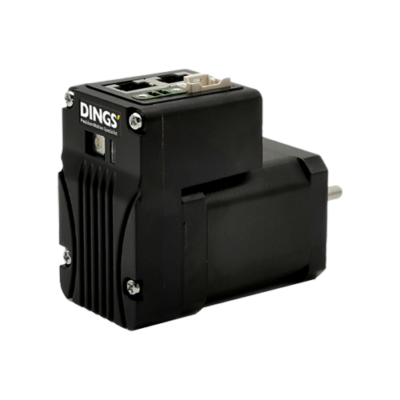

| Specification | DS-CL42-SA |
|---|---|
| Input Voltage | 24 VDC ± 10% |
| Control Method | Closed loop control with 32bit ARM |
| Multi Axes Driver | Max 16 axes through Star Topology |
| Position table | 64 movement command steps(continuous cycle jump etc) |
| Board Current Consumption | Max 500mA(Except motor current) |
| Ambient Temperature | Use : 0~40, Storage : -20~70 °C |
| Ambient Humidity | Use : 35~85%RH (Non-condensing), Storage : 10~90%RH (Non-condensing) |
| Vibration Resistant | 0.5 G |
| Rotation Speed | 0~3000 rpm |
| Encoder Resolution(P/R) | Max 10000 PPR |
| Protection Functions | Multiple alarm function. For details, please refer to product manual |
| Rotational Direction | CW/CCW (Selectable by parameter) |
| Digital Inputs | 7 programmable inputs (Photocoupler) |
| Digital Output | 3 programmable outputs (Photocoupler) |
| Communication interface | RS-485 Serial communication with PC transmission speed : 115200 (bps) |
| Position Control | Incremental mode Data range : -134217727 ~ +134217727 (pulse) Pulse speed : Max 800 kpps |
| Return to Origin | Origin sensor, ±Limit sensor, Z phase, Torque |
| GUI | User interface program with in windows |
| Software | Ezi-Motion GUI / Motion library (DLL) for Windows 2000/XP/7/8/10 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
