| Parameter | Unit | DS-CL28-SA | DS-CL42-SA |
|---|---|---|---|
| Input voltage | VDC | 24 +/- 10 % | 24 +/- 10 % |
| Encoder Resolution(P/R) | PPR | Max 16000 | Max 10000 |
| Protection Functions | Multiple alarm function. For details, please refer to product manual | Multiple alarm function. For details, please refer to product manual | |
| Rotational Direction | CW/CCW (Selectable by parameter) | CW/CCW (Selectable by parameter) | |
| Digital Inputs | 4 programmable inputs (Photocoupler) | 7 programmable inputs (Photocoupler) | |
| Digital Output | – | 3 programmable outputs (Photocoupler) | |
| Communication interface | RS-485 Serial communication with PC transmission speed : 115200 (bps) | RS-485 Serial communication with PC transmission speed : 115200 (bps) | |
| Position Control | Incremental mode Data range : -134217727 ~ +134217727 (pulse) Pulse speed : Max 800 kpps | Incremental mode Data range : -134217727 ~ +134217727 (pulse) Pulse speed : Max 800 kpps | |
| Return to Origin | Origin sensor, ±Limit sensor, Z phase, Torque | Origin sensor, ±Limit sensor, Z phase, Torque | |
| GUI | User interface program with in windows | User interface program with in windows | |
| Software | Ezi-Motion GUI / Motion library (DLL) for Windows 2000/XP/7/8/10 | Ezi-Motion GUI / Motion library (DLL) for Windows 2000/XP/7/8/10 | |
| Control Method | Closed loop control with 32bit ARM | Closed loop control with 32bit ARM | |
| Multi Axes Driver | Max 16 axes through Star Topology | Max 16 axes through Star Topology | |
| Position table | 64 movement command steps(continuous cycle jump etc) | 64 movement command steps(continuous cycle jump etc) | |
| Board current consumption | Max 500mA(Except motor current) | Max 500mA(Except motor current) | |
| Ambient temperature | °C | Use : 0~40, Storage : -20~70 | Use : 0~40, Storage : -20~70 |
| Ambient Humidity | Use : 35~85%RH (Non-condensing), Storage : 10~90%RH (Non-condensing) | Use : 35~85%RH (Non-condensing), Storage : 10~90%RH (Non-condensing) | |
| Vibration resistant | G | 0.5 | 0.5 |
| Rotation speed | rpm | 0~3000 | 0~3000 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

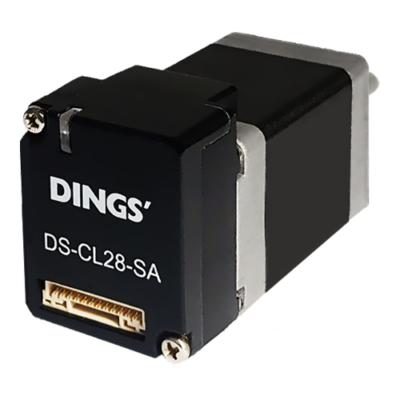

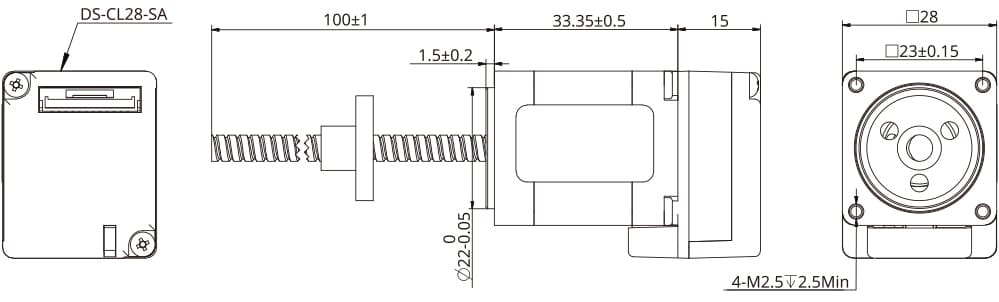

| Parameter | Unit | DS-CL28-SA |
|---|---|---|
| Input voltage | VDC | 24 +/- 10 % |
| Encoder Resolution(P/R) | PPR | Max 16000 |
| Protection Functions | Multiple alarm function. For details, please refer to product manual | |
| Rotational Direction | CW/CCW (Selectable by parameter) | |
| Digital Inputs | 4 programmable inputs (Photocoupler) | |
| Digital Output | – | |
| Communication interface | RS-485 Serial communication with PC transmission speed : 115200 (bps) | |
| Position Control | Incremental mode Data range : -134217727 ~ +134217727 (pulse) Pulse speed : Max 800 kpps | |
| Return to Origin | Origin sensor, ±Limit sensor, Z phase, Torque | |
| GUI | User interface program with in windows | |
| Software | Ezi-Motion GUI / Motion library (DLL) for Windows 2000/XP/7/8/10 | |
| Control Method | Closed loop control with 32bit ARM | |
| Multi Axes Driver | Max 16 axes through Star Topology | |
| Position table | 64 movement command steps(continuous cycle jump etc) | |
| Board current consumption | Max 500mA(Except motor current) | |
| Ambient temperature | °C | Use : 0~40, Storage : -20~70 |
| Ambient Humidity | Use : 35~85%RH (Non-condensing), Storage : 10~90%RH (Non-condensing) | |
| Vibration resistant | G | 0.5 |
| Rotation speed | rpm | 0~3000 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

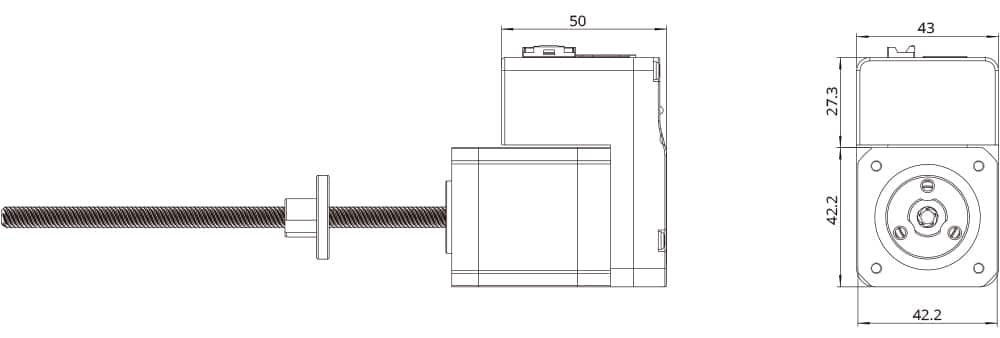

| Parameter | Unit | DS-CL42-SA |
|---|---|---|
| Input voltage | VDC | 24 +/- 10 % |
| Encoder Resolution(P/R) | PPR | Max 10000 |
| Protection Functions | Multiple alarm function. For details, please refer to product manual | |
| Rotational Direction | CW/CCW (Selectable by parameter) | |
| Digital Inputs | 7 programmable inputs (Photocoupler) | |
| Digital Output | 3 programmable outputs (Photocoupler) | |
| Communication interface | RS-485 Serial communication with PC transmission speed : 115200 (bps) | |
| Position Control | Incremental mode Data range : -134217727 ~ +134217727 (pulse) Pulse speed : Max 800 kpps | |
| Return to Origin | Origin sensor, ±Limit sensor, Z phase, Torque | |
| GUI | User interface program with in windows | |
| Software | Ezi-Motion GUI / Motion library (DLL) for Windows 2000/XP/7/8/10 | |
| Control Method | Closed loop control with 32bit ARM | |
| Multi Axes Driver | Max 16 axes through Star Topology | |
| Position table | 64 movement command steps(continuous cycle jump etc) | |
| Board current consumption | Max 500mA(Except motor current) | |
| Ambient temperature | °C | Use : 0~40, Storage : -20~70 |
| Ambient Humidity | Use : 35~85%RH (Non-condensing), Storage : 10~90%RH (Non-condensing) | |
| Vibration resistant | G | 0.5 |
| Rotation speed | rpm | 0~3000 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
