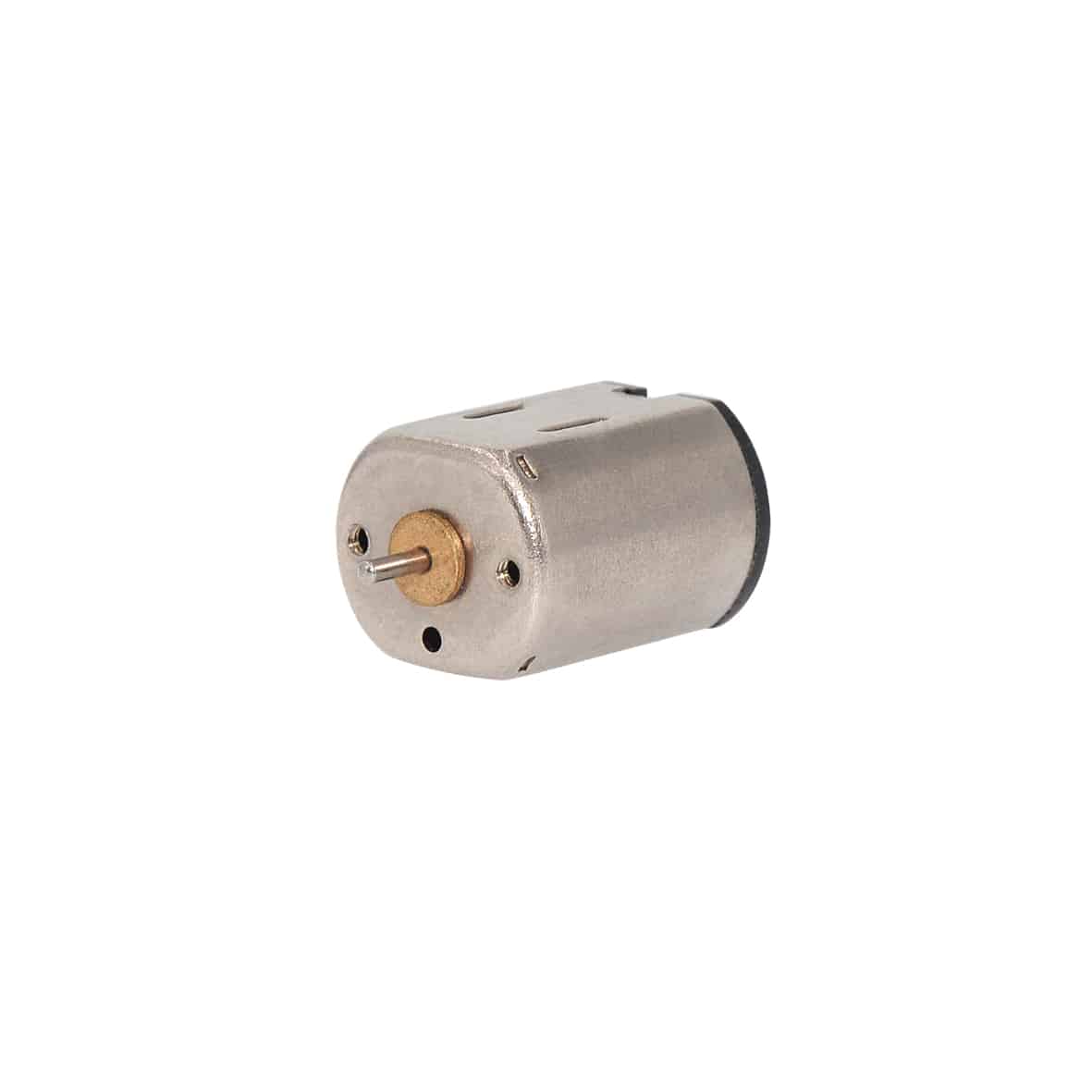

12mm DC Core Motor – Precious Metal Commutation

C1215F

The C1215F series features compact 12mm DC core motors with precious metal commutation for optimal reliability and efficiency. With voltage options from 1.5V to 3.5V, speeds up to 25,000 rpm, and flexible configuration options, this family is ideal for security equipment, portable tools, model aircraft, and personal care devices. Custom shaft, wiring, and gearhead options are available to suit demanding miniature motion applications.

Weiterlesen
Weiterlesen
Weiterlesen
Artikelnummer: C1215F Kategorie:

Beschreibung

C1215F Series – 12mm DC Core Motors with Precious Metal Commutation

  • High-Performance Design: Compact 12mm diameter motors delivering reliable operation with precious metal commutation, maximizing service life and minimizing contact resistance.

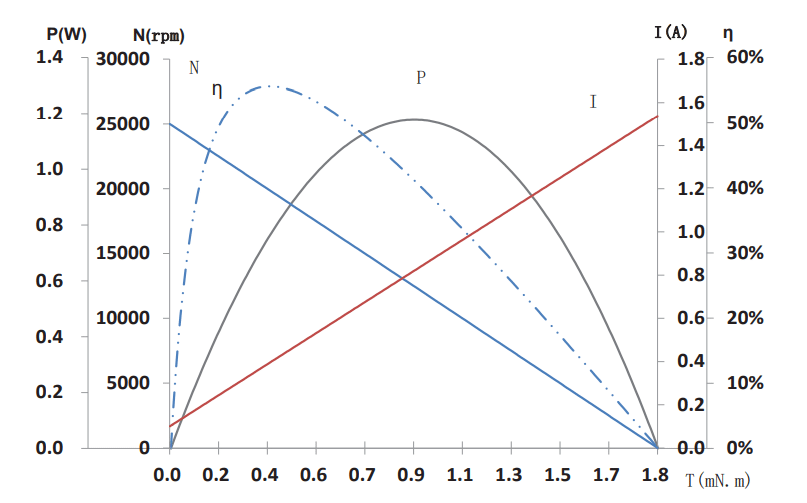

  • Performance Range: Wide voltage range models (1.5V, 3.0V, 3.5V) support no-load speeds from 9,600 to 25,000 rpm, and stall torque values up to 1.8 mNm to meet precise application needs.
  • High Efficiency: Achieve up to 56.5% maximum efficiency and deliver up to 1.18 W maximum output power, ensuring energy-efficient performance for portable and battery-powered solutions.
  • Flexible Integration: Standard features include built-in varistor protection, a robust −20°C to +80°C operating range, and lightweight construction (≈5.1–5.4 g). Options include various shaft lengths, lead wire extensions, special coils, and compatible gearheads for application-specific adaptation.
  • Typical Applications: Optimized for use in security equipment, remote control model aircraft, small electronic products, personal care devices, and portable electric tools—making them adaptable in space-constrained and battery-operated environments.

The C1215F motor family provides exceptional reliability, adaptable configurations, and proven performance for precise motion control in compact devices. Tailor your solution with customized options to meet demanding micro-drive requirements.
