8-2105

Name: 8-2105 - KOCO MOTION
SKU: 8-2105

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

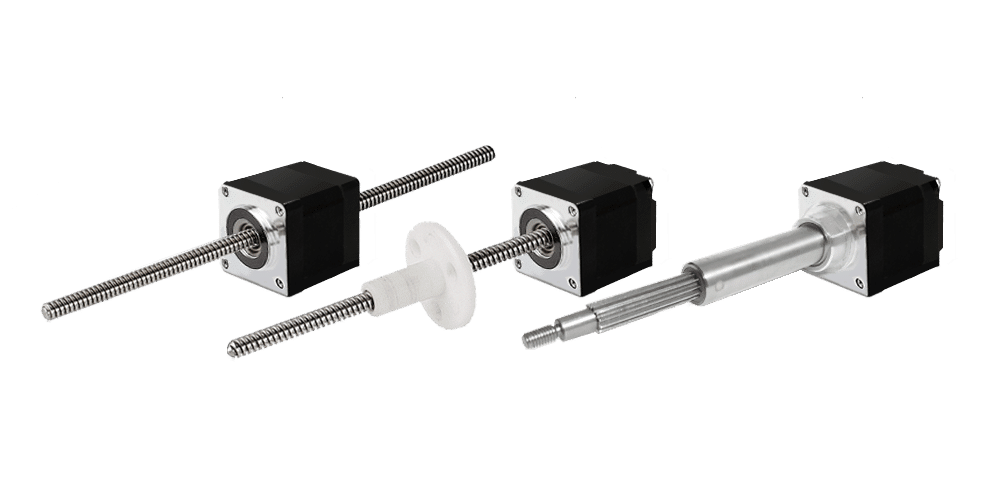

Size 8 [20mm] Stepper Lead Screw Linear Actuator unit can be integrated into various applications to provide precise linear positioning while occupying less than 1 in² of mounting footprint and providing up to 45N of continuous thrust.

Artikelnummer: 8-2105 Kategorie: Hybrid Steppers

Beschreibung

Beschreibung

Motor Characteristics

Parameter	Unit	8-2105
Voltage	V	2.5
Current	A	0.5
Resistance	Ohm	5.1
Inductance	mH	1.5
Weight	g	51
Lead Wire No.		4
Motor Length	mm	27.2
Size	Nema	8
Flange size	mm	20

Screw Codes & Pitch

Lead Code	Lead Pitch [mm]	Screw Diameter [mm]	Travel per 1.8° Step [µm]	Left-hand thread available	External	Captive (Electrical Cylinder)	Kaptive	Non-captive
AA	0.6096	3.5	3		yes	yes	yes	yes
B	1.2192	3.5	6.1		yes	yes	yes	yes
AF	0.3	3.5	1.5		yes	yes	yes	yes
AB	1	3.5	5	yes	yes	yes	yes	yes
G	2	3.5	10		yes	yes	yes	yes
M	4	3.5	20		yes	yes	yes	yes
T	8	3.5	40		yes	yes	yes	yes

Optionen

Encoder

EK1

Stacks

Single Stack Double Stack

Screw End Machining

Threaded End Smooth End None Customize

Teflon Coating

Available

options

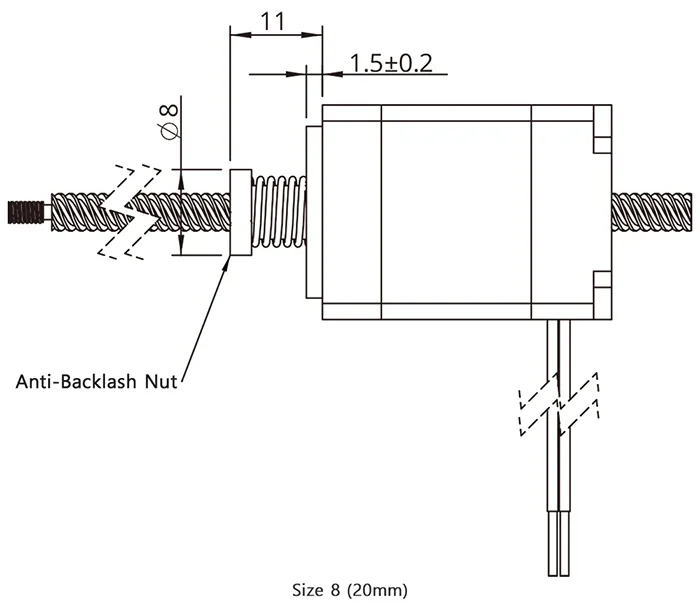

Anti-Backlash Nut

External Non-Captive

Power-Off Brake

Available

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
