Size 17 [42mm] Stepper Lead Screw Linear Actuator is widely used for linear movement applications, providing up to 330N of continuous thrust.
Size 17 Stepper Lead Screw Linear Actuator has four form factors available – External, Non-Captive, Electrical Cylinder (Captive) and Kaptive.
Size 17 [42mm] Stepper Lead Screw Linear Actuator is widely used for linear movement applications, providing up to 330N of continuous thrust.
Size 17 Stepper Lead Screw Linear Actuator has four form factors available – External, Non-Captive, Electrical Cylinder (Captive) and Kaptive.
![SLSLA - Size 6 [14mm]](https://www.kocomotion.de/wp-content/uploads/2025/02/teflon-coating-detail-2-300x300.png)
| Parameter | Unit | 17-2212 |
|---|---|---|
| Voltage | V | 4.5 |
| Current | A | 1.2 |
| Resistance | Ω | 3.8 |
| Inductance | mH | 8 |
| Weight | g | 386 |
| Lead Wire No. | 4 | |
| Motor Length | mm | 48.1 |
| Size | Nema | 17 |
| Flange size | mm | 42 |
| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Left-hand thread available | External | Captive (Electrical Cylinder) | Kaptive | Non-captive |
|---|---|---|---|---|---|---|---|---|
| AA | 0.6096 | 6.35 | 3 | 6.35 | yes | yes | yes | yes |
| A | 0.635 | 6.35 | 3.2 | yes | yes | yes | yes | |
| B | 1.2192 | 6.35 | 6.1 | yes | yes | yes | yes | |
| D | 1.27 | 6.35 | 6.4 | yes | yes | yes | yes | |
| F | 1.5875 | 6.35 | 7.9 | yes | yes | yes | yes | yes |
| J | 2.4384 | 6.35 | 12.2 | yes | yes | yes | yes | |
| K | 2.54 | 6.35 | 12.7 | yes | yes | yes | yes | |
| L | 3.175 | 6.35 | 15.9 | yes | yes | yes | yes | |
| Q | 4.8768 | 6.35 | 24.4 | yes | yes | yes | yes | |
| R | 5.08 | 6.35 | 25.4 | yes | yes | yes | yes | |
| S | 6.35 | 6.35 | 31.8 | yes | yes | yes | yes | |
| U | 8.4667 | 6.35 | 42.3 | yes | yes | yes | yes | |
| W | 9.7536 | 6.35 | 48.8 | yes | yes | yes | yes | |
| Y | 12.7 | 6.35 | 63.5 | yes | yes | yes | yes | |
| Z | 25.4 | 6.35 | 127 | yes | yes | yes | yes | |
| AB | 1 | 6 | 5 | yes | yes | yes | yes | |
| AB | 1 | 6.35 | 5 | yes | yes | yes | yes | |
| AB | 1 | 8 | 5 | yes | yes | yes | yes | |
| G | 2 | 6.35 | 10 | yes | yes | yes | yes | |
| G | 2 | 8 | 10 | yes | yes | yes | yes | |
| M | 4 | 8 | 20 | yes | yes | yes | yes | |
| T | 8 | 8 | 40 | yes | yes | yes | yes | |
| E | 5 | 6 | 25 | yes | yes | yes | yes | |
| E | 5 | 8 | 25 | yes | yes | yes | yes | |
| C | 10 | 8 | 50 | yes | yes | yes | yes | |
| N | 0.794 | 6.35 | 4 | yes | yes | yes | yes |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

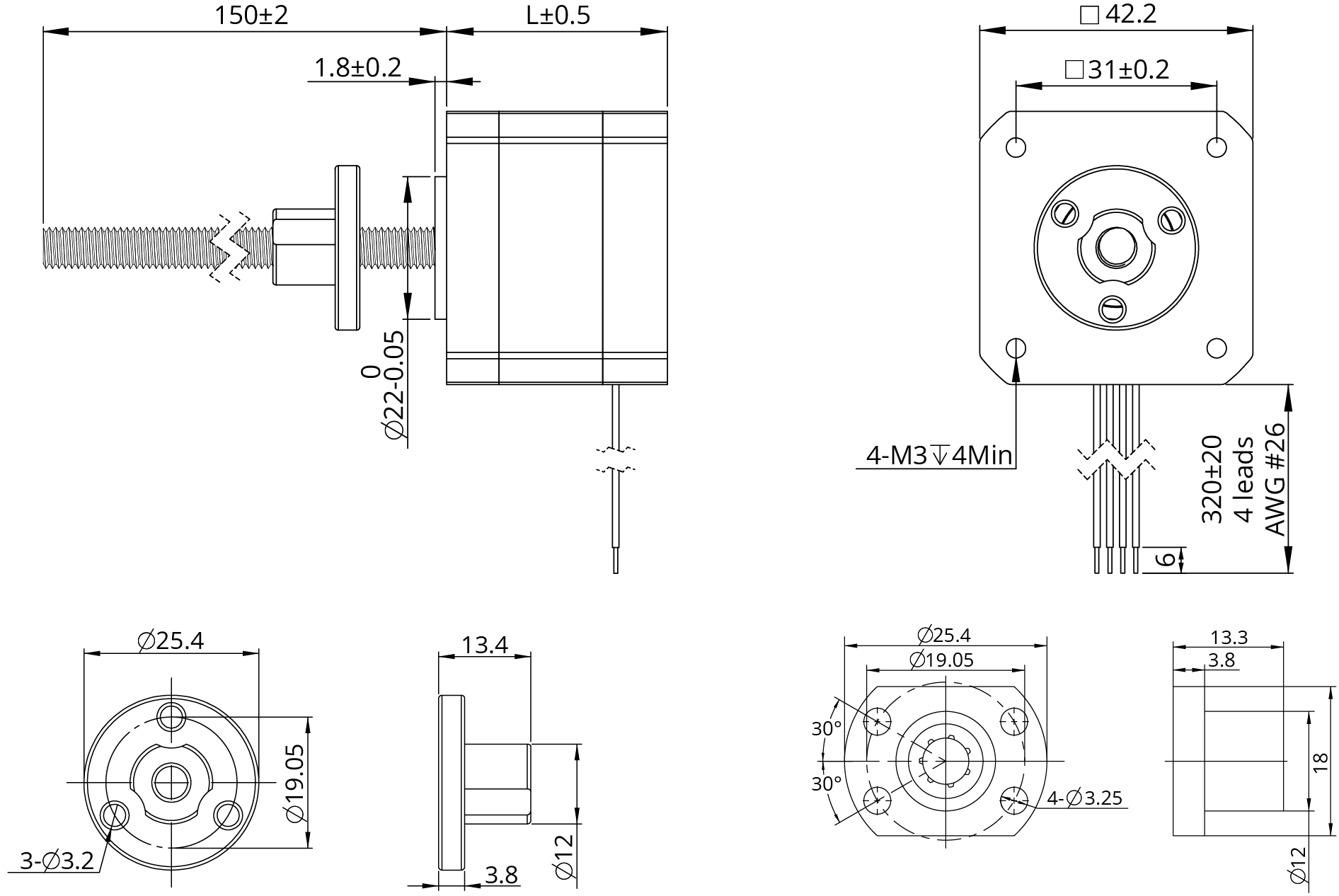

External Anti-Backlash Nut
EK1 Encoder
EK4 Encoder
KPL40 Encoder
KPL56 Encoder
KPL28 Encoder
Non-Captive Anti-Backlash Nut
EK2 Encoder
EK5 Encoder
Non-Captive Actuator
Electric Cylinder (Captive) Actuator
Kaptive Actuator
Kaptive Actuator
Electric Cylinder (Captive) Actuator
