Description
Size 8 [20mm] Stepper Lead Screw Linear Actuator unit can be integrated into various applications to provide precise linear positioning while occupying less than 1 in² of mounting footprint and providing up to 45N of continuous thrust.
| Parameter | 8-2105 |
|---|---|
| Voltage | 2.5 V |
| Current | 0.5 A |
| Resistance | 5.1 Ω |
| Inductance | 1.5 mH |
| Weight | 51 g |
| Lead Wire No. | 4 |
| Motor Length | 27.2 mm |
| Size | 8 Nema |
| Flange size | 20 mm |
Screw Codes & Pitch

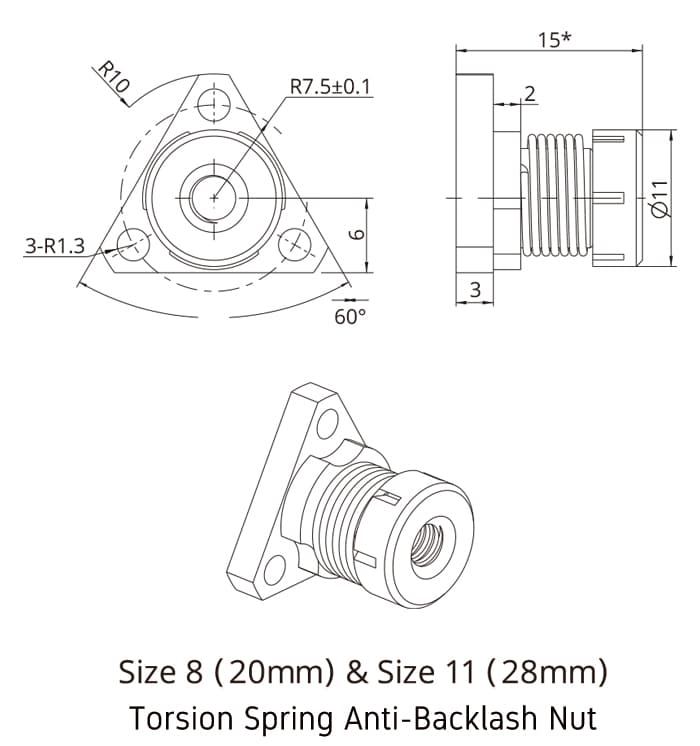

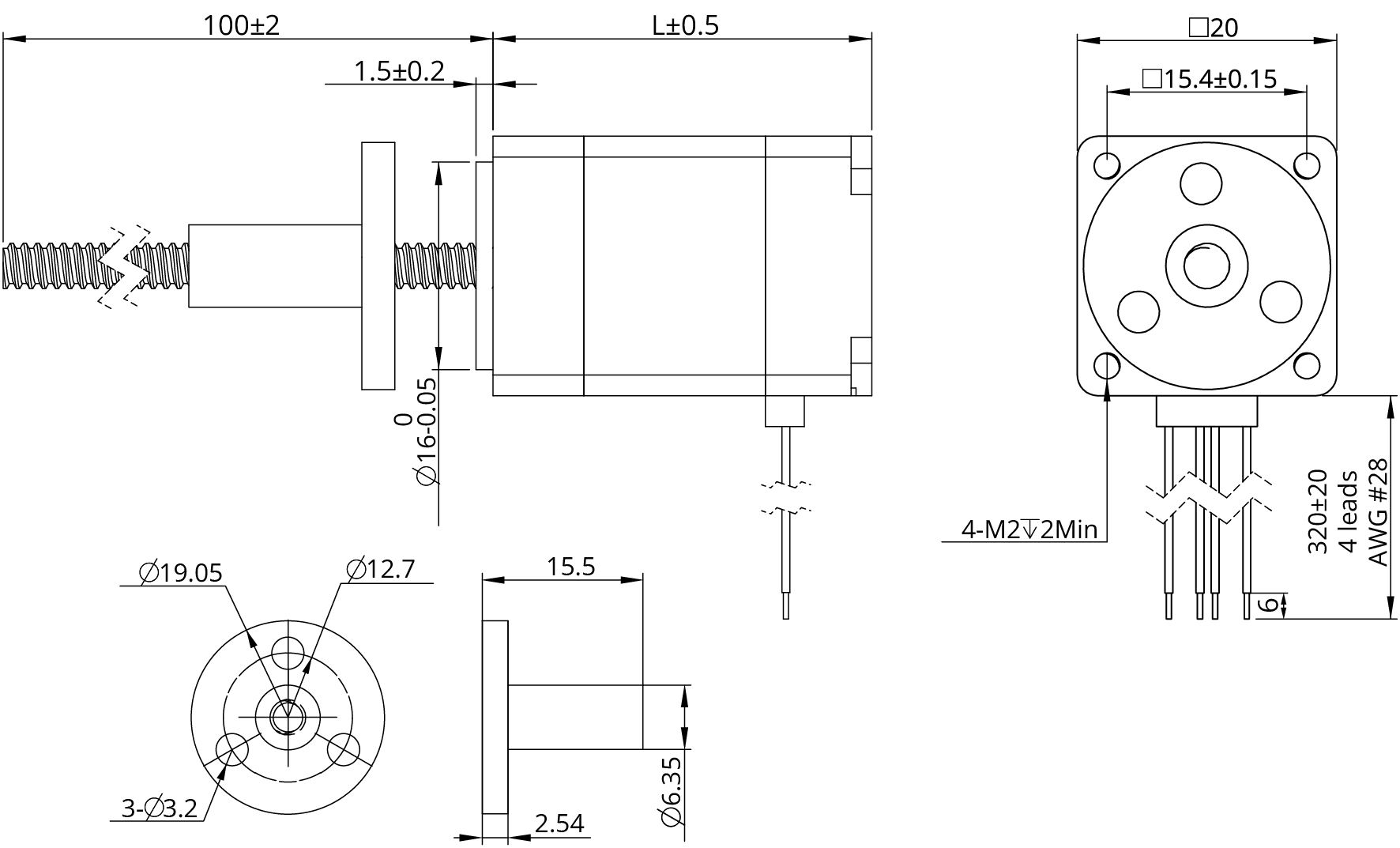

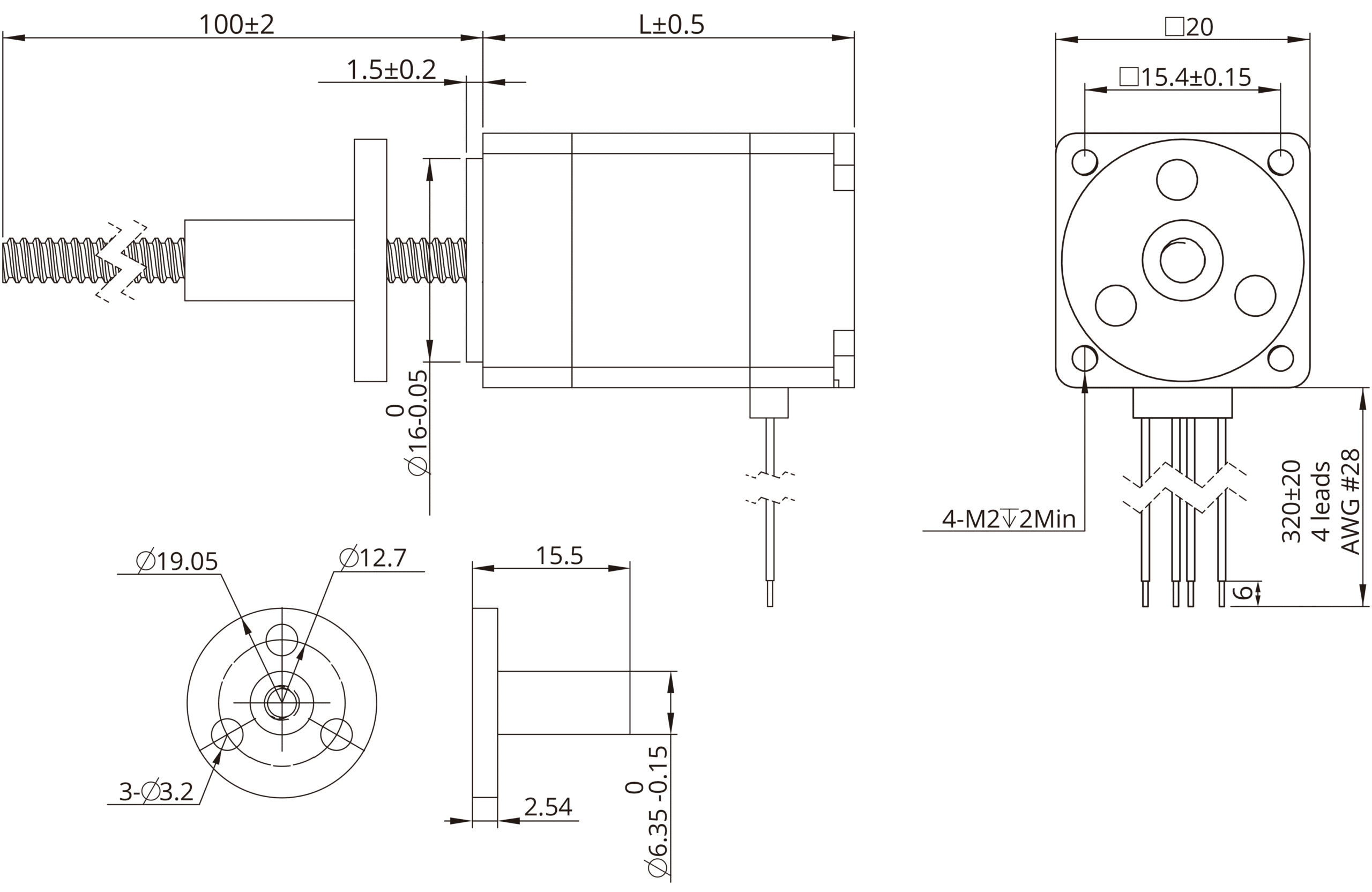

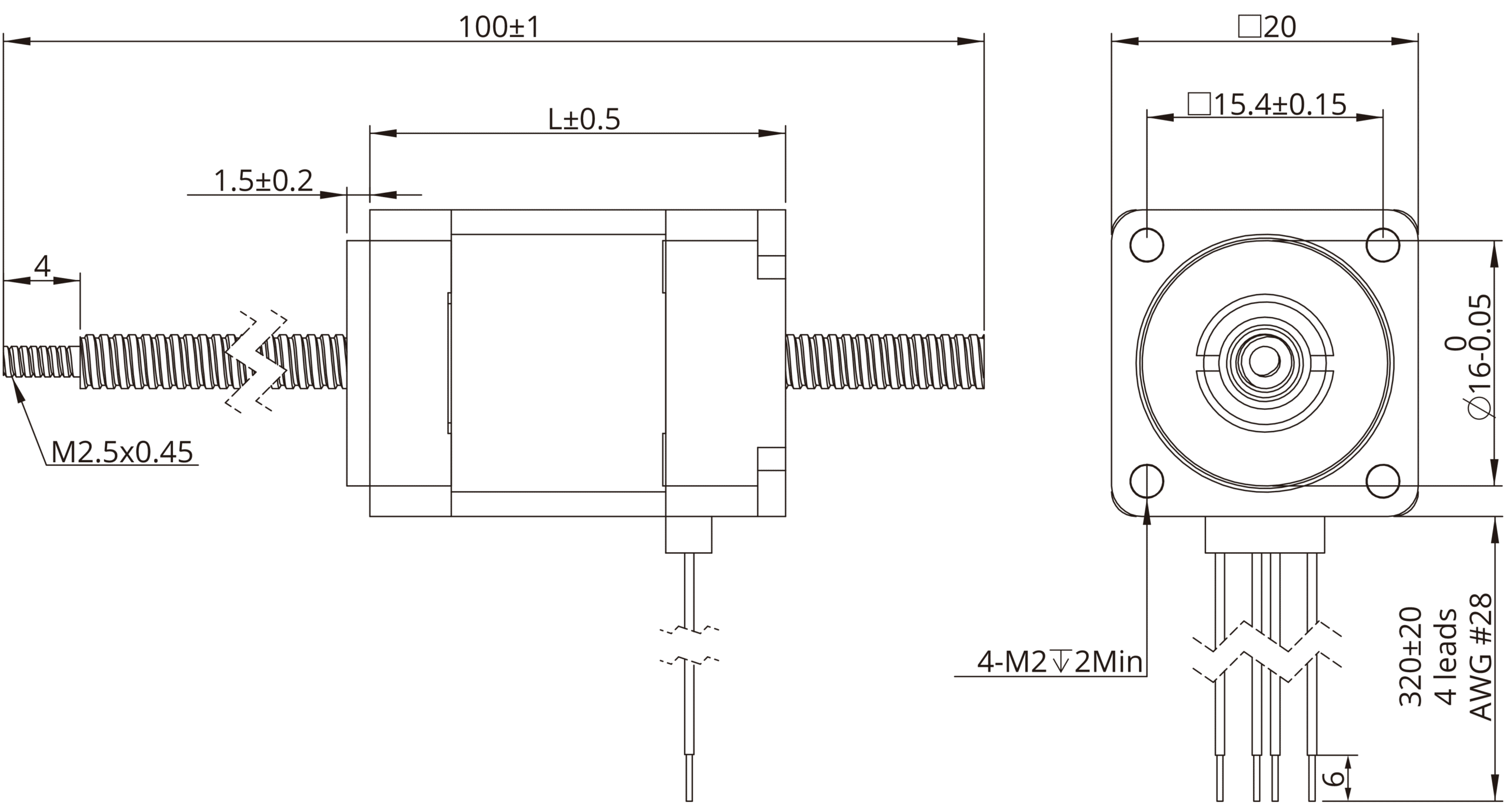

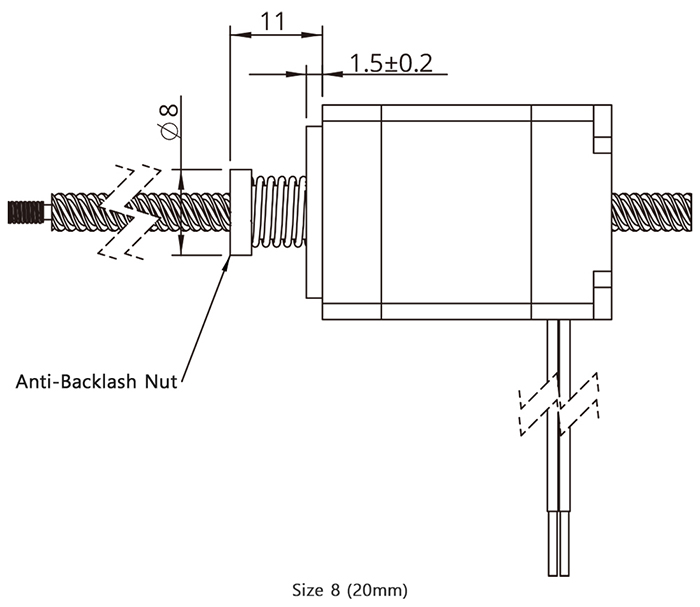

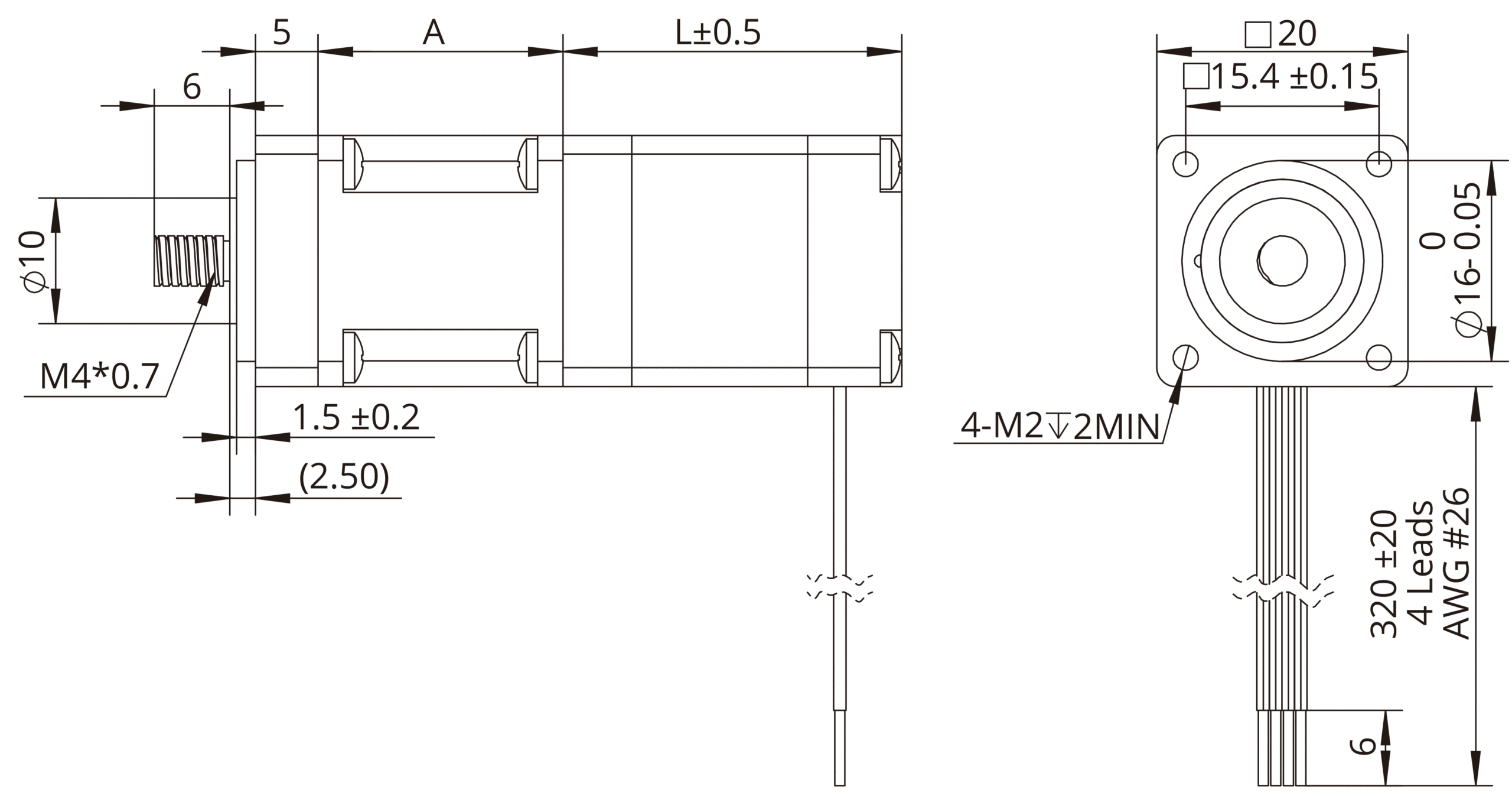

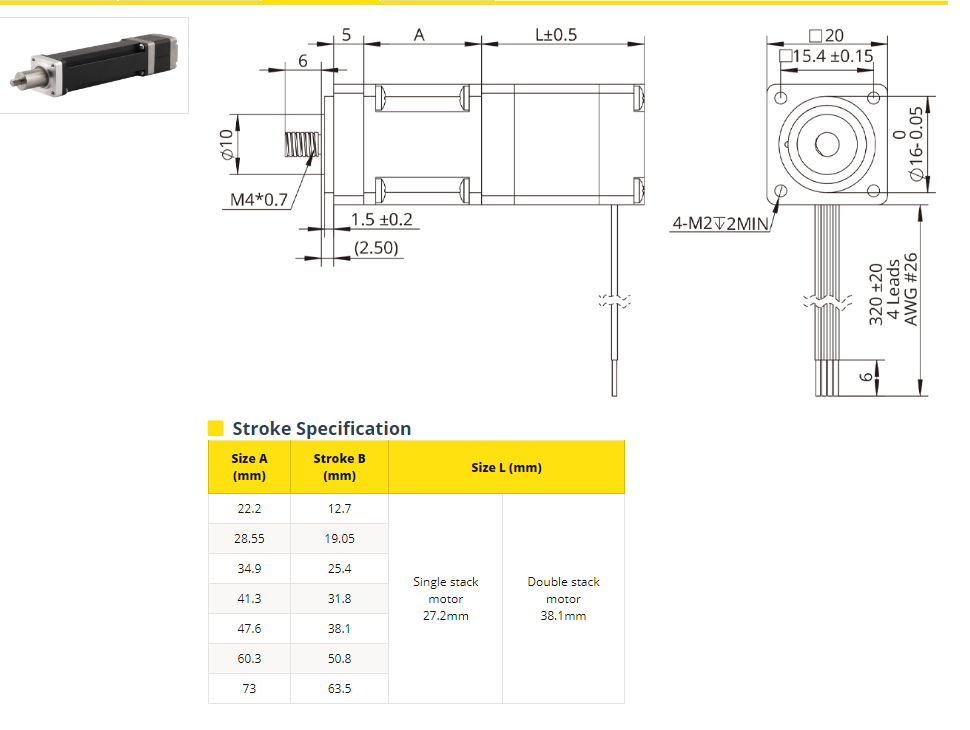

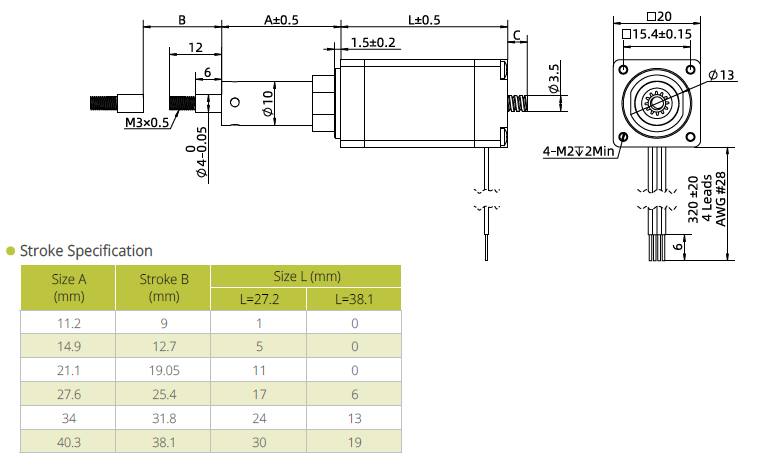

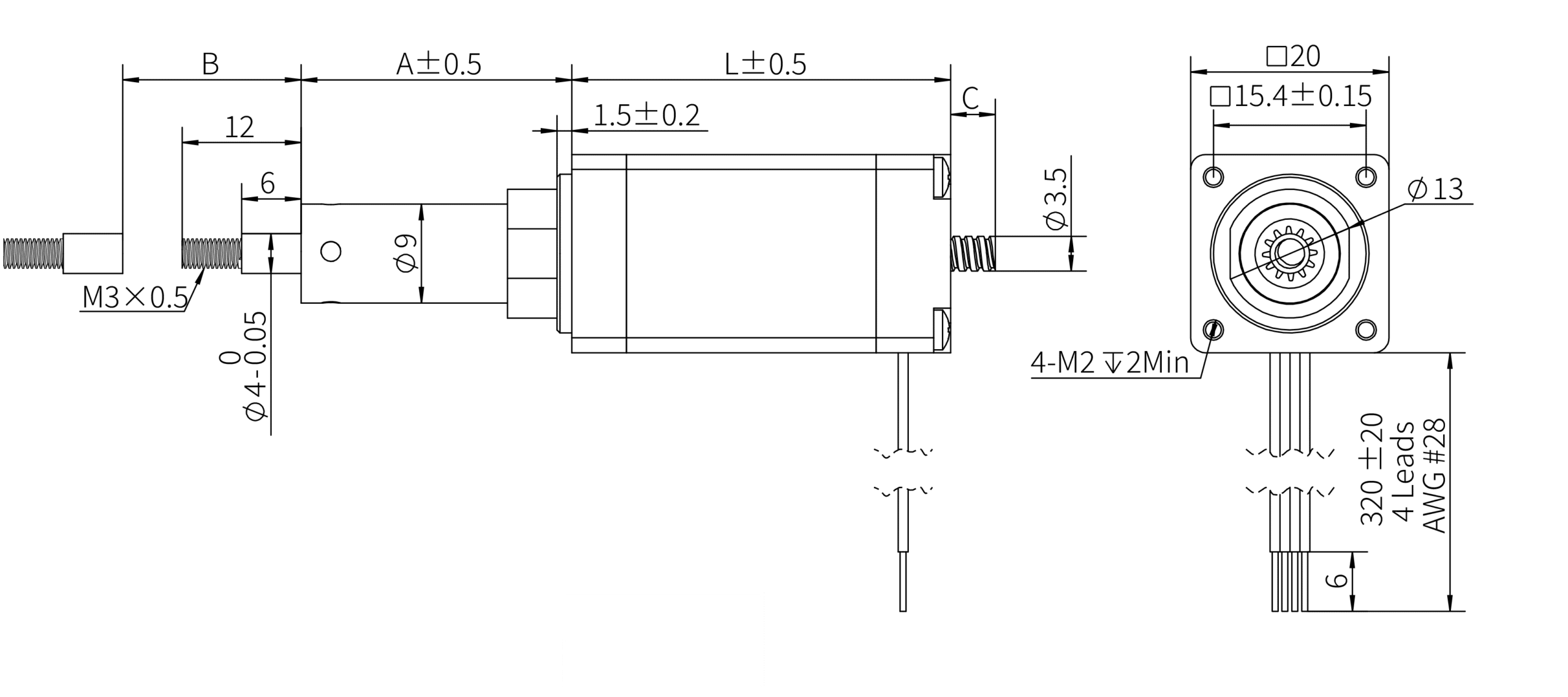

| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Left-hand thread available | External | Captive (Electrical Cylinder) | Kaptive | Non-captive |
|---|---|---|---|---|---|---|---|---|
| AA | 0.6096 | 3.5 | 3 | yes | yes | yes | yes | |
| B | 1.2192 | 3.5 | 6.1 | yes | yes | yes | yes | |
| AF | 0.3 | 3.5 | 1.5 | yes | yes | yes | yes | |
| AB | 1 | 3.5 | 5 | yes | yes | yes | yes | yes |
| G | 2 | 3.5 | 10 | yes | yes | yes | yes | |
| M | 4 | 3.5 | 20 | yes | yes | yes | yes | |
| T | 8 | 3.5 | 40 | yes | yes | yes | yes |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
