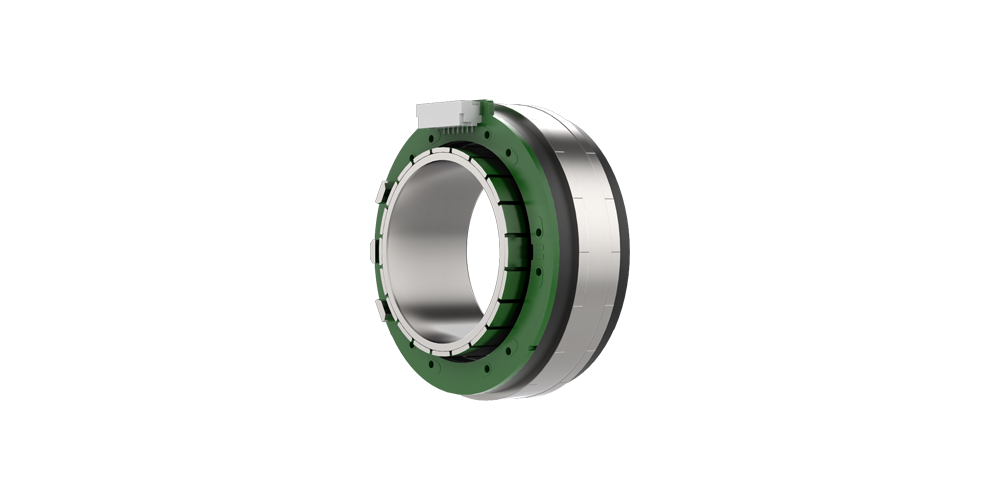

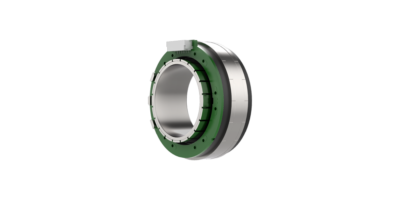

70mm Inner Rotor Frameless Torque Motor
| Parameter | Unit | 70ZWC25X-1 |
|---|---|---|
| Stator outer diameter | mm | 69 + / – 0.037 |
| Feedback Method | Hall sensor | |
| Commutation Angle | 120° | |
| Insulation Strength (Dielectric Strength) | VAC/1mA/1s | 500 |
| Insulation resistance | MΩ/500VDC | 100 |
| Stator weight | g | 224 |
| Rotor weight | g | 90 |
| No-load speed | RPM | 4400 |
| No-load current | A | 1.3(REF) |
| Rated voltage | VDC | 48 |
| Rated power | W | 456 |
| Rotor Inner Bore | mm | 42 + 0.039 |
| Rated torque | N·m | 1.3 |
| Rated speed | RPM | 3350 |
| Rated current | A | 11.4 |
| Torque Constant | Nm/A | 0.13 |
| Back-EMF constant (RMS) | Vrms/Krpm | 9.6 |
| Peak Torque | N·m | 2.6 |
| Peak current | A | 21 |
| Rotor inertia | g·cm² | 455 |
| Number of Slots | 18 | |
| Number of Pole Pairs | 10 | |
| Phase resistance | Ω | 0.22 |
| Phase inductance | mH | 0.35 |
| Winding Connection Type | Star shape | |
| Insulation Class | F | |
| Duty Cycle | S2 |
