Beschreibung

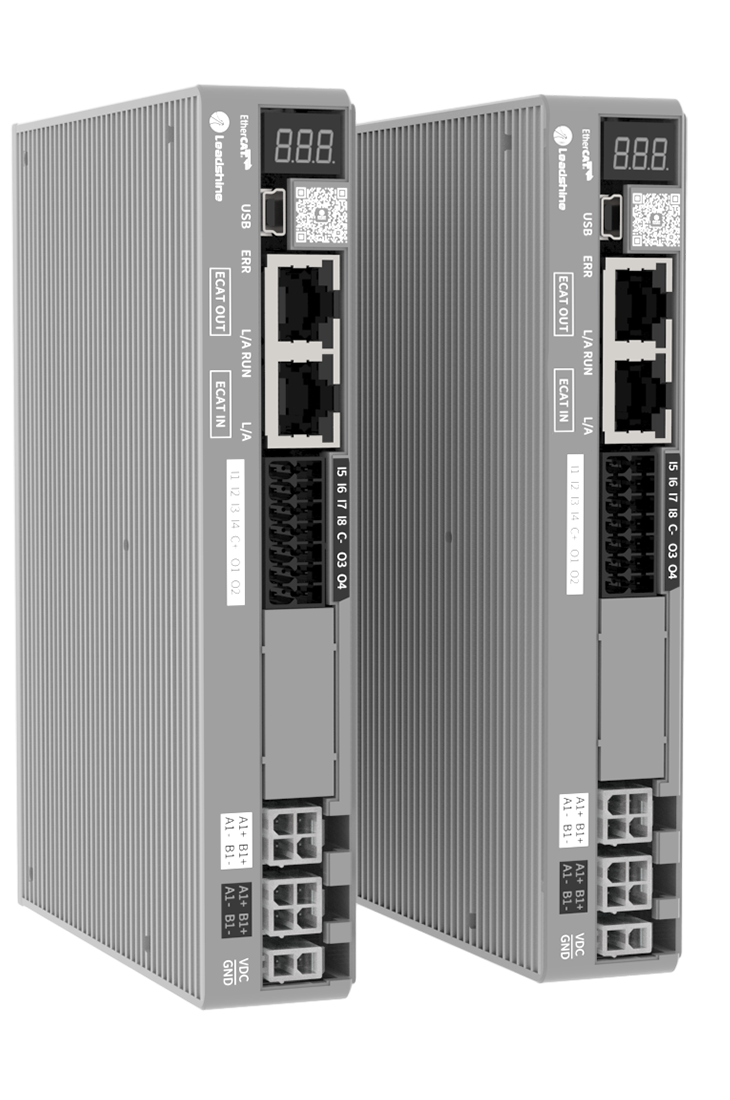

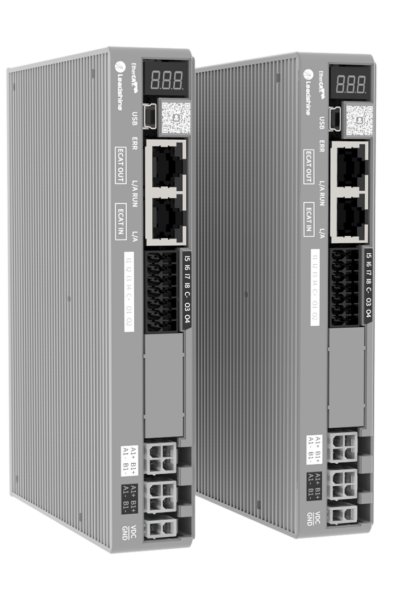

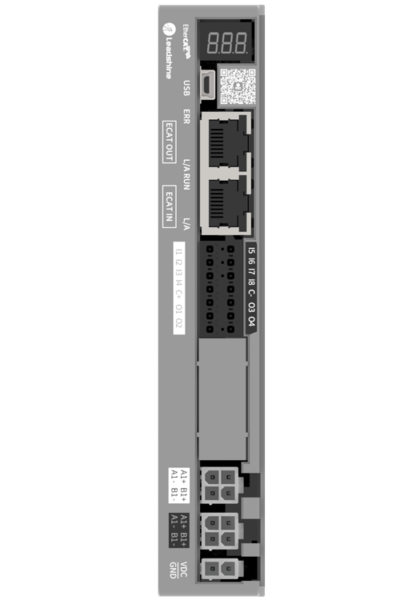

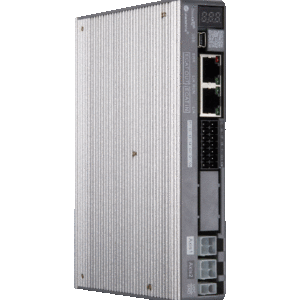

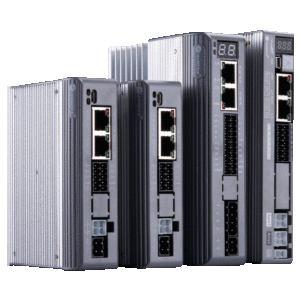

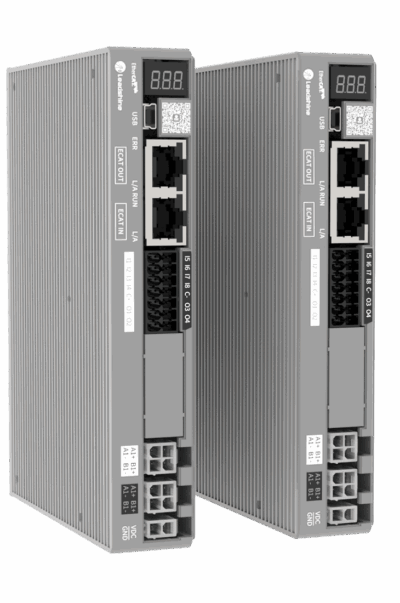

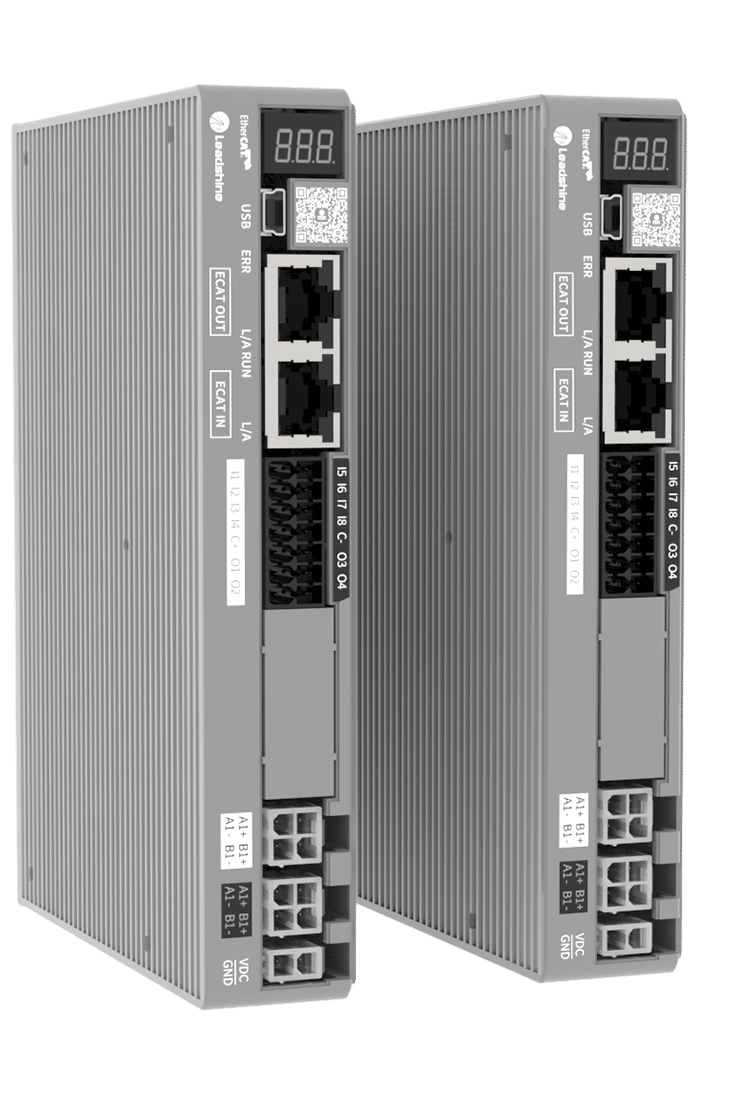

2EM3E series drives support operating modes: PP, PV, HM, CSP. The products can be matched with most of master station such as Beckhoff, Omron, Keyence, Panasonic etc.
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
2EM3E series drives support operating modes: PP, PV, HM, CSP. The products can be matched with most of master station such as Beckhoff, Omron, Keyence, Panasonic etc.
2EM3E series drives support operating modes: PP, PV, HM, CSP. The products can be matched with most of master station such as Beckhoff, Omron, Keyence, Panasonic etc.
| Parameter | Unit | 2EM3E-522 | 2EM3E-556 | 2EM3E-870 |
|---|---|---|---|---|
| Operating voltage | VDC | 20-50 | 20-50 | 20-80 |
| Output current | A, Peak | 2.2 | 5.6 | 7 |
| Logic supply voltage | VDC | 12-24VDC | 12-24VDC | 12-24VDC |
| Command Source | EtherCAT | EtherCAT | EtherCAT | |
| # of Inputs | 2*4 | 2*4 | 2*4 | |
| # of Outputs | 2*2 | 2*2 | 2*2 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

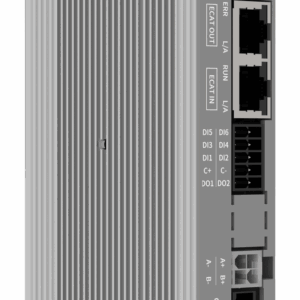

| Parameter | Unit | 2EM3E-522 |
|---|---|---|
| Operating voltage | VDC | 20-50 |
| Output current | A, Peak | 2.2 |
| Logic supply voltage | VDC | 12-24VDC |
| Command Source | EtherCAT | |
| # of Inputs | 2*4 | |
| # of Outputs | 2*2 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

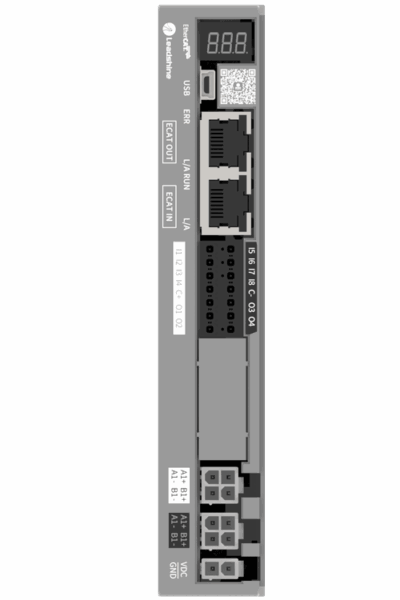

| Parameter | Unit | 2EM3E-556 |
|---|---|---|
| Operating voltage | VDC | 20-50 |
| Output current | A, Peak | 5.6 |
| Logic supply voltage | VDC | 12-24VDC |
| Command Source | EtherCAT | |
| # of Inputs | 2*4 | |
| # of Outputs | 2*2 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

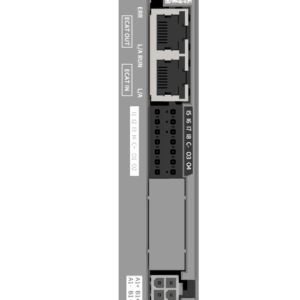

| Parameter | Unit | 2EM3E-870 |
|---|---|---|
| Operating voltage | VDC | 20-80 |
| Output current | A, Peak | 7 |
| Logic supply voltage | VDC | 12-24VDC |
| Command Source | EtherCAT | |
| # of Inputs | 2*4 | |
| # of Outputs | 2*2 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
