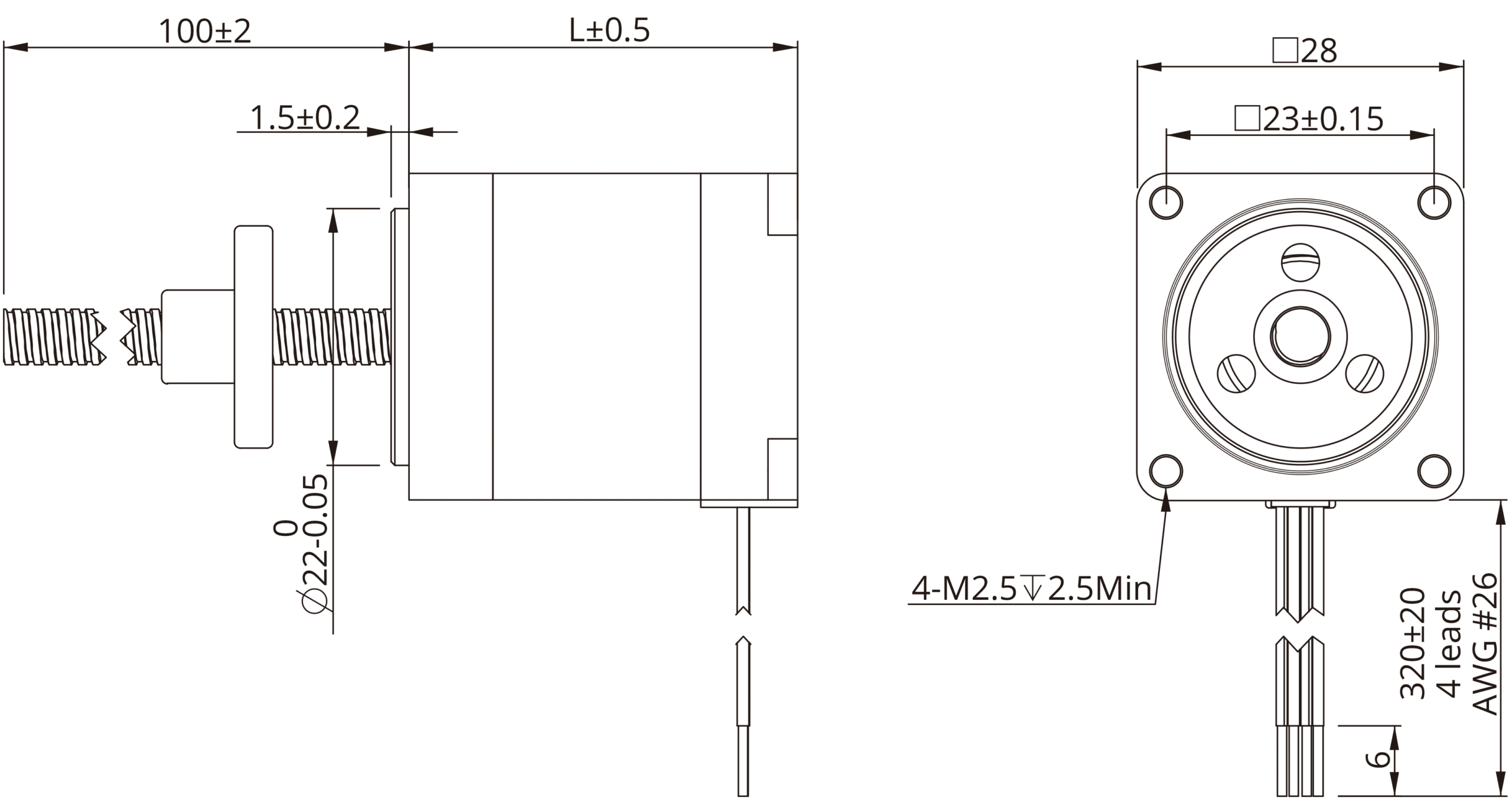

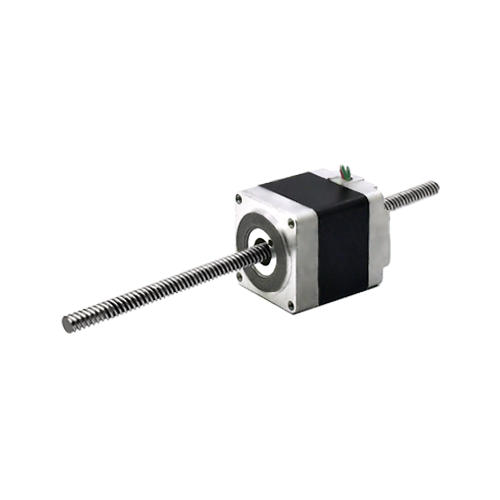

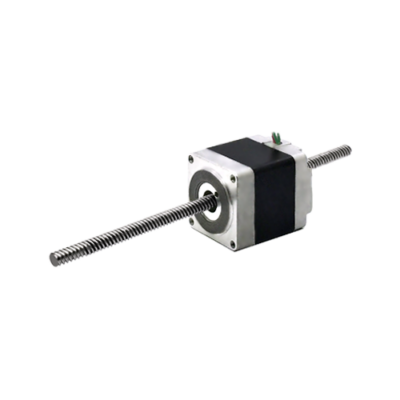

Size 11 [28mm] Stepper Lead Screw Linear Actuator covers a mounting footprint of slightly above 1 inch but provides over 140N of continuous thrust, more than three times compared to the size NEMA 8.

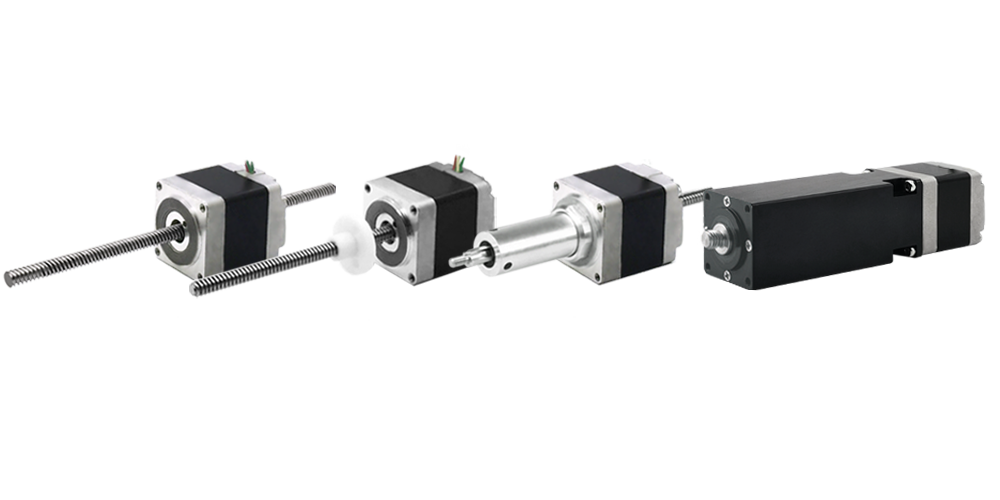

For this series we offer four different screw types:
| Parameter | 11-2110 |
|---|---|
| Voltage | 2.1 V |
| Current | 1 A |
| Resistance | 2.1 Ω |
| Inductance | 1.5 mH |
| Weight | 117 g |
| Lead Wire No. | 4 |
| Motor Length | 33.5 mm |
| Size | 11 Nema |
| Flange size | 28 mm |

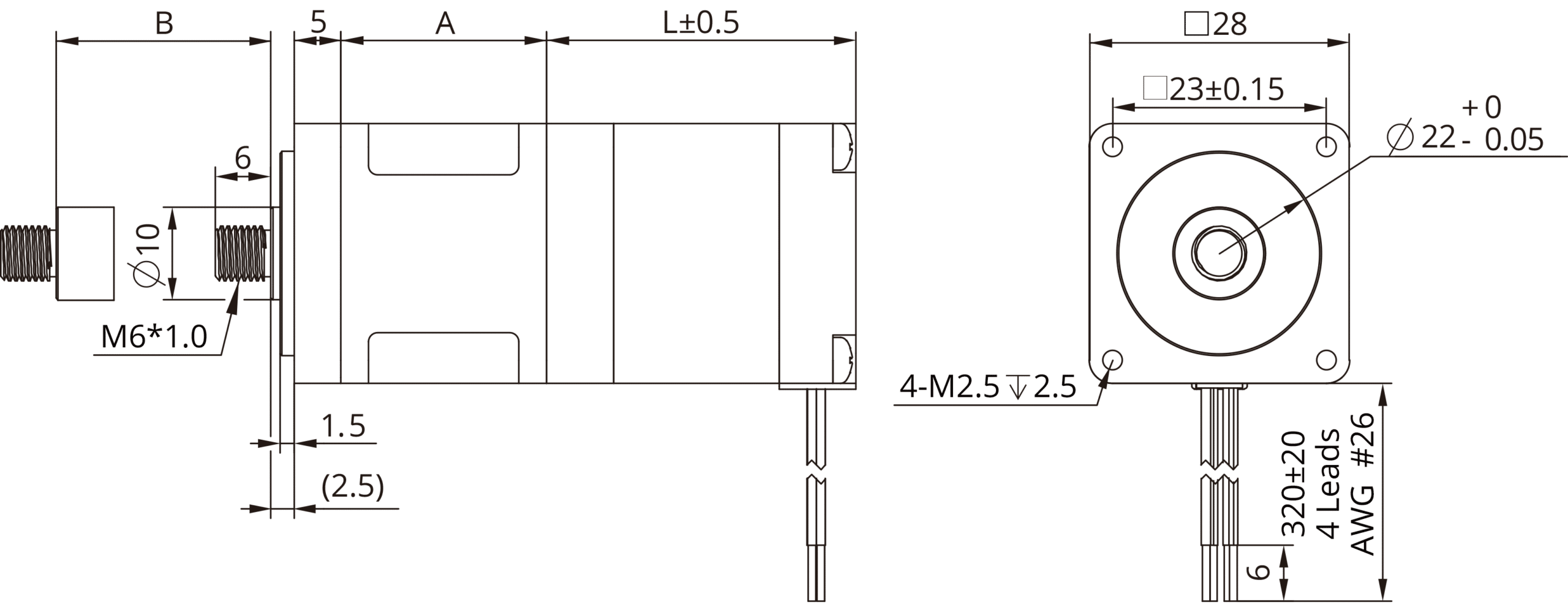

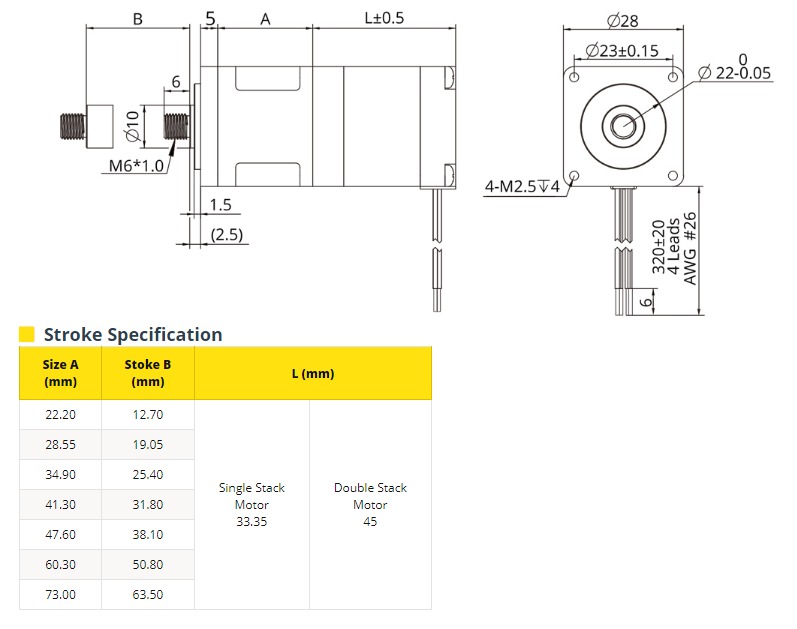

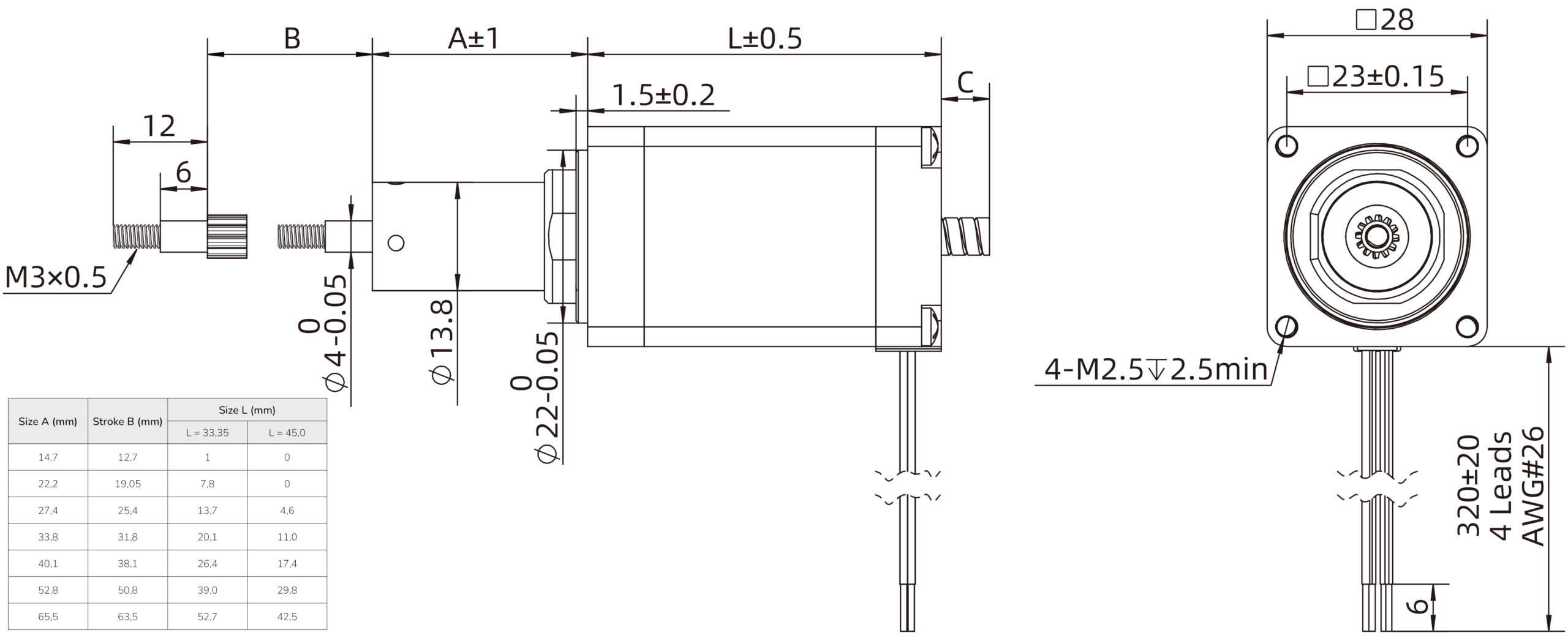

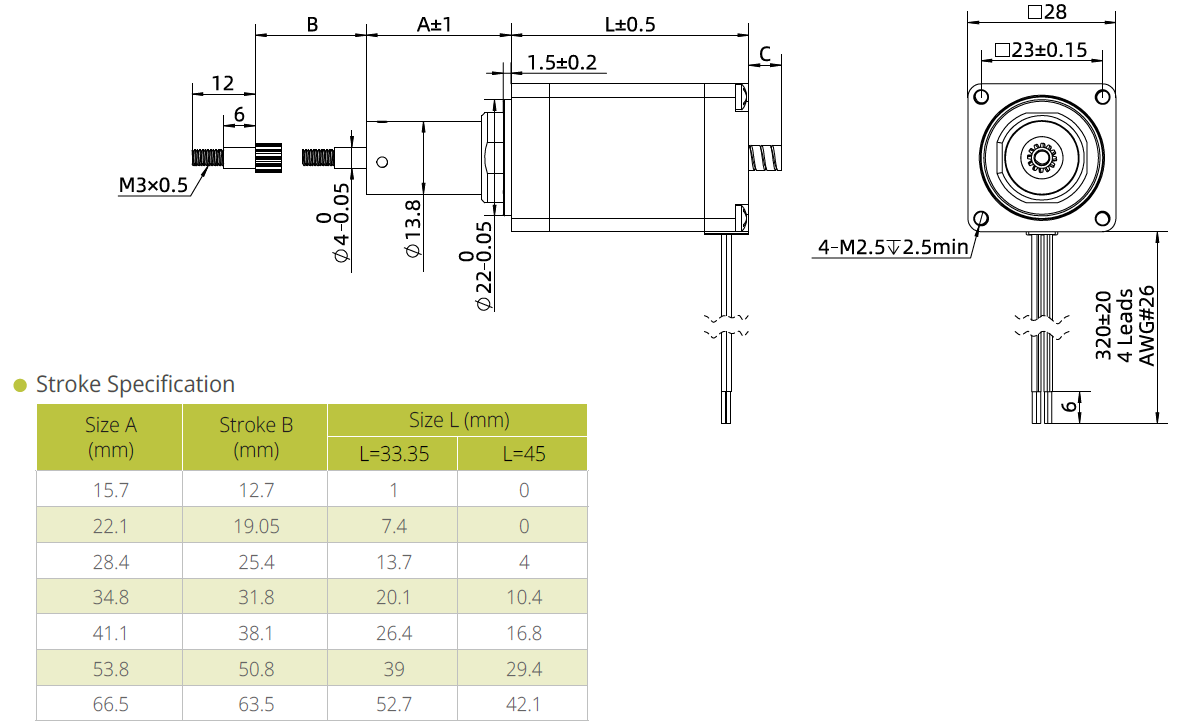

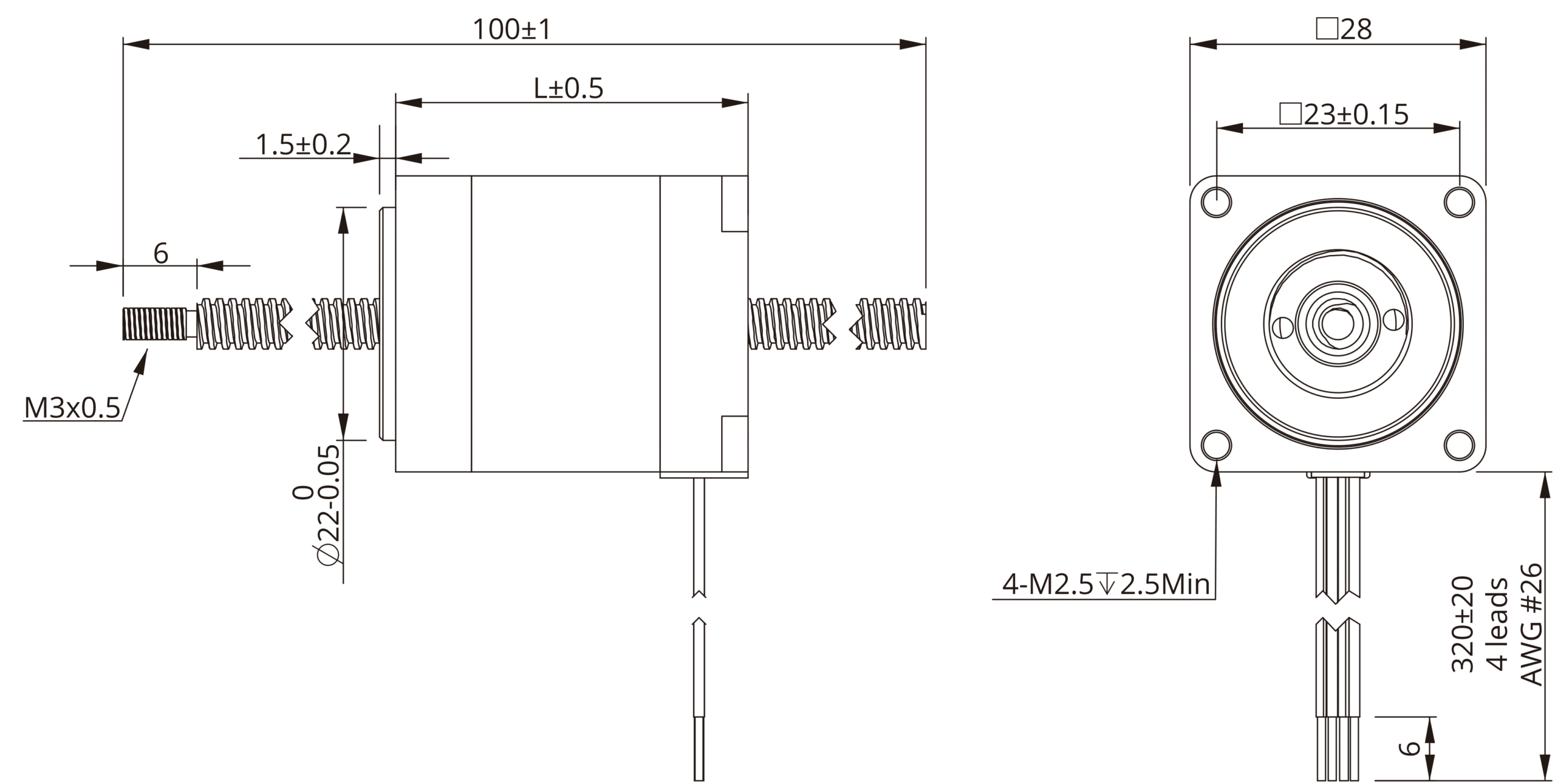

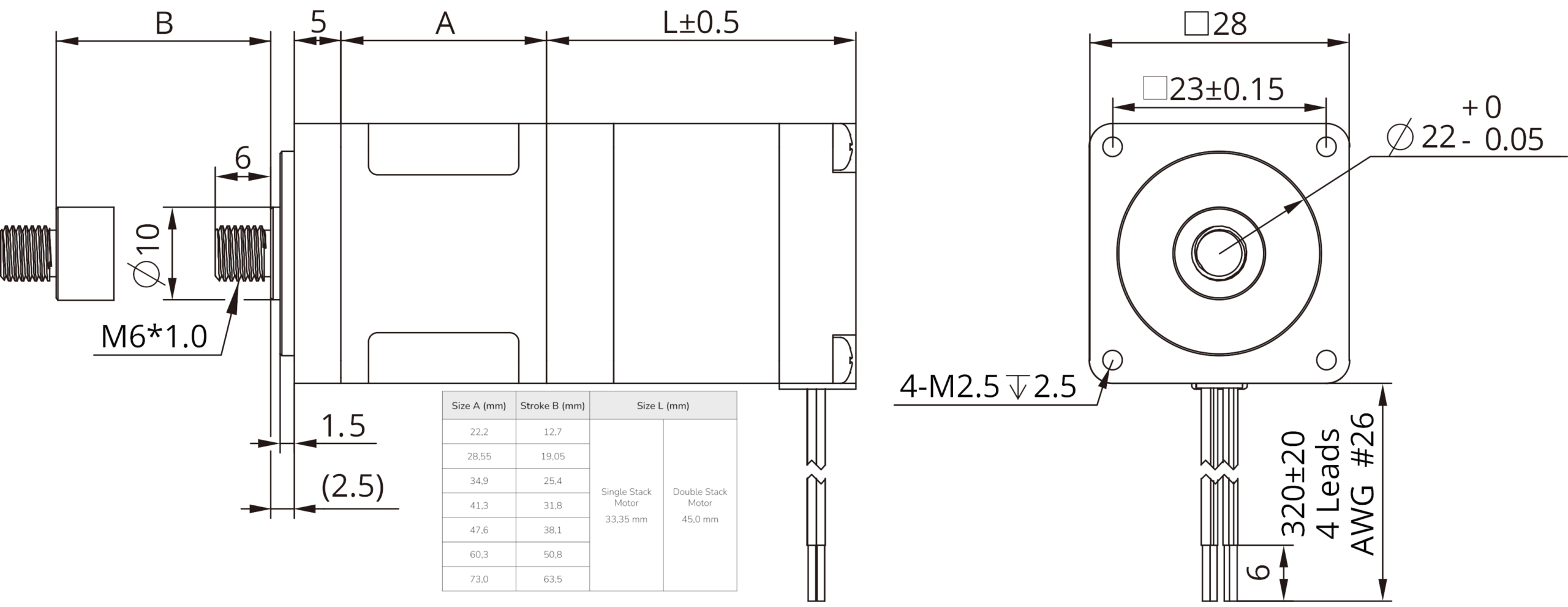

| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Left-hand thread available | External | Captive (Electrical Cylinder) | Kaptive | Non-captive |
|---|---|---|---|---|---|---|---|---|
| AL | 0.3175 | 4.77 | 1.6 | yes | yes | yes | yes | |
| A | 0.635 | 4.77 | 3.2 | yes | yes | yes | yes | |
| D | 1.27 | 4.77 | 6.4 | yes | yes | yes | yes | yes |
| J | 2.4384 | 5.56 | 12.2 | yes | ||||
| K | 2.54 | 4.77 | 12.7 | yes | yes | yes | yes | |
| Q | 4.8768 | 5.56 | 24.4 | yes | ||||
| R | 5.08 | 4.77 | 25.4 | yes | yes | yes | yes | |
| X | 10.16 | 4.77 | 50.8 | yes | yes | yes | yes |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
