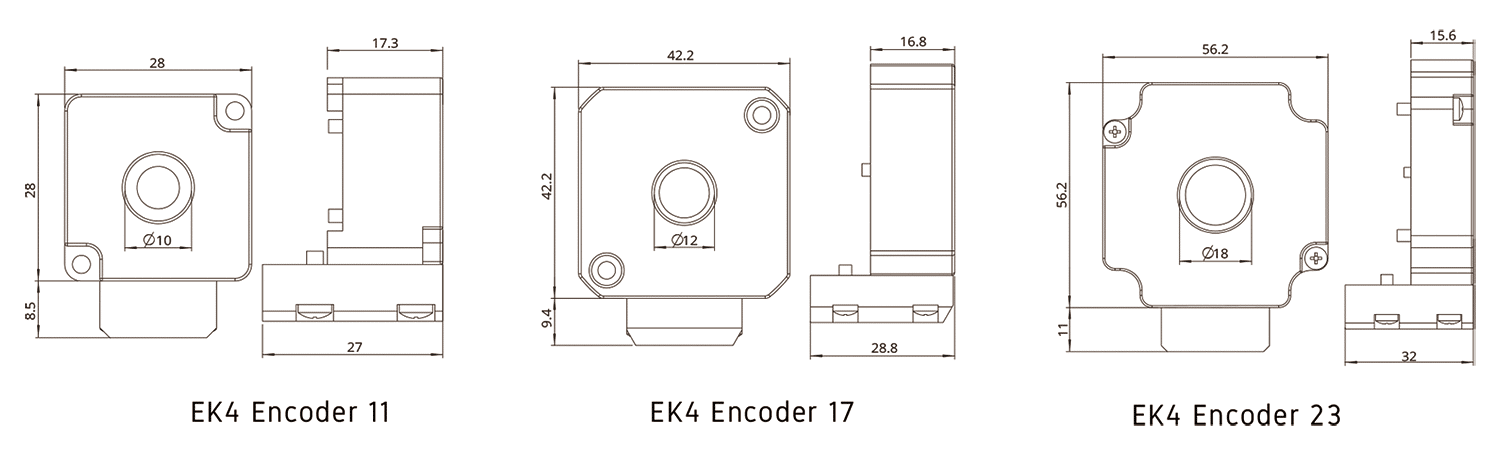

Size 11 [28mm] Stepper Lead Screw Linear Actuator covers a mounting footprint of slightly above 1 inch but provides over 140N of continuous thrust, more than three times compared to the size NEMA 8. For this series we offer four different screw types:
External
Non-captive
Electrical Cylinder (Captive)
Kaptive
| Parameter | Unit | 11-2110 |
|---|---|---|
| Voltage | V | 2.1 |
| Current | A | 1 |
| Resistance | Ohm | 2.1 |
| Inductance | mH | 1.5 |
| Weight | g | 117 |
| Lead Wire No. | 4 | |
| Motor Length | mm | 33.35 |
| Size | Nema | 11 |
| Flange size | mm | 28 |
| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Left-hand thread available | External | Captive (Electrical Cylinder) | Kaptive | Non-captive |
|---|---|---|---|---|---|---|---|---|
| AL | 0.3175 | 4.77 | 1.6 | yes | yes | yes | yes | |
| A | 0.635 | 4.77 | 3.2 | yes | yes | yes | yes | |
| D | 1.27 | 4.77 | 6.4 | yes | yes | yes | yes | yes |
| J | 2.4384 | 5.56 | 12.2 | yes | ||||
| K | 2.54 | 4.77 | 12.7 | yes | yes | yes | yes | |
| Q | 4.8768 | 5.56 | 24.4 | yes | ||||
| R | 5.08 | 4.77 | 25.4 | yes | yes | yes | yes | |
| X | 10.16 | 4.77 | 50.8 | yes | yes | yes | yes |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
