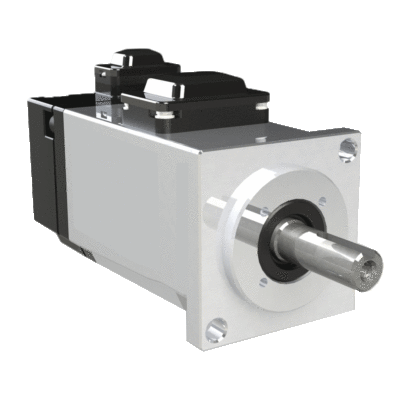

Motor charactistics
| Parameter | Unit | ELM1H-0050MA40E | ELM1H-0050MA40F | ELM1H-0100MA40E | ELM1H-0100MA40F | ELM1H-0200MA60E | ELM1H-0200MA60F | ELM1H-0400MA60E | ELM1H-0400MA60F | ELM1H-0750MA80E | ELM1H-0750MA80F | ELM1H-1000MA80E | ELM1H-1000MA80F | ELM1H-0850MD130E-H | ELM1H-0850MD130F-H | ELM1H-1300MD130E-H | ELM1H-1300MD130F-H | ELM1H-1800MD130E-H | ELM1H-1800MD130F-H | ELM1M-1500MA130E-H | ELM1M-1500MA130F-H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Frame size | mm | 40 | 40 | 40 | 40 | 60 | 60 | 60 | 60 | 80 | 80 | 80 | 80 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 |
| Peak current | Amp | 2.88 | 2.88 | 2.85 | 2.85 | 4.5 | 4.5 | 6.5 | 6.5 | 13.4 | 13.4 | 17.7 | 17.7 | 20.4 | 20.4 | 27.9 | 27.9 | 0.95 | 29.3 | 17.1 | 17.1 |
| Torque Constant | N.m/Amp | 0.2 | 0.2 | 0.38 | 0.38 | 0.4 | 0.4 | 0.645 | 0.645 | 0.645 | 0.645 | 0.56 | 0.56 | 0.79 | 0.79 | 0.86 | 0.86 | 57.8 | 0.95 | 0.72±10% | 0.72±10% |
| Back-EMF constant | N.m/Amp | 12.35 | 12.35 | 23.13 | 23.13 | 26.9 | 26.9 | 39 | 39 | 39 | 39 | 38.3 | 38.3 | 47.9 | 47.9 | 52.4 | 52.4 | 0.55±10% | 57.8 | / | / |
| Winding resistance | Ω | 11.79 | 11.79 | 17.71 | 17.71 | 7.0 | 7 | 5.7 | 5.7 | 1.7 | 1.7 | 1.08 | 1.08 | 0.87±10% | 0.87±10% | 0.58±10% | 0.58±10% | 5.8±20% | 0.55±10% | / | / |
| Inductance | mH | 10.25 | 10.25 | 14.26 | 14.26 | 12.7 | 12.7 | 12 | 12 | 8 | 8 | 5.6 | 5.6 | 8.3±20% | 8.3±20% | 5.8±20% | 5.8±20% | 26.1 | 5.8±20% | / | / |
| Rotor inertia | kg*m²*10^(-4) | 0.046 | 0.036 | 0.072 | 0.062 | 0.3 | 0.28 | 0.58 | 0.56 | 1.65 | 1.5 | 2.15 | 2.0 | 14.8 | 12.5 | 21 | 21 | 10 | 23.8 | 14.8 | 12.5 |
| Poles | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 23bit Magnetic | 10 | 10 | 10 | |
| Encoder Type | 23bit magnetic | 23bit magnetic | 23bit magnetic | 23bit magnetic | 23bit magnetic | 23bit magnetic | 23bit magnetic | 23bit magnetic | 23bit magnetic | 23bit magnetic | 23bit magnetic | 23bit magnetic | 23bit Magnetic | 23bit Magnetic | 23bit Magnetic | 23bit Magnetic | IP65 | 23bit Magnetic | 23bit magnetic | 23bit magnetic | |
| IP Rating | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP65 | IP65 | IP65 | IP65 | 9.7 | IP65 | IP65 | IP65 | |
| Weight | kg | 0.44 | 0.28 | 0.54 | 0.38 | 1.3 | 1.0 | 1.55 | 1.3 | 2.7 | 2.12 | 3.4 | 2.8 | 6.9 | 5.5 | 8.4 | 8.4 | 8.4 | 8.3 | 6.9 | 5.5 |
| Nominal power | W | 50 | 50 | 100 | 100 | 200 | 200 | 400 | 400 | 750 | 750 | 1000 | 1000 | 850 | 850 | 1300 | 1300 | 1800 | 1800 | 1500 | 1500 |
| Motor length | mm | 84 | 56.7 | 95 | 67.7 | 100.9 | 71.6 | 118.1 | 88.8 | 121.9 | 90.9 | 134.9 | 103.9 | 153.5 | 126 | 171.5 | 144 | 189.5 | 162 | 153.5 | 126 |
| Rated voltage | V | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Nominal torque | N.m | 0.16 | 0.16 | 0.32 | 0.32 | 0.64 | 0.64 | 1.27 | 1.27 | 2.39 | 2.39 | 3.18 | 3.18 | 5.39 | 5.39 | 8.34 | 8.34 | 11.5 | 11.5 | 4.9 | 4.9 |
| Nominal speed | rpm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Encoder | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | 23-bit | |
| Brake | Yes | No | Yes | No | Yes | No | Yes | No | Yes | No | Yes | No | Yes | No | Yes | No | Yes | No | Yes | No | |
| Peak Speed | rpm | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 4500 | 4500 | 4500 | 4500 | 11.2 | 4500 | 5500 | 5500 |
| Nominal current | Arms | 0.93 | 0.93 | 0.92 | 0.92 | 1.5 | 1.5 | 2.1 | 2.1 | 4.1 | 4.1 | 5.7 | 5.7 | 6.8 | 6.8 | 9.3 | 9.3 | 29.3 | 11.2 | 6.8 | 6.8 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-0050MA40E
ELM1H-0050MA40F
ELM1H-0100MA40E
ELM1H-0100MA40F
ELM1H-0200MA60E
ELM1H-0200MA60F
ELM1H-0400MA60E
ELM1H-0400MA60F
ELM1H-0750MA80E
ELM1H-0750MA80F
ELM1H-1000MA80E
ELM1H-1000MA80F

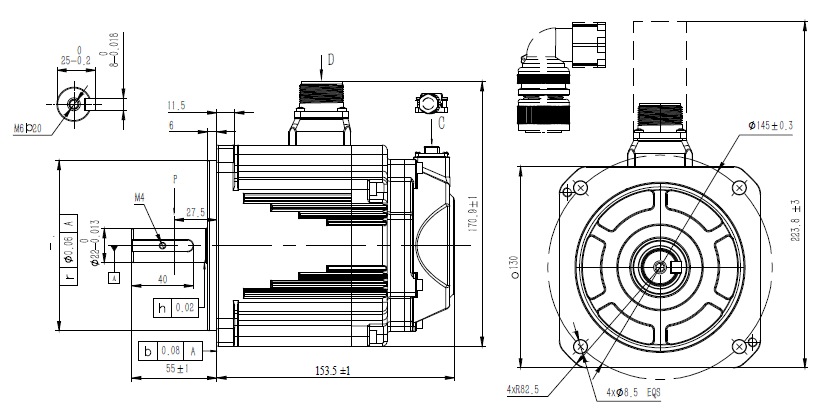

ELM1H-0850MD130E-H

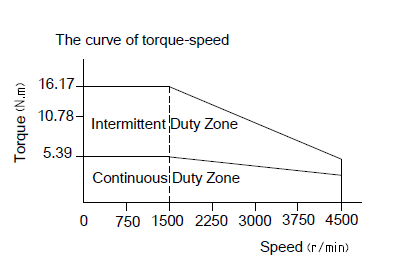

ELM1H-0850MD130F-H

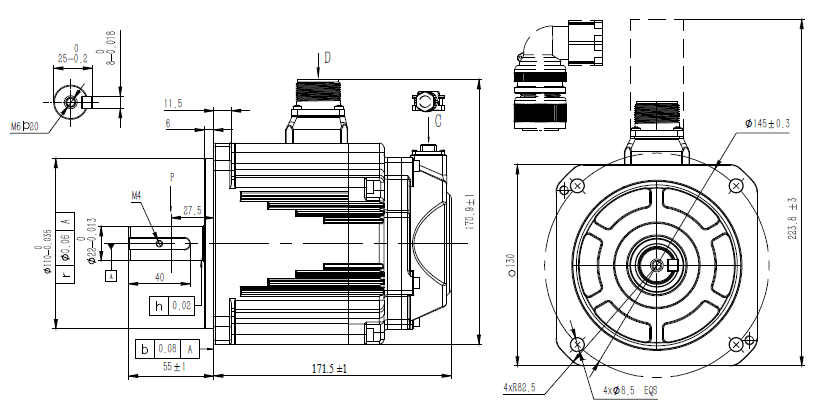

ELM1H-1300MD130E-H

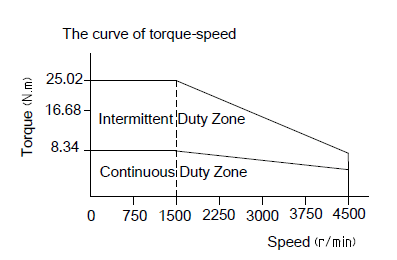

ELM1H-1300MD130F-H

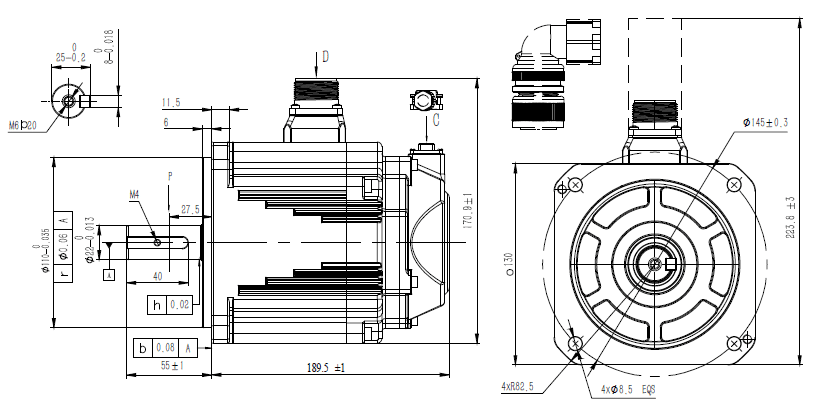

ELM1H-1800MD130E-H

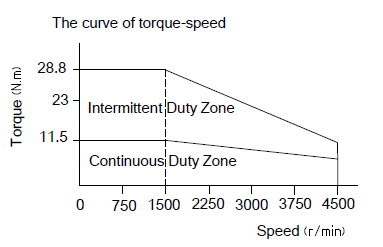

ELM1H-1800MD130F-H

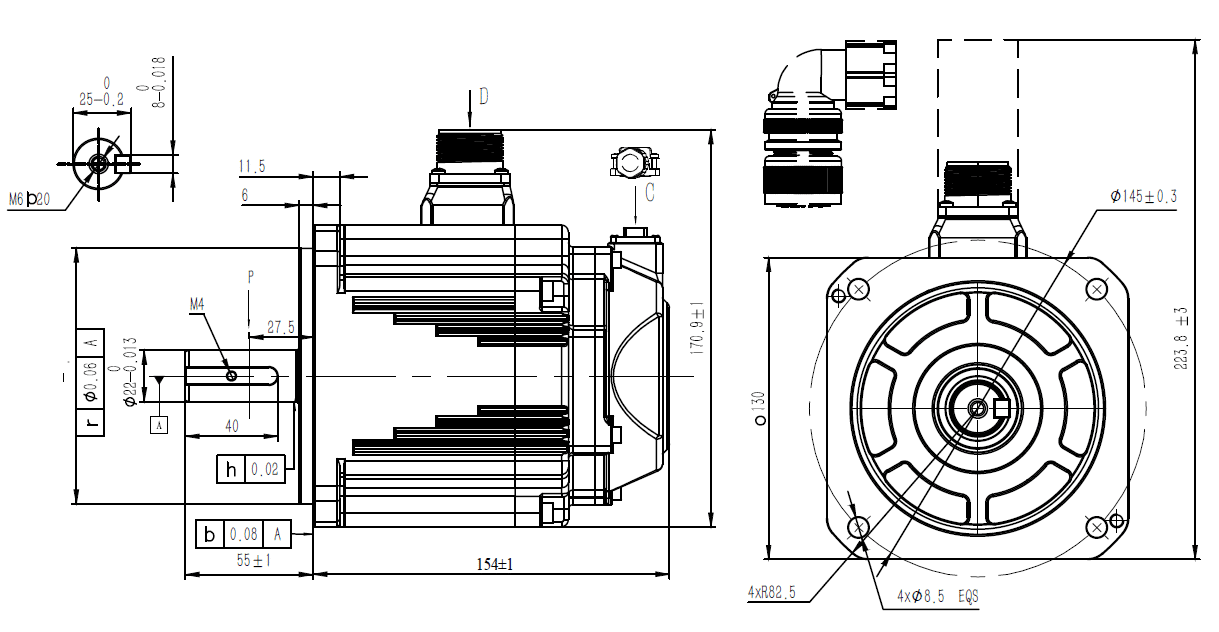

ELM1M-1500MA130E-H
ELM1M-1500MA130F-H
PDF Downloads
ELM1H-0050MA40E
drawings_2D
ELM1H-0050MA40F
drawings_2D
ELM1H-0100MA40E
models_3D
ELM1H-0100MA40F
drawings_2D
ELM1H-0200MA60E
models_3D
ELM1H-0200MA60F
models_3D
ELM1H-0400MA60E
models_3D
ELM1H-0400MA60F
models_3D
ELM1H-0750MA80E
models_3D
ELM1H-0750MA80F
models_3D
ELM1H-1000MA80E
models_3D
ELM1H-1000MA80F
models_3D
ELM1H-0850MD130E-H
drawings_2D
ELM1H-0850MD130F-H
drawings_2D
ELM1H-1300MD130E-H
drawings_2D
ELM1H-1300MD130F-H
models_3D
ELM1H-0050MA40E
ELM1H-0050MA40F
ELM1H-0100MA40E
ELM1H-0100MA40F
ELM1H-0200MA60F
ELM1H-0400MA60E
ELM1H-0400MA60F
ELM1H-0750MA80E
ELM1H-0750MA80F
ELM1H-1000MA80E
ELM1H-1000MA80F
ELM1H-0850MD130E-H
ELM1H-0850MD130F-H
ELM1H-1300MD130E-H
ELM1H-1300MD130F-H
ELM1H-1800MD130E-H

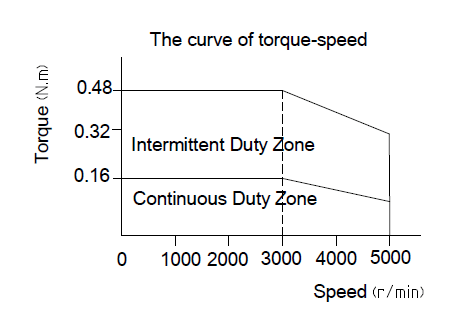

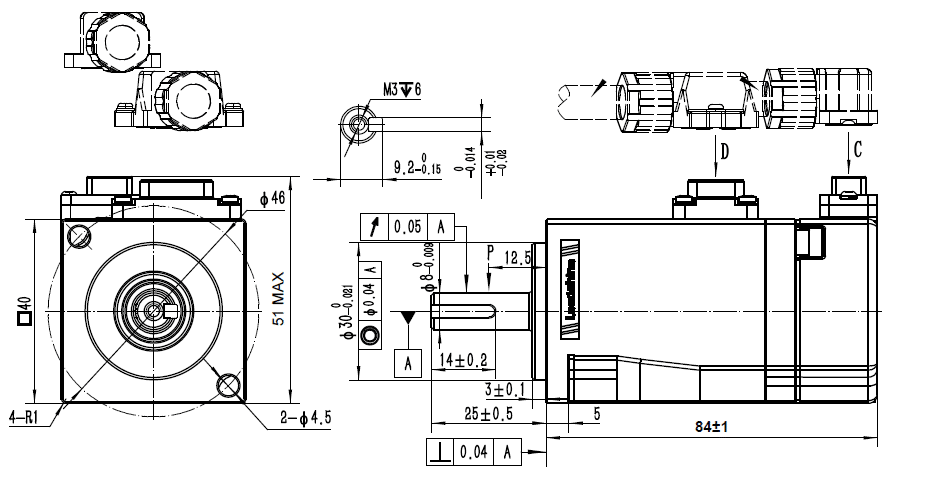

| Parameter | Unit | ELM1H-0050MA40E |
|---|---|---|
| Frame size | mm | 40 |
| Peak current | Amp | 2.88 |
| Torque Constant | N.m/Amp | 0.2 |
| Back-EMF constant | N.m/Amp | 12.35 |
| Winding resistance | Ω | 11.79 |
| Inductance | mH | 10.25 |
| Rotor inertia | kg*m²*10^(-4) | 0.046 |
| Poles | 10 | |
| Encoder Type | 23bit magnetic | |
| IP Rating | IP67 | |
| Weight | kg | 0.44 |
| Nominal power | W | 50 |
| Motor length | mm | 84 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 0.16 |
| Nominal speed | rpm | 3000 |
| Encoder | 23-bit | |
| Brake | Yes | |
| Peak Speed | rpm | 5000 |
| Nominal current | Arms | 0.93 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-0050MA40E
PDF Downloads
ELM1H-0050MA40E
drawings_2D
ELM1H-0050MA40E

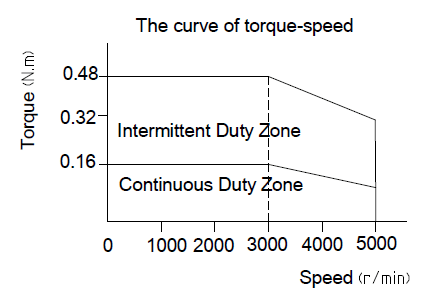

| Parameter | Unit | ELM1H-0050MA40F |
|---|---|---|
| Frame size | mm | 40 |
| Peak current | Amp | 2.88 |
| Torque Constant | N.m/Amp | 0.2 |
| Back-EMF constant | N.m/Amp | 12.35 |
| Winding resistance | Ω | 11.79 |
| Inductance | mH | 10.25 |
| Rotor inertia | kg*m²*10^(-4) | 0.036 |
| Poles | 10 | |
| Encoder Type | 23bit magnetic | |
| IP Rating | IP67 | |
| Weight | kg | 0.28 |
| Nominal power | W | 50 |
| Motor length | 56.7 | |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 0.16 |
| Nominal speed | rpm | 3000 |
| Encoder | 23-bit | |
| Brake | No | |
| Peak Speed | rpm | 5000 |
| Nominal current | Arms | 0.93 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-0050MA40F
PDF Downloads
ELM1H-0050MA40F

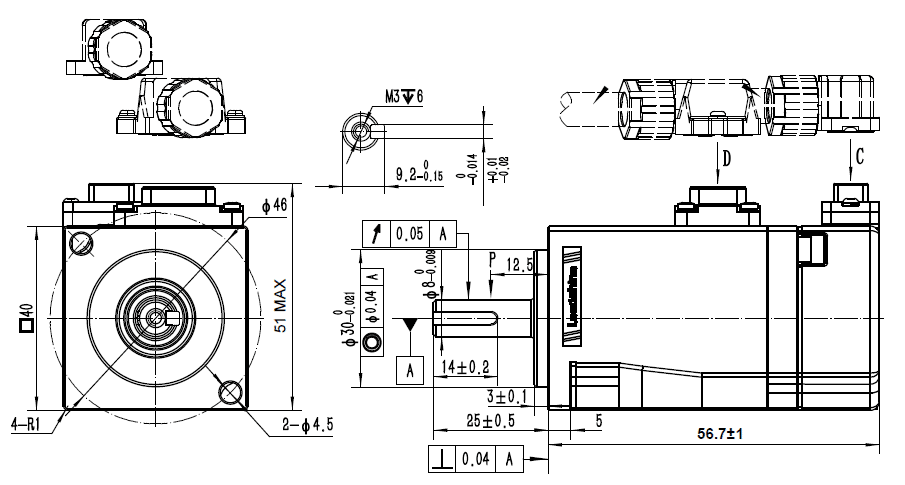

drawings_2D
ELM1H-0050MA40F

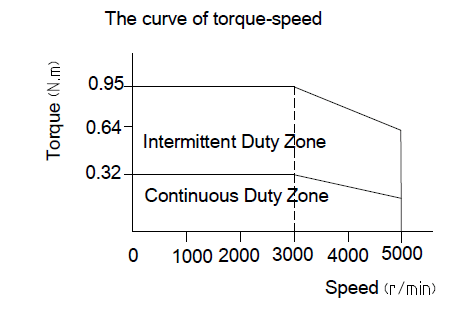

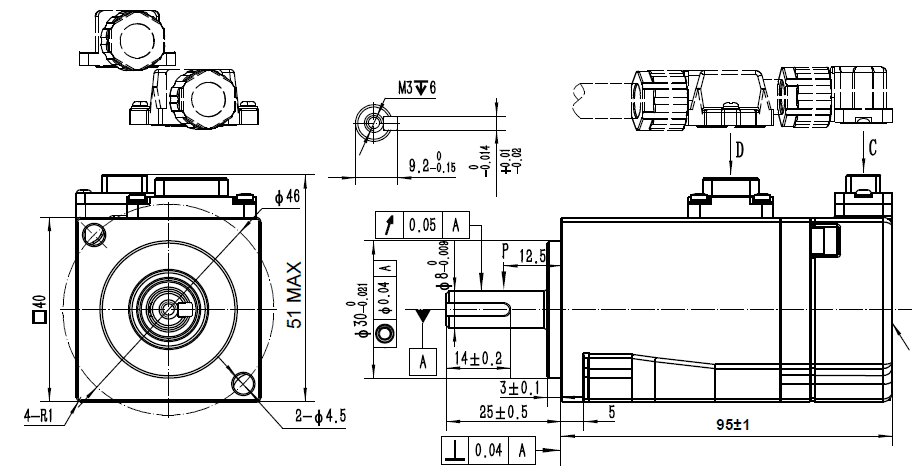

| Parameter | Unit | ELM1H-0100MA40E |
|---|---|---|
| Frame size | mm | 40 |
| Peak current | Amp | 2.85 |
| Torque Constant | N.m/Amp | 0.38 |
| Back-EMF constant | N.m/Amp | 23.13 |
| Winding resistance | Ω | 17.71 |
| Inductance | mH | 14.26 |
| Rotor inertia | kg*m²*10^(-4) | 0.072 |
| Poles | 10 | |
| Encoder Type | 23bit magnetic | |
| IP Rating | IP67 | |
| Weight | kg | 0.54 |
| Nominal power | W | 100 |
| Motor length | mm | 95 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 0.32 |
| Nominal speed | rpm | 3000 |
| Encoder | 23-bit | |
| Brake | Yes | |
| Peak Speed | rpm | 5000 |
| Nominal current | Arms | 0.92 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-0100MA40E
PDF Downloads
ELM1H-0100MA40E
models_3D
ELM1H-0100MA40E

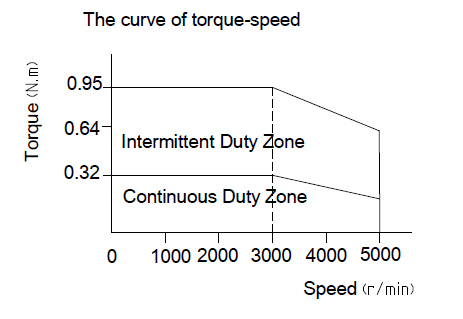

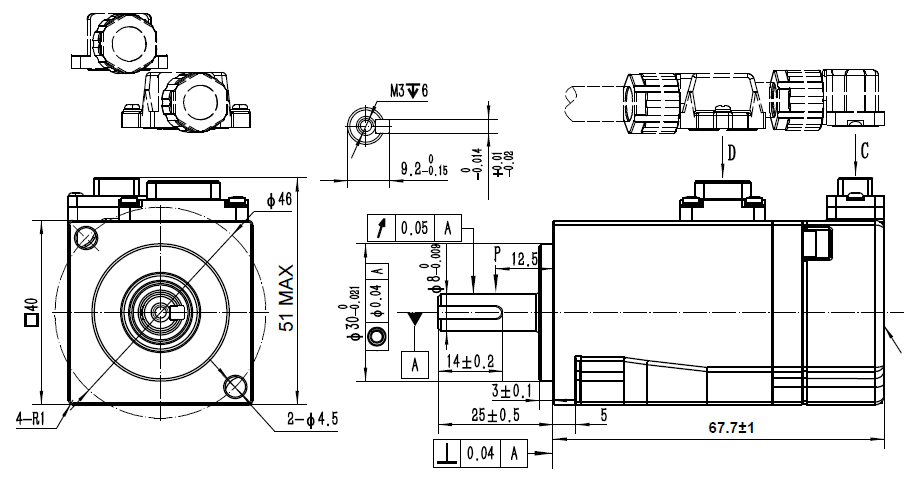

| Parameter | Unit | ELM1H-0100MA40F |
|---|---|---|
| Frame size | mm | 40 |
| Peak current | Amp | 2.85 |
| Torque Constant | N.m/Amp | 0.38 |
| Back-EMF constant | N.m/Amp | 23.13 |
| Winding resistance | Ω | 17.71 |
| Inductance | mH | 14.26 |
| Rotor inertia | kg*m²*10^(-4) | 0.062 |
| Poles | 10 | |
| Encoder Type | 23bit magnetic | |
| IP Rating | IP67 | |
| Weight | kg | 0.38 |
| Nominal power | W | 100 |
| Motor length | mm | 67.7 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 0.32 |
| Nominal speed | rpm | 3000 |
| Encoder | 23-bit | |
| Brake | No | |
| Peak Speed | rpm | 5000 |
| Nominal current | Arms | 0.92 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-0100MA40F
PDF Downloads
ELM1H-0100MA40F
drawings_2D
ELM1H-0100MA40F

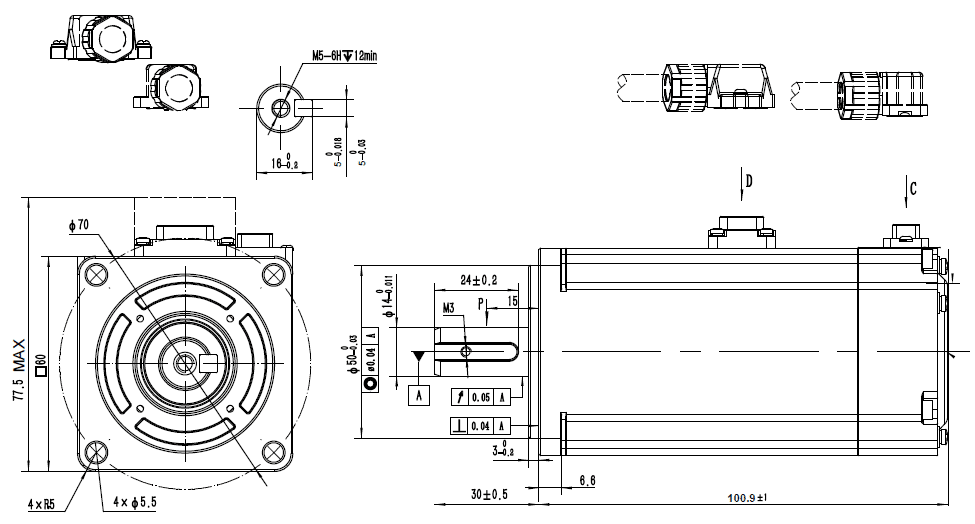

| Parameter | Unit | ELM1H-0200MA60E |
|---|---|---|
| Frame size | mm | 60 |
| Peak current | Amp | 4.5 |
| Torque Constant | N.m/Amp | 0.4 |
| Back-EMF constant | N.m/Amp | 26.9 |
| Winding resistance | Ω | 7.0 |
| Inductance | mH | 12.7 |
| Rotor inertia | kg*m²*10^(-4) | 0.3 |
| Poles | 10 | |
| Encoder Type | 23bit magnetic | |
| IP Rating | IP67 | |
| Weight | kg | 1.3 |
| Nominal power | W | 200 |
| Motor length | mm | 100.9 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 0.64 |
| Nominal speed | rpm | 3000 |
| Encoder | 23-bit | |
| Brake | Yes | |
| Peak Speed | rpm | 5000 |
| Nominal current | Arms | 1.5 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-0200MA60E
PDF Downloads
ELM1H-0200MA60E
models_3D
| Parameter | Unit | ELM1H-0200MA60F |
|---|---|---|
| Frame size | mm | 60 |
| Peak current | Amp | 4.5 |
| Torque Constant | N.m/Amp | 0.4 |
| Back-EMF constant | N.m/Amp | 26.9 |
| Winding resistance | Ω | 7 |
| Inductance | mH | 12.7 |
| Rotor inertia | kg*m²*10^(-4) | 0.28 |
| Poles | 10 | |
| Encoder Type | 23bit magnetic | |
| IP Rating | IP67 | |
| Weight | kg | 1.0 |
| Nominal power | W | 200 |
| Motor length | mm | 71.6 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 0.64 |
| Nominal speed | rpm | 3000 |
| Encoder | 23-bit | |
| Brake | No | |
| Peak Speed | rpm | 5000 |
| Nominal current | Arms | 1.5 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-0200MA60F
PDF Downloads
ELM1H-0200MA60F
models_3D
ELM1H-0200MA60F

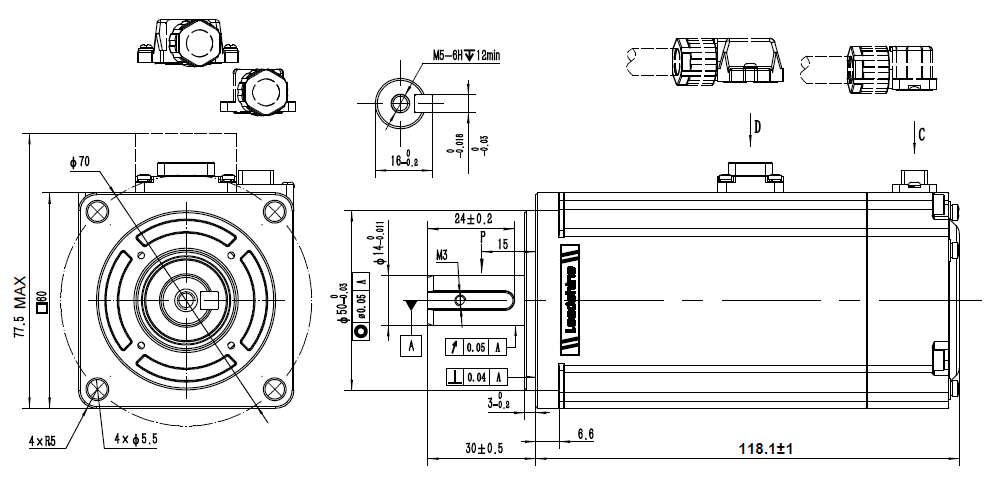

| Parameter | Unit | ELM1H-0400MA60E |
|---|---|---|
| Frame size | mm | 60 |
| Peak current | Amp | 6.5 |
| Torque Constant | N.m/Amp | 0.645 |
| Back-EMF constant | N.m/Amp | 39 |
| Winding resistance | Ω | 5.7 |
| Inductance | mH | 12 |
| Rotor inertia | kg*m²*10^(-4) | 0.58 |
| Poles | 10 | |
| Encoder Type | 23bit magnetic | |
| IP Rating | IP67 | |
| Weight | kg | 1.55 |
| Nominal power | W | 400 |
| Motor length | 118.1 | |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 1.27 |
| Nominal speed | rpm | 3000 |
| Encoder | 23-bit | |
| Brake | Yes | |
| Peak Speed | rpm | 5000 |
| Nominal current | Arms | 2.1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-0400MA60E
PDF Downloads
ELM1H-0400MA60E
models_3D
ELM1H-0400MA60E

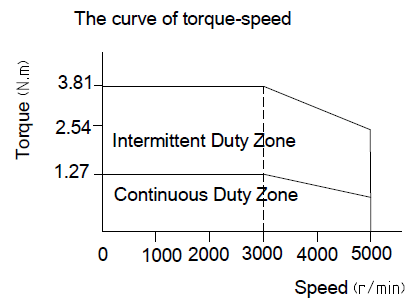

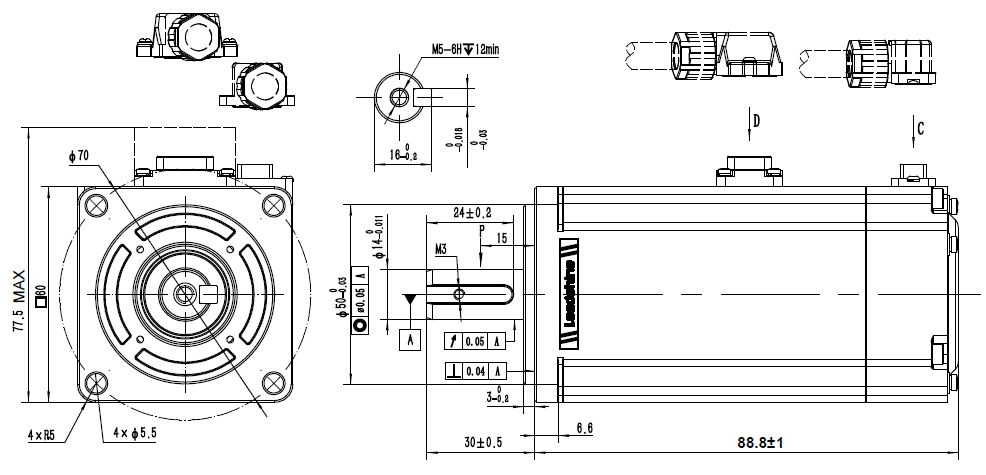

| Parameter | Unit | ELM1H-0400MA60F |
|---|---|---|
| Frame size | mm | 60 |
| Peak current | Amp | 6.5 |
| Torque Constant | N.m/Amp | 0.645 |
| Back-EMF constant | N.m/Amp | 39 |
| Winding resistance | Ω | 5.7 |
| Inductance | mH | 12 |
| Rotor inertia | kg*m²*10^(-4) | 0.56 |
| Poles | 10 | |
| Encoder Type | 23bit magnetic | |
| IP Rating | IP67 | |
| Weight | kg | 1.3 |
| Nominal power | W | 400 |
| Motor length | mm | 88.8 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 1.27 |
| Nominal speed | rpm | 3000 |
| Encoder | 23-bit | |
| Brake | No | |
| Peak Speed | rpm | 5000 |
| Nominal current | Arms | 2.1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-0400MA60F
PDF Downloads
ELM1H-0400MA60F
models_3D
ELM1H-0400MA60F
| Parameter | Unit | ELM1H-0750MA80E |
|---|---|---|
| Frame size | mm | 80 |
| Peak current | Amp | 13.4 |
| Torque Constant | N.m/Amp | 0.645 |
| Back-EMF constant | N.m/Amp | 39 |
| Winding resistance | Ω | 1.7 |
| Inductance | mH | 8 |
| Rotor inertia | kg*m²*10^(-4) | 1.65 |
| Poles | 10 | |
| Encoder Type | 23bit magnetic | |
| IP Rating | IP67 | |
| Weight | kg | 2.7 |
| Nominal power | W | 750 |
| Motor length | mm | 121.9 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 2.39 |
| Nominal speed | rpm | 3000 |
| Encoder | 23-bit | |
| Brake | Yes | |
| Peak Speed | rpm | 5000 |
| Nominal current | Arms | 4.1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-0750MA80E
PDF Downloads
ELM1H-0750MA80E
models_3D
ELM1H-0750MA80E

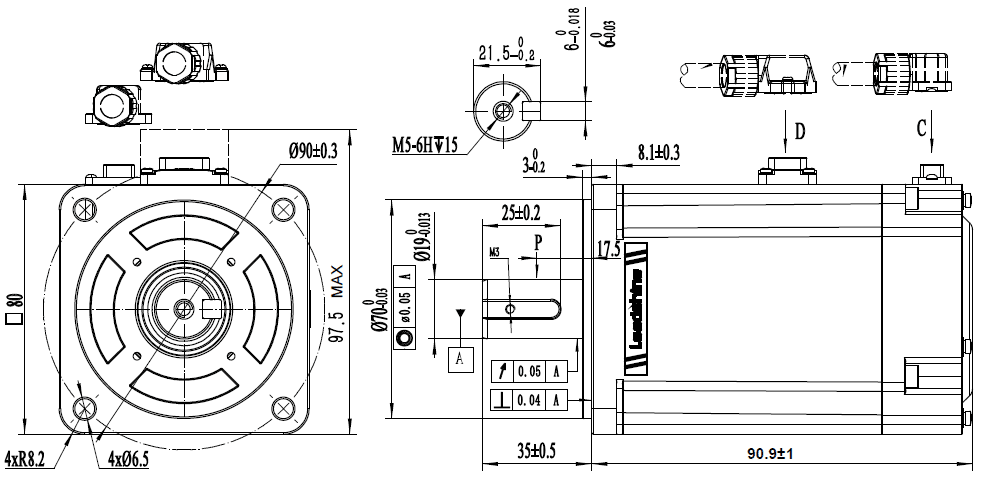

| Parameter | Unit | ELM1H-0750MA80F |
|---|---|---|
| Frame size | mm | 80 |
| Peak current | Amp | 13.4 |
| Torque Constant | N.m/Amp | 0.645 |
| Back-EMF constant | N.m/Amp | 39 |
| Winding resistance | Ω | 1.7 |
| Inductance | mH | 8 |
| Rotor inertia | kg*m²*10^(-4) | 1.5 |
| Poles | 10 | |
| Encoder Type | 23bit magnetic | |
| IP Rating | IP67 | |
| Weight | kg | 2.12 |
| Nominal power | W | 750 |
| Motor length | mm | 90.9 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 2.39 |
| Nominal speed | rpm | 3000 |
| Encoder | 23-bit | |
| Brake | No | |
| Peak Speed | rpm | 5000 |
| Nominal current | Arms | 4.1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-0750MA80F
PDF Downloads
ELM1H-0750MA80F
models_3D
ELM1H-0750MA80F

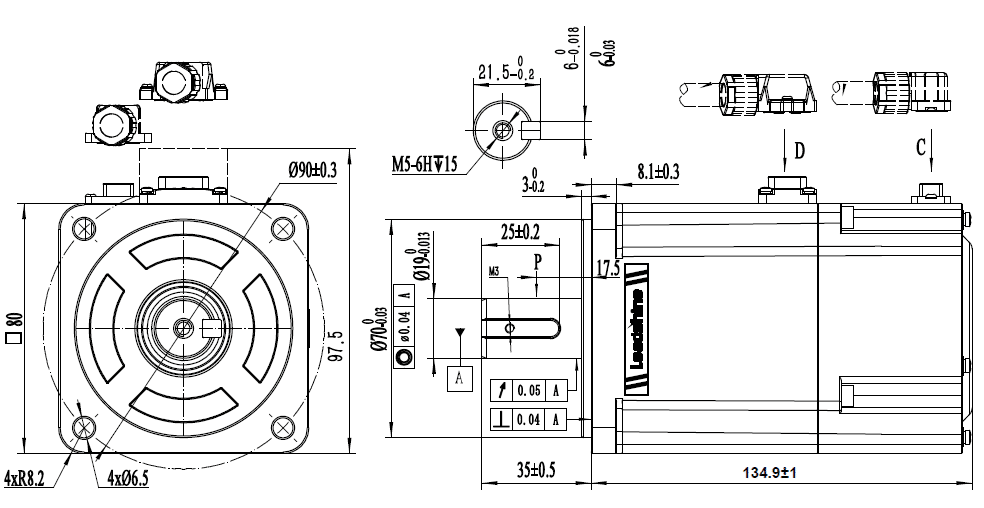

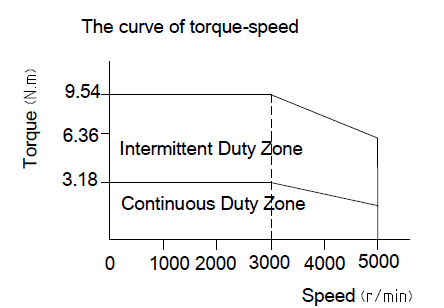

| Parameter | Unit | ELM1H-1000MA80E |
|---|---|---|
| Frame size | mm | 80 |
| Peak current | Amp | 17.7 |
| Torque Constant | N.m/Amp | 0.56 |
| Back-EMF constant | N.m/Amp | 38.3 |
| Winding resistance | Ω | 1.08 |
| Inductance | mH | 5.6 |
| Rotor inertia | kg*m²*10^(-4) | 2.15 |
| Poles | 10 | |
| Encoder Type | 23bit magnetic | |
| IP Rating | IP67 | |
| Weight | kg | 3.4 |
| Nominal power | W | 1000 |
| Motor length | mm | 134.9 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 3.18 |
| Nominal speed | rpm | 3000 |
| Encoder | 23-bit | |
| Brake | Yes | |
| Peak Speed | rpm | 5000 |
| Nominal current | Arms | 5.7 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-1000MA80E
PDF Downloads
ELM1H-1000MA80E
models_3D
ELM1H-1000MA80E
| Parameter | Unit | ELM1H-1000MA80F |
|---|---|---|
| Frame size | mm | 80 |
| Peak current | Amp | 17.7 |
| Torque Constant | N.m/Amp | 0.56 |
| Back-EMF constant | N.m/Amp | 38.3 |
| Winding resistance | Ω | 1.08 |
| Inductance | mH | 5.6 |
| Rotor inertia | kg*m²*10^(-4) | 2.0 |
| Poles | 10 | |
| Encoder Type | 23bit magnetic | |
| IP Rating | IP67 | |
| Weight | kg | 2.8 |
| Nominal power | W | 1000 |
| Motor length | mm | 103.9 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 3.18 |
| Nominal speed | rpm | 3000 |
| Encoder | 23-bit | |
| Brake | No | |
| Peak Speed | rpm | 5000 |
| Nominal current | Arms | 5.7 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-1000MA80F
PDF Downloads
ELM1H-1000MA80F
models_3D
ELM1H-1000MA80F
| Parameter | Unit | ELM1H-0850MD130E-H |
|---|---|---|
| Frame size | mm | 130 |
| Peak current | Amp | 20.4 |
| Torque Constant | N.m/Amp | 0.79 |
| Back-EMF constant | N.m/Amp | 47.9 |
| Winding resistance | Ω | 0.87±10% |
| Inductance | mH | 8.3±20% |
| Rotor inertia | kg*m²*10^(-4) | 14.8 |
| Poles | 10 | |
| Encoder Type | 23bit Magnetic | |
| IP Rating | IP65 | |
| Weight | kg | 6.9 |
| Nominal power | W | 850 |
| Motor length | 153.5 | |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 5.39 |
| Nominal speed | rpm | 1500 |
| Encoder | 23-bit | |
| Brake | Yes | |
| Peak Speed | rpm | 4500 |
| Nominal current | Arms | 6.8 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-0850MD130E-H
PDF Downloads
ELM1H-0850MD130E-H
drawings_2D
ELM1H-0850MD130E-H
| Parameter | Unit | ELM1H-0850MD130F-H |
|---|---|---|
| Frame size | mm | 130 |
| Peak current | Amp | 20.4 |
| Torque Constant | N.m/Amp | 0.79 |
| Back-EMF constant | N.m/Amp | 47.9 |
| Winding resistance | Ω | 0.87±10% |
| Inductance | mH | 8.3±20% |
| Rotor inertia | kg*m²*10^(-4) | 12.5 |
| Poles | 10 | |
| Encoder Type | 23bit Magnetic | |
| IP Rating | IP65 | |
| Weight | kg | 5.5 |
| Nominal power | W | 850 |
| Motor length | mm | 126 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 5.39 |
| Nominal speed | rpm | 1500 |
| Encoder | 23-bit | |
| Brake | No | |
| Peak Speed | rpm | 4500 |
| Nominal current | Arms | 6.8 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-0850MD130F-H
PDF Downloads
ELM1H-0850MD130F-H
drawings_2D
ELM1H-0850MD130F-H
| Parameter | Unit | ELM1H-1300MD130E-H |
|---|---|---|
| Frame size | mm | 130 |
| Peak current | Amp | 27.9 |
| Torque Constant | N.m/Amp | 0.86 |
| Back-EMF constant | N.m/Amp | 52.4 |
| Winding resistance | Ω | 0.58±10% |
| Inductance | mH | 5.8±20% |
| Rotor inertia | kg*m²*10^(-4) | 21 |
| Poles | 10 | |
| Encoder Type | 23bit Magnetic | |
| IP Rating | IP65 | |
| Weight | kg | 8.4 |
| Nominal power | W | 1300 |
| Motor length | mm | 171.5 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 8.34 |
| Nominal speed | rpm | 1500 |
| Encoder | 23-bit | |
| Brake | Yes | |
| Peak Speed | rpm | 4500 |
| Nominal current | Arms | 9.3 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-1300MD130E-H
PDF Downloads
ELM1H-1300MD130E-H
drawings_2D
ELM1H-1300MD130E-H

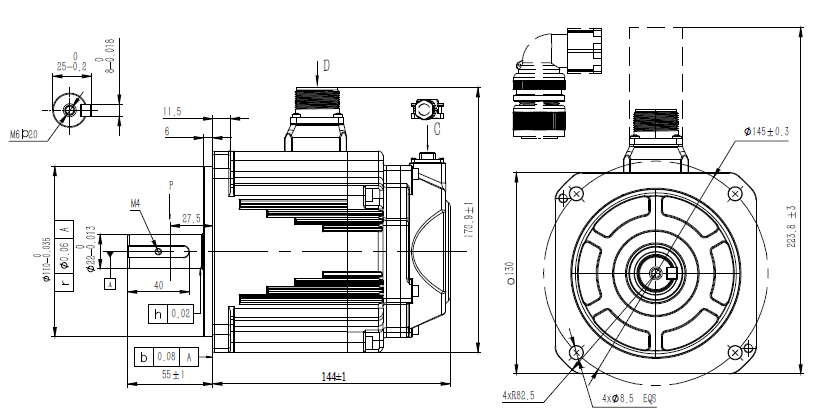

| Parameter | Unit | ELM1H-1300MD130F-H |
|---|---|---|
| Frame size | mm | 130 |
| Peak current | Amp | 27.9 |
| Torque Constant | N.m/Amp | 0.86 |
| Back-EMF constant | N.m/Amp | 52.4 |
| Winding resistance | Ω | 0.58±10% |
| Inductance | mH | 5.8±20% |
| Rotor inertia | kg*m²*10^(-4) | 21 |
| Poles | 10 | |
| Encoder Type | 23bit Magnetic | |
| IP Rating | IP65 | |
| Weight | kg | 8.4 |
| Nominal power | W | 1300 |
| Motor length | mm | 144 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 8.34 |
| Nominal speed | rpm | 1500 |
| Encoder | 23-bit | |
| Brake | No | |
| Peak Speed | rpm | 4500 |
| Nominal current | Arms | 9.3 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-1300MD130F-H
PDF Downloads
ELM1H-1300MD130F-H
models_3D
ELM1H-1300MD130F-H

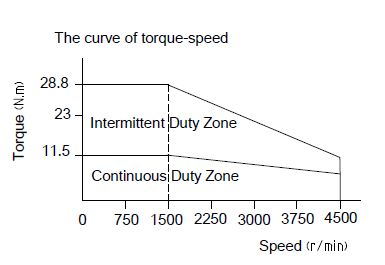

| Parameter | Unit | ELM1H-1800MD130E-H |
|---|---|---|
| Frame size | mm | 130 |
| Peak current | Amp | 0.95 |
| Torque Constant | N.m/Amp | 57.8 |
| Back-EMF constant | N.m/Amp | 0.55±10% |
| Winding resistance | Ω | 5.8±20% |
| Inductance | mH | 26.1 |
| Rotor inertia | kg*m²*10^(-4) | 10 |
| Poles | 23bit Magnetic | |
| Encoder Type | IP65 | |
| IP Rating | 9.7 | |
| Weight | kg | 8.4 |
| Nominal power | W | 1800 |
| Motor length | mm | 189.5 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 11.5 |
| Nominal speed | rpm | 1500 |
| Encoder | 23-bit | |
| Brake | Yes | |
| Peak Speed | rpm | 11.2 |
| Nominal current | Arms | 29.3 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-1800MD130E-H
PDF Downloads
ELM1H-1800MD130E-H

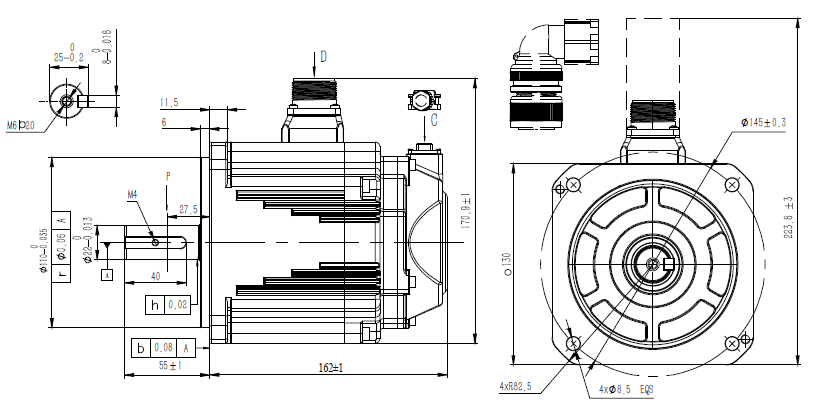

| Parameter | Unit | ELM1H-1800MD130F-H |
|---|---|---|
| Frame size | mm | 130 |
| Peak current | Amp | 29.3 |
| Torque Constant | N.m/Amp | 0.95 |
| Back-EMF constant | N.m/Amp | 57.8 |
| Winding resistance | Ω | 0.55±10% |
| Inductance | mH | 5.8±20% |
| Rotor inertia | kg*m²*10^(-4) | 23.8 |
| Poles | 10 | |
| Encoder Type | 23bit Magnetic | |
| IP Rating | IP65 | |
| Weight | kg | 8.3 |
| Nominal power | W | 1800 |
| Motor length | mm | 162 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 11.5 |
| Nominal speed | rpm | 1500 |
| Encoder | 23-bit | |
| Brake | No | |
| Peak Speed | rpm | 4500 |
| Nominal current | Arms | 11.2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1H-1800MD130F-H
PDF Downloads

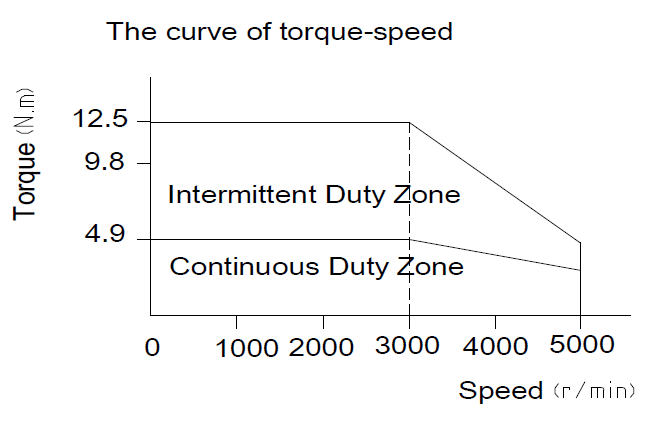

| Parameter | Unit | ELM1M-1500MA130E-H |
|---|---|---|
| Frame size | mm | 130 |
| Peak current | Amp | 17.1 |
| Torque Constant | N.m/Amp | 0.72±10% |
| Back-EMF constant | N.m/Amp | / |
| Winding resistance | Ω | / |
| Inductance | mH | / |
| Rotor inertia | kg*m²*10^(-4) | 14.8 |
| Poles | 10 | |
| Encoder Type | 23bit magnetic | |
| IP Rating | IP65 | |
| Weight | kg | 6.9 |
| Nominal power | W | 1500 |
| Motor length | mm | 153.5 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 4.9 |
| Nominal speed | rpm | 1500 |
| Encoder | 23-bit | |
| Brake | Yes | |
| Peak Speed | rpm | 5500 |
| Nominal current | Arms | 6.8 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
ELM1M-1500MA130E-H
PDF Downloads

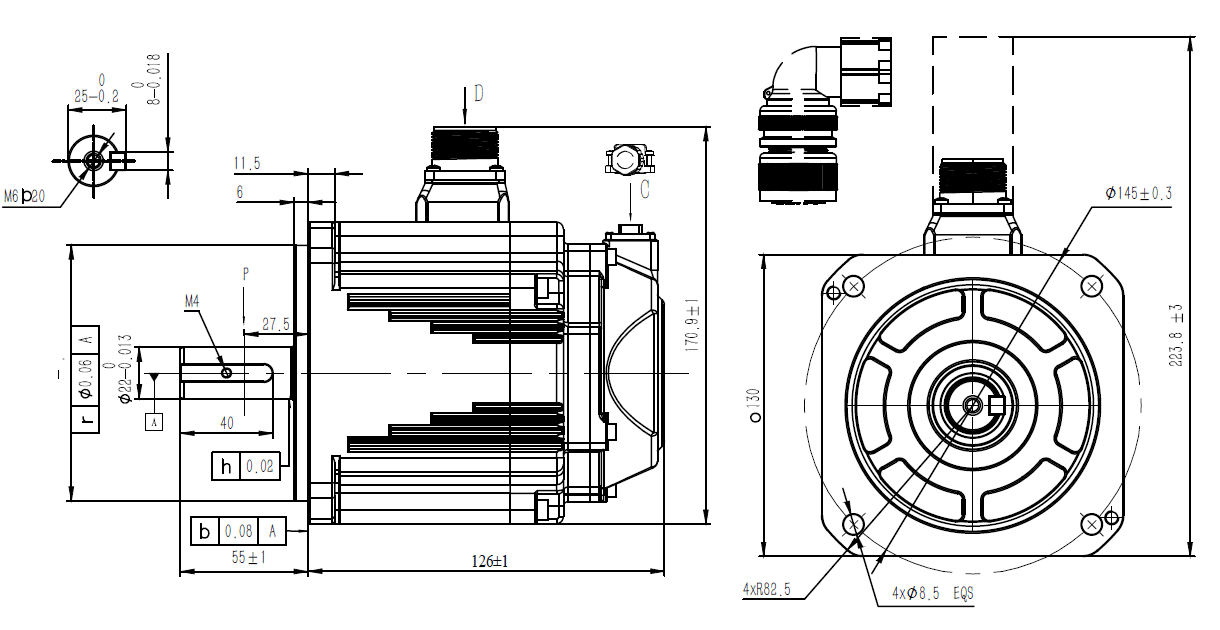

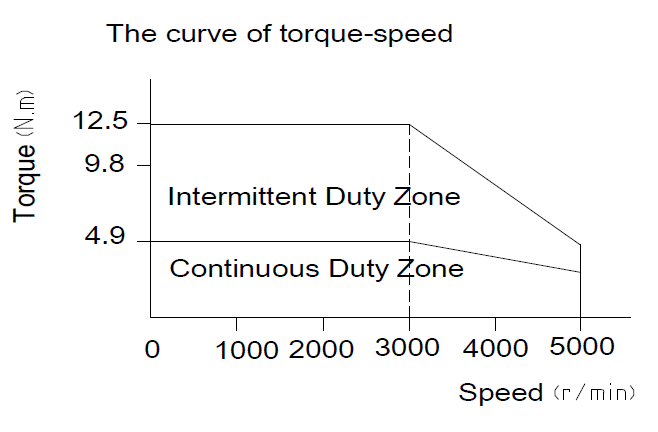

| Parameter | Unit | ELM1M-1500MA130F-H |
|---|---|---|
| Frame size | mm | 130 |
| Peak current | Amp | 17.1 |
| Torque Constant | N.m/Amp | 0.72±10% |
| Back-EMF constant | N.m/Amp | / |
| Winding resistance | Ω | / |
| Inductance | mH | / |
| Rotor inertia | kg*m²*10^(-4) | 12.5 |
| Poles | 10 | |
| Encoder Type | 23bit magnetic | |
| IP Rating | IP65 | |
| Weight | kg | 5.5 |
| Nominal power | W | 1500 |
| Motor length | mm | 126 |
| Rated voltage | V | 220 |
| Nominal torque | N.m | 4.9 |
| Nominal speed | rpm | 1500 |
| Encoder | 23-bit | |
| Brake | No | |
| Peak Speed | rpm | 5500 |
| Nominal current | Arms | 6.8 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
